Aruba Instant On 1430 Unmanaged L2 PoE+ Switch και 8 SFP Θύρες

Περιγραφή

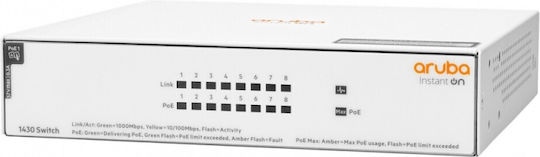

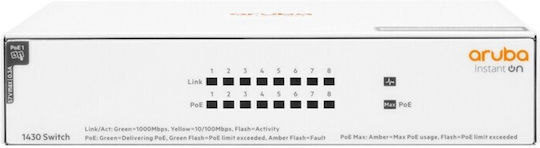

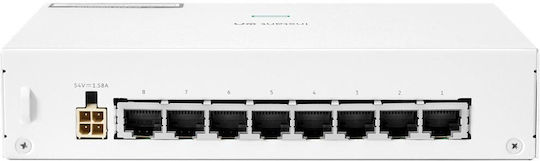

Διακόπτης Aruba Instant On 1430 8G Class4 PoE 64W

Description Aruba Instant On 1430 8G Class4 PoE 64W Switch
1211
1214
1222
1217
1234
1243
21357
1271
1305
4980
1251
1247
4778
11459
1266
Throughput 1
Forwarding rate 1
MAC address table size 8
1221
Jumbo frame size 9
1264
Supported protocols and standards

• IEEE 802.3i 10 Mbps Ethernet
• IEEE 802.3u 100Base-T Ethernet
• IEEE 802.3z 1000 Mbps Ethernet
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af PoE1 (PoE models only)
• IEEE 802.3at PoE1 (PoE models only)
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet

QoS RFC 2474 QoS diffserv (DSCP) mapping
2638
1229
1228
Power consumption 9
Power supply

• Frequency: 50Hz/60Hz
• AC voltage: 100-240VAC
• Current: 2A (54VDC – 1.58A)
• Maximum rated power: 90W
• Idle power: 4,1 W
• PoE power: 64W PoE class 4

Dimensions 150 x 177 x 37 mm
Environment requirements

• Operating temperature: 0 °C to 40 °C
• Relative humidity during operation: 15% to 95% (40 °C) non-condensing
• Rest/storage temperature: -40°C to 70°C
• Relative humidity at rest/storage: 15% to 90% (65°C) non-condensing

Certificates Safety:

• EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 EN/IEC 62368-1, 2nd. & 3rd. Ed.
• UL 62368-1, 3rd. Ed.
• CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
• EN/IEC 60825- 1:2014 Class 1

Emissions:

• EN 55032:2015/ CISPR 32, Class B
• FCC CFR 47 Part 15: 2018, Class B
• ICES-003, Class B
• VCCI-32, Class B
• CNS 13438, Class B
• KS C 9832, Class B
• AS/NZS CISPR 32, Class B

• Immunity BS/EN 55035, CISPR 35, KS C 9835
• Generic EN 55035, CISPR 35
• EN EN/IEC 61000-4-2
• ESD EN/IEC 61000-4-3
• Radiated EN/IEC 61000-4-4
• EFT/Burst EN/IEC 61000-4-5
• Surge EN/IEC 61000-4-6
• Conducted EN/IEC 61000-4-8
• Power frequency magnetic field EN/IEC 61000-4-11
• Voltage dips and interruptions EN/IEC 61000-3-2
• Harmonics EN /IEC 61000-3-3

Other features

• Processor and Memory: 128Kb EEPROM
• Packet buffer size: 2.0 Mb
