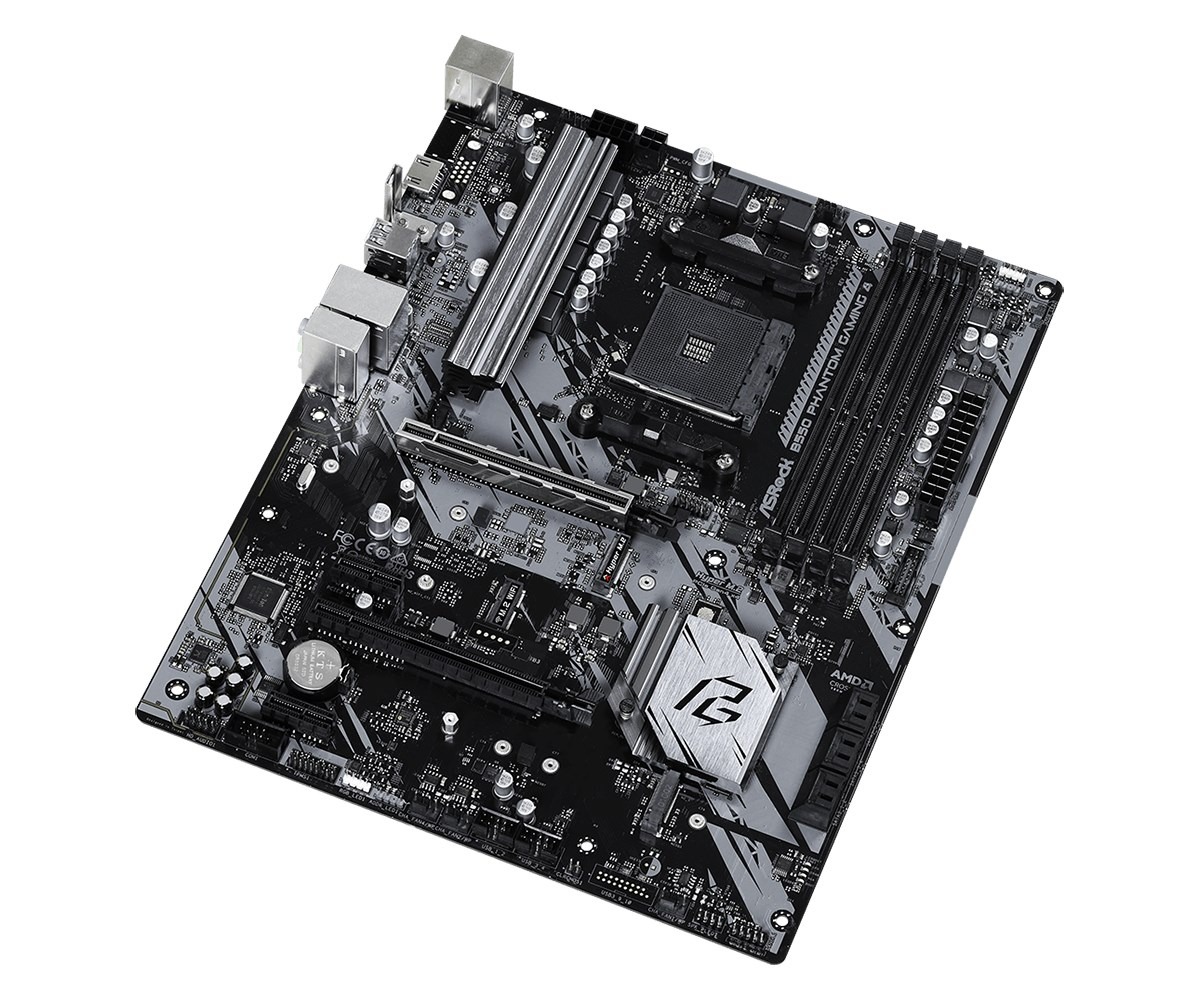

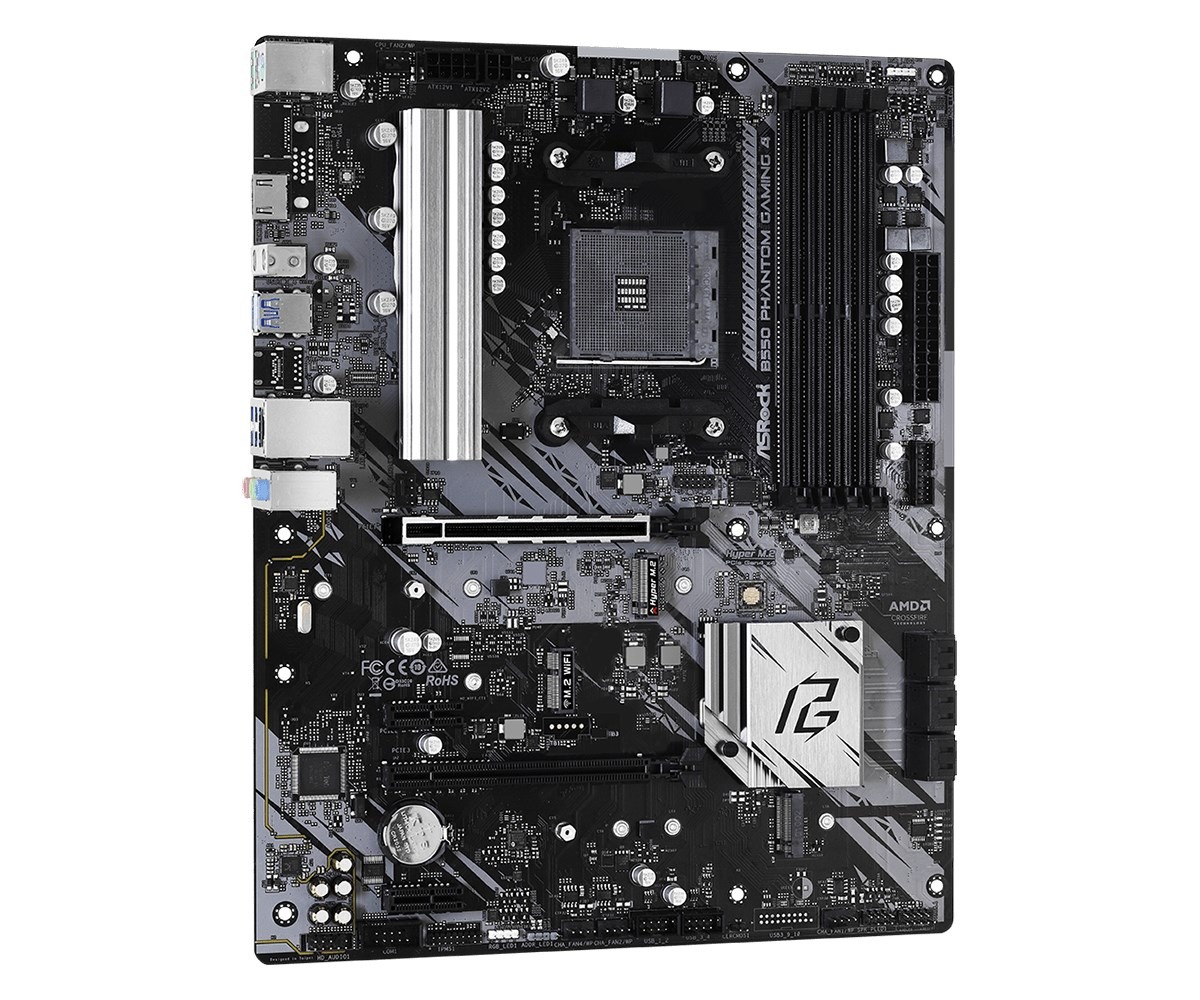

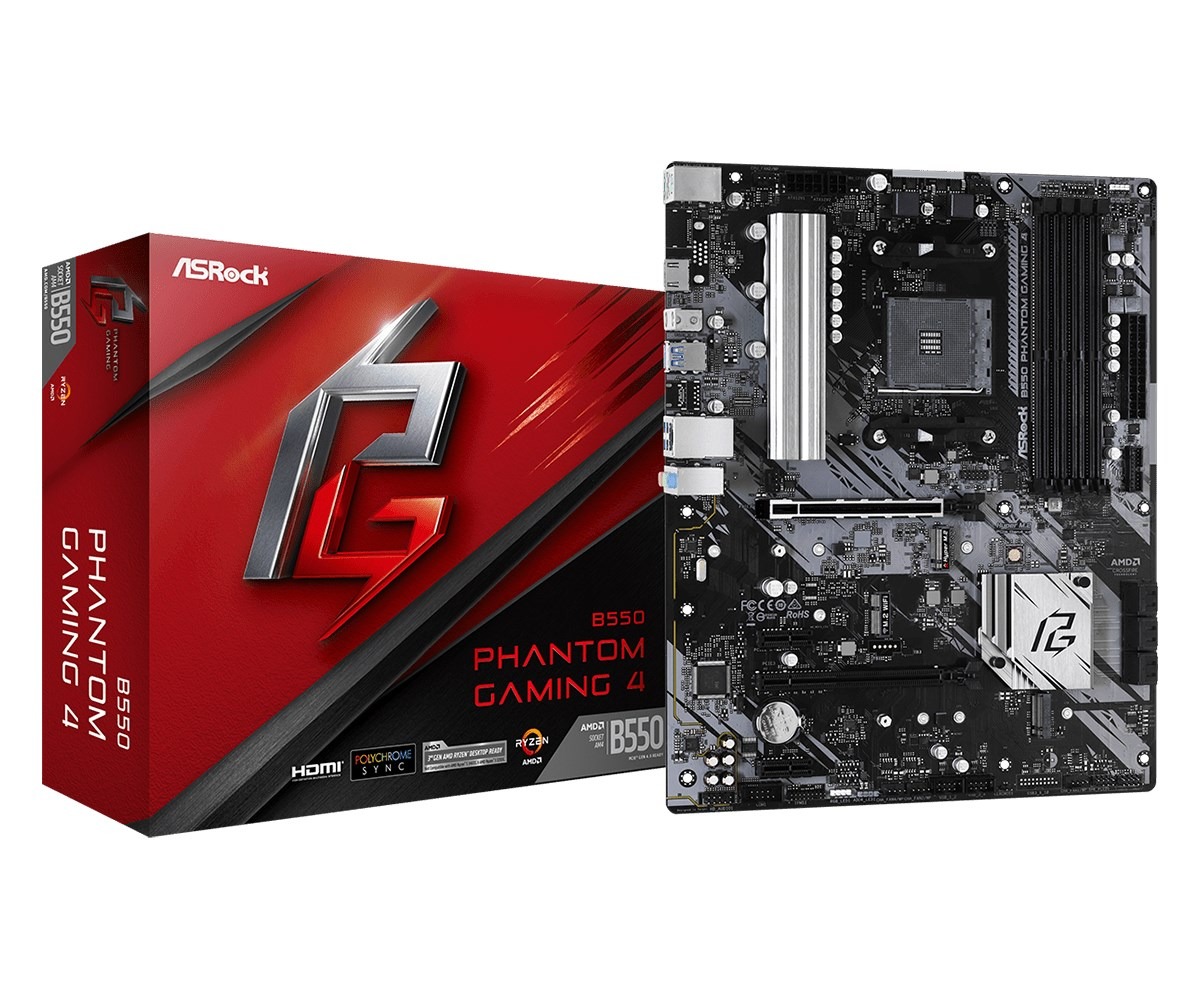

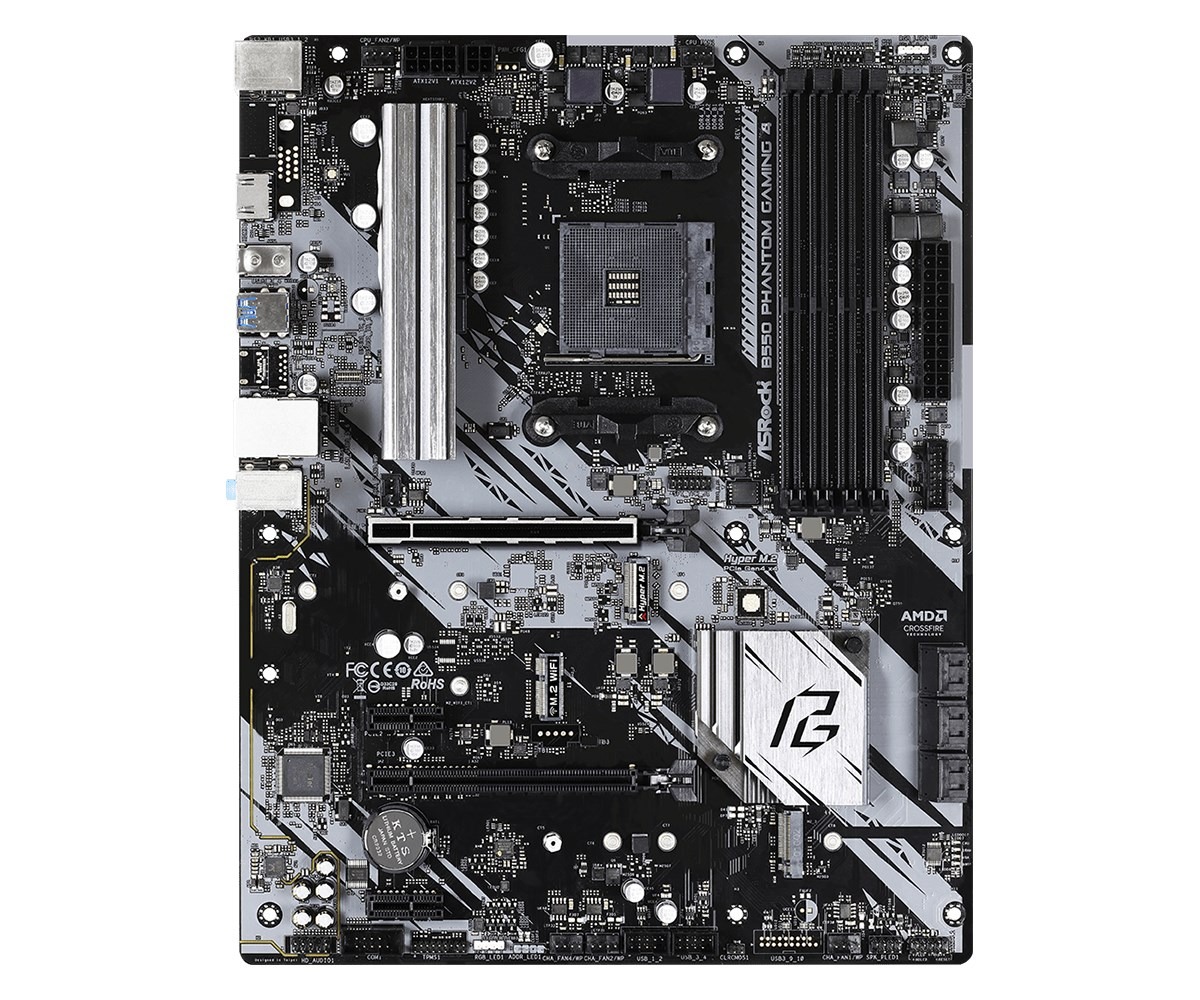

Asrock B550 Phantom Gaming 4 Socket AM4 ATX AMD B550

Περιγραφή

Το Phantom Gaming έχει σχεδιαστεί από gamers και για gamers! Κάτω από την αδιάκοπη εμφάνισή του κρύβονται άφθονα χαρακτηριστικά προσανατολισμένα στα παιχνίδια και εξαιρετικές δυνατότητες παιχνιδιού. Στόχος είναι να φέρετε μια νέα εμπειρία παιχνιδιού στους gamers!

• Υποστηρίζει επεξεργαστές AMD AM4 Ryzen 3ης γενιάς / μελλοντικούς επεξεργαστές AMD Ryzen
• Σχεδιασμός 8 Φάσεων Ισχύος, Digi Power
• Υποστηρίζει DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E για WiFi
• Επιλογές εξόδου γραφικών: HDMI
• AMD CrossFireX
• Ήχος HD 7.1 καναλιών (κωδικοποιητής ήχου Realtek ALC1200), ήχος Nahimic
• 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
• 8 USB 3.2 Gen1 (2 μπροστά, 6 πίσω)
• Gigabit LAN

Description Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. Its all about bringing a new gaming experience to gamers!

• Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
• 8 Power Phase Design, Digi Power
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI
• AMD CrossFireX
• 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
• 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
• 8 USB 3.2 Gen1 (2 Front, 6 Rear)
• Gigabit LAN

Model B550 Phantom Gaming 4
15599
17855
637
587
Chipset type AMD B550
4402
9004
17033
3638
3641
11652
11654
11752
17389
11751
11978
12414
12730
16377
1106
17035
17034
948
18457
Max memory size 1
11530
12362
7966
Max. number of SATA devices 6
635
Detailed data on disk/drive interfaces CPU:

• Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors*
• Digi Power design
• 8 Power Phase design

• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
• 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

Graphics

• Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.**
• Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
• Supports HDR (High Dynamic Range) with HDMI 2.1
• Supports HDCP 2.3 with HDMI 2.1 Port
• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
• Supports Microsoft PlayReady

Sound card

• 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• PCB Isolate Shielding
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio

926
642
Network interface

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
646
389
391
7788
5239
5241
5251
5237
5249
5236
7493
7484
19599
7503
7494
7474
7481
7499
7475
7492
7486
BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support
• Supports “Plug and Play”
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

648
Dimensions 30.5 x 24.4 cm
Accessories included

• Quick installation guide
• CD: drivers, tools, anti-virus software (trial version), Google Chrome browser and toolbar
• 2 x SATA cable
• 3 x M.2 socket screws

9594
Software Software:

• ASRock Motherboard Utility (Phantom Gaming Tuning)
• ASRock Polychrome SYNC
• ASRock Key Master
• ASRock XFast LAN

UEFI:

• ASRock Full HD UEFI
• ASRock Instant Flash
