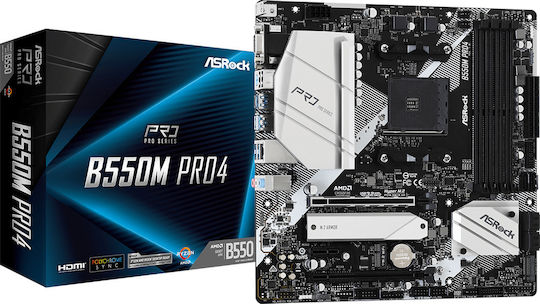

ASRock B550M Pro4 Motherboard Micro ATX με AMD AM4 Socket

Περιγραφή

• Υποστηρίζει επεξεργαστές AMD AM4 Ryzen 3ης γενιάς / μελλοντικούς επεξεργαστές AMD Ryzen
• Σχεδιασμός 8 Φάσεων Ισχύος, Digi Power
• Υποστηρίζει DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Κλειδί E για WiFi
• Επιλογές εξόδου γραφικών: HDMI, DisplayPort, D-Sub
• AMD CrossFireX
• Ήχος HD 7.1 καναλιών (κωδικοποιητής ήχου Realtek ALC1200), ήχος Nahimic
• 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
• 2 USB 3.2 Gen2 (Πίσω Τύπος A+C), 8 USB 3.2 Gen1 (4 Μπροστά, 4 Πίσω)
• Realtek Gigabit LAN

Description

• Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
• 8 Power Phase Design, Digi Power
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• AMD CrossFireX
• 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
• 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
• 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
• Realtek Gigabit LAN

Model B550M Pro4
15599
17855
637
587
Chipset type AMD B550
4402
9004
948
17033
3638
3641
17035
12414
12730
11652
11654
11752
17389
11751
11978
1106
16377
17034
18457
Max memory size 1
11530
7974
19491
12363
Max. number of SATA devices 6
635
Detailed data on disk/drive interfaces

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
• 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

Graphics

• Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.
• Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
• Supports Triple Monitor
• Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
• Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz
• Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
• Supports HDR (High Dynamic Range) with HDMI 2.1
• Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
• Supports Microsoft PlayReady

Sound card

• 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• PCB Isolate Shielding
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio

3639
642
Network interface

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

USB ports at back panel 8
USB ports on motherboard 8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 4
646
390
391
5237
11653
11055
5234
5250
5236
5239
5241
5251
5244
5248
7788
7484
7492
7494
7474
7481
7500
7475
19599
7486
BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support
• Supports “Plug and Play”
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

649
Dimensions 24.4 x 24.4 cm
Accessories included

• Quick installation guide
• CD: drivers, tools, AntiVirus (trial version), Google Chrome browser and toolbar
• 2 x SATA cable
• 2 x M.2 socket screws

9594
Software Software:

• ASRock Motherboard Utility (A-Tuning)
• ASRock XFast LAN

UEFI:

• ASRock Full HD UEFI
• ASRock Instant Flash
