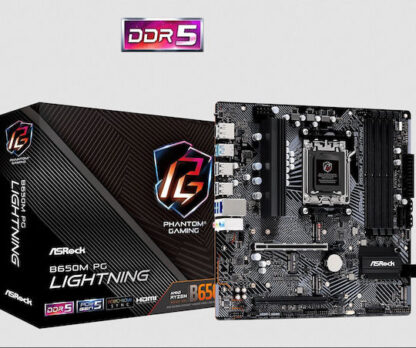

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

Περιγραφή

Μητρική πλακέτα B650M PG Lightning

• Υποστηρίζει επεξεργαστές AMD Socket AM5 Ryzen από τις σειρές 9000, 8000 και 7000
• Σχεδιασμός 6+2+1 φάσεων ισχύος, Dr.MOS
• 4 υποδοχές DDR5 DIMM
• Υποστηρίζει διπλό κανάλι, έως 7200+ MHz (OC)
• Υποδοχές επέκτασης: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16, 1 × M.2 Key-E για Wi-Fi
• Έξοδος γραφικών: HDMI, DisplayPort
• Κωδικοποιητής ήχου: Realtek ALC897 7.1 CH HD
• Υποστήριξη ήχου Nahimic
• Αποθήκευση: 4 × SATA3, 1 × απίστευτη M.2 (PCIe Gen5x4), 1 × Hyper M.2 (PCIe Gen4x4), 1 × M.2 (PCIe Gen4x2)
• Θύρες USB: 1 × USB 3.2 Gen2 Type-A+C (πίσω), 1 × USB 3.2 Gen1 Type-C (μπροστά), 6 × USB 3.2 Gen1 Type-A (2 πίσω, 4 μπροστά)
• Δίκτυο LAN παιχνιδιών: Phantom 2.5G
• Υποστηρίζει το πρόγραμμα αυτόματης εγκατάστασης προγραμμάτων οδήγησης ASRock και το BIOS Flashback

Description B650M PG Lightning Motherboard

• Supports AMD Socket AM5 Ryzen processors from the 9000, 8000, and 7000 series
• 6+2+1 power phase design, Dr.MOS
• 4 DDR5 DIMM slots
• Supports Dual Channel, up to 7200+ MHz (OC)
• Expansion slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16, 1 × M.2 Key-E for Wi-Fi
• Graphics output: HDMI, DisplayPort
• Audio codec: Realtek ALC897 7.1 CH HD
• Nahimic Audio support
• Storage: 4 × SATA3, 1 × blazing M.2 (PCIe Gen5x4), 1 × Hyper M.2 (PCIe Gen4x4), 1 × M.2 (PCIe Gen4x2)
• USB ports: 1 × USB 3.2 Gen2 Type-A+C (rear), 1 × USB 3.2 Gen1 Type-C (front), 6 × USB 3.2 Gen1 Type-A (2 rear, 4 front)
• Gaming LAN: Phantom 2.5G
• Supports ASRock Automatic Driver Installer and BIOS Flashback

Model B650M PG Lightning
22862
15632
19464
637
587
Chipset type AMD B650
4403
22020
Max memory size 2
11530
7974
19491
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces CPU:

• 1 × Blazing M.2 slot (M2_1, M key), supports 2260/2280 PCIe Gen5x4 mode (128 Gb/s)

Chipset:

• 1 × Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64 Gb/s)
• 1 × M.2 slot (M2_3, M key), supports 2260/2280 PCIe Gen4x2 mode (32 Gb/s)
• 4 × SATA3 6.0 Gb/s connectors

Graphics

• Integrated AMD RDNA Graphics (Support may vary depending on the CPU)
• 1 × HDMI 2.1 TMDS/FRL, compatible with 8G, supports HDR, HDCP 2.3, and maximum resolution up to 4K 120Hz
• 1 × DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3, and maximum resolution up to 4K 120Hz

Sound card

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

20762
Network interface

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Phantom Gaming LAN Software
• Intelligent automatic bandwidth control
• Visual, user-friendly interface
• Visual network usage statistics
• Optimized default settings for gaming, browsing, and streaming modes
• User-customizable priority control

USB ports at back panel 8
USB ports on motherboard 8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
646
389
391
5237
5245
5247
25426
7840
5250
5236
5239
5241
5251
25437
10607
23176
7494
7474
7481
7500
7795
7492
23202
7486
7475
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
649
Dimensions 24.4  x 24.4 cm
Accessories included

• 1 × User Manual
• 1 × I/O Shield
• 2 × SATA Data Cables
• 4 × Screws for M.2 Slots

22012
9594
Software Software

• ASRock Motherboard Utility (Funkcja Phantom Gaming Tuning)
• ASRock Sieć Phantom Gaming LAN Software
• ASRock Polychrome SYNC

UEFI

• ASRock Full HD UEFI
• Automatyczny Instalator Sterowników ASRock
• ASRock Funkcja Instant Flash
