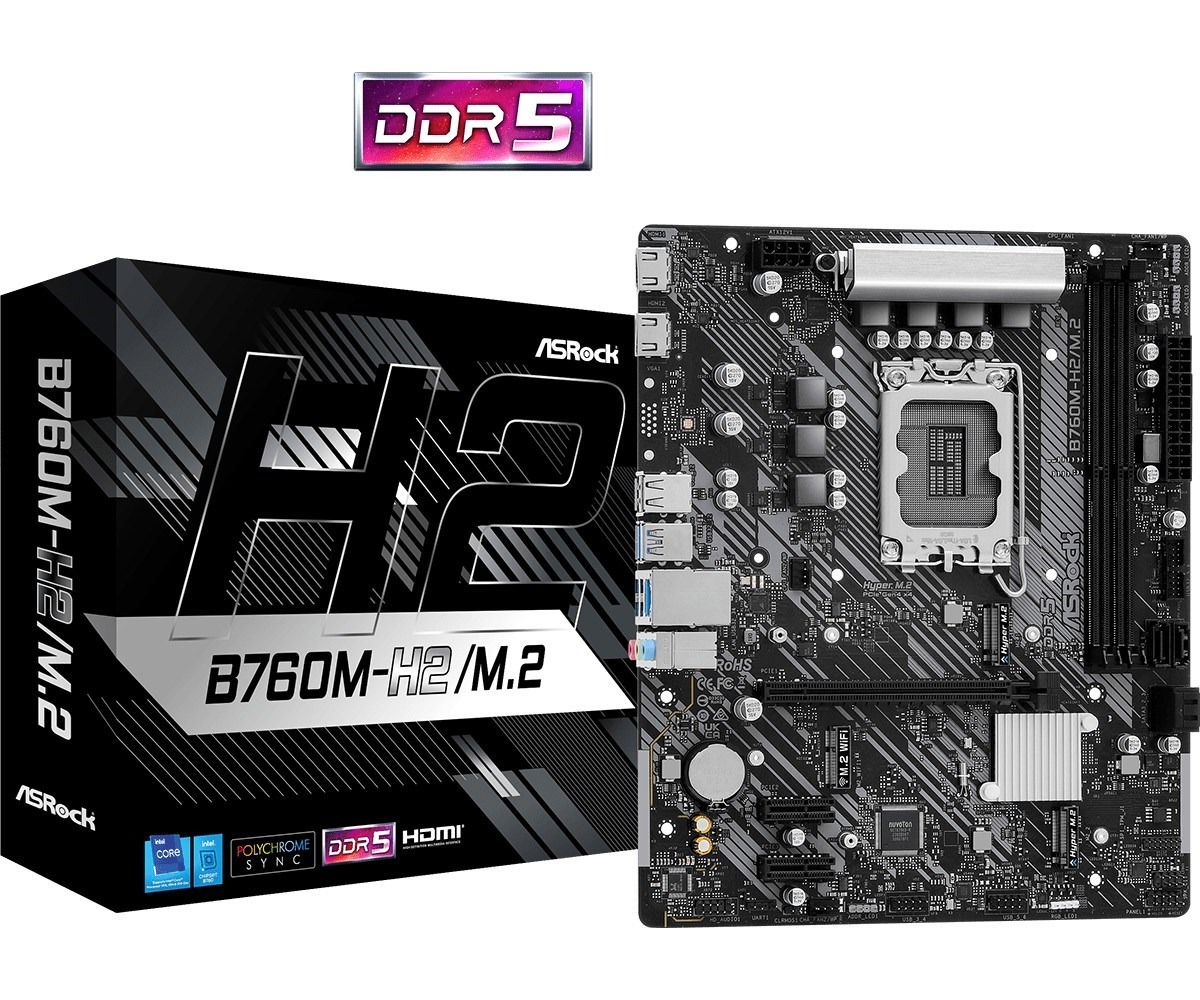

ASRock B760M-H2/M.2 motherboard

Περιγραφή

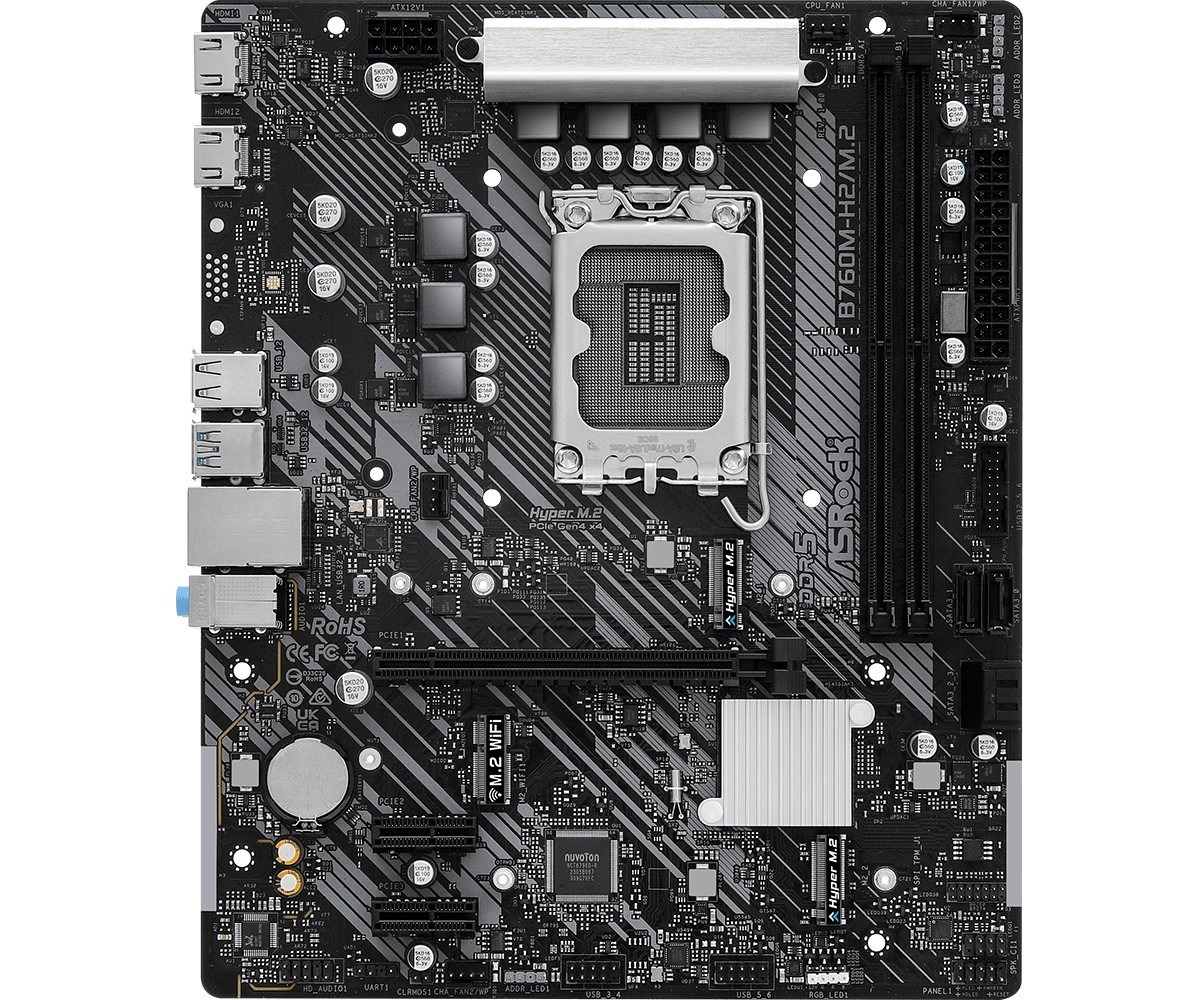

B760M-H2/M.2 Motherboard

• Supports Intel Core 14th, 13th, and 12th generation processors (LGA1700)
• Power phase: 5+1+1
• 2 × DDR5 DIMM slots
• Supports Dual Channel, up to 7200+ MHz (OC)
• Expansion slots: 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1, 1 × M.2 Key E for Wi-Fi
• Graphics output options: 2 × HDMI
• Audio codec: Realtek ALC897 7.1 CH HD
• Storage: 4 × SATA3, 2 × Hyper M.2 (PCIe Gen4x4)
• USB ports: 6 × USB 3.2 Gen1 Type-A (4 rear, 2 front), 6 × USB 2.0 (2 rear, 4 front)
• Network card: Dragon 2.5G
• Supports ASRock Automatic Driver Installer

Description B760M-H2/M.2 Motherboard

• Supports Intel Core 14th, 13th, and 12th generation processors (LGA1700)
• Power phase: 5+1+1
• 2 × DDR5 DIMM slots
• Supports Dual Channel, up to 7200+ MHz (OC)
• Expansion slots: 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1, 1 × M.2 Key E for Wi-Fi
• Graphics output options: 2 × HDMI
• Audio codec: Realtek ALC897 7.1 CH HD
• Storage: 4 × SATA3, 2 × Hyper M.2 (PCIe Gen4x4)
• USB ports: 6 × USB 3.2 Gen1 Type-A (4 rear, 2 front), 6 × USB 2.0 (2 rear, 4 front)
• Network card: Dragon 2.5G
• Supports ASRock Automatic Driver Installer

Model B760M-H2/M.2
21902
21522
24464
23470
22323
637
586
Chipset type Intel B760
4403
22018
Max memory size 1
11530
12362
19491
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces CPU:

• 1 × PCIe 4.0 x16 slot (PCIE1), supports x16 mode*

Chipset:

• 2 × PCIe 3.0 x1 slots (PCIE2 and PCIE3)*
• 1 × M.2 slot (Key E), supports 2230 Wi-Fi/BT PCIe module

Graphics

• Intel Xe Graphics Architecture (Gen 12)
• 2 × HDMI 2.1 TMDS, compatible, supports HDCP 2.3, and maximum resolution up to 4K 60Hz

Sound card 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
20762
Network interface

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN software
• Intelligent automatic bandwidth control
• Visual, user-friendly interface
• Visual network usage statistics
• Optimized default settings for gaming, browsing, and streaming modes
• User-customizable priority control

USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
646
389
391
7840
7785
5239
5241
5251
5237
5244
5248
7475
23176
7494
7474
7481
7499
7492
7486
23202
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
649
Dimensions 24.4 x 20.1 cm
Accessories included

• 1 × User Manual
• 1 × I/O Shield
• 2 × SATA Data Cables
• 3 × Screws for M.2 Slots

22012
9594
Software Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC

UEFI Features

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Automatic Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
