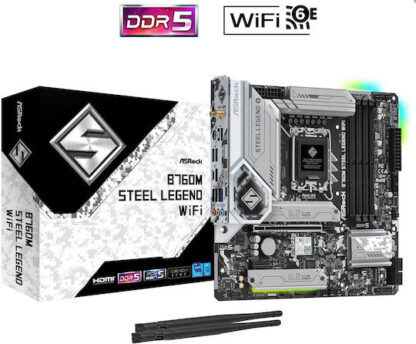

ASRock B760M Steel Legend WiFi Motherboard Micro ATX με Intel 1700 Socket

Περιγραφή

B760M STEEL LEGEND WIFI

• Υποστηρίζει επεξεργαστές Intel Core 13ης και 12ης γενιάς (LGA1700)
• 12+1+1 Φάσεις Ισχύος, Dr.MOS για VCore+GT
• Υποστηρίζει DDR5 7200MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
• Έξοδοι γραφικών: HDMI, DisplayPort, eDP
• Κωδικοποιητής ήχου Realtek ALC897 7.1 καναλιών HD, ήχος Nahimic
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
• 2 θύρες USB 3.2 Gen2 Type-C (1 πίσω, 1 μπροστά),
• 1 USB 3.2 Gen2 Τύπου-A (Πίσω),
• 6 USB 3.2 Gen1 (4 πίσω, 2 μπροστά),
• 6 USB 2.0 (2 πίσω, 4 μπροστά)
• Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
• Υποστηρίζει το πρόγραμμα εγκατάστασης αυτόματων προγραμμάτων οδήγησης ASRock

Description B760M STEEL LEGEND WIFI

• Supports 13th and 12th generation Intel Core processors (LGA1700)
• 12+1+1 Power Phase, Dr.MOS for VCore+GT
• Supports DDR5 7200MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
• Graphics outputs: HDMI, DisplayPort, eDP
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
• 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
• 1 USB 3.2 Gen2 Type-A (Rear),
• 6 USB 3.2 Gen1 (4 Rear, 2 Front),
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
• Supports ASRock Auto Driver Installer

Model B760M STEEL LEGEND WIFI
21902
16315
335
565
685
653
945
637
586
Chipset type Intel B760
4403
22020
23081
Max memory size 1
22890
19530
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces CPU:

• 1 x Hyper M.2 Socket (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64Gbps)

chipset:

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gbps)
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gbps)
• 4 x SATA3 6.0Gb/s connector

Graphics

• Intel Xe graphics architecture (12th generation)
• eDP 1.4, supports max. resolution up to Full HD 60 Hz
• HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and up to 4K 60 Hz max. resolution
• DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Integrated Intel UHD graphics and VGA outputs can only be supported by processors with integrated GPU.
Sound card

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

19467
18721
927
Network interface LAN:

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

Wireless LAN:

• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2×2 with extended 6GHz band support
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3 + High speed class II
• Supports MU-MIMO

USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
646
389
391
7788
7840
5244
5248
11055
5239
5250
5236
11653
5251
5237
5241
23202
23423
7474
11746
7792
12813
7500
19614
7492
7486
23175
12168
23174
7491
23176
7475
Special functions Superb Productivity:

• PCIe Gen5 (Graphics)
• Dual Channel DDR5

Rock-Solid Durability:

• 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT
• Flexible Integrated I/O Shield
• Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore

Ultrafast Connectivity:

• 2.5G LAN, 802.11ax Wi-Fi 6E Module

EZ Update:

• ASRock Auto Driver Installer

EZ Troubleshooter:

• ASRock Post Status Checker

BIOS 128Mb AMI UEFI Legal BIOS with GUI support
649
Dimensions 24.4 x 24.4 cm
Accessories included

• User manual
• 2 x SATA data cable
• 2 x ASRock Wi-Fi 2.4/5/6GHz Antenna
• 3 x Screws for M.2 slot
• 3 x Brackets for M.2 slot

22012
9594
Software Software:

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC

UEFI:

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
