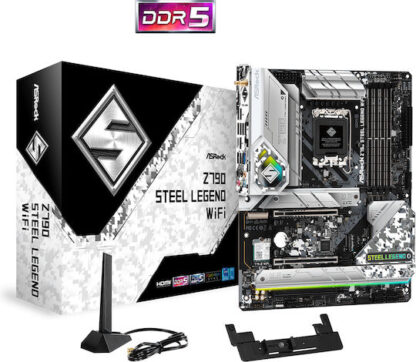

ASRock Z790 Steel Legend Wifi Motherboard ATX με Intel 1700 Socket

Περιγραφή

Μητρική πλακέτα WiFi Z790 Steel Legend WiFi

• Υποστηρίζει επεξεργαστές Intel Core 13ης και 12ης γενιάς
• Σχεδιασμός ισχύος 16+1+1 φάσεων, SPS για VCore+GT
• 4 x DDR5 DIMM, υποστηρίζει έως και 6800+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E για Wi-Fi
• Επιλογές εξόδου γραφικών: 1 HDMI, 1 DisplayPort, eDP
• Ήχος HD 7.1 καναλιών (κωδικοποιητής ήχου Realtek ALC897), Nahimic Audio
• 1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
• 1 USB 3.2 Gen2 Type-C (Μπροστά), 1 USB 3.2 Gen2 Type-C (Πίσω), 1 USB 3.2 Gen2 Type-A (Πίσω), 12 USB 3.2 Gen1 (8 Πίσω, 4 Μπροστά), 3 USB 2.0 (3 Μπροστά)
• Realtek 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth

Description Z790 Steel Legend WiFi motherboard

• Supports 13th and 12th generation Intel Core processors
• 16+1+1 phase power design, SPS for VCore+GT
• 4 x DDR5 DIMM, supports up to 6800+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi
• Graphics output options: 1 HDMI, 1 DisplayPort, eDP
• 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio
• 1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
• 1 USB 3.2 Gen2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front)
• Realtek 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth

Model Z790 Steel Legend WIFI
21902
21522
637
586
Chipset type Intel Z790
4403
22020
23079
Max memory size 1
19491
7974
22890
11530
Max. number of SATA devices 8
635
Detailed data on disk/drive interfaces CPU:

• 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gbps)* mode.
• 1 x Blazing M.2 slot (M2_2, Key M), supports 2260/2280 PCIe Gen5x4 (128 Gbps) mode*.

Chipset:

• 1 x Hyper M.2 slot (M2_3, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gbps)* type.
• 1 x Hyper M.2 slot (M2_4, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)*
• 1 x Hyper M.2 slot (M2_5, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)*
• 8 x SATA3 6.0Gb/s connectors

*Supports Intel Volume Management Device (VMD) Supports NVMe SSD as bootable drives If M2_2 is occupied, PCIE1 will downgrade to x8 mode. Either M2_1 or M2_2 can be used at any given time.
Graphics Intel Xe graphics architecture (Gen 12)

• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
Sound card

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

18721
Network interface 2.5 Gigabit LAN 10/100/1000/2500 Mbps

• Dragon RTL8125BG
• Supports Dragon 2.5G LAN software
• Intelligent automatic bandwidth adjustment
• Visual user-friendly user interface
• Visual network usage statistics
• Optimised default settings for game, browser and streaming modes
• User customisable priority control

USB ports at back panel 1
USB ports on motherboard 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 1
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
646
389
391
5250
5236
5252
5253
5239
5241
5251
5237
5243
11653
7840
11055
7760
7486
19599
12168
7474
7481
7500
7795
7492
19614
7475
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
648
Dimensions 30.5 x 24.4 cm
Accessories included

• 1 x User manual
• 2 x SATA data cables
• 1 x ASRock WiFi 2.4/5/6 GHz antenna
• 4 x Screws for M.2 slots
• 1 x Graphics card holder

22012
9594
Software Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
