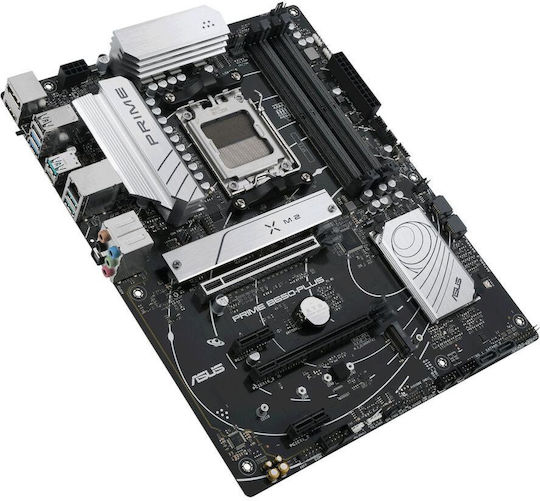

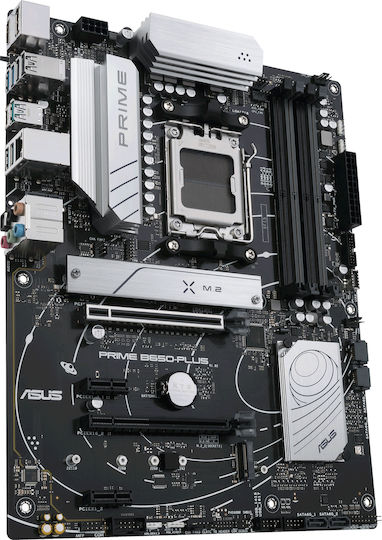

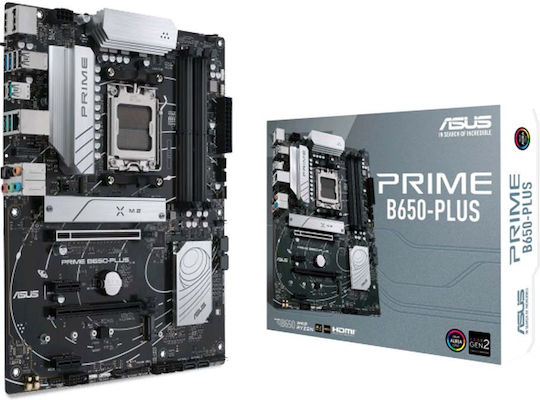

Asus Prime B650-Plus Motherboard ATX με AMD AM5 Socket

Περιγραφή

Model PRIME B650-PLUS
22862
17855
637
587
Chipset type AMD B650 Chipset
4403
22020
21989
22014
22015
22013
21532
19476
22643
22815
20716
Max memory size 1
19531
19492
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces Total supports 2 M.2 and 4 SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors:

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 Slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 chipset:

• 4 SATA 6Gb/s ports

* AMD RAIDXpert2 technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Graphics

• 1 DisplayPort**
• 1 HDMI port***

* Graphics specifications may vary depending on processor type. ** Supports up to 8K @ 60Hz as per DisplayPort 1.4 specification. *** Supports 4K@60Hz according to the HDMI 2.1 specification.
Sound card Realtek 7.1 Surround Sound High Definition Audio CODEC:

• Supports: plug-in detection, multi-streaming, changing plug-in tasks on the front panel
• Supports playback up to 24-bit/192kHz

Audio Features:

• Sound shielding
• High-quality audio capacitors
• Dedicated audio PCB layers

18721
Network interface

• Ethernet: Realtek 2.5Gb Ethernet
• Wireless: Only vertical M.2 slot (Key E, PCIe) – WiFi module sold separately

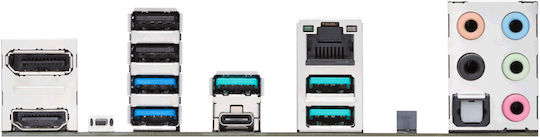

USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 4
646
390
391
11677
23321
5236
5252
5253
5239
5241
5251
5237
5243
5244
11653
5247
19601
5250
7828
7486
19614
7484
7475
23176
7779
19599
7494
7474
11708
7792
12813
7795
7492
7500
Special functions ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• Safeslot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

• Flexible M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
648
Dimensions 30.5 x 24.4 cm

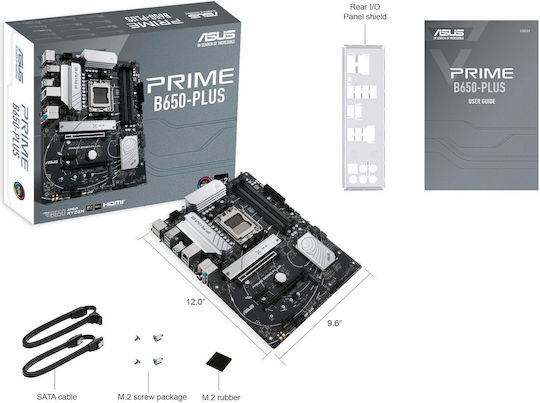

Accessories included

• 2 x SATA 6Gb/s cable
• I/O cover
• M.2 Rubber Pack
• Screw set for M.2 SSD
• User's Guide

22012
9594
Software ASUS Exclusive Software

• ASUS CPU-Z
• Norton Anti-virus software (Free Trial version)
• WinRAR

Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving

AI Suite 3

• TurboV EVO
• DIGI+ VRM
• PC Cleaner

UEFI BIOS

• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
