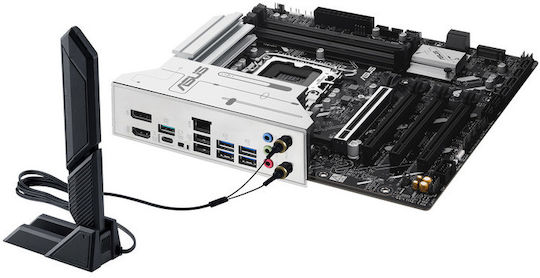

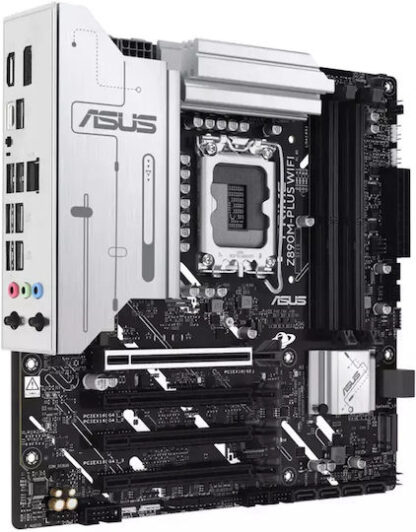

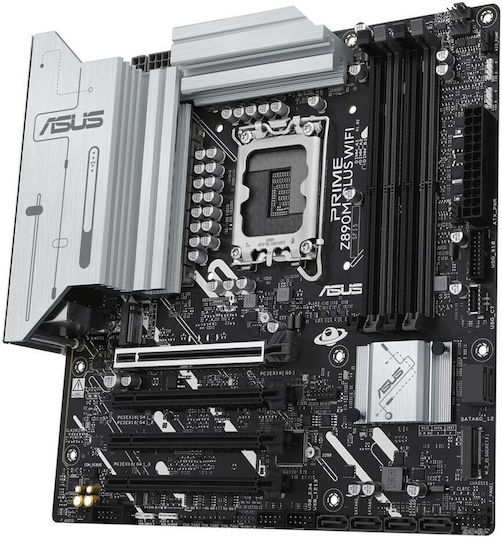

Asus Prime Z890M-PLUS Wifi rev. 1.0 Motherboard Micro ATX με Intel 1851 Socket

Περιγραφή

Prime Z890M-PLUS WIFI
ASUS PRIME Series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra processors (2 Series). Featuring a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and DIY PC enthusiasts with a range of performance optimizations through intuitive software and firmware features. It's designed to be ready for advanced AI computers, offering the power and connectivity needed for demanding AI applications.

Description Prime Z890M-PLUS WIFIASUS PRIME Series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra processors (2 Series). Featuring a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and DIY PC enthusiasts with a range of performance optimizations through intuitive software and firmware features. It's designed to be ready for advanced AI computers, offering the power and connectivity needed for demanding AI applications.
Model PRIME Z890M-PLUS WIFI
25175
24470
637
586
Chipset type Intel Z890 Chipset
4403
22020
23086
Max memory size 1
22890
19491
19492
18363
Max. number of SATA devices 6
635
Detailed data on disk/drive interfaces Intel Core Ultra Processors*M.2_1 (M-Key) socket, type 2280 (supports PCIe 5.0 x4 mode)Intel Z890 ChipsetM.2_2 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)M.2_3 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)6 SATA 6 Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, the M.2 socket on the processor only supports RAID 0/1/5.
Graphics

• 1 x DisplayPort**
• 1 x HDMI port***
• 1 x 20 Gbps USB port (USB Type-C) supports DisplayPort video output****

*Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.**Supports up to 4K@60Hz as per DisplayPort 1.4 specification.***Supports 4K@60Hz as per HDMI 2.1 specification.****Supports up to 4K@120Hz as per DisplayPort 1.4 specification.***** VGA resolution support depends on processor or graphics card resolution.
Sound card Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: jack detection, streaming, and front panel jack remapping
• Supports playback up to 24-bit/192 kHz

Audio Features

• Audio Shielding
• Premium Audio Capacitors
• Dedicated PCB Audio Layers

*7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.
24058
18721
927
Network interface Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless and Bluetooth

• Wi-Fi 7*
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6 GHz frequency bands**
• Supports the 160 MHz Wi-Fi 7 band, up to 2.9 Gbps transfer speeds.
• Bluetooth v5.4***

*Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.**The 6 GHz Wi-Fi frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

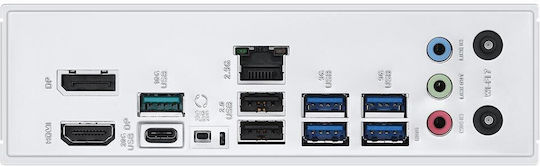

USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
646
390
391
5248
5237
5244
5250
5236
5239
5241
5251
11055
11653
10607
24987
7494
7475
7794
7488
7499
7795
19614
7484
7793
19599
7492
7487
7486
7802
7481
7503
7474
11746
7490
7491
23174
23202
Special functions ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED-ProCool- Pre-mounted I/O shieldAura Sync- Aura RGB header- Addressable Gen 2 headers
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
649
Dimensions 24.4 cm x 24.4 cm
Accessories included

• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 3 x M.2 SSD screw packs
• 1 x Quick Start Guide

22012
Software

• ASUS Exclusive Software
• Armory Crate
• – Aura Sync
• – Fan Xpert 4 (with AI Cooling II)
• – Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• ASUS CPU-Z
• Norton 360 for Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI BIOS EZ Mode
• – ASUS MyHotkey
