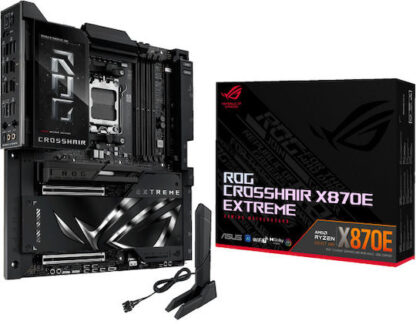

ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX

Περιγραφή

ROG CROSSHAIR X870E EXTREME

The ROG Crosshair X870E Extreme is the flagship AMD Ryzen 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.

ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and >straightforward way.

AI OVERCLOCKING
Tuning is now faster and smarter than ever before.

AI COOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of >WiFi 7.

Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.

Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair X870E Apex features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.

DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair >X870E Extreme.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

PCIE 5.0
Fully embracing the new standard, the ROG Crosshair X870E Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

Advanced Mode
When you're ready for a deeper dive, delve into the UEFI's Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.

My Favorites
Quickly locate tuning options and add preferred tools to your favorites list.

EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.

S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.

GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.

Secure Erase
Restore your SSDs and NVMe storage to factory settings.

Last Modified Log
Track the last change and save preferred profiles to a USB drive.

SATA Port Renaming
Rename SATA ports for easy identification.

ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.

Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.

Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

SOFTWARE
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

ASUS GlidEx
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.

HWiNFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.

AIDA64 Extreme
The ROG Crosshair X870E Extreme includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers.

Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lightingscheme across your system. In addition, Armoury Crates Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

PERSONALIZATION
Boundless creativity, endless style.
The ROG Crosshair X870E Extreme features a full-color 5-inch LCD screen that can show exclusive ROG animations, system information and even personalized services through Armoury Crate, empowering gamers to define their unique style on a vibrant display.

---

Description ROG CROSSHAIR X870E EXTREME The ROG Crosshair X870E Extreme is the flagship AMD Ryzen 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style. ASUS AI CACHE BOOSTSupercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks. ASUS AI ADVISORUsing AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and >straightforward way. AI OVERCLOCKINGTuning is now faster and smarter than ever before. AI COOLING IIBalance the thermals and acoustics of any build with a single click. AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of >WiFi 7. Dynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking. Core FlexCore Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. Asynchronous ClockFor next-level frequency flexibility, the ROG Crosshair X870E Apex features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. PBO ENHANCEMENTAMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. DDR5 DOMINATIONThanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair >X870E Extreme. DIMM Fit / DIMM Fit ProDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization. AEMPASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. PCIE 5.0Fully embracing the new standard, the ROG Crosshair X870E Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available. UEFI BIOSThe renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. BIOS Q-DASHBOARDSimplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup. Advanced ModeWhen you're ready for a deeper dive, delve into the UEFI's Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need. My FavoritesQuickly locate tuning options and add preferred tools to your favorites list. EZ Flash 3Flash the latest BIOS via the internet from within the BIOS. S.M.A.R.T.Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures. GPU POSTAutomatically detect selected ASUS graphics cards to view detailed information. Secure EraseRestore your SSDs and NVMe storage to factory settings. Last Modified LogTrack the last change and save preferred profiles to a USB drive. SATA Port RenamingRename SATA ports for easy identification. ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends. Q-Fan ControlConfigure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C. Aura On/Off mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic. SOFTWAREASUS DriverHubASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently. Dolby AtmosDolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener. ASUS GlidExASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS. HWiNFOHWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies. AIDA64 ExtremeThe ROG Crosshair X870E Extreme includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers. Armoury CrateArmoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lightingscheme across your system. In addition, Armoury Crates Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers. PERSONALIZATIONBoundless creativity, endless style.The ROG Crosshair X870E Extreme features a full-color 5-inch LCD screen that can show exclusive ROG animations, system information and even personalized services through Armoury Crate, empowering gamers to define their unique style on a vibrant display.
Model ROG CROSSHAIR X870E EXTREME
22862
17855
637
587
Chipset type AMD X870E
4403
22020
25303
Max memory size 2
7966
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)

AMD X870E Chipset

• DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.

  4 x SATA 6Gb/s ports
Graphics

• 1 x HDMITM port
• 2 x USB4 (40Gbps) ports support USB Type-C display outputs

Sound card ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

• SupremeFX Shielding Technology
• ESS ES9219 QUAD DAC
• LED-illuminated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors

11371
20382
Network interface Ethernet:

• 1 x Realtek 5Gb Ethernet
• 1 x Marvell AQtion 10Gb Ethernet
• ASUS LANGuard

  Wireless & Bluetooth

• Wi-Fi 7
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate
• Bluetooth v5.4

USB ports at back panel 1
USB ports on motherboard 1
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 1
646
389
391
25425
19601
24987
5236
5241
5251
5926
5243
26304
7778
24369
26312
23426
26305
26306
10609
26310
26308
7851
7775
25452
25769
7487
7486
7768
26313
26309
26311
23314
9173
9174
26307
23207
23085
7792
25570
25807
12168
7474
7475
7794
7764
12813
25758
9169
Special functions Extreme OC Kit

• FlexKey button
• LN2 Mode
• ProbeIt
• ReTry button
• Safe boot button
• Start button
• Slow Mode

Extreme Engine Digi+

• 10K Black Metallic Capacitors
• MicroFine Alloy Choke

ASUS Q-Design

• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-Code
• Q-Connector
• Q-Dashboard
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• Q-DIMM.2

ASUS Thermal Solution

• Fan bracket
• M.2 heatsink backplate
• M.2 heatsink
• Metal backplate
• VRM heatsink design
• 3D VC M.2 Heatsink

ASUS EZ DIY

• Backplate
• BIOS FlashBack button
• Clear CMOS button
• CPU Socket lever protector
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

Aura Sync

• Addressable Gen 2 headers

Dual BIOS Full Color 5″ LCD Display Front Panel USB 20Gbps with Quick Charge 4+ Support

• Support: up to 60W fast charging and USBWattage Watcher*
• Output: 5/9/15/20V max. 3A, PPS:3.321V max. 3A
• Compatible with PD3.0 and PPS

BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
1660
Dimensions 30.5 x 27.7 cm
Accessories included

• 1-to-3 ARGB splitter cable
• 1-to-2 ARGB splitter cable
• 2 x 1-to-4 fan splitter cable
• 2 x ROG weave SATA 6G cable packages
• 3-in-1 Thermistor cables pack
• ROG DIMM.2 with heatsink
• M.2 pad package for ROG Q-DIMM.2
• 2 x Thermal pad for ROG Q-DIMM.2
• 2 x Thermal pad for M.2 22110
• DDR5 Fan holder
• ROG Fan Kit
• ASUS WiFi Q-Antenna
• Q-connector
• ROG logo plate sticker
• ROG screwdriver
• ROG stickers
• ROG VIP card
• M.2 Q-Slide package
• 5 x M.2 backplate rubber packages
• ROG Bottle Opener
• USB drive with utilities and drivers
• Quick start guide

22012
Software ROG Exclusive Software

• ROG CPU-Z
• Dolby Atmos
• Internet Security (1-year full version)

ASUS Exclusive Software Armoury Crate

• AIDA64 Extreme (1 year full version)
• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• GameFirst
• HWiNFO
• Power Saving
• LCD Display

ASUS AI Advisor ASUS DriverHub Turbo Vcore ASUS GlideX USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey FlexKey
