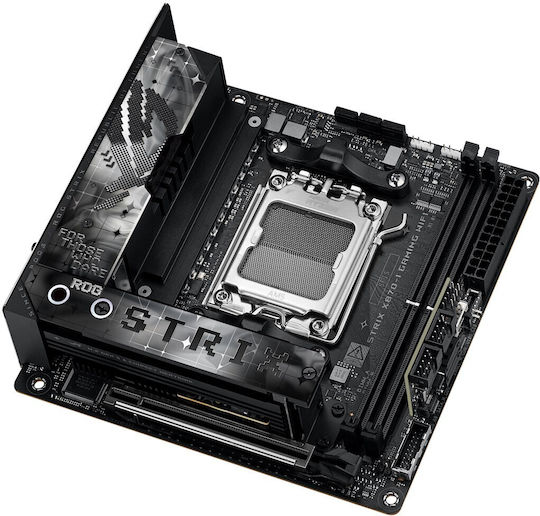

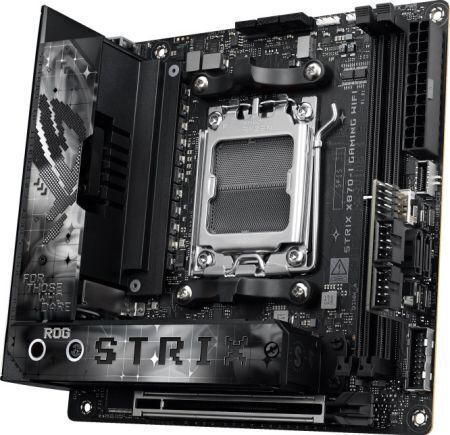

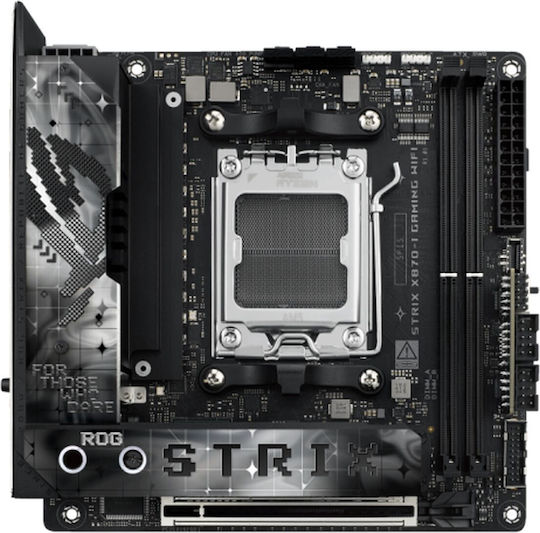

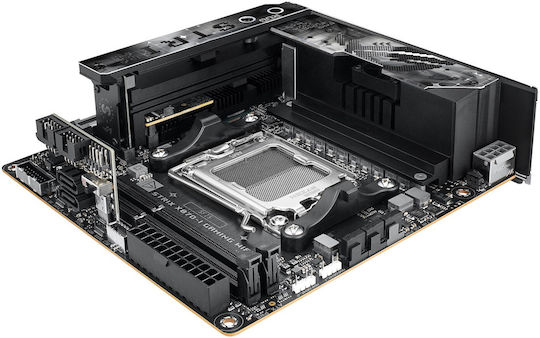

Asus ROG STRIX X870-I Gaming WIFI Motherboard Mini ITX με AMD AM5 Socket

Περιγραφή

ROG STRIX X870-I GAMING WIFI

AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI COOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

DDR5 DOMINATION
The Strix X870-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.

AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

ROG STRIX HIVE II
The ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features.

ROG FPS Card
The ROG FPS card groups I/O onto a vertically-mounted card, saving valuable motherboard space and tidying cable management.

UNDENIABLY ROG STRIX
The I/O shield and M.2 heatsink feature a perforated metal mesh that can either reflect the glow of internal RGB components or blend seamlessly into the shadows of a stealthy build. The cyber-style text and sharp, angular details firmly establish this motherboard as a member of the ROG Strix family.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, a Strix X870E/X870 motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.

Description ROG STRIX X870-I GAMING WIFI AI OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. AI COOLING IIBalance the thermals and acoustics of any build with a single click. AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7. Dynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking. Core FlexCore Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will. PBO ENHANCEMENTAMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. DDR5 DOMINATIONThe Strix X870-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. AEMPASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. ROG STRIX HIVE IIThe ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features. ROG FPS CardThe ROG FPS card groups I/O onto a vertically-mounted card, saving valuable motherboard space and tidying cable management. UNDENIABLY ROG STRIXThe I/O shield and M.2 heatsink feature a perforated metal mesh that can either reflect the glow of internal RGB components or blend seamlessly into the shadows of a stealthy build. The cyber-style text and sharp, angular details firmly establish this motherboard as a member of the ROG Strix family. BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATINGWhen only the fastest will do, a Strix X870E/X870 motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.
Model ROG STRIX X870-I GAMING WIFI
22862
17855
637
587
Chipset type AMD X870
4403
22018
25302
Max memory size 9
19491
22890
Max. number of SATA devices 2
635
Detailed data on disk/drive interfaces Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) AMD X870 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)2 x SATA 6Gb/s ports

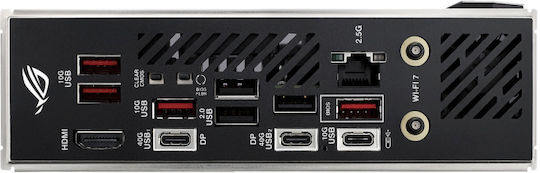

Graphics

• 1 x HDMI port
• 2 x USB4 (40Gbps) ports support USB Type-C display outputs

Sound card ROG Strix Hive II Audio Features

• ROG Hyper-Grounding Technology
• ESS SABRE9260Q DAC
• Silver-plated audio jacks
• Dedicated audio PCB layers

18721
24058
927
Network interface Ethenet:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

  Wireless:

• Wi-Fi 7
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
• Bluetooth v5.4

USB ports at back panel 1
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 1
646
389
391
19601
5236
11653
24369
7840
7778
7839
11678
5237
7475
23176
7496
7494
7474
11708
7477
7790
7500
19614
7487
7768
7851
23207
10609
10610
Special functions ASUS Q-Design

• M.2 Q-Latch
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-Code
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

  ASUS Thermal Solution

• M.2 heatsink
• Aluminum backplate

  ASUS EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

  Aura Sync

• -Addressable Gen 2 header(s)

  ROG STRIX HIVE II

• 1 x USB Type-C connects to motherboard
• 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C)
• 1 x Headphone jack with mic in
• 1 x Power button
• 1 x FlexKey button
• 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
650
Dimensions 17 x 17 cm
Accessories included Cables

• Panel cable
• ROG USB2.0 splitter cable
• 2 x SATA 6Gb/s cables

ROG FPS Card

• ROG FPS Card

ROG STRIX HIVE II

• ROG STRIX HIVE II
• USB Type-C power connection cable

Miscellaneous

• ASUS WiFi Q-Antenna
• Cable ties package
• M.2 Q-Latch package(s)
• ROG key chain
• OG Strix stickers
• M.2 rubber package(s)

Documentation

• Quick start guide

22012
Software WOL by PME, PXE
25607
