Asus ROG Strix Z890-E Gaming WIFI Motherboard ATX με Intel 1851 Socket

Περιγραφή

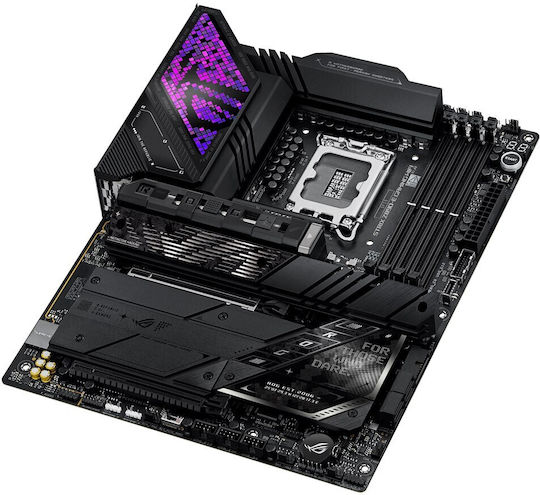

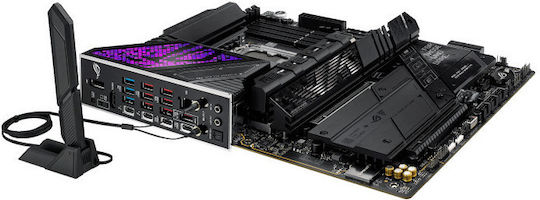

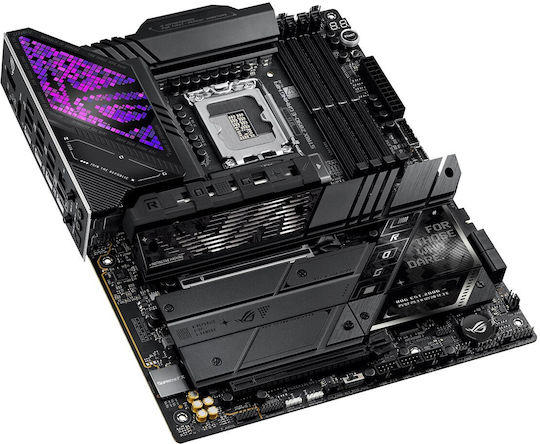

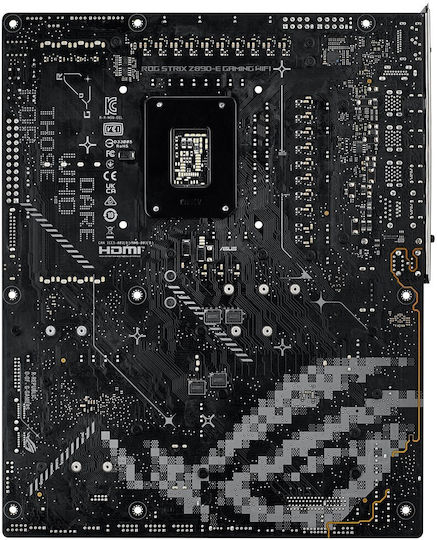

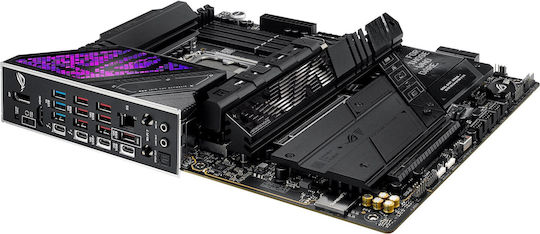

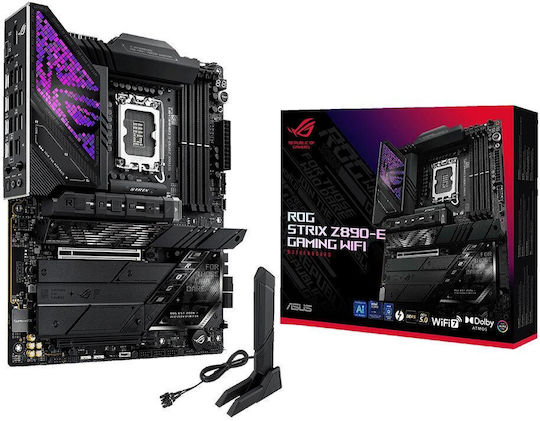

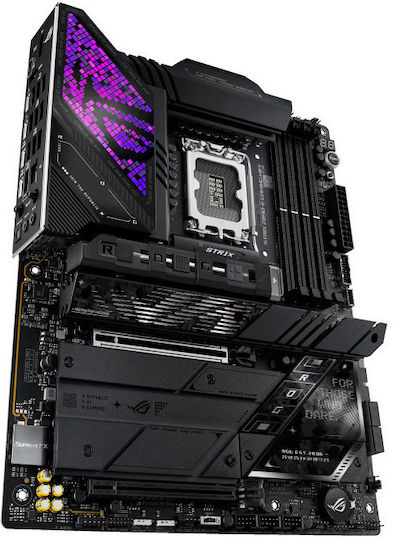

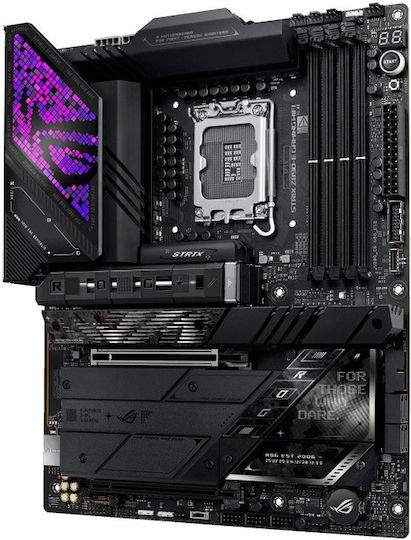

ROG STRIX Z890-E Gaming WiFi
Boasting advanced power design and AI-powered features, the ROG Strix Z890-E Gaming WiFi motherboard delivers top-tier performance. Equipped with Thunderbolt 4, Wi-Fi 7, superfast DDR5 memory slots, and seven M.2 slots, it offers excellent connectivity and top-notch speeds, making it ideal for elite-level gaming and advanced AI PC applications.

Description ROG STRIX Z890-E Gaming WiFiBoasting advanced power design and AI-powered features, the ROG Strix Z890-E Gaming WiFi motherboard delivers top-tier performance. Equipped with Thunderbolt 4, Wi-Fi 7, superfast DDR5 memory slots, and seven M.2 slots, it offers excellent connectivity and top-notch speeds, making it ideal for elite-level gaming and advanced AI PC applications.
Model ROG STRIX Z890-E GAMING WIFI
25175
24470
637
586
Chipset type Intel Z890 Chipset
4403
22020
25417
Max memory size 1
19491
22890
25511
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces Intel Core Ultra Processors(series 2)*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**Intel Z890 ChipsetM.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.

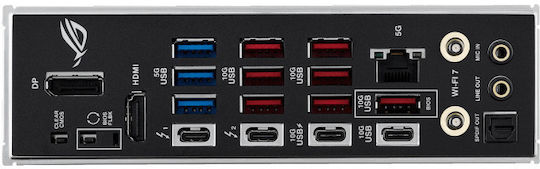

Graphics

• 1 x DisplayPort*
• 1 x HDMI port**
• 2 x Intel Thunderbolt 4 ports support DisplayPort and Thunderbolt video output***

* Supports up to 8K@60Hz according to the DisplayPort 1.4 specification.** Supports up to 4K@60Hz according to the HDMI 2.1 specification.*** Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8 Gbps or 16 Gbps/16 Gbps. Refer to the DisplayPort 2.1 specification for supported resolutions.*** Graphics specifications may vary depending on processor type. Refer to AMD processor specifications.
Sound card ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

• Impedance sensing for front and rear headphone outputs
• Supports: jack detection, streaming, and front-panel microphone jack remapping
• High-quality stereo playback output with a SNR of 120 dB and recording input with a SNR of 110 dB
• Supports playback up to 32-bit/384 kHz

Audio Features

• Audio Shielding
• Savitech SV3H712 Amplifier
• Gold-Plated Audio Jacks
• Rear Optical S/PDIF Output
• Premium Audio Capacitors
• Audio Shield

*The rear-panel LINE OUT port does not support surround sound. To enjoy surround sound, connect your audio output device to the front-panel audio jack or use a USB audio device.
20382
927
24058
Network interface Ethernet

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless and Bluetooth

• Wi-Fi 7*
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6 GHz frequency bands**
• Supports Wi-Fi 7 320 MHz band, up to 5.8 Gbps transfer speeds.
• Bluetooth v5.4***

*Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.**The Wi-Fi 6 GHz frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel 1
USB ports on motherboard 1
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 1
646
389
391
5243
7838
19580
14099
5251
5237
5236
5241
5250
21971
7778
10607
24987
7768
7794
7827
19599
12168
7474
23204
7792
7790
7500
19614
7487
7486
10609
7475
10610
23202
23314
Special functions Extreme Engine Digi+- 5K Black Metallic CapacitorsASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsinks- M.2 heatsink backplate- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headers
BIOS 256 Mb  Flash ROM, UEFI AMI BIOS
648

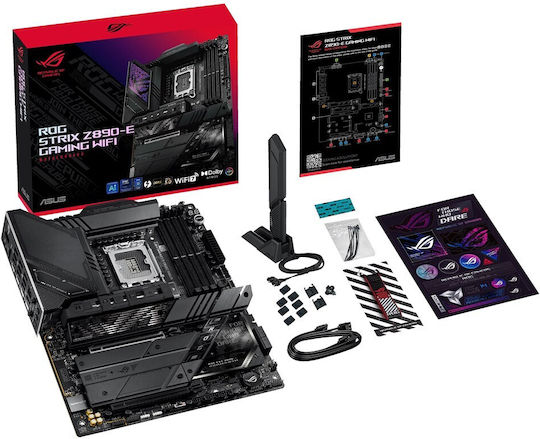

Accessories included

• 2 x SATA 6Gb/s Cable
• Thermal Pad for M.2 22110
• ASUS Wi-Fi Movable Antennas
• Cable Tie Set
• M.2 Q-Latch Pack
• 2 x M.2 Q-Slides
• ROG Keychain
• ROG Strix Stickers
• 7 x M.2 Rubber Bands
• Quick Start Guide

22012
Software ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) – Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power SavingASUS Driver HubASUS GlideXTurboV Core USB Wattage WatcherAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU BoostFlexKey
