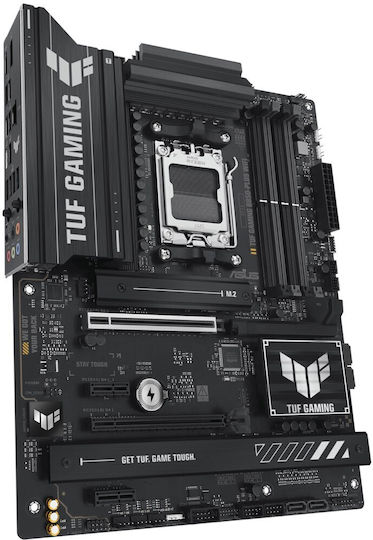

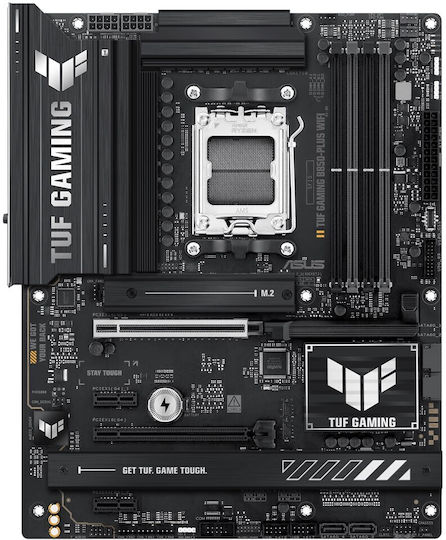

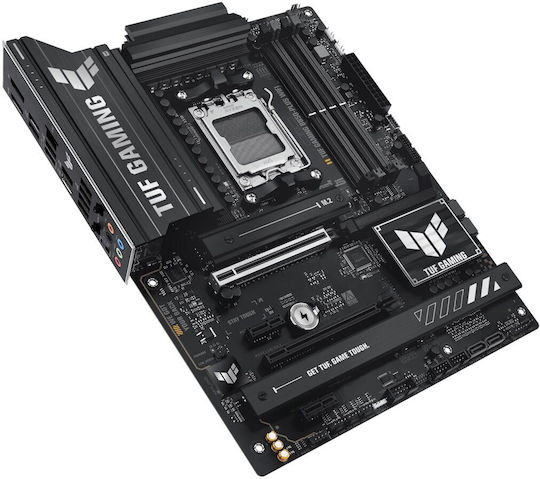

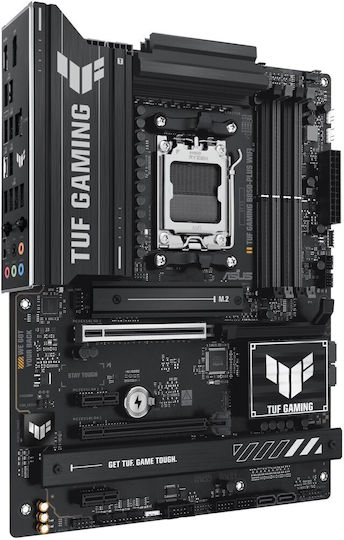

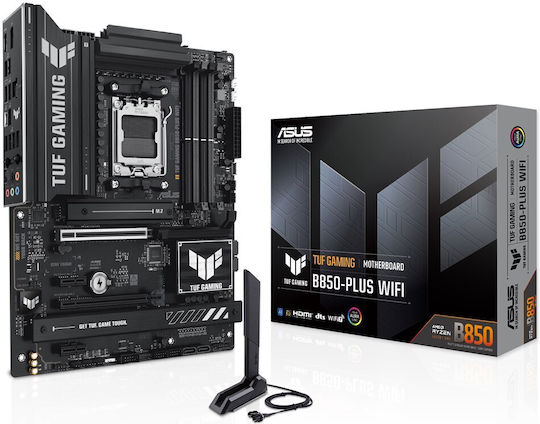

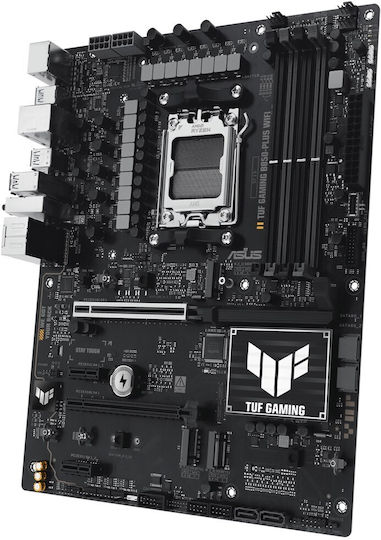

Asus TUF GAMING B850-PLUS WIFI Motherboard ATX με AMD AM5 Socket

Περιγραφή

Η μητρική πλακέτα WiFi ASUS TUF GAMING B850-Plus αξιοποιεί όλα τα βασικά στοιχεία των τελευταίων επεξεργαστών AMD Ryzen και τα συνδυάζει με χαρακτηριστικά έτοιμα για παιχνίδια και αποδεδειγμένη ανθεκτικότητα. Σχεδιασμένη με εξαρτήματα στρατιωτικής ποιότητας, βελτιωμένη λύση τροφοδοσίας και ένα ολοκληρωμένο σύστημα ψύξης, αυτή η μητρική πλακέτα ξεπερνά τις προσδοκίες, προσφέροντας σταθερή και σταθερή απόδοση για μαραθώνιες συνεδρίες παιχνιδιών. Οι μητρικές πλακέτα TUF GAMING υποβάλλονται επίσης σε αυστηρές δοκιμές ανθεκτικότητας για να διασφαλιστεί ότι μπορούν να αντέξουν σε συνθήκες όπου άλλες ενδέχεται να αποτύχουν. Αυτή η πλατφόρμα παρέχει την ισχύ και τη συνδεσιμότητα που απαιτούν οι προηγμένες εφαρμογές υπολογιστικής τεχνητής νοημοσύνης.

Description The ASUS TUF GAMING B850-Plus WiFi motherboard leverages all the essential elements of the latest AMD Ryzen processors and combines them with gaming-ready features and proven durability. Designed with military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard exceeds expectations, delivering solid and stable performance for marathon gaming sessions. TUF GAMING motherboards also undergo rigorous durability testing to ensure they can withstand conditions where others might fail. This platform delivers the power and connectivity that advanced AI computing applications demand.
22862
16025
19464
15632
637
587
Chipset type AMD B850 Chipset
4403
22020
Max memory size 2
22890
19491
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces Supports a total of three M.2 slots and four SATA 6 Gb/s ports.AMD Ryzen 9000 and 7000 Series Desktop Processors

• M.2_1 (M-Key) Socket, Type 2280 (Supports PCIe 5.0 x4 mode)
• M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

• M.2_1 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)
• M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode) 4.0 x4/x2)

AMD B850 Chipset

• M.2_3 (M Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s ports

Graphics

• 1 x DisplayPort port**
• 1 x HDMI port***

** Supports up to 8K at 30 Hz as per DisplayPort 1.4 specification. *** Supports 4K at 60 Hz as per HDMI 2.1 specification.
Sound card Realtek ALC1220P 7.1 high-resolution audio codec

• Impedance detection for front and rear headphone outputs
• Internal audio amplifier for superior sound quality on headphones and speakers
• Supports: headphone jack detection, multi-streaming, and front-panel jack remapping
• High-quality stereo playback output with 120 dB SNR and recording input with 113 dB SNR (line-in)
• Supports playback up to 32-bit/192 kHz

Audio Features

• Audio Shielding
• High-quality audio capacitors
• Dedicated audio PCB layers
• Audio Cover
• Unique De-Pop Circuit

24058
927
Network interface

• Wi-Fi 7
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6 GHz frequency bands
• Supports Wi-Fi 7 160 MHz bandwidth, transfer speeds up to 2.9 Gbps
• Bluetooth v5.4

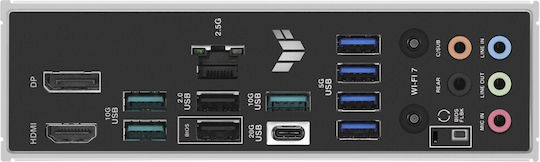

USB ports at back panel 1
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 1
646
389
391
5252
5253
25426
5239
5241
5251
5237
5244
5248
11677
5250
5236
7840
10607
7491
7490
7486
7795
7792
7481
7499
25449
7475
7794
12168
7474
11746
Special functions ASUS TUF Protection

• DIGI+ VRM (Digital Power Design with DrMOS)
• ESD Guards
• TUF LANGuard
• Surge Protection
• Safe Space
• Stainless Steel Rear I/O

ASUS Q-Design

• M.2 Q-Latch
• Q-Edition PCIe Slot

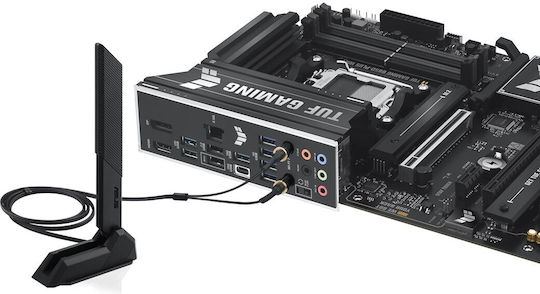

• Q-Antenna
• Q-Panel
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow/green])
• Socket Q

ASUS Thermal Solution
648

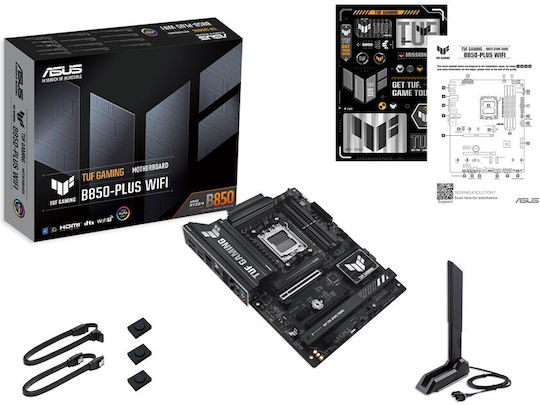

Accessories included Cables

• 2 x SATA 6 Gb/s cables

Other

• 1 x ASUS WiFi Q antenna
• 1 x TUF GAMING sticker
• 2 x M.2 rubber packs

Documentation

• 1 x Quick Start Guide

22012
Software ASUS Exclusive SoftwareArmory Crate

• Aura Creator
• Aura Sync
• Fan Xpert 4
• Power Saving

ASUS DriverHubASUS GlideXTurboV CoreTUF GAMING CPU-ZDTS Audio ProcessingNorton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
