Category 6 UTP USB 2.0 Extender up to 150m, 4× USB-A up to 480 Mbps, 1× RJ45 (Gigabit Ethernet) - Kit (Receiver/Transmitter)

Περιγραφή

Category 6 UTP USB 2.0 Extender up to 150m, 4× USB-A up to 480 Mbps, 1× RJ45 (Gigabit Ethernet) Kit (Receiver/Transmitter)

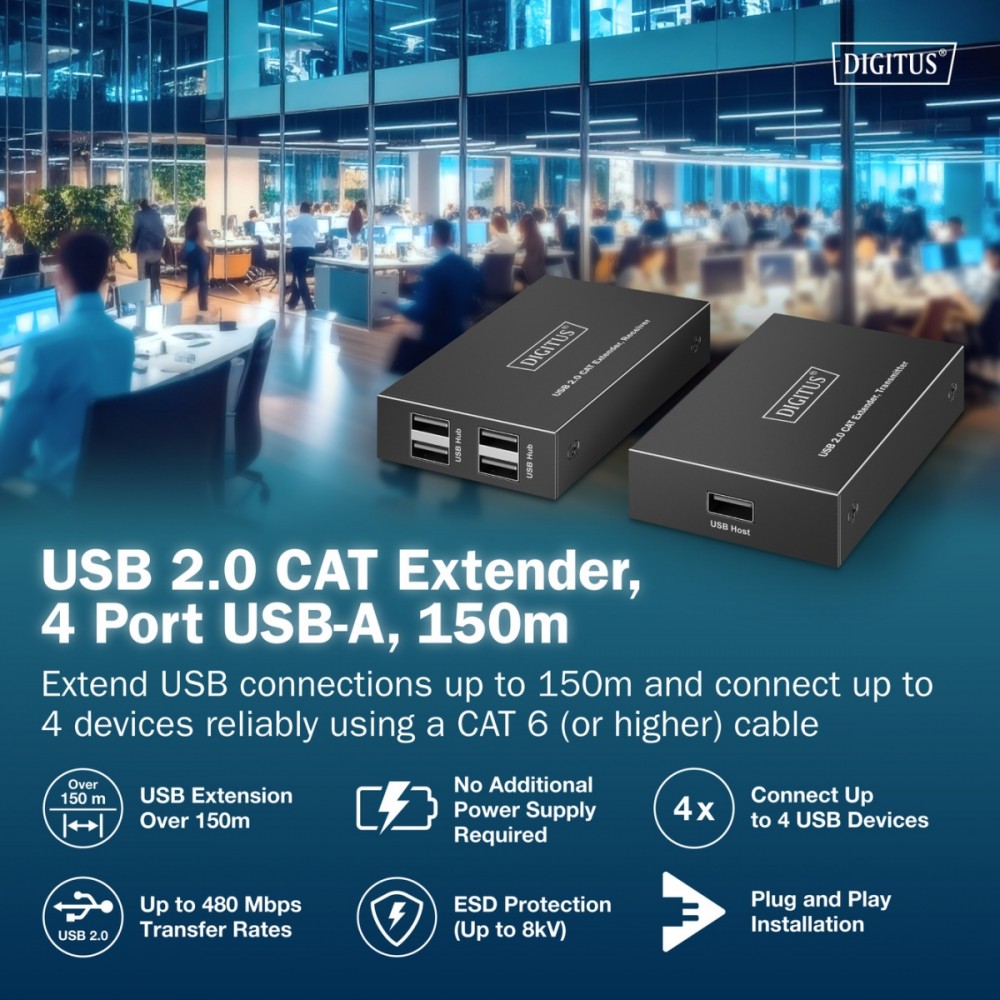

Overcome the technical limitations of USB cable length and reliably connect up to four USB devices at distances of up to 150 m using a CAT 6 (or higher) cable. The Digitus 150 m USB 2.0 Extender is ideal for offices, industrial environments, and conferences.

This USB extender provides a reliable solution for transmitting USB signals up to 150 meters via a CAT 6 (or higher) network cable (not included) without signal loss. It is perfect for use in large offices, conference rooms, surveillance systems, or industrial environments where longer USB connections are required. The USB 2.0 standard supports data transfer rates of up to 480 Mbps, allowing you to connect a wide range of USB devices such as cameras, printers, scanners, keyboards, mice, and USB drives.

The extender offers maximum flexibility with four USB-A ports, enabling simultaneous use of multiple devices – an ideal solution for work environments with diverse peripherals. Its plug & play design allows easy installation without the need for additional drivers. Additionally, the robust metal housing ensures durability and stability, even in demanding industrial settings. Say goodbye to the limitations of conventional USB cables – with this 150-meter USB 2.0 extender, you can place USB devices exactly where you need them without moving the computer.

• USB extension up to 150 m via CAT 6 or higher cable

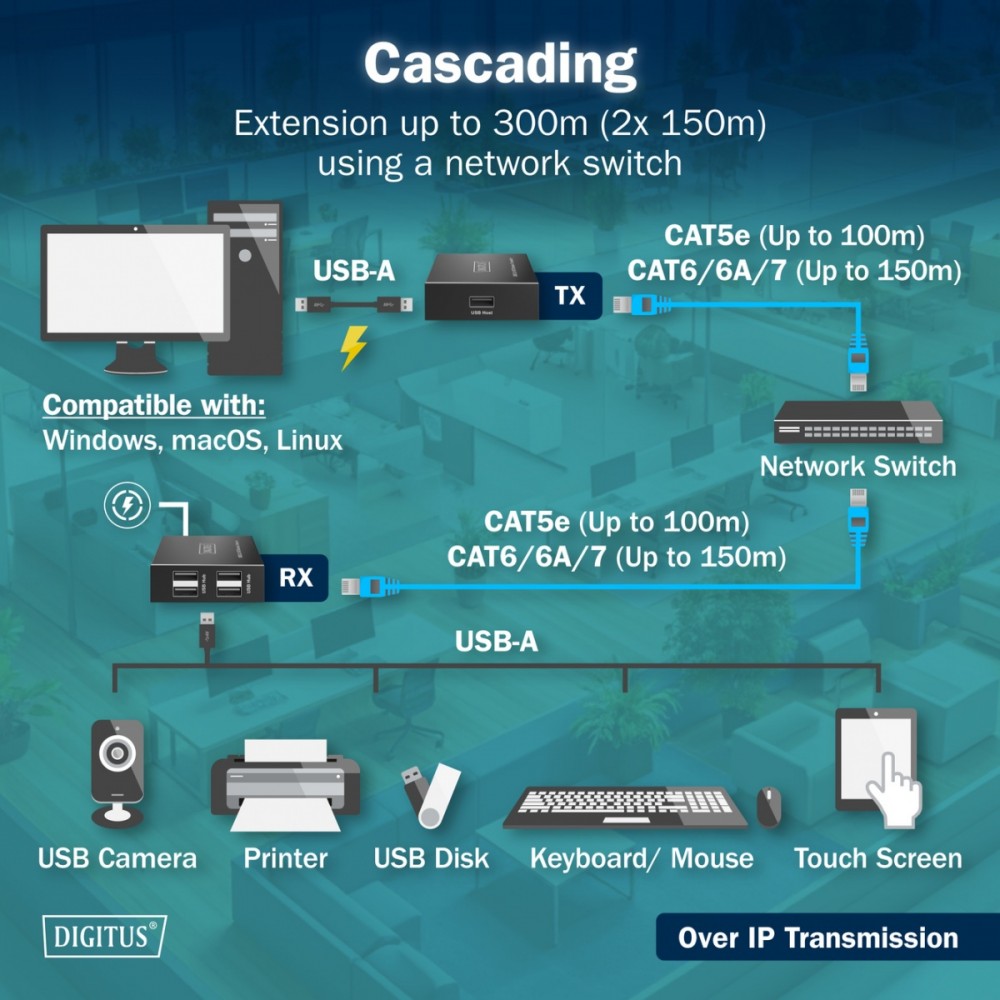

• Cascadable: Extend up to 300 m (2 × 150 m) using a network switch

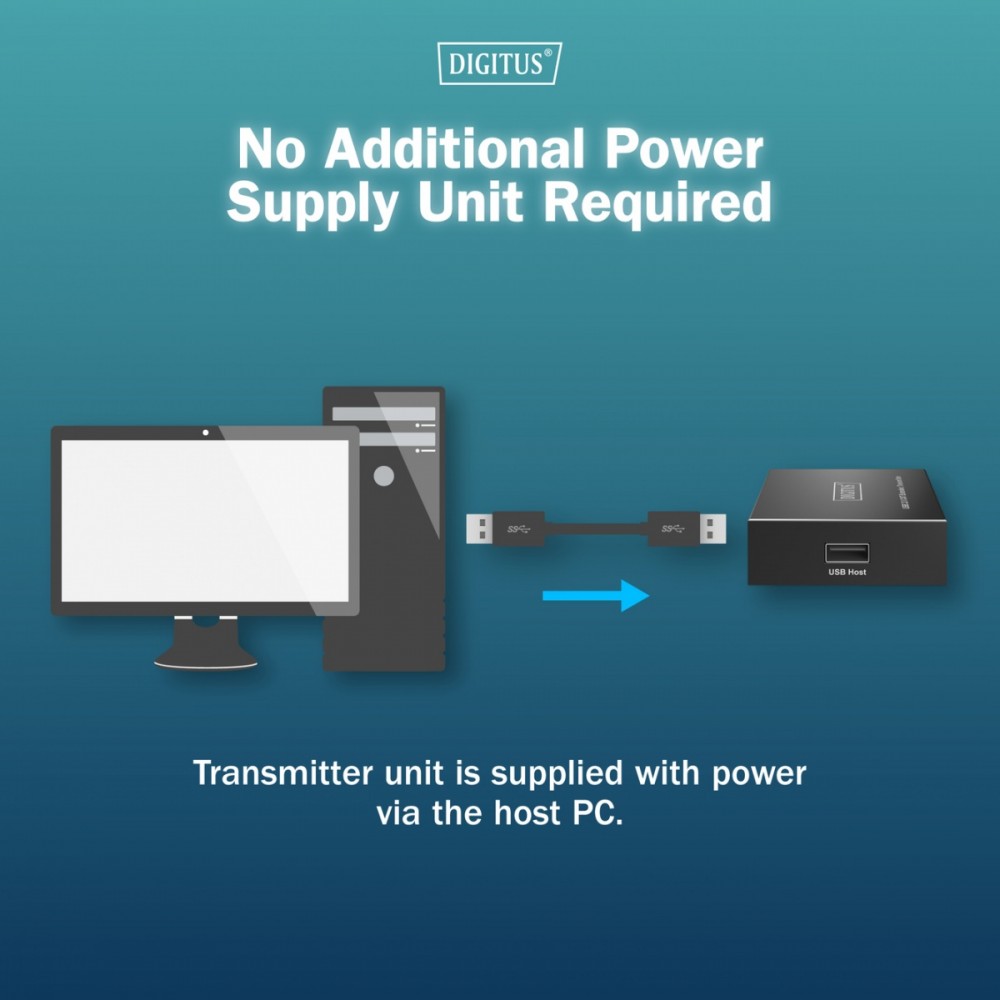

• Transmitter powered via the host computer – no additional power supply required
• Multi-functional USB hub: Connect up to four USB devices simultaneously
• USB 2.0: Supports transfer speeds up to 480 Mbps, ideal for devices such as printers, cameras, keyboards, and scanners

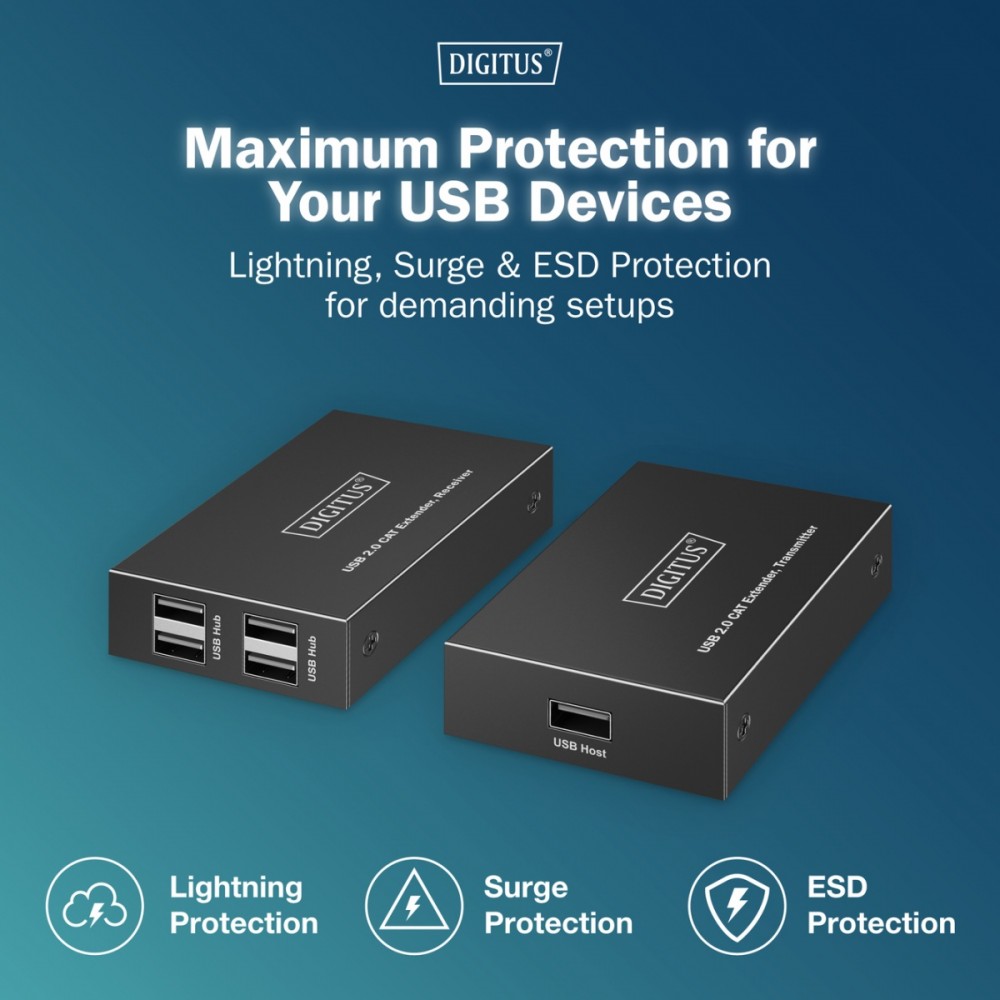

• Safe protection: Integrated ESD (up to 8 kV) and surge protection for connected devices
• Plug & Play: No software required; simply connect and use immediately
• Durable and versatile: Metal housing makes it suitable for demanding environments such as industrial or large office setups

Dimensions: 7,6 x 6 x 2,1 cm Weight: TX 123 g, RX 128 g
Accessories included: Transmitter Receiver User manual USB-A 2.0 cable, 1.2 m Power adapter (DC 5V/1A), 1.5 m

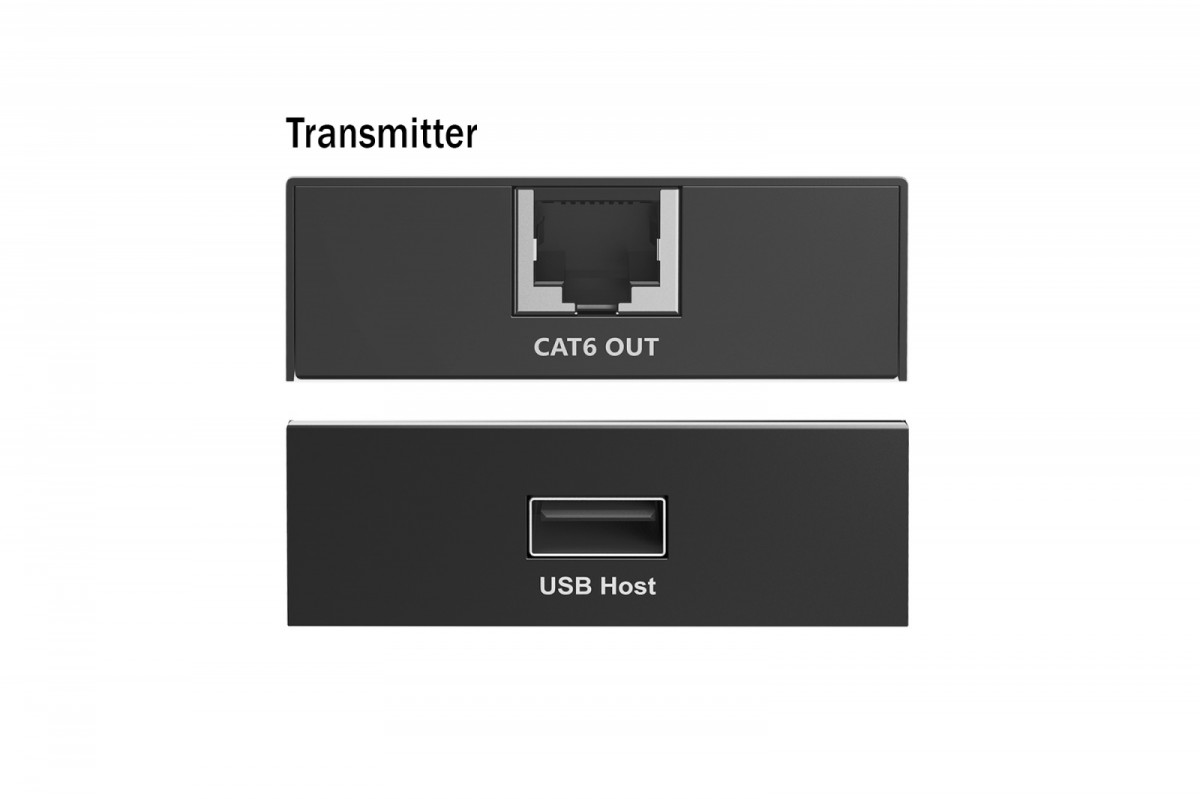

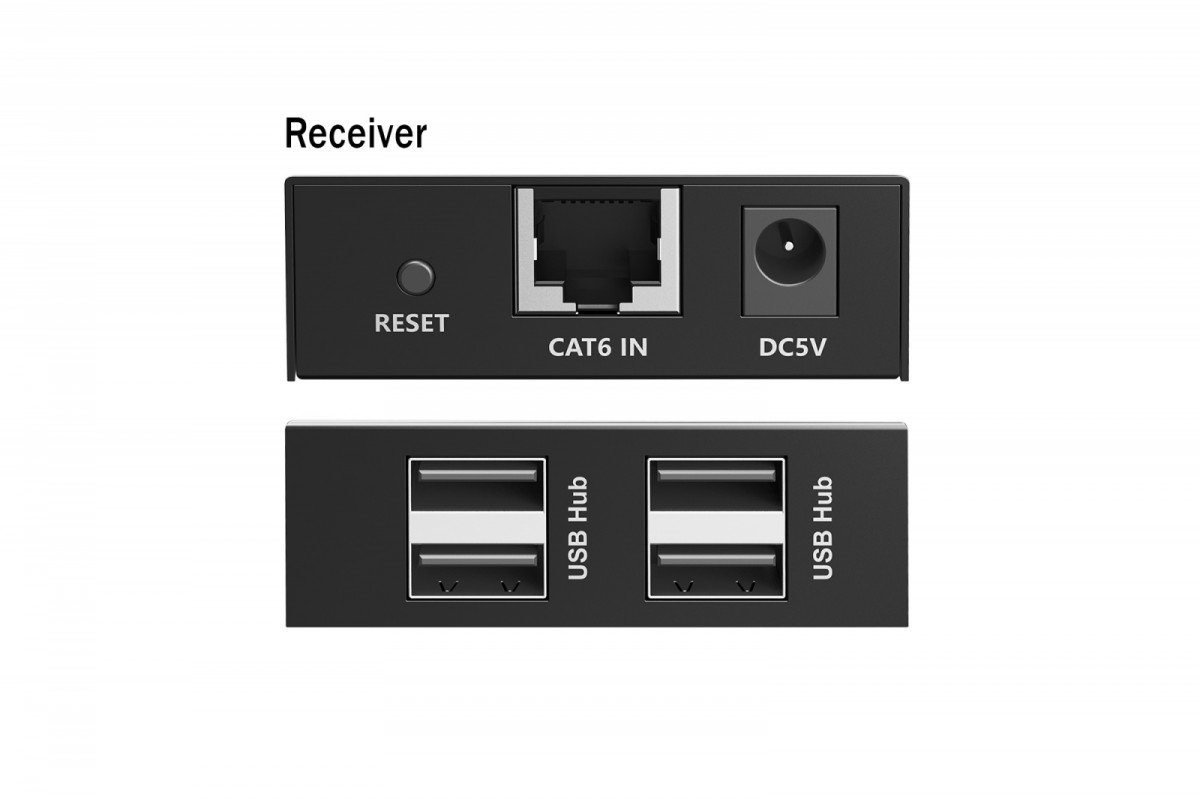

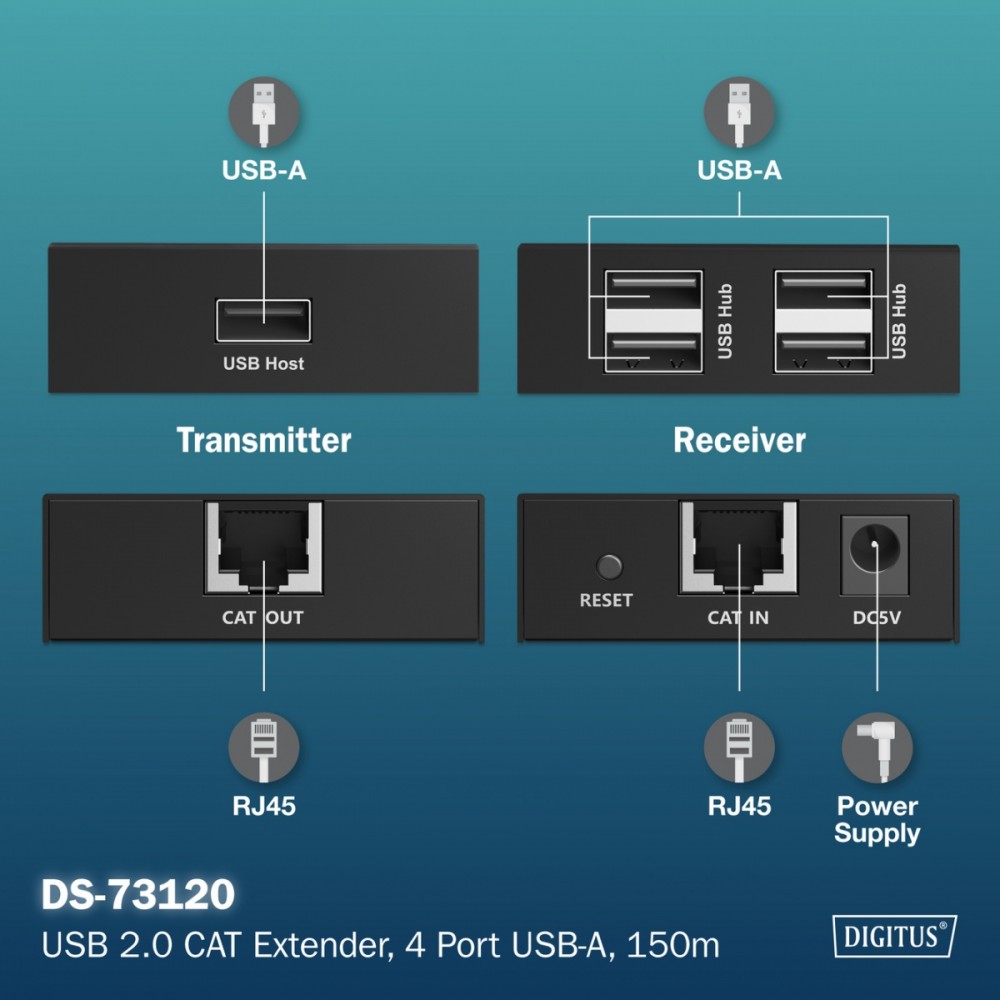

Other features: Transmitter (TX) Connections: 1× USB-A input (USB 2.0) – connect the signal source (laptop, PC, etc.) 1× RJ45 output (Gigabit Ethernet) – connect via CAT transmission cable Receiver (RX) Connections: 4× USB-A output (USB 2.0) – connect devices such as mouse, keyboard, printer, etc. 1× RJ45 input (Gigabit Ethernet) – connect CAT transmission cable 1× Power input (DC 5V/1A) – external power supply 1× Reset button Specifications: Maximum range: 150 m (via CAT 6 or higher) USB ports: 4× USB 2.0 Transfer speed: up to 480 Mbps (USB 2.0) Supports CAT 6 or higher network cables USB 2.0 receiver amplifier reduces signal loss Protection: ESD protection (electrostatic discharge), surge and lightning protection, short-circuit protection Self-powered no external power supply required for TX Plug & Play: Easy installation, no software needed Ideal for connecting remote devices such as cameras, printers, scanners, keyboards, etc. Power: TX: Powered via source device RX: DC 5V / 1A Operating temperature: -20°C to 60°CPower consumption: TX approx. 3.5 W, RX approx. 2.5 WHousing material: Metal
