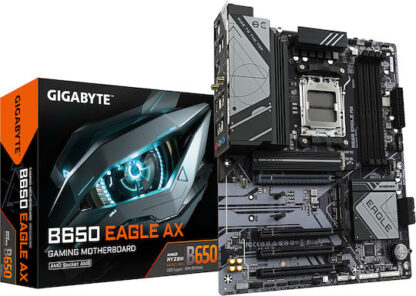

GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs 12+2+2 Phases VRM up to 7600MHz DDR5 (OC) 1xPCIe 5.0 + 2xPCIe 4.0 M.2 GbE LAN WIFI 6E USB 3.2 Gen 2

Περιγραφή

• Υποδοχή AMD AM5: Υποστηρίζει επεξεργαστές AMD Ryzen σειράς 7000
• Απαράμιλλη απόδοση: λύση ψηφιακού VRM 12+2+2 φάσεων
• Μνήμη DDR5 διπλού καναλιού: 4*SMD DIMM με υποστήριξη για μονάδες μνήμης AMD EXPO και Intel XMP
• Μνήμη SuperSpeed: 1 * PCIe 5.0 + 2 * PCIe 4.0 M.2
• Προηγμένος θερμικός σχεδιασμός και θερμική θωράκιση M.2: Για να διασφαλιστεί η σταθερότητα ισχύος VRM και η απόδοση του SSD 25110 M.2
• EZ Latch: Υποδοχή PCIe x16 με σχεδιασμό γρήγορης απελευθέρωσης
• Γρήγορα δίκτυα: Wi-Fi 6E 802.11ax και GbE LAN
• Βελτιωμένη συνδεσιμότητα: DP, HDMI, πίσω USB 10Gbps
• Smart Fan 6: Περιλαμβάνει πολλαπλούς αισθητήρες θερμοκρασίας, υβριδικούς συνδετήρες ανεμιστήρα με λειτουργία FAN STOP
• Q-Flash Plus: Ενημέρωση BIOS χωρίς εγκατάσταση CPU, μνήμης και κάρτας γραφικών

Description

• AMD AM5 socket: Supports AMD Ryzen 7000 series processors
• Unrivaled performance: 12+2+2 phase digital VRM solution
• Dual-channel DDR5 memory: 4*SMD DIMM with support for AMD EXPO and Intel XMP memory modules
• SuperSpeed Memory: 1 * PCIe 5.0 + 2 * PCIe 4.0 M.2
• Advanced Thermal Design and M.2 Thermal Shield: To ensure VRM power stability and 25110 M.2 SSD performance
• EZ Latch: PCIe x16 slot with quick release design
• Fast networks: Wi-Fi 6E 802.11ax and GbE LAN
• Enhanced connectivity: DP, HDMI, rear USB 10Gbps
• Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
• Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card

Model B650 EAGLE AX
22862
17855
637
587
Chipset type AMD B650
4403
22020
23081
23080
23079
22632
23086
19476
21989
22013
22015
22815
22643
17035
Max memory size 1
23528
11529
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:- AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:- AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDsChipset:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics Integrated graphics processor: – 1 x DisplayPort supporting a maximum resolution of 3840×2160 at 144 Hz * Support for DisplayPort version 1.4. – 1 x HDMI port supporting a maximum resolution of 4096×2160@60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on processor support.)
Sound card Realtek audio CODEC High quality sound 2/4/5.1/7.1-channel * You can change the functionality of the audio jack using audio software. Down configure 7.1 channel audio, go to audio software for audio settings.
642
Network interface Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel 9
USB ports on motherboard 1
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
646
389
391
5236
5239
5241
5251
5237
5246
11056
11653
7840
5250
7788
21533
23174
7486
7490
7475
23176
7764
19599
7494
7474
11746
7792
7790
7499
19614
7492
7487
Special functions

• Voltage detection
• Temperature detection
• Fan speed detection
• Cooling water flow rate detection
• Fan failure warning
• Fan speed control

* Whether fan (pump) speed control is supported depends on the fan
BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

648
Dimensions 30.5 x 24.4 cm
9594
22012
Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Other information

• GIGABYTE Control Center (GCC) Support

* Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications.

• Q-Flash support
• Support for Q-Flash Plus
