Περιγραφή
- AMD AM5 socket: Supports AMD Ryzen 7000 series processors
- Unrivaled performance: 5+2+2 phase digital VRM solution
- Dual-channel DDR5 memory: 2*SMD DIMM with support for AMD EXPO and Intel XMP memory modules
- SuperSpeed storage: PCIe 4.0 x4 M.2
- EZ Latch: PCIe x16 slot with quick release design
- Fast networks: GbE LAN
- Extended connectivity: DP, HDMI, D-Sub
- Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
- Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Lasting performance
GIGABYTE Ultra Durable motherboards are built with optimized components for superior performance and a timeless platform.
Connectivity has come
Ultimate connectivity with blazing-fast data transfer speeds for next-generation networking and storage.
- GbE LAN with bandwidth management
- GbE LAN includes a network bandwidth management application that helps reduce network latency and keep ping times low for better response in congested LAN environments.
- PCIe 4.0 hardware design
- GIGABYTE B650 motherboards are ready for PCIe 4.0 devices, which are designed to provide twice the bandwidth of current PCIe 3.0 devices. To achieve high speed and maintain good signal integrity, GIGABYTE R&D uses a low impedance PCB to ensure maximum performance.
- High-class audio capacitors
- GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help ensure high resolution and audio fidelity, providing gamers with the most realistic sound effects.
- Audio noise protection
- GIGABYTE motherboards feature audio noise protection, which essentially isolates the board's sensitive analog audio components from potential interference at the circuit board level.
Easy friendly
Innovative and intuitive hardware, software and BIOS interface design to create your personal style.
- EZ latch
- Easily unlock the PCIe slot latch by removing the graphics card from the PCIe slot.
- Q-Flash Plus
- Easily update BIOS without having to install CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card or enter the BIOS menu to flash the BIOS. Just download and save the new BIOS file (rename it gigabyte.bin) to your USB flash drive, then press the dedicated Q-Flash Plus button and you're done!
Smart fan 6
Smart Fan 6 includes several unique cooling features that ensure your gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support a PWM/DC fan and pump, and users can easily define each fan's curve based on various temperature sensors across the board via an intuitive user interface.
Cooling functions
- High Current Support: Each fan connector supports PWM and DC fan and water cooling pump and power up to 24W (12V x 2A) with overcurrent protection
- Precise Control: Multiple temperature/fan speed control points ensure precise fan curve
- Dual Curve Mode: Dual incline/stair mode for different user scenarios
- Fan Stop: The fan can stop completely below a user-defined temperature point
Intelligent fan BIOS interface 6
- Improve Fan Curve UI: We are increasing control points from 5 to 7 and a larger fan speed graph to provide precise and easier fan curve control.
- Dual Slope/Stair Graph Mode: The fan curve can be quickly switched between incline and stair modes for different user scenarios. Slope is the traditional and intuitive linear fan speed curve. With the newly added non-linear staircase mode, the fan maintains the same speed within a specific temperature range.
- Manual Entry: For advanced users, we provide manual fan speed entry for more precise control.
- EZ Tuning: With can place 4 EZ Tuning points at difficult temperature/fan speed, and Smart Fan 6 can quickly generate fan curve.
- Fan Curve Profile: The fan curve profile can be saved in BIOS ROM, the profile will be retained after BIOS update.
GIGABYTE Control Center
GIGABYTE Control CENTER (GCC) is the unified software for all supported GIGABYTE products. It provides a newly designed intuitive user interface to control all necessary functions.
- A unified software platform for all products supported by Gigabyte
- Intuitive user interface for ease of use
- Modular control components only for installed hardware
- Auto update feature to keep your system up to date and support future products
Description
- AMD AM5 socket: Supports AMD Ryzen 7000 series processors
- Unrivaled performance: 5+2+2 phase digital VRM solution
- Dual-channel DDR5 memory: 2*SMD DIMM with support for AMD EXPO and Intel XMP memory modules
- SuperSpeed storage: PCIe 4.0 x4 M.2
- EZ Latch: PCIe x16 slot with quick release design
- Fast networks: GbE LAN
- Extended connectivity: DP, HDMI, D-Sub
- Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
- Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Lasting performance GIGABYTE Ultra Durable motherboards are built with optimized components for superior performance and a timeless platform. Connectivity has come Ultimate connectivity with blazing-fast data transfer speeds for next-generation networking and storage.
- GbE LAN with bandwidth management
- GbE LAN includes a network bandwidth management application that helps reduce network latency and keep ping times low for better response in congested LAN environments.
- PCIe 4.0 hardware design
- GIGABYTE B650 motherboards are ready for PCIe 4.0 devices, which are designed to provide twice the bandwidth of current PCIe 3.0 devices. To achieve high speed and maintain good signal integrity, GIGABYTE R&D uses a low impedance PCB to ensure maximum performance.
- High-class audio capacitors
- GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help ensure high resolution and audio fidelity, providing gamers with the most realistic sound effects.
- Audio noise protection
- GIGABYTE motherboards feature audio noise protection, which essentially isolates the board's sensitive analog audio components from potential interference at the circuit board level.
Easy friendly Innovative and intuitive hardware, software and BIOS interface design to create your personal style.
- EZ latch
- Easily unlock the PCIe slot latch by removing the graphics card from the PCIe slot.
- Q-Flash Plus
- Easily update BIOS without having to install CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card or enter the BIOS menu to flash the BIOS. Just download and save the new BIOS file (rename it gigabyte.bin) to your USB flash drive, then press the dedicated Q-Flash Plus button and you're done!
Smart fan 6 Smart Fan 6 includes several unique cooling features that ensure your gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support a PWM/DC fan and pump, and users can easily define each fan's curve based on various temperature sensors across the board via an intuitive user interface. Cooling functions
- High Current Support: Each fan connector supports PWM and DC fan and water cooling pump and power up to 24W (12V x 2A) with overcurrent protection
- Precise Control: Multiple temperature/fan speed control points ensure precise fan curve
- Dual Curve Mode: Dual incline/stair mode for different user scenarios
- Fan Stop: The fan can stop completely below a user-defined temperature point
Intelligent fan BIOS interface 6
- Improve Fan Curve UI: We are increasing control points from 5 to 7 and a larger fan speed graph to provide precise and easier fan curve control.
- Dual Slope/Stair Graph Mode: The fan curve can be quickly switched between incline and stair modes for different user scenarios. Slope is the traditional and intuitive linear fan speed curve. With the newly added non-linear staircase mode, the fan maintains the same speed within a specific temperature range.
- Manual Entry: For advanced users, we provide manual fan speed entry for more precise control.
- EZ Tuning: With can place 4 EZ Tuning points at difficult temperature/fan speed, and Smart Fan 6 can quickly generate fan curve.
- Fan Curve Profile: The fan curve profile can be saved in BIOS ROM, the profile will be retained after BIOS update.
GIGABYTE Control Center GIGABYTE Control CENTER (GCC) is the unified software for all supported GIGABYTE products. It provides a newly designed intuitive user interface to control all necessary functions.
- A unified software platform for all products supported by Gigabyte
- Intuitive user interface for ease of use
- Modular control components only for installed hardware
- Auto update feature to keep your system up to date and support future products

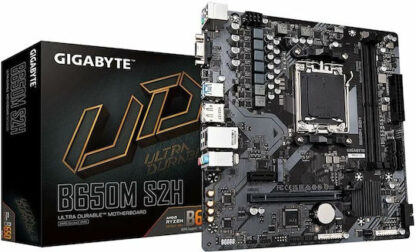

Model B650M S2H
22862
19464
16025
15632
637
587
Chipset type AMD B650
4403
22018
22013
21989
17035
19476
22815
22015
22643
Max memory size 9
12363
19491
11530
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces PROCESSOR:
- 1 x M.2 connector (Socket 3, M key, supports 2580 PCIe 4.0 x4/x2 SSDs)
Chipset:
- 4 SATA 6 Gb/s connectors
RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
Graphics Integrated graphics processor: 1 x D-Sub port supporting a maximum resolution of 1920×1200@60 Hz 1 x DisplayPort supporting a maximum resolution of 3840×2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096×2160@60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
Sound card
- Realtek audio CODEC
- High quality sound
- 2/4/5.1/7.1-channel
* You can change the functionality of the audio jack using audio software. To configure 7.1 channel audio, go to your audio software for audio settings.
642
Network interface Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
646
389
391
5251
5237
5245
5247
5250
5236
5239
5241
7788
5234
20026
7475
7492
7487
7792
7481
7499
7764
7494
7474
7786
7486
7490
Special functions
- Voltage detection
- Temperature detection
- Fan speed detection
- Cooling water flow rate detection
- Fan failure warning
- Fan speed control
* Whether fan speed control is supported depends on the installed fan.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
649
Dimensions 23 x 22.5 cm
9594
22012
Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Other information
- GIGABYTE Control Center (GCC) Support
- * Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications.
- Q-Flash support
- Support for Q-Flash Plus
25607
