Περιγραφή

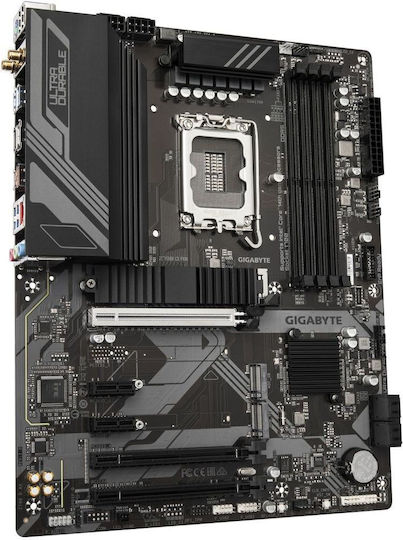

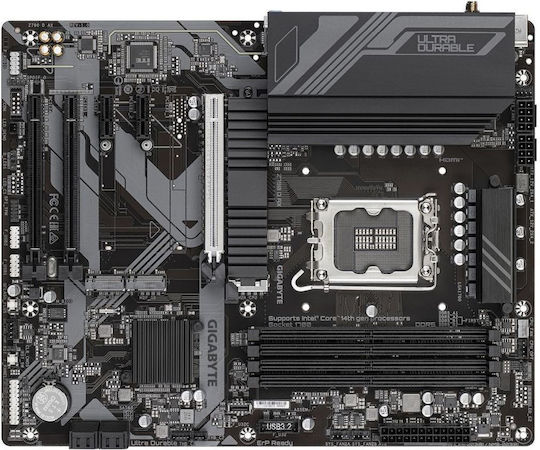

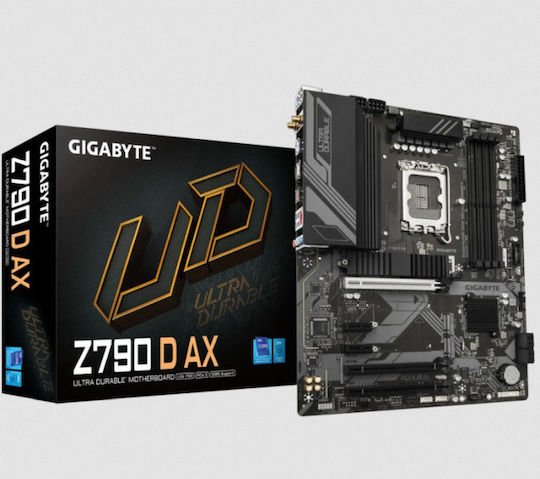

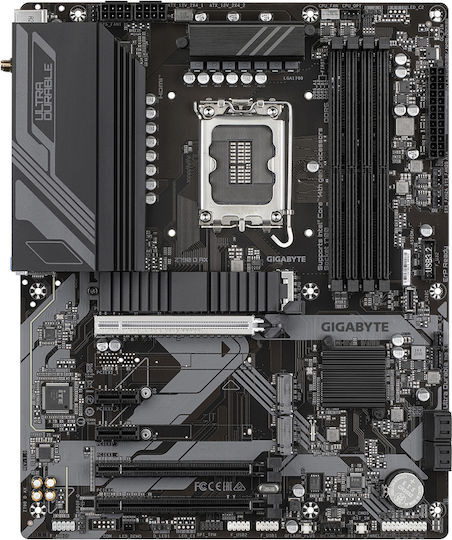

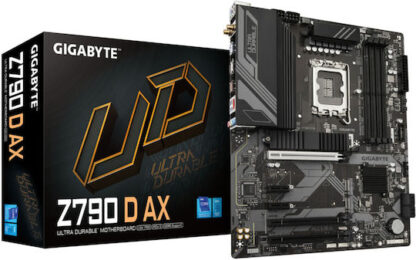

Z790 D AX
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch: PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

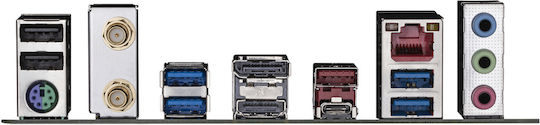

- Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
The best VRM design ever built with the highest quality components.
Unlock DDR5
DDR5 Overclocking Up to 7600 and Beyond.
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory, and graphics card.
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download the motherboard BIOS file and rename it to “gigabyte.bin”. Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
- STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.
Smart Fan 6
ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.
- High Current Support: Each fan header supports PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenarios.
- Fan Stop: Fan can stop completely below users' specified temperature point
UC BIOS
- Redesigned UI and UX: an intuitive operation interface with an aesthetically pleasing design.
- Quick Access: 9 customizable option slots for effortless access in Easy Mode.
- PerfDrive: exclusive BIOS settings that optimize the performance based on the cooling configuration.
Description Z790 D AX
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch: PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable PerformanceGIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform. Digital VRM DesignThe best VRM design ever built with the highest quality components. Unlock DDR5DDR5 Overclocking Up to 7600 and Beyond.GIGABYTE is offering a tested and proven platform with extreme memory performance boost. Future ConnectivityThe ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. 802.11ax Wi-Fi 6EThe latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. 2.5GbE LANSupercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition. PCIe 5.0 / 4.0 Hardware DesignFeaturing PCIe 5.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance. Hi-Fi AudioHigh-End Audio CapacitorsThese high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects. Audio Noise GuardEssentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. Easy FriendlyInnovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ-LatchUnlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash PlusUpdate the BIOS easily without installing the CPU, memory, and graphics card.
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download the motherboard BIOS file and rename it to “gigabyte.bin”. Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
- STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.
Smart Fan 6ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.
- High Current Support: Each fan header supports PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenarios.
- Fan Stop: Fan can stop completely below users' specified temperature point
UC BIOS
- Redesigned UI and UX: an intuitive operation interface with an aesthetically pleasing design.
- Quick Access: 9 customizable option slots for effortless access in Easy Mode.
- PerfDrive: exclusive BIOS settings that optimize the performance based on the cooling configuration.
Model Z790 D AX
21902
16315
945
685
565
23199
335
637
586
Chipset type Intel Z790 Express Chipset
4403
22020
23080
23081
23087
23086
23079
22643
22632
22815
22015
22014
17035
19476
21989
22013
Max memory size 2
22890
7974
12362
19491
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces CPU
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset
- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics Integrated Graphics Processor – Intel HD Graphics support
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Sound card
- Realtek audio codec
- High Definition Audio support
- Number of audio channels 2/4/5.1/7.1*
- Support for S/PDIF Out
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
19467
18721
927
Network interface LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless:
- Intel Wi-Fi 6E AX211 (For PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
646
389
391
5241
5239
5236
25436
25437
25426
7840
5251
5237
5244
5250
7788
7486
24780
7490
7769
7488
7475
23176
7779
19599
12168
7474
11746
7792
12813
25443
25449
16419
7492
7487
21533
23207
Special functions
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
648
Dimensions 30.5 x 24.4 cm
9594
22012
Software
- Norton Internet Security (wersja OEM)
- LAN bandwidth management software
25607
