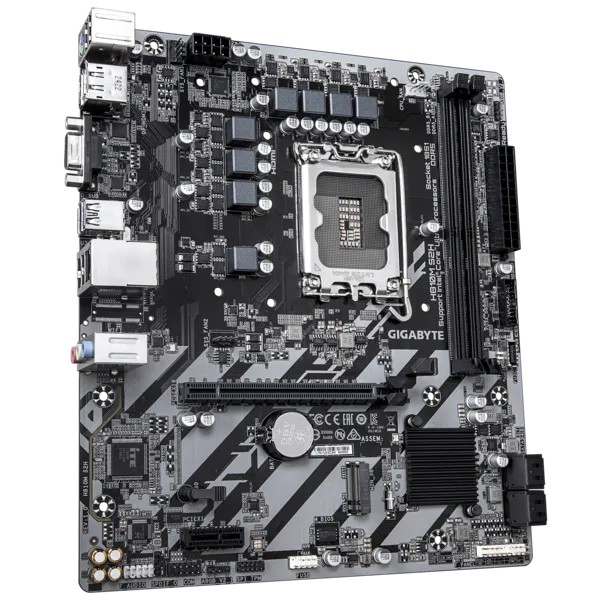

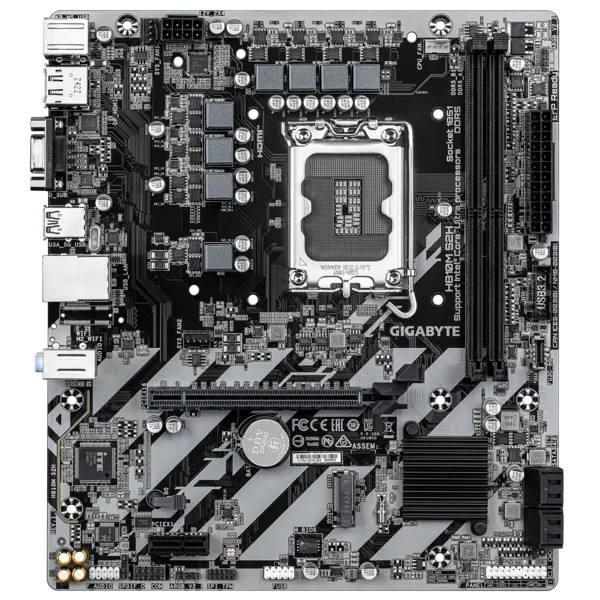

Motherboard H810M S2H
- Supports Intel Core Ultra processors (2nd series)
- Hybrid VRM design: 4+1+2 phase
- EZ-Latch: PCIe x16 slot with Quick Release design
- User-friendly interface: Multi-Theme and automatic Q-Flash scanning in BIOS and software
- Next-generation storage: PCIe 4.0 x4 M.2 slots
- High-speed networking: GbE LAN
- Expanded connectivity: HDMI, DisplayPort
Model: H810M S2H
Chipset type: Intel H810 Express Chipset
Max memory size : 1
Max. number of SATA devices : 4
Detailed data on disk/drive interfaces: CPU: 1 × PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 × PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Graphics: Integrated Graphics Support: Intel HD Graphics 1 × HDMI port, supporting up to 4096 × 2160 @ 60 HzSupports HDMI 2.1 and HDCP 2.3 1 × DisplayPort, supporting up to 3840 × 2160 @ 60 HzSupports DisplayPort 2.1 1 × D-Sub port, supporting up to 1920 × 1200 @ 60 Hz
Sound card: Realtek audio codec High Definition Audio support Audio channels: 2/4/5.1/7.1 Supports S/PDIF Out
Network interface: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

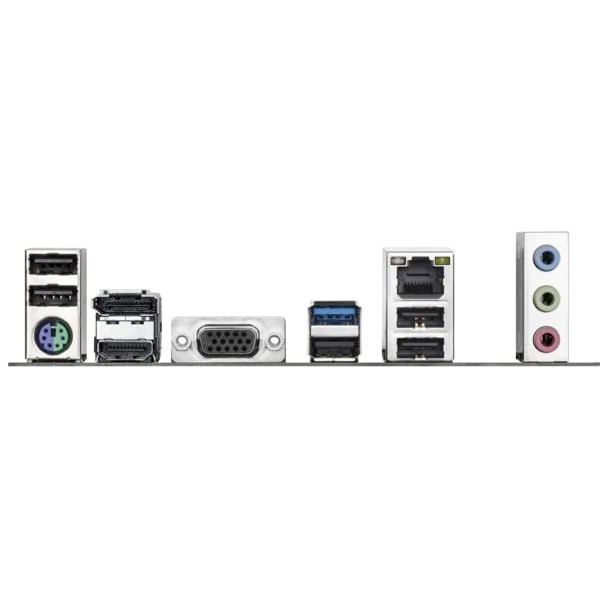

USB ports at back panel: 6
USB ports on motherboard: 1
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 4
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Dimensions: 24.4 x 21.5 cm
Software: Norton Internet Security (wersja OEM) LAN bandwidth management software
