HDMI 4K/60Hz Cat.6 Extender

Περιγραφή

HDMI 4K/60Hz Cat.6 Extender over IP 1G, up to 120m / 200m, max. 253 receivers, IR control – Kit (Transmitter/Receiver)

This HDMI IP Extender Set enables UHD (4K/60Hz, 4096×2160p at 60Hz) AV signal transmission over long distances using standard Cat.6 or higher network cables. It supports point-to-point connections up to 200m and point-to-multipoint setups with up to 253 receivers, offering flexible and scalable distribution for professional AV, digital signage, or corporate installations.

Key Features:

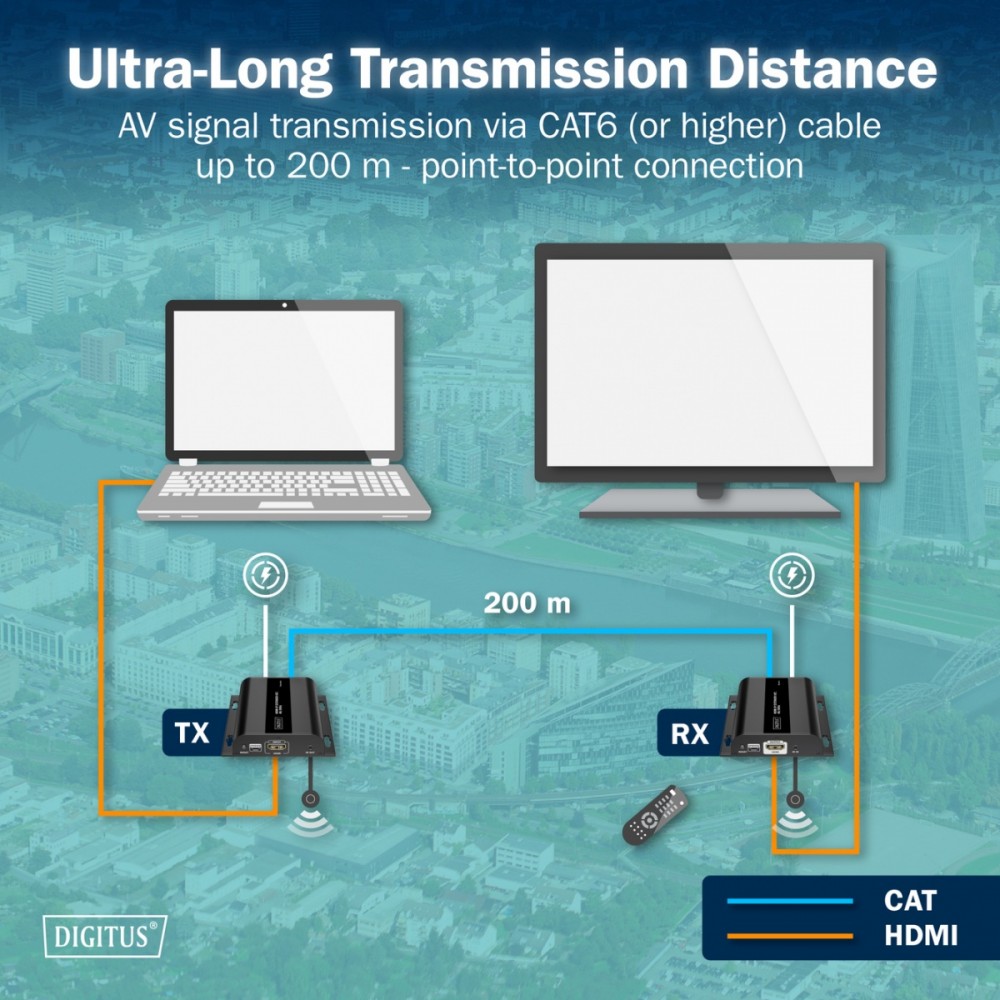

• Long-distance transmission: Point-to-point HDMI AV signal via Cat.6 (or higher) cable up to 200m

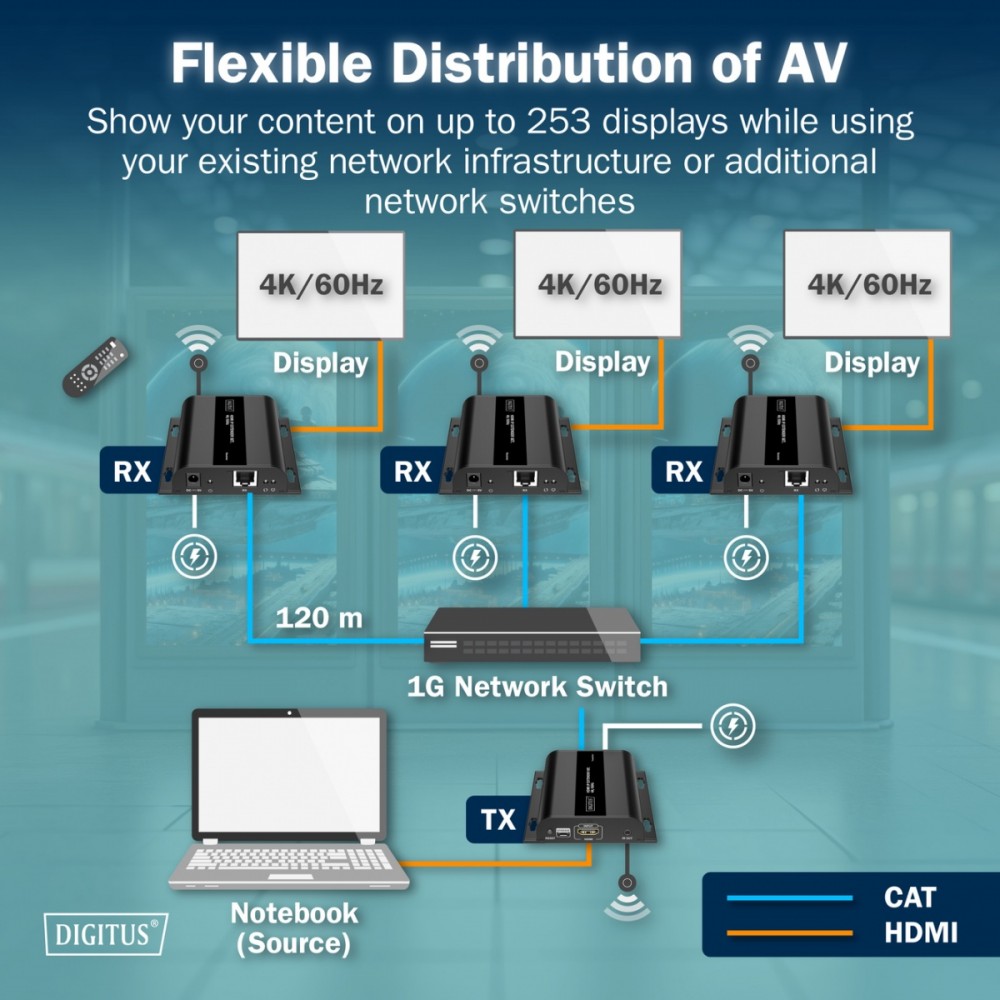

• IP scalability: Supports up to 253 receivers (displays) for point-to-multipoint distribution
• Flexible network use: Leverages existing 1G network infrastructure or additional 1G switches for virtually unlimited signal reach via cascading
• Expandable system: Additional receivers (RX) available separately (model: DS-55352)
• High-quality UHD image: 4K/60Hz (4096×2160p) with ultra-low latency of 150220ms for smooth, sharp video
• IR remote control: Integrated IR interface allows controlling the input source directly from the output display
• Network cable support: Compatible with Cat.6 or higher cables
• Wall-mountable: Space-saving installation option

This kit combines professional-grade HDMI 4K transmission with maximum flexibility, making it ideal for AV installations, home theaters, or enterprise use.

Description HDMI 4K/60Hz Cat.6 Extender over IP 1G, up to 120m / 200m, max. 253 receivers, IR control – Kit (Transmitter/Receiver) This HDMI IP Extender Set enables UHD (4K/60Hz, 4096×2160p at 60Hz) AV signal transmission over long distances using standard Cat.6 or higher network cables. It supports point-to-point connections up to 200m and point-to-multipoint setups with up to 253 receivers, offering flexible and scalable distribution for professional AV, digital signage, or corporate installations. Key Features:

• Long-distance transmission: Point-to-point HDMI AV signal via Cat.6 (or higher) cable up to 200m
• IP scalability: Supports up to 253 receivers (displays) for point-to-multipoint distribution
• Flexible network use: Leverages existing 1G network infrastructure or additional 1G switches for virtually unlimited signal reach via cascading
• Expandable system: Additional receivers (RX) available separately (model: DS-55352)
• High-quality UHD image: 4K/60Hz (4096×2160p) with ultra-low latency of 150220ms for smooth, sharp video
• IR remote control: Integrated IR interface allows controlling the input source directly from the output display
• Network cable support: Compatible with Cat.6 or higher cables
• Wall-mountable: Space-saving installation option

This kit combines professional-grade HDMI 4K transmission with maximum flexibility, making it ideal for AV installations, home theaters, or enterprise use.
7644
3492
18142
3731
3506
3453
18141
3725
3508
3469
14816
1994
Dimensions

• (1 sztuka): L 9.7 x W 9.4 x H 2.4 cm
• Weight: TX 156 g, RX 154 g

Accessories included

• 1× Transmitter (TX)
• 1× Receiver (RX)
• 2× Power adapters, EU plug (DC 5V/1A, 1.5 m)
• 2× IR cables/extensions (1.0 m)
• 1× User manual

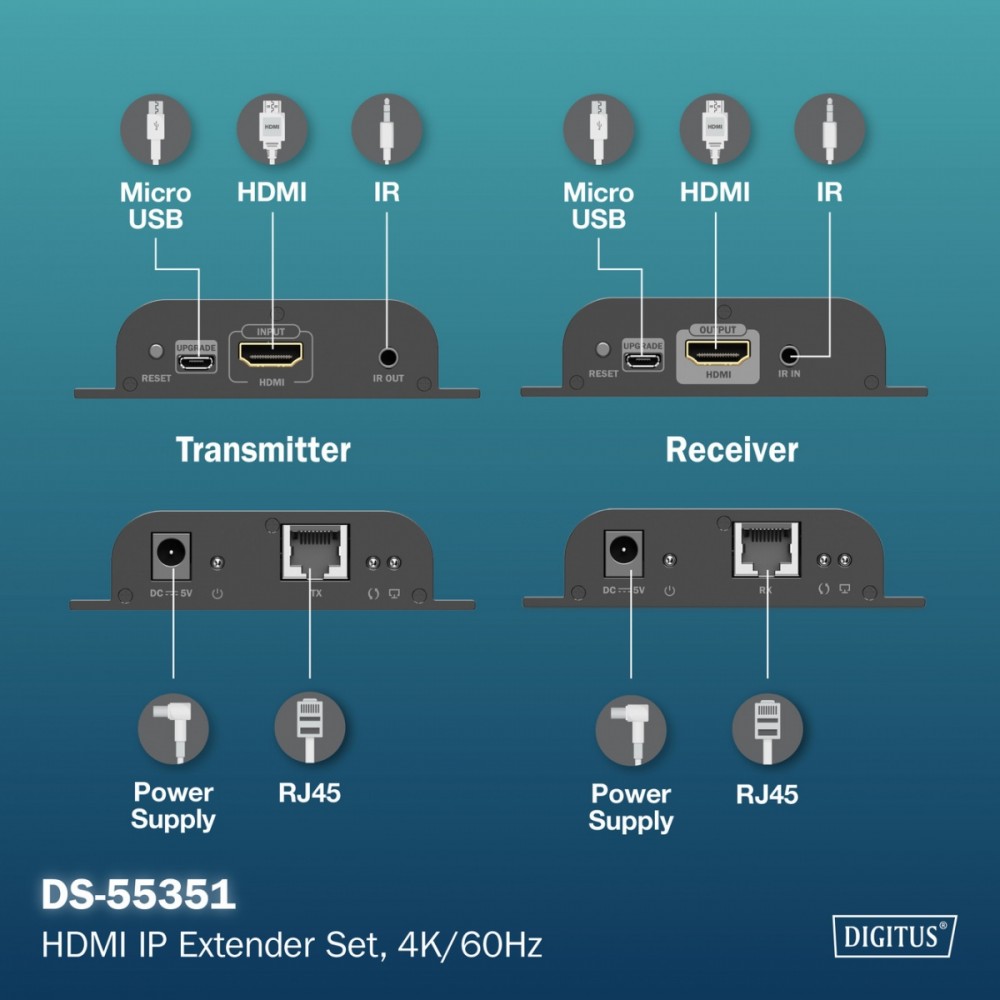

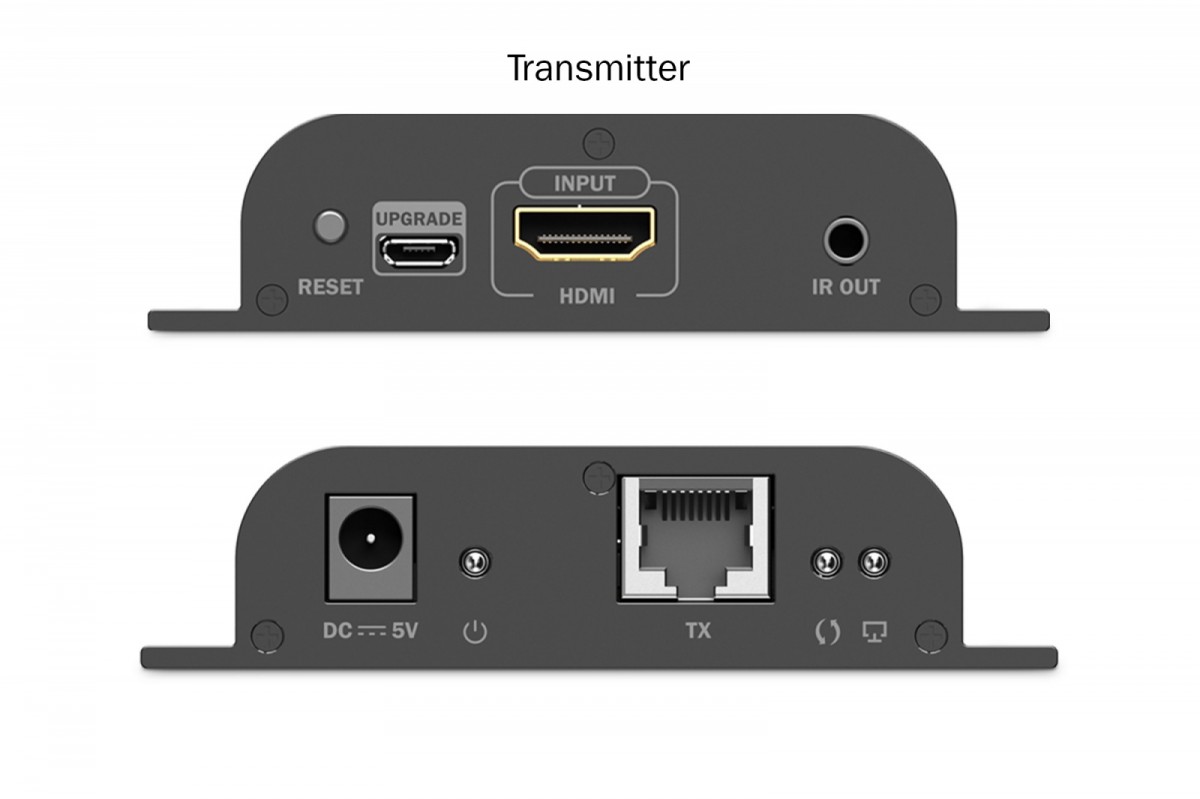

Other features Transmitter (TX) connections:

• 1× HDMI input (4K/60Hz) – connect signal source
• 1× RJ45 output (Gigabit Ethernet) – connect to CAT cable
• 1× IR output – for IR signal transmission
• 1× Power connector (DC 5V/1A) – external power input
• 1× Micro USB – firmware update port
• 1× Reset button
• 3× Status LEDs

Receiver (RX) connections:

• 1× HDMI output (4K/60Hz) – connect display
• 1× RJ45 input (Gigabit Ethernet) – connect CAT cable
• 1× IR input – receive and forward IR signal
• 1× Power connector (DC 5V/1A) – external power input
• 1× Micro USB – firmware update port
• 1× Reset button
• 3× Status LEDs

Performance:

• Maximum resolution: Ultra HD 4K/60Hz (4096×2160p)
• Maximum point-to-point distance: 200 m
• Maximum point-to-multipoint distance: 120 m
• Maximum cascade distance per section: 120 m
• Supports Cat6 or higher network cables
• HDMI 2.0
• HDCP 2.2 / 1.4
• Maximum video bandwidth: 18 Gb/s
• Latency: 150-220 ms (4K/60Hz), 80-130 ms (Full HD)

Additional features:

• Wall-mountable
• Supports up to 253 receivers
• Protections: short circuit, surge, ESD (electrostatic discharge)
• Operating temperature: -20° – 60° C
• Power consumption: TX ~3.5 W, RX ~2.5 W
• Housing: metal
