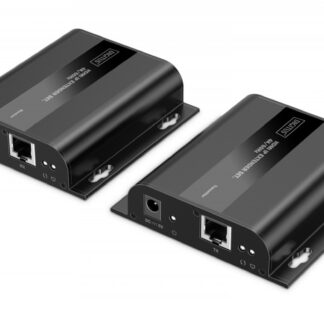

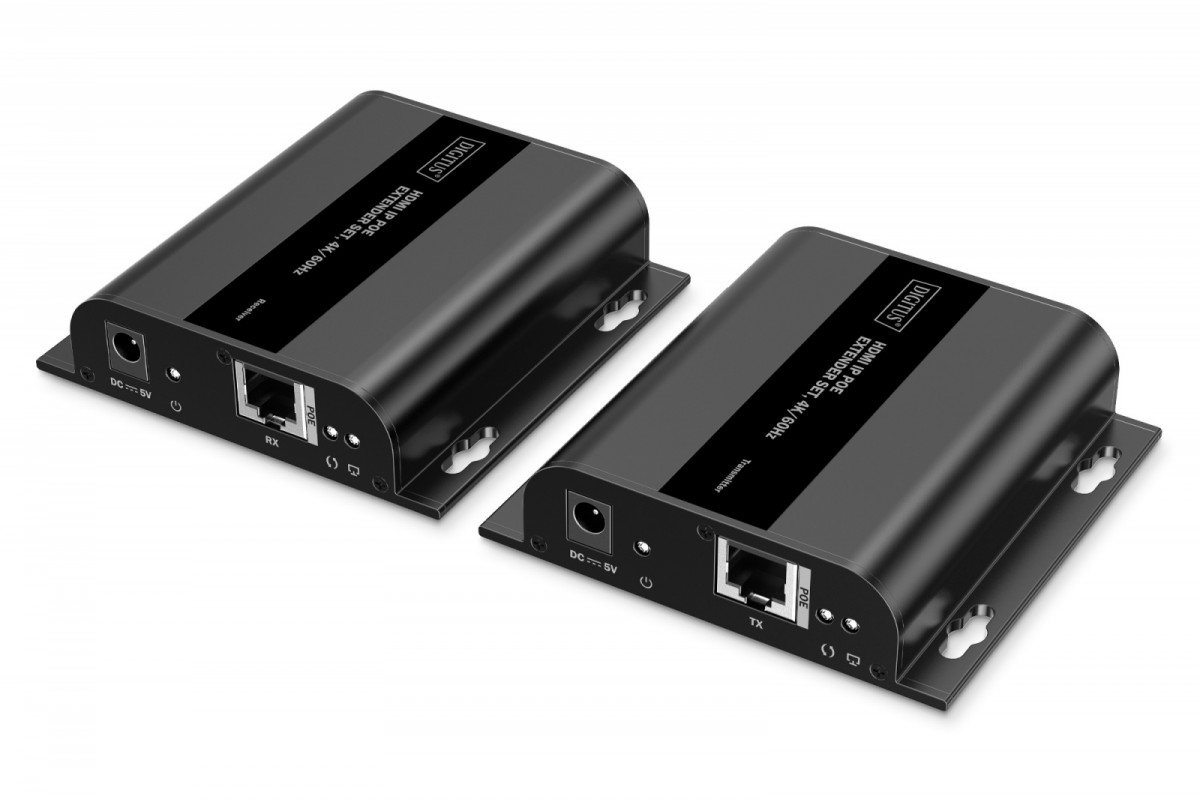

HDMI IP Extender Set DS-55353
HDMI IP Extender Set DS-55353
HDMI IP Extender Set DS-55353
HDMI IP Extender Set DS-55353
HDMI IP Extender Set DS-55353
HDMI IP Extender Set DS-55353
HDMI IP Extender Set DS-55353

HDMI IP Extender Set DS-55353

282€(τα μεταφορικά υπολογίζονται στο σύνολο του καλαθιού)

Τελευταία ανανέωση: 18/03/2026 22:21:42

EAN: 4016032501916
Κατηγορία: Αξεσουάρ Multimedia Αυτοκινήτου

Περιγραφή

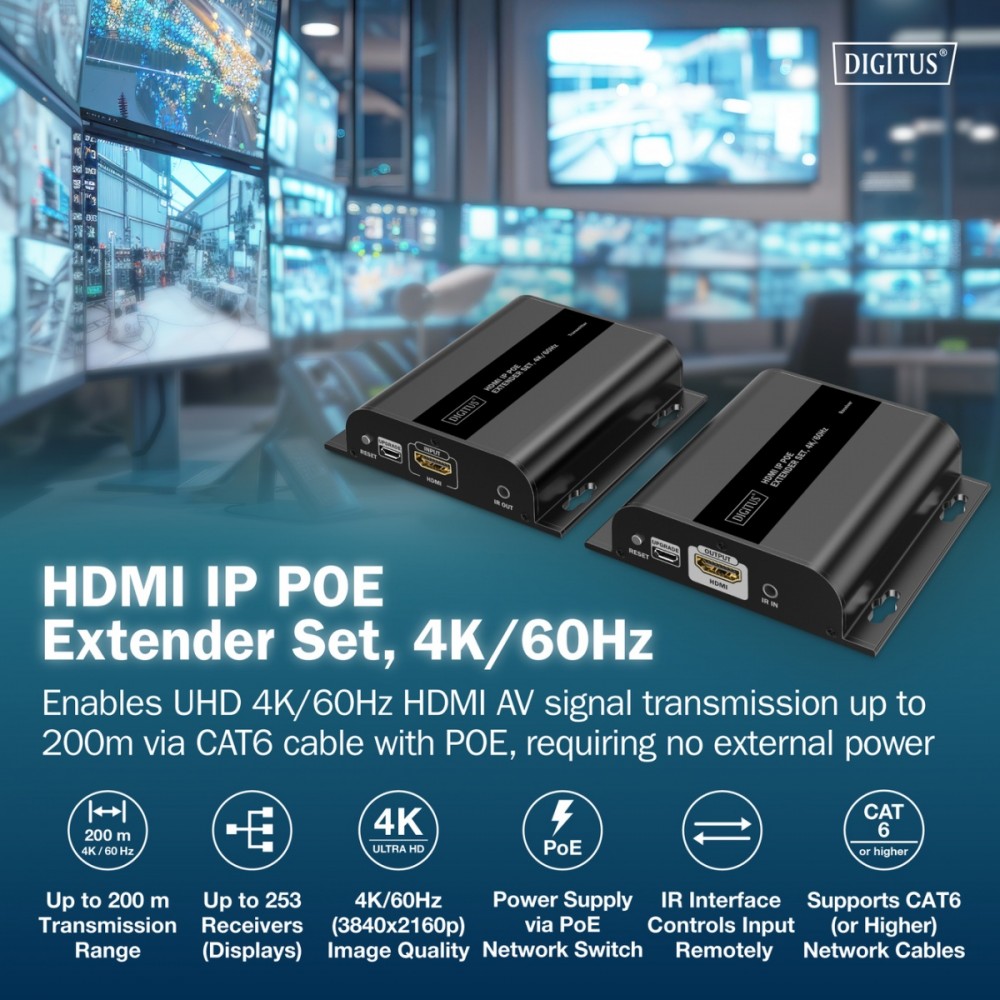

Extender over Cat6 HDMI 4K/60Hz via IP 1G or up to 120m/200m with PoE, max. 253 receivers, IR control – Set

This device enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over distances up to 200 m in a point-to-point connection using a CAT6 network cable (or higher). With PoE support, no external power supply is required.

The HDMI IP Extender Set 4K/60Hz allows HDMI AV signals to be transmitted in ultra-high 4K resolution (4096x2160p at 60Hz) over long distances of up to 200 meters-thanks to an efficient point-to-point connection using a CAT6 or higher network cable. The set is fully powered via a PoE network switch; no external power adapters are needed. IP expansion allows flexible system scaling and supports up to 253 receivers (displays) for point-to-multipoint transmission.

Additionally, the existing 1G network infrastructure can be used, allowing unlimited signal range by cascading through network switches. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354).

Outstanding image quality is always maintained: with low latency of only 150220 ms, the transmission is smooth and razor-sharp in UHD. Another practical feature is the integrated IR interface, which enables remote control of the input source directly from the output display. The device is also suitable for wall mounting, saving space. Ideal for professional AV applications, home theater setups, or corporate use, this HDMI IP extender set combines top-quality transmission with maximum flexibility.

Key Features:

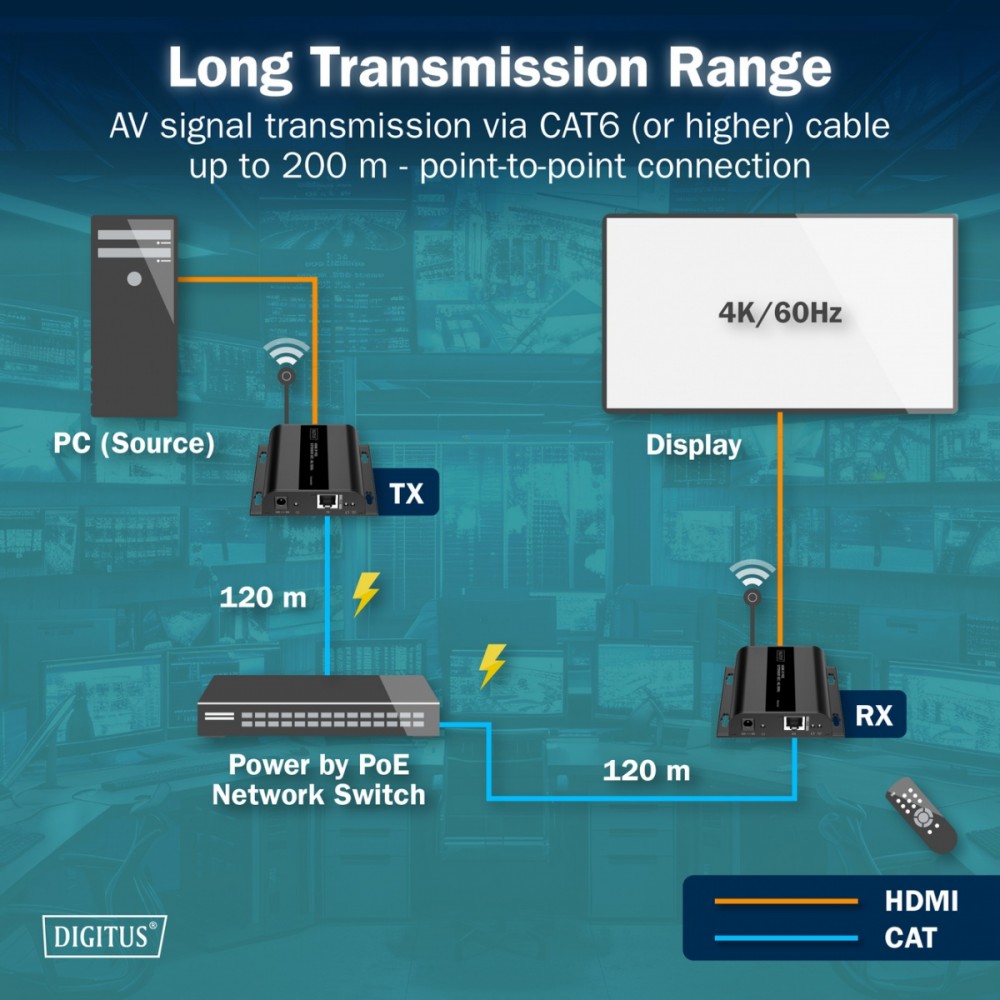

  • Long-range transmission: AV signal transmission via CAT6 (or higher) cable up to 200 m – point-to-point connection

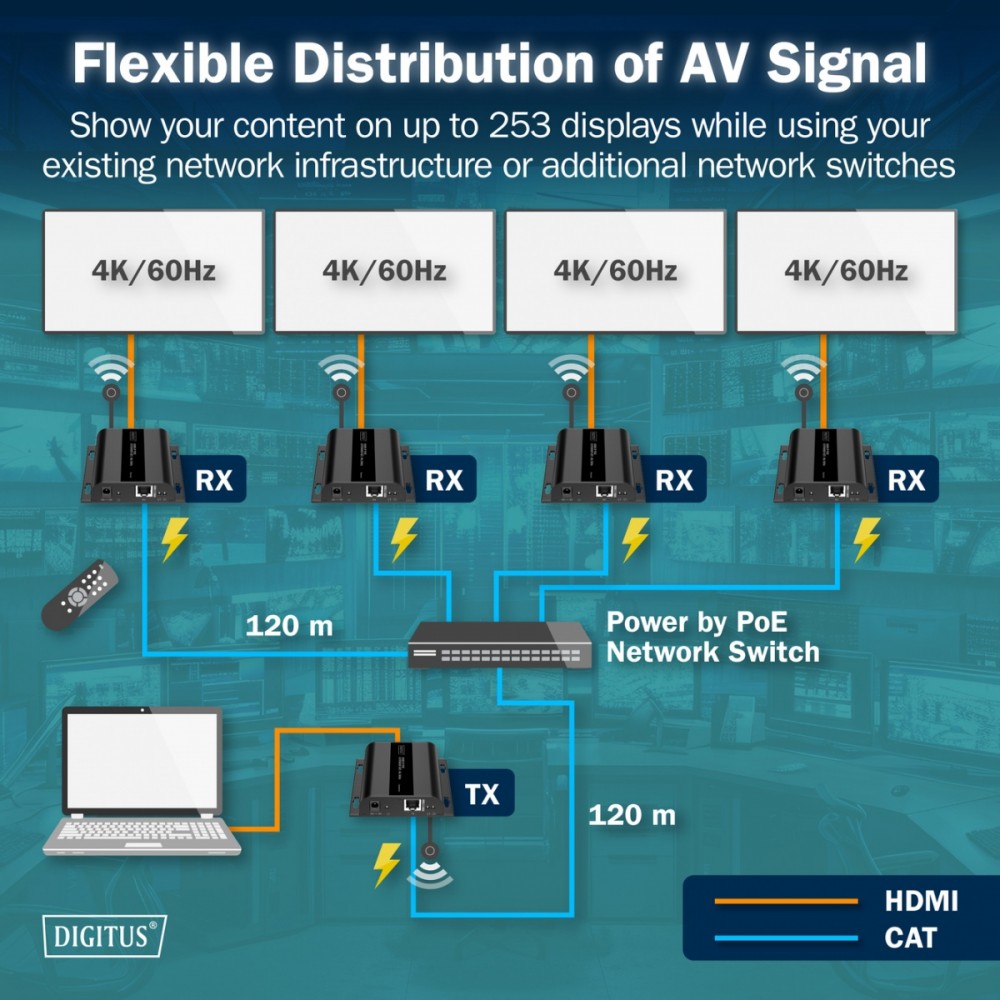

  • IP expansion capability: Supports up to 253 receivers (displays) – point-to-multipoint connection
  • Flexible and efficient via IP: Uses existing 1G network infrastructure or additional 1G network switches to transmit signals over unlimited distances – cascading
  • Expandable options: Additional receivers (RX) available separately (model: DS-55354)
  • Flexible installation with PoE: Fully powered via PoE network switch – no external power supply required
  • Exceptional image quality: UHD transmission up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
  • IR interface: Allows remote control of the input source from the output display
  • Supports CAT6 or higher network cables
  • Wall-mountable design

Description Extender over Cat6 HDMI 4K/60Hz via IP 1G or up to 120m/200m with PoE, max. 253 receivers, IR control – Set This device enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over distances up to 200 m in a point-to-point connection using a CAT6 network cable (or higher). With PoE support, no external power supply is required. The HDMI IP Extender Set 4K/60Hz allows HDMI AV signals to be transmitted in ultra-high 4K resolution (4096x2160p at 60Hz) over long distances of up to 200 meters-thanks to an efficient point-to-point connection using a CAT6 or higher network cable. The set is fully powered via a PoE network switch; no external power adapters are needed. IP expansion allows flexible system scaling and supports up to 253 receivers (displays) for point-to-multipoint transmission. Additionally, the existing 1G network infrastructure can be used, allowing unlimited signal range by cascading through network switches. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354). Outstanding image quality is always maintained: with low latency of only 150220 ms, the transmission is smooth and razor-sharp in UHD. Another practical feature is the integrated IR interface, which enables remote control of the input source directly from the output display. The device is also suitable for wall mounting, saving space. Ideal for professional AV applications, home theater setups, or corporate use, this HDMI IP extender set combines top-quality transmission with maximum flexibility. Key Features:

  • Long-range transmission: AV signal transmission via CAT6 (or higher) cable up to 200 m – point-to-point connection
  • IP expansion capability: Supports up to 253 receivers (displays) – point-to-multipoint connection
  • Flexible and efficient via IP: Uses existing 1G network infrastructure or additional 1G network switches to transmit signals over unlimited distances – cascading
  • Expandable options: Additional receivers (RX) available separately (model: DS-55354)
  • Flexible installation with PoE: Fully powered via PoE network switch – no external power supply required
  • Exceptional image quality: UHD transmission up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
  • IR interface: Allows remote control of the input source from the output display
  • Supports CAT6 or higher network cables
  • Wall-mountable design

7644
3492
18142
3731
3506
3453
18141
3725
3508
3469
14816
1994
Dimensions

  • (1 piece): 9.7 x 9.4 x 2.4 cm
  • Weight: TX 166 g, RX 164 g

Accessories included

  • Transmitter
  • Receiver
  • 2x IR cable/extender (1.0 m)
  • User manual

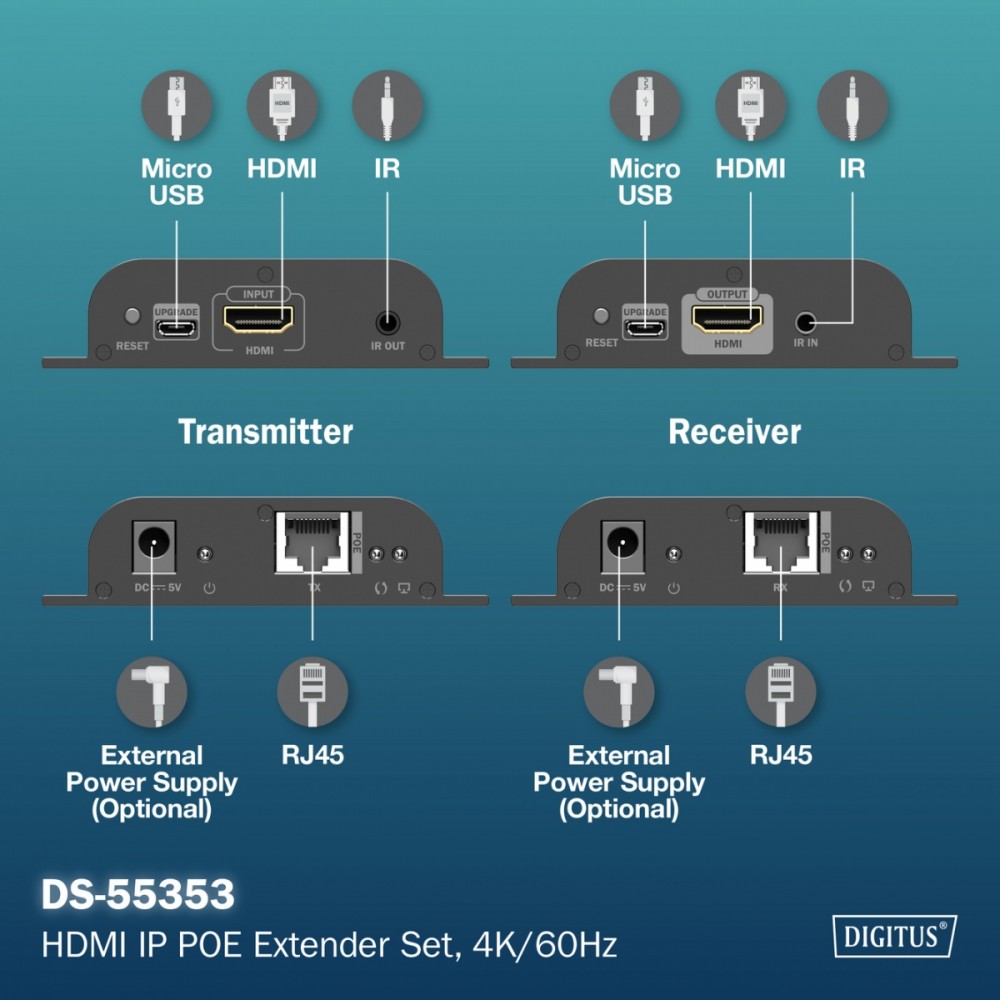

Other features Transmitter (TX) Connections:

  • 1x HDMI input (4K/60Hz) – for connecting the signal source
  • 1x RJ45 output (Gigabit Ethernet) – for connection via CAT transmission cable
  • 1x IR output – for IR signal reception
  • 1x Power connector (DC 5V/1A) – Optional: connect an external power adapter (not included)
  • 1x Micro USB – FW update port
  • 1x Reset button
  • 3x Status LEDs

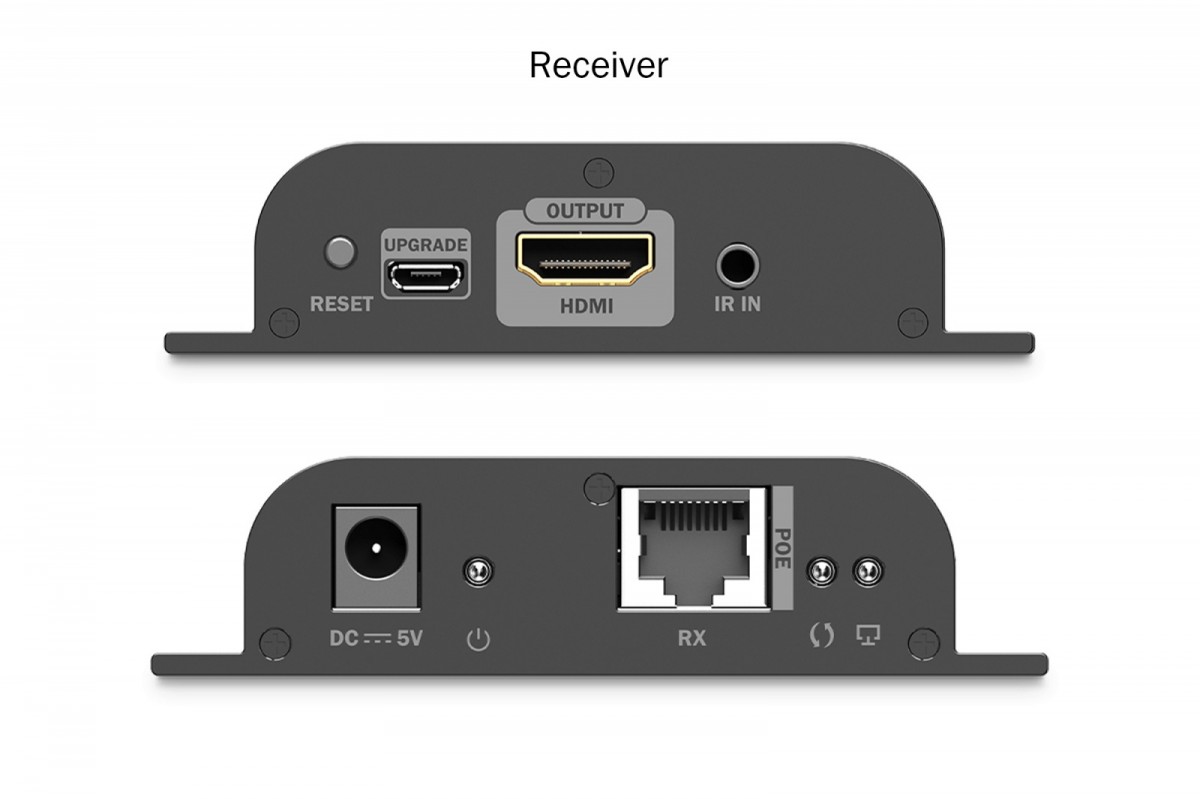

Receiver (RX) Connections:

  • 1x HDMI output (4K/60Hz) – for connecting a display
  • 1x RJ45 input (Gigabit Ethernet) – for connecting the CAT transmission cable
  • 1x IR input – for forwarding the IR signal
  • 1x Power connector (DC 5V/1A) – Optional: connect an external power adapter (not included)
  • 1x Micro USB – FW update port
  • 1x Reset button
  • 3x Status LEDs

Technical Specifications:

  • Maximum Resolution: Ultra HD 4K/60Hz (4096x2160p)
  • Maximum Point-to-Point Range: 200 m
  • Maximum Point-to-Multipoint Range: 120 m
  • Maximum Cascading Section Range: 120 m
  • Supports CAT6 or higher network cables
  • PoE Support – fully powered via PoE network switch
  • HDMI 2.0
  • HDCP 2.2 / 1.4
  • Maximum Video Bandwidth: 18 Gb/s
  • Latency: 150-220 ms (4K/60Hz), 80-130 ms (Full HD)
  • Maximum HDMI Cable Length: 5 m
  • Wall-mountable
  • Supports up to 253 receivers
  • Protection: Short-circuit, overvoltage, ESD (electrostatic discharge)
  • Operating Temperature: -20° to 60° C
  • Power Consumption: approx. 2.5 W
  • Housing: Metal

25607

Extender over Cat6 HDMI 4K/60Hz via IP 1G or up to 120m/200m with PoE, max. 253 receivers, IR control – Set This device enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over distances up to 200 m in a point-to-point connection using a CAT6 network cable (or higher). With PoE support, no external power supply is required. The HDMI IP Extender Set 4K/60Hz allows HDMI AV signals to be transmitted in ultra-high 4K resolution (4096x2160p at 60Hz) over long distances of up to 200 meters-thanks to an efficient point-to-point connection using a CAT6 or higher network cable. The set is fully powered via a PoE network switch; no external power adapters are needed. IP expansion allows flexible system scaling and supports up to 253 receivers (displays) for point-to-multipoint transmission. Additionally, the existing 1G network infrastructure can be used, allowing unlimited signal range by cascading through network switches. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354). Outstanding image quality is always maintained: with low latency of only 150220 ms, the transmission is smooth and razor-sharp in UHD. Another practical feature is the integrated IR interface, which enables remote control of the input source directly from the output display. The device is also suitable for wall mounting, saving space. Ideal for professional AV applications, home theater setups, or corporate use, this HDMI IP extender set combines top-quality transmission with maximum flexibility. Key Features: Long-range transmission: AV signal transmission via CAT6 (or higher) cable up to 200 m – point-to-point connection IP expansion capability: Supports up to 253 receivers (displays) – point-to-multipoint connection Flexible and efficient via IP: Uses existing 1G network infrastructure or additional 1G network switches to transmit signals over unlimited distances – cascading Expandable options: Additional receivers (RX) available separately (model: DS-55354) Flexible installation with PoE: Fully powered via PoE network switch – no external power supply required Exceptional image quality: UHD transmission up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms IR interface: Allows remote control of the input source from the output display Supports CAT6 or higher network cables Wall-mountable design Description Extender over Cat6 HDMI 4K/60Hz via IP 1G or up to 120m/200m with PoE, max. 253 receivers, IR control – Set This device enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over distances up to 200 m in a point-to-point connection using a CAT6 network cable (or higher). With PoE support, no external power supply is required. The HDMI IP Extender Set 4K/60Hz allows HDMI AV signals to be transmitted in ultra-high 4K resolution (4096x2160p at 60Hz) over long distances of up to 200 meters-thanks to an efficient point-to-point connection using a CAT6 or higher network cable. The set is fully powered via a PoE network switch; no external power adapters are needed. IP expansion allows flexible system scaling and supports up to 253 receivers (displays) for point-to-multipoint transmission. Additionally, the existing 1G network infrastructure can be used, allowing unlimited signal range by cascading through network switches. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354). Outstanding image quality is always maintained: with low latency of only 150220 ms, the transmission is smooth and razor-sharp in UHD. Another practical feature is the integrated IR interface, which enables remote control of the input source directly from the output display. The device is also suitable for wall mounting, saving space. Ideal for professional AV applications, home theater setups, or corporate use, this HDMI IP extender set combines top-quality transmission with maximum flexibility. Key Features: Long-range transmission: AV signal transmission via CAT6 (or higher) cable up to 200 m – point-to-point connection IP expansion capability: Supports up to 253 receivers (displays) – point-to-multipoint connection Flexible and efficient via IP: Uses existing 1G network infrastructure or additional 1G network switches to transmit signals over unlimited distances – cascading Expandable options: Additional receivers (RX) available separately (model: DS-55354) Flexible installation with PoE: Fully powered via PoE network switch – no external power supply required Exceptional image quality: UHD transmission up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms IR interface: Allows remote control of the input source from the output display Supports CAT6 or higher network cables Wall-mountable design 7644 3492 18142 3731 3506 3453 18141 3725 3508 3469 14816 1994 Dimensions (1 piece): 9.7 x 9.4 x 2.4 cm Weight: TX 166 g, RX 164 g Accessories included Transmitter Receiver 2x IR cable/extender (1.0 m) User manual Other features Transmitter (TX) Connections: 1x HDMI input (4K/60Hz) – for connecting the signal source 1x RJ45 output (Gigabit Ethernet) – for connection via CAT transmission cable 1x IR output – for IR signal reception 1x Power connector (DC 5V/1A) – Optional: connect an external power adapter (not included) 1x Micro USB – FW update port 1x Reset button 3x Status LEDs Receiver (RX) Connections: 1x HDMI output (4K/60Hz) – for connecting a display 1x RJ45 input (Gigabit Ethernet) – for connecting the CAT transmission cable 1x IR input – for forwarding the IR signal 1x Power connector (DC 5V/1A) – Optional: connect an external power adapter (not included) 1x Micro USB – FW update port 1x Reset button 3x Status LEDs Technical Specifications: Maximum Resolution: Ultra HD 4K/60Hz (4096x2160p) Maximum Point-to-Point Range: 200 m Maximum Point-to-Multipoint Range: 120 m Maximum Cascading Section Range: 120 m Supports CAT6 or higher network cables PoE Support – fully powered via PoE network switch HDMI 2.0 HDCP 2.2 / 1.4 Maximum Video Bandwidth: 18 Gb/s Latency: 150-220 ms (4K/60Hz), 80-130 ms (Full HD) Maximum HDMI Cable Length: 5 m Wall-mountable Supports up to 253 receivers Protection: Short-circuit, overvoltage, ESD (electrostatic discharge) Operating Temperature: -20° to 60° C Power Consumption: approx. 2.5 W Housing: Metal 25607

Επιπλέον πληροφορίες

Βάρος 0,753 κ.
Διαστάσεις 8 × 14,5 × 25 cm
