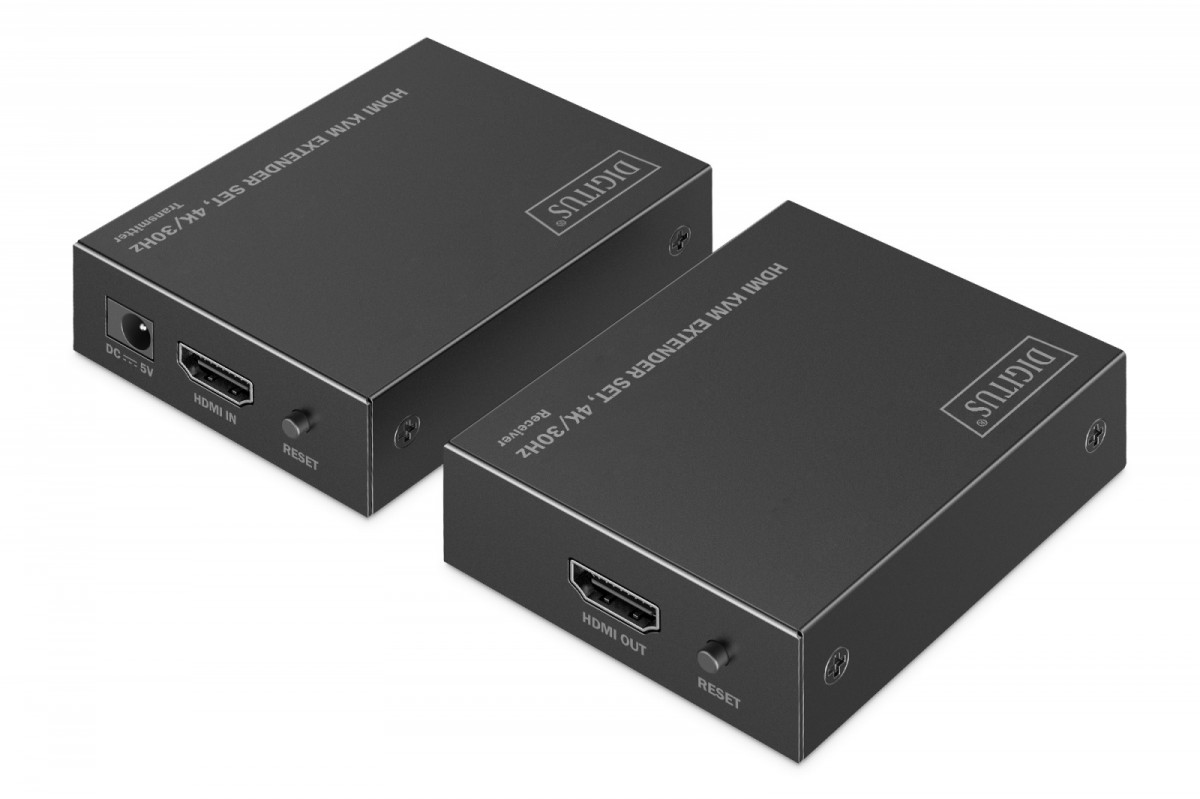

Extender over Cat6 HDMI 4K/30Hz with KVM USB 1.1 up to 40m/70m, max. 253 receivers, IR control – Set
This device enables AV signal transmission in UHD resolution (4K/30Hz) over distances up to 40 m via CAT6 (or higher) network cable and offers KVM functionality (keyboard, video, mouse), as well as PoC (Power over Cable) on the receiver side.

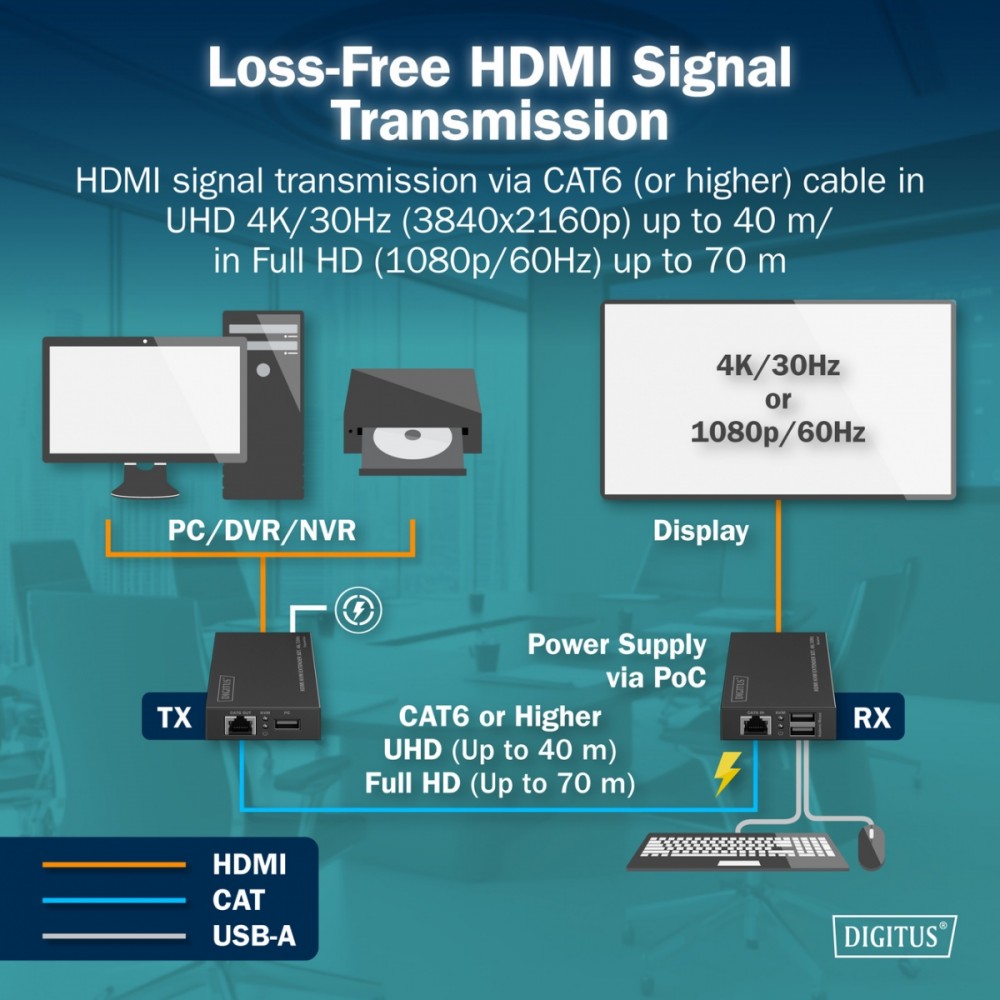

The HDMI KVM Extender Set (4K/30Hz) allows lossless and virtually latency-free (10-20 ms) AV signal transmission in Ultra HD resolution (4K/30Hz) over distances of up to 40 meters using a CAT6 or higher quality network cable. Thanks to the integrated KVM function, a mouse and keyboard can be connected directly to the receiver for convenient remote control.
The system supports both:
- Uncompressed HDMI signal transmission at 4K/30Hz up to 40 meters
- Full HD (1080p/60Hz) transmission up to 70 meters
Ultra-low latency technology ensures virtually delay-free image playback (10-20 ms) for smooth user experience. For simple and flexible installation, the set supports PoC (Power over Cable), meaning only the transmitter needs to be powered via a power adapter. Plug & Play installation guarantees fast and uncomplicated setup.
The HDMI KVM Extender is an ideal solution for professional applications, conference rooms, industrial control systems, or home theater setups requiring high-resolution signal transmission with additional control options.
Key Features:
- Lossless HDMI signal transmission in UHD 4K/30Hz (3840x2160p) up to 40 m via CAT6 or higher network cable
- Lossless HDMI signal transmission in Full HD 1080p/60Hz up to 70 m via CAT6 or higher network cable
- Ultra Low Latency: virtually delay-free image reproduction (10-20 ms) and uncompressed AV signal transmission
- Additional connectivity and control: KVM function for connecting mouse and keyboard at the receiver
- Flexible installation with PoC: only the transmitter needs external power
- Point-to-point connection support
- Supports CAT6 or higher network cables
- Plug & Play installation
Dimensions: (1 piece): L 7.5 x W 6.0 x H 2.0 cm Weight (1 piece): 123 g
Accessories included: Transmitter Receiver Power adapter, EU plug (DC 5V/2A, 1.2 m) USB cable (1.2 m) User manual

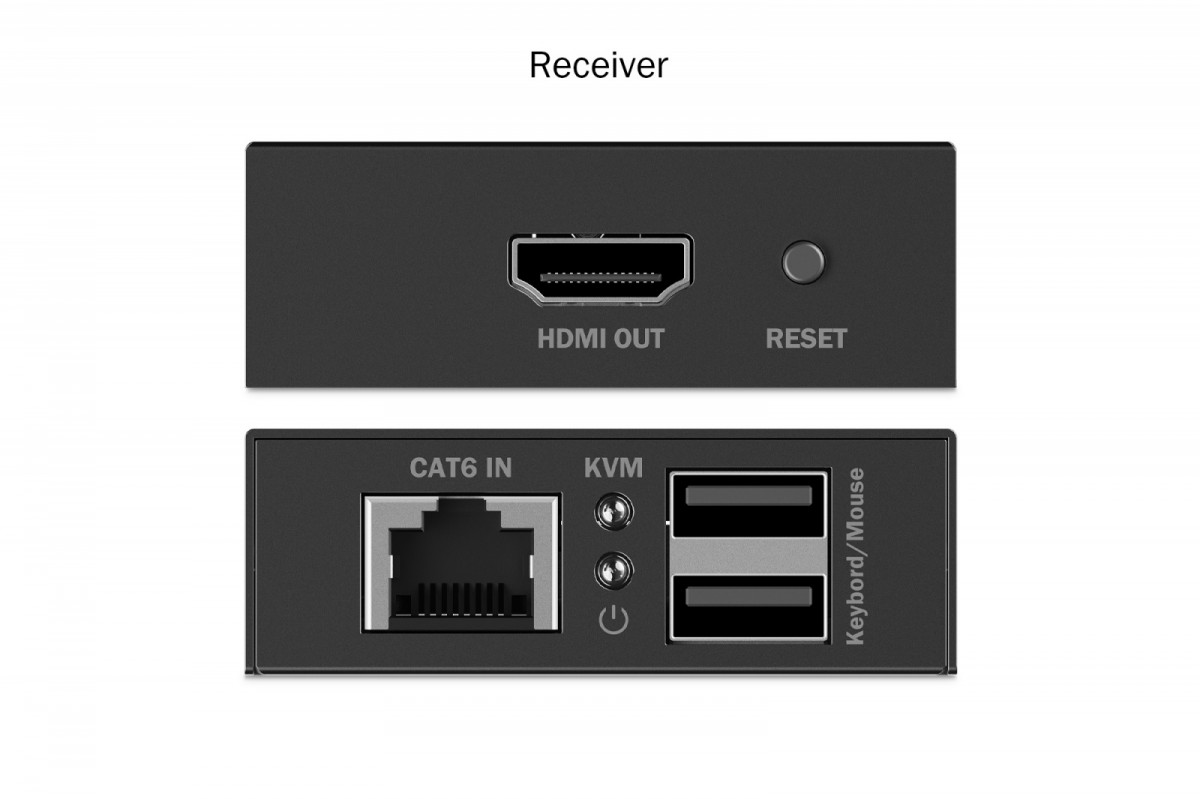

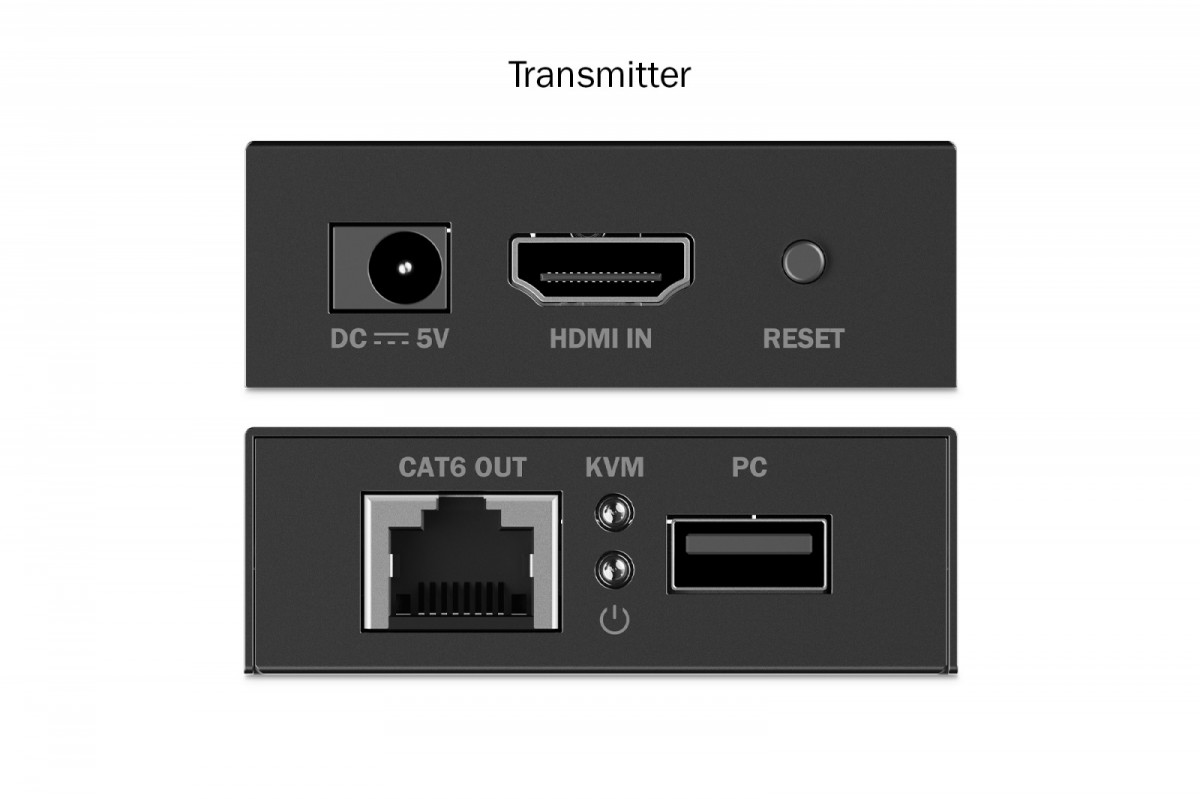

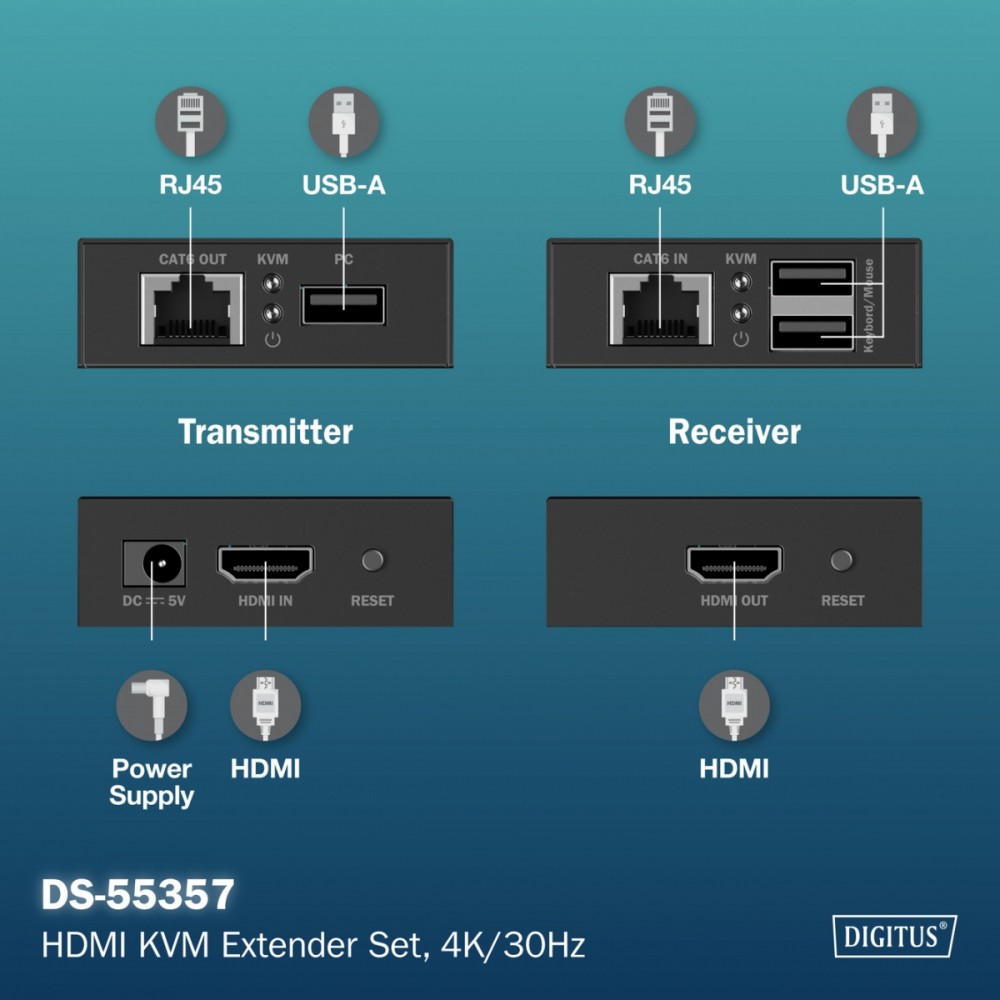

Other features: Transmitter (TX) Connections: 1x HDMI input (4K/30Hz) – for connecting the source device 1x RJ45 output (Gigabit Ethernet) – for connecting the CAT transmission cable 1x USB-A (1.1) – for connecting the source device (PC) 1x Power connector (DC 5V/2A) – for external power supply 1x Reset button 2x Status LEDs Receiver (RX) Connections: 1x HDMI output (4K/30Hz) – for connecting a display 1x RJ45 input (Gigabit Ethernet) – for connecting the CAT transmission cable 2x USB-A (1.1) – for connecting mouse and keyboard 1x Reset button 2x Status LEDs Technical Specifications: Maximum Resolution: Ultra HD 4K/30Hz (3840x2160p) Maximum Range 4K/30Hz: 40 m Maximum Range 1080p/60Hz: 70 m Supports CAT6 or higher network cables HDMI 1.4 HDCP 1.4 Maximum Video Bandwidth: 10.2 Gb/s Latency: 10-20 ms HDR10 Support (High Dynamic Range) Maximum HDMI Cable Length: 5 m ESD Protection (Electrostatic Discharge) Operating Temperature: -20° to 60° C Power Consumption: TX + RX approx. 10 W Housing: Metal
