Monitor/TV Ceiling Mount DA-90421

Περιγραφή

The fully movable universal ceiling mount from DIGITUS meets all user requirements. Suitable for flat and curved displays with a screen diagonal from 37″ to 70″ and weighing up to 50 kg. Thanks to the telescopic height adjustment, it can be optimally adjusted to different ceiling heights. In addition, the holder can be adjusted to ceiling slopes up to 60° and rotated 360°. The optimal viewing angle is provided by an adjustable degree of inclination that can be adjusted from 0° to -25° to the ceiling height. Installation is made easier by the VESA mount with the Quick-Release function, and the display together with the VESA mount can be easily hung on appropriate mounting points. The cable is clearly routed under the telescopic structure. The integrated spirit level helps in precisely adjusting the position. The ceiling mount can be used for VESA sizes from 200×200 to 600×400.

• Universal solution for screens from 37'' to 70''
• For flat and curved displays

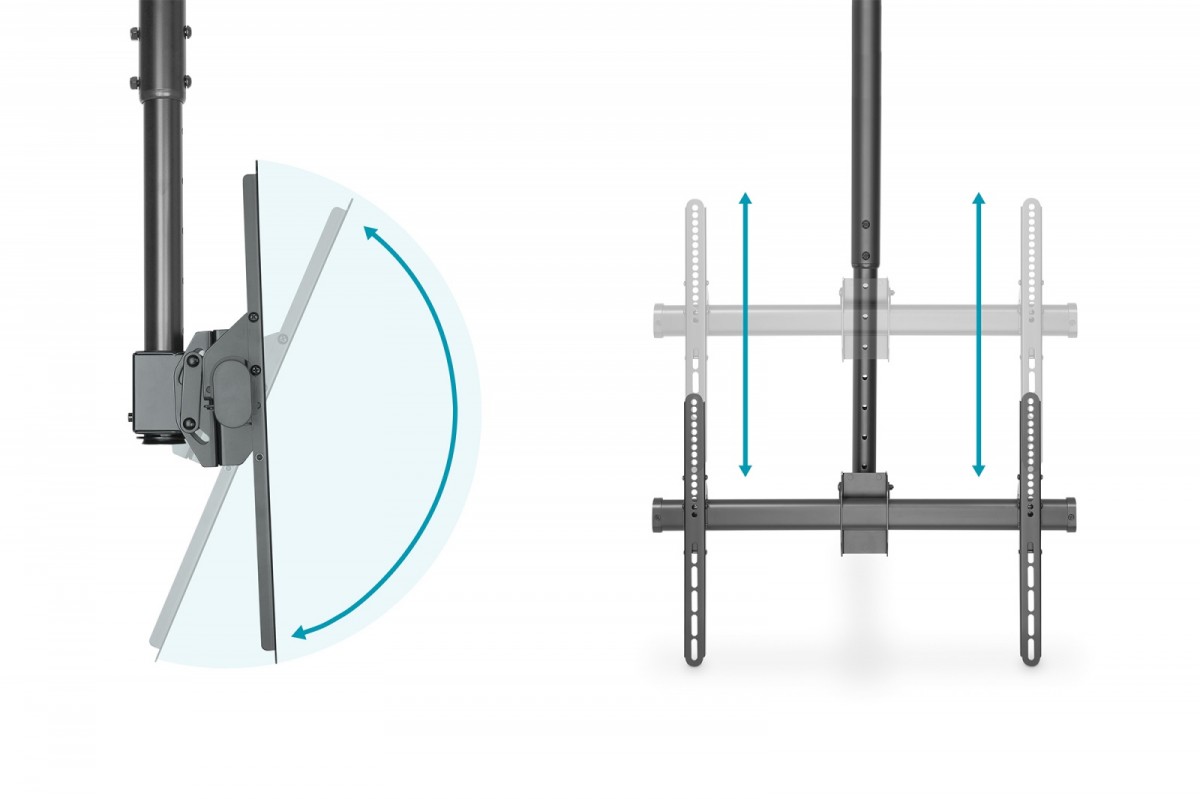

• Freely selectable tilt from 0° to -25° for the optimal viewing angle
• Rotation range: 360° (+180° to -180°)
• Rotation range: +3° to -3° (for precise adjustment)
• Flexible height adjustment: 56-91 cm (center point of VESA mount to mounting base)
• Flexible height adjustment thanks to telescopic structure (35 cm)
• The mounting base is suitable for sloping ceilings: tilt angle adjustment from +60° to -60°
• Built-in spirit level for perfect positioning
• Quick-Release function – easy installation and removal of monitors
• Cable management: routing inside the tubular structure
• Perfect for offices, conference rooms, catering, schools or hotels

Screen size (min): 3
Screen size (max): 7
Load (max): 5
Range (min): 5
Range (max): 9
Accessories included: 1 x Universal TV mount with telescopic design for height adjustment 1 x mounting accessories 1 x QIG

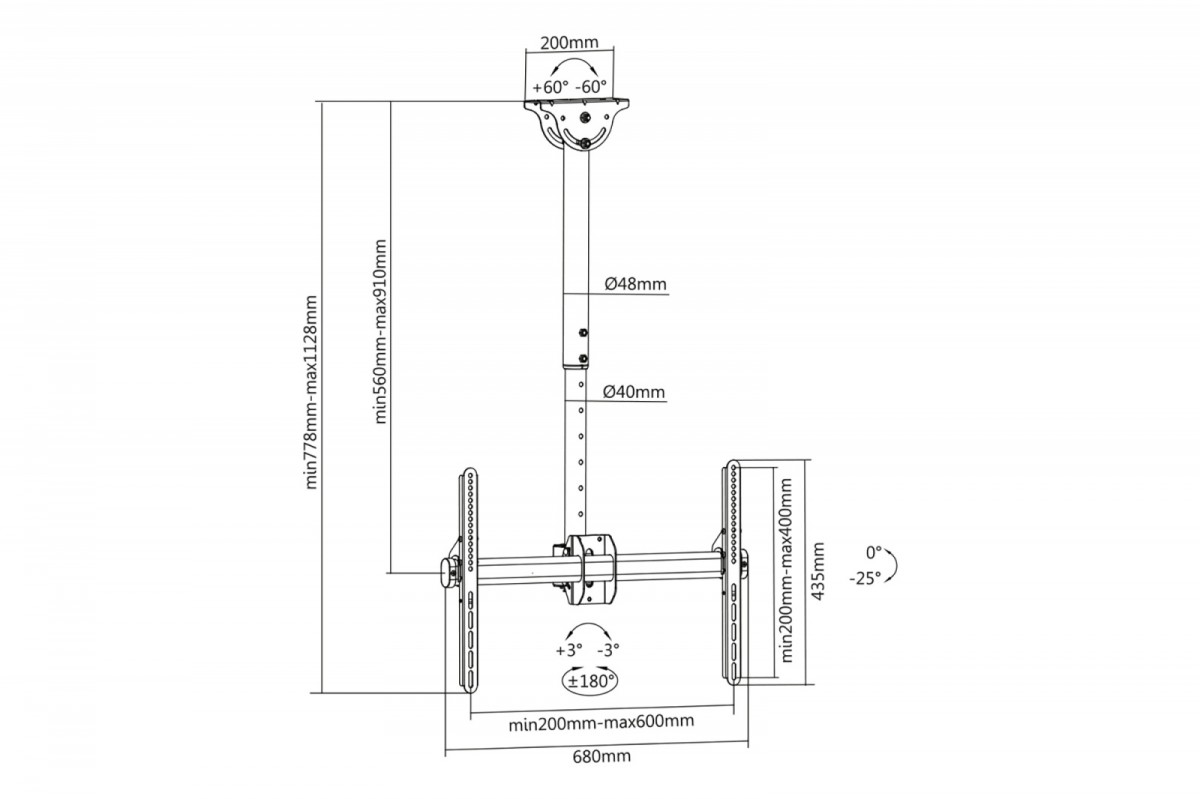

Dimensions: width 68 cm x depth 43.5 cm x height 113 cm
Weight: 5
