MAG Z890 Tomahawk Wifi Title

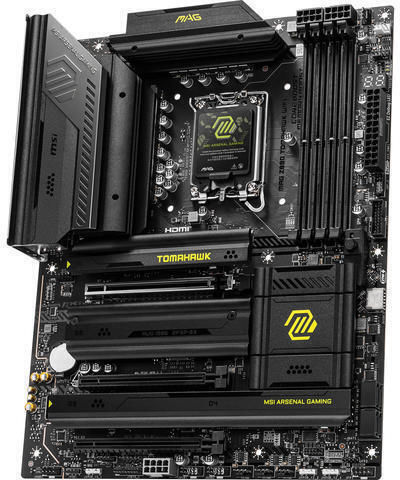

The MAG Z890 TOMAHAWK WIFI is designed for gamers who want a stable, durable, and easy-to-assemble foundation for their PCs. Equipped with a killer Wi-Fi 7 and 5G LAN solution, Thunderbolt 4, PCIe 5.0 solutions, additional PCIe power, and exclusive EZ DIY features, it is ready for the Intel Core Ultra battlefield.
The MSI ARSENAL GAMING (MAG) series is designed to give gamers the edge they need to dominate the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military equipment, the MAG series is built to provide an unwavering defense in any gaming scenario.
But MAG is not just about performance; it is a design language that conveys strength and durability, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlefields, the MAG series is here to stand with you, establishing the ultimate defense.
- Intel Core Ultra (Series 2) processor support for LGA 1851 socket
- Support for DDR5 memory, dual-channel DDR5 9200+ MT/s (OC) memory
- Ultra performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made of 2-ounce thick copper and server-grade material
- Frozr Guard: Extended heatsink, 7W/mK MOSFET thermal pads, additional choke thermal pads and EZ M.2 Shield Frozr II are built for a high-performance system and uninterrupted operation
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning-fast gaming experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: port Thunderbolt 4, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution – the latest professional and multimedia solution, providing secure, stable and fast networking and data transmission
- Audio Boost 4: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Description MAG Z890 Tomahawk Wifi TitleThe MAG Z890 TOMAHAWK WIFI is designed for gamers who want a stable, durable, and easy-to-assemble foundation for their PCs. Equipped with a killer Wi-Fi 7 and 5G LAN solution, Thunderbolt 4, PCIe 5.0 solutions, additional PCIe power, and exclusive EZ DIY features, it is ready for the Intel Core Ultra battlefield.The MSI ARSENAL GAMING (MAG) series is designed to give gamers the edge they need to dominate the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military equipment, the MAG series is built to provide an unwavering defense in any gaming scenario.But MAG is not just about performance; it is a design language that conveys strength and durability, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlefields, the MAG series is here to stand with you, establishing the ultimate defense.
- Intel Core Ultra (Series 2) processor support for LGA 1851 socket
- Support for DDR5 memory, dual-channel DDR5 9200+ MT/s (OC) memory
- Ultra performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made of 2-ounce thick copper and server-grade material
- Frozr Guard: Extended heatsink, 7W/mK MOSFET thermal pads, additional choke thermal pads and EZ M.2 Shield Frozr II are built for a high-performance system and uninterrupted operation
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning-fast gaming experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: port Thunderbolt 4, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution – the latest professional and multimedia solution, providing secure, stable and fast networking and data transmission
- Audio Boost 4: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Model MAG Z890 TOMAHAWK WIFI
25175
24470
637
586
Chipset type INTEL Z890
4403
22020
23081
25414
22643
19476
Max memory size 2
25010
22890
20070
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces
- M.2_1 Source (From CPU) Supports up to PCIe 5.0 x4, Supports 2280/2260 devices
- M.2_2 Source (From CPU) Supports up to PCIe 4.0 x4, Supports 22110/2280/2260 devices
- M.2_3 Source (From Chipset) Supports up to PCIe 4.0 x4, Supports 2280/2260/2242 devices
- M.2_4 Source (From Chipset) Supports up to PCIe 4.0 x4 / SATA mode, Supports 2280/2260/2242 devices
- 4x SATA 6G
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Graphics
- 1x HDMI
- HDMI 2.1 support with FRL, max resolution 4K 120Hz*
- 2x Type-C DisplayPort
- Thunderbolt 4 ports, DisplayPort 2.1 support with UHBR20 over USB Type-C, max resolution 4K@120Hz / 8K@60Hz*
- *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
20382
24058
927
Network interface
- Intel Killer E5000 5Gbps LAN
- Intel Killer BE1750x Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth 5.4**, MLO, 4KQAM
USB ports at back panel 1
USB ports on motherboard 8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 7
646
389
391
5243
25430
21971
5237
5236
5241
5251
25436
25440
7778
19601
7491
7486
7475
8981
19599
7494
7474
12813
7500
19614
7795
7492
7765
25420
23174
23202
648
Dimensions 243.84mm x 304.8mm
22012
25607
