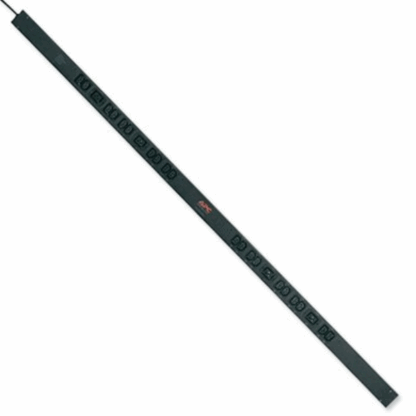

PDU rack, base, zero U, 16 A, 230 V, 20 C13 e 4 C19, IEC C20 (AP7552)

Περιγραφή

Βασική συσκευή PDU Rack

PDU ραφιού, Βασικό, Μηδενικό U, 16A, 230V, (20) C13 & (4) C19; IEC C20
PDU APC Basic Rack, είσοδος: 200V, 208V, 230V, Τύπος υποδοχής εισόδου: IEC-320 C20, Μήκος καλωδίου τροφοδοσίας: 3,05 μέτρα (10 πόδια), έξοδος: 230V, Υποδοχές εξόδου: IEC 320 C13, IEC 320 C19

Description Basic Rack PDU deviceRack PDU, Basic, Zero U, 16A, 230V, (20) C13 & (4) C19; IEC C20APC Basic Rack PDU, input: 200V, 208V, 230V, Input socket type: IEC-320 C20, Power cord length: 10 feet (ft.) (3.05 meters), output: 230V, Output sockets: IEC 320 C13, IEC 320 C19
1994
Dimensions Net weight: 4.86 KGThe maximum height: 1619.00 mmMaximum width: 56.00 mmMaximum depth: 44.00 mmPackage weight: 5.77 KGHeight in transport packaging: 2134.00 mmWidth in the transport packaging: 152.00 mmDelivery height: 127.00 mm
Certificates CE, GOST, IRAM, VDE
Technical specifications At the exit:

•      Output voltage: 230V
•      Maximum total power consumption: 16A
•      Output sockets: (20) IEC 320 C13, (4) IEC 320 C19

At the entrance:

•      Nominal input voltage: 200V, 208V, 230V
•      Frequency at input: 50/60 Hz
•      Input jack type: IEC-320 C20
•      Power cord length: 3.05 meters
•      Number of power cables: 1
•      Maximum input current: 16A
•      Load level: 3680 VA

Environmental parameters:

•      Operating environment: 0 – 45 ° C
•      Relative humidity during operation: 5 – 95%
•      Height m.p. during work: 0-3000 meters
•      Temperature (storage): -25 – 65 ° C
•      Relative humidity (storage): 5 – 95%
•      Height m.p. (storage): 0-15000 meters

Included User’s manual,Clamps for mounting in industrial cabinets,Assembly kit without tools
