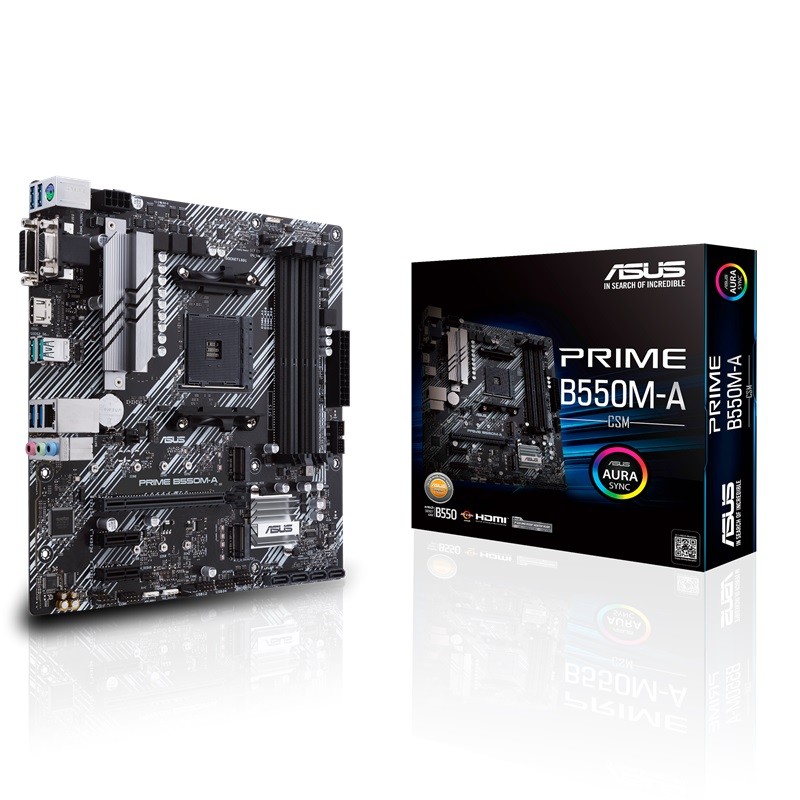

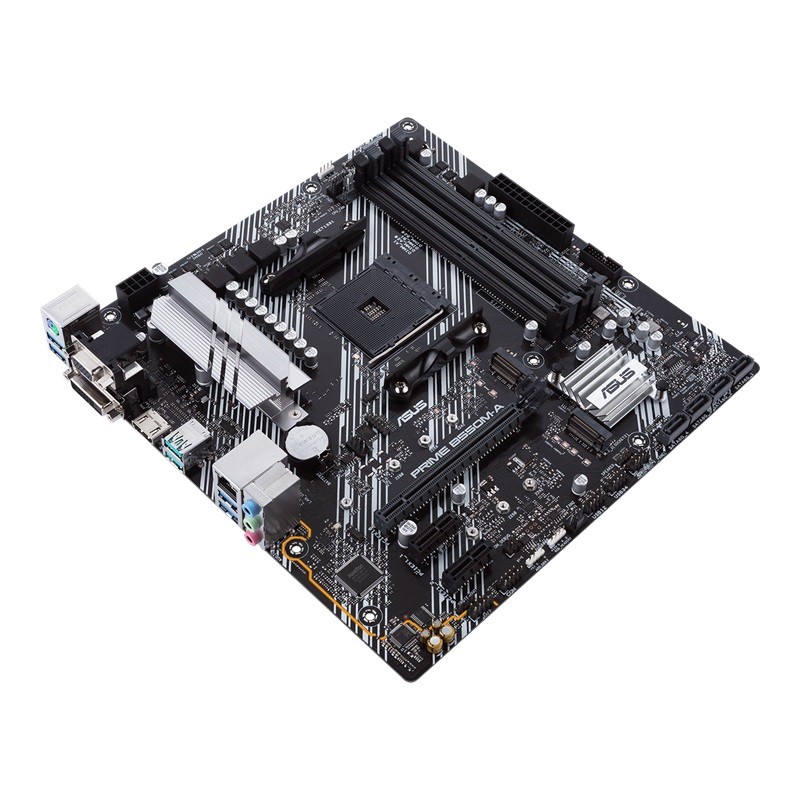

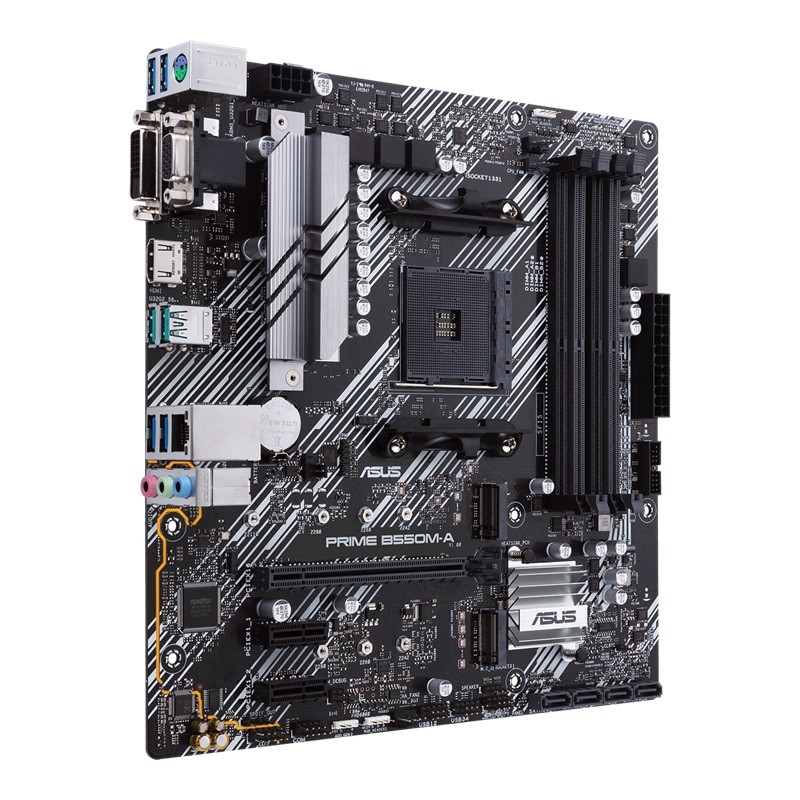

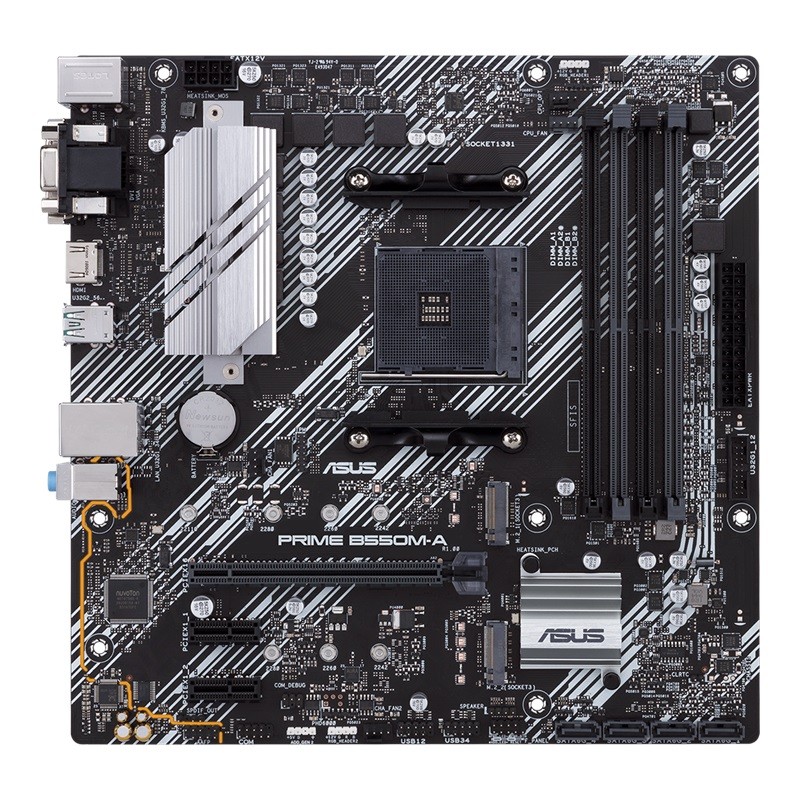

PRIME B550M-A/CSM AM4 4DDR4 HDMI M.2 mATX

Περιγραφή

Μητρική πλακέτα AMD B550 (Ryzen AM4) σε μορφή micro ATX με δύο υποδοχές M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gb/s, USB 3.2 Gen 2 Type-A και υποστήριξη κεφαλής Aura Sync RGB

• Υποδοχή AMD AM4: Έτοιμη για επεξεργαστές Ryzen 5000/4000 G-Series/3000 για επιτραπέζιους υπολογιστές
• Ολοκληρωμένη ψύξη: ψύκτρα VRM, ψύκτρα PCH και Fan Xpert 2+
• Εξαιρετικά γρήγορη συνδεσιμότητα: διπλή M.2, PCIe 4.0, 1Gb Ethernet, USB 3.2 Gen 2 Type-A
• Aura Sync RGB: Ενσωματωμένη διευθυνσιοδοτούμενη κεφαλίδα Gen 2 για ταινίες LED RGB, συγχρονίζεται εύκολα με υλικό με δυνατότητα Aura Sync.

Description AMD B550 (Ryzen AM4) motherboard in micro ATX format with two M.2 slots, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gb/s, USB 3.2 Gen 2 Type-A and header support Aura Sync RGB

• AMD AM4 Socket: Ready for Ryzen 5000/4000 G-Series/3000 Desktop Processors
• Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: dual M.2, PCIe 4.0, 1Gb Ethernet, USB 3.2 Gen 2 Type-A
• Aura Sync RGB: Built-in addressable Gen 2 header for RGB LED strips, easily syncs with Aura Sync-enabled hardware

Model Prime B550
15599
17855
637
587
Chipset type AMD B550
4402
9004
12414
16377
17034
17035
18456
11978
11751
11752
11652
11654
9210
3641
2669
3638
2130
1978
19476
1106
23188
948
Max memory size 1
12362
19491
7974
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces In total, it supports 2 M.2 slots and 4 SATA 6 Gb/s ports AMD Ryzen 5000/3000 series desktop processors:

• 1 x M.2_1 slot 3, M-key, type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) support for storage devices

AMD Ryzen 5000 G-Series/ 4000 G-Series Processors:

• 1 x M.2_1 slot 3, M-key, type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) support for storage devices

AMD B550 Chipset:

• 1 x M.2_2 slot 3, M-key, type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) support for storage devices
• 4 SATA 6 Gb/s ports
• Support for Raids 0, 1, 10

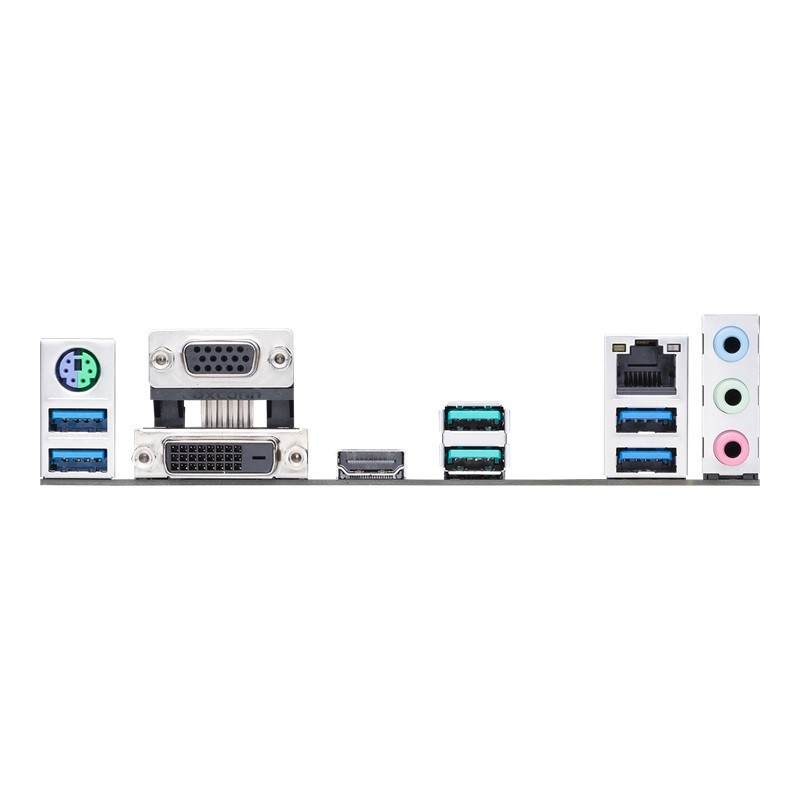

Graphics

• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI 2.1(4K@60HZ)

Sound card Realtek ALC887/897 7.1 surround High Definition audio codec

• Supports: jack detection, multi-streaming, front panel jack reassignment, up to 24-bit/192kHz playback

Sound function:

• LED backlit design
• Audio shielding
• Dedicated audio PCB layers
• High-quality audio capacitors

Network interface Realtek RTL8111H 1Gb Ethernet
USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
646
390
391
5234
5248
5237
5251
5241
5235
5236
5239
7788
11056
7488
7490
7475
7794
7494
7474
11708
7792
7481
7499
7492
7487
7486
Special functions Asus 5X Protection III

• Asus DIGI+ VRM
• Asus LANGuard
• Asus surge protection
• Asus SafeSlot core
• Asus stainless steel rear I/O

Asus Q-Design

• Asus Q-DIMM
• Asus Q-Slot

Asus thermal solution

• Aluminum heat sink construction

Aura Sync

• Standard RGB headers
• Addressable RGB Gen 2 header

Asus lighting control
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
649
Dimensions 24.4 x 24.4 cm
Accessories included

• 1 x ACC Express Activation Key Card
• I/O cover
• 2 SATA 6 Gb/s cables
• 1 x DVD
• User manual
• 1 x M.2 SSD Screw Pack
