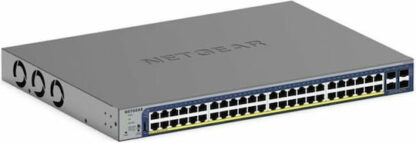

Switch Netgear GS752TXv3 52p Managed Gigabit/10G

Περιγραφή

As a leading provider of network equipment for businesses, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business needs, whether in the hospitality, catering, education or retail domains. The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24-port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA.

Description As a leading provider of network equipment for businesses, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business needs, whether in the hospitality, catering, education or retail domains. The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom.Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24-port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA.
1212
1215
1224
1223
1222
1217
1238
1239
21357
1271
25065
1255
4980
1251
1247
4761
23336
11459
4771
Throughput 1
Forwarding rate 1
Memory buffer 1
MAC address table size 1
1221
Jumbo frame size 1
Supported protocols and standards

• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3ad Trunking (LACP)
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.1Q VLAN Tagging
• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
• IEEE 802.1p Class of Service
• IEEE 802.1D Spanning Tree (STP)
• IEEE 802.1s Multiple Spanning Tree (MSTP)
• IEEE 802.1w Rapid Spanning Tree (RSTP)
• IEEE 802.1x RADIUS Network Access Control

QoS

• Port-based rate limiting: Yes ingress and egress
• Port-based QoS: Yes
• Support for IPv6 fields: Yes
• DiffServ QoS: Yes ingress
• IEEE 802.1p COS: Yes
• Destination MAC and IP: Yes
• IPv4 and v6 DSCP: Yes
• IPv4 and IPv6 ToS: Yes
• TCP/UDP-based: Yes
• Weighted Round Robin (WRR): Yes
• Strict priority queue technology: Yes
• Auto-VoIP VLAN / Auto-Voice VLAN: Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
• Auto-VoIP: Yes, based on protocols (SIP). Prioritzes traffic to a higher queue
• Voice VLAN: Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED

Management, monitoring, configuration

• Cloud/Remote management: Yes
• Insight mobile app & Insight Cloud Portal
• management: Yes
• uPnP Discovery: Yes
• Lite Command-line Interface (CLI): Yes (Refer to Lite CLI Manual on NETGEAR Support page of the switch model)
• Networking monitoring: Yes
• Data/performance logs: Yes
• Centralized network configuration/policies (network-centric management): Yes
• Device auto-join and configure (zero-touch provisioning): Yes
• Multi-site, multi-network single pane-of-glass view: Yes
• Multi-switch, multi-port concurrent configuration: Yes
• Network/global password (for all Insight Managed devices on a network): Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud portal)

2638
1230
1227
Power consumption 4
Mean time between failures (MTBF) 3
Environment requirements Operating

• Operating Temperature: 0° to 50°C (32° to 122°F)
• Humidity: 90% maximum relative humidity (RH), non-condensing
• Altitude: 10,000 ft (3,000 m) maximum

Storage

• Storage Temperature: 20° to 70°C ( 4° to 158°F)
• Humidity (relative): 95% maximum relative humidity, non-condensing
• Altitude: 10,000 ft (3,000 m) maximum

Certificates

• CE
• FCC Class A
• RCM
• ICES Class A
• VCCI
• KC
• BSMI
• UKCA

Accessories included

• NETGEAR GS752TXv3 with Insight Cloud Management
• DC power cord
• Rackmount kit
• Installation guide

Dimensions 440 x 257 x 43.2 mm
Weight 3
