Switch SG3428XPP-M2 24x2.5GE PoE+ 4SFP+

Περιγραφή

• 24× 2.5Gbps ports break through the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.

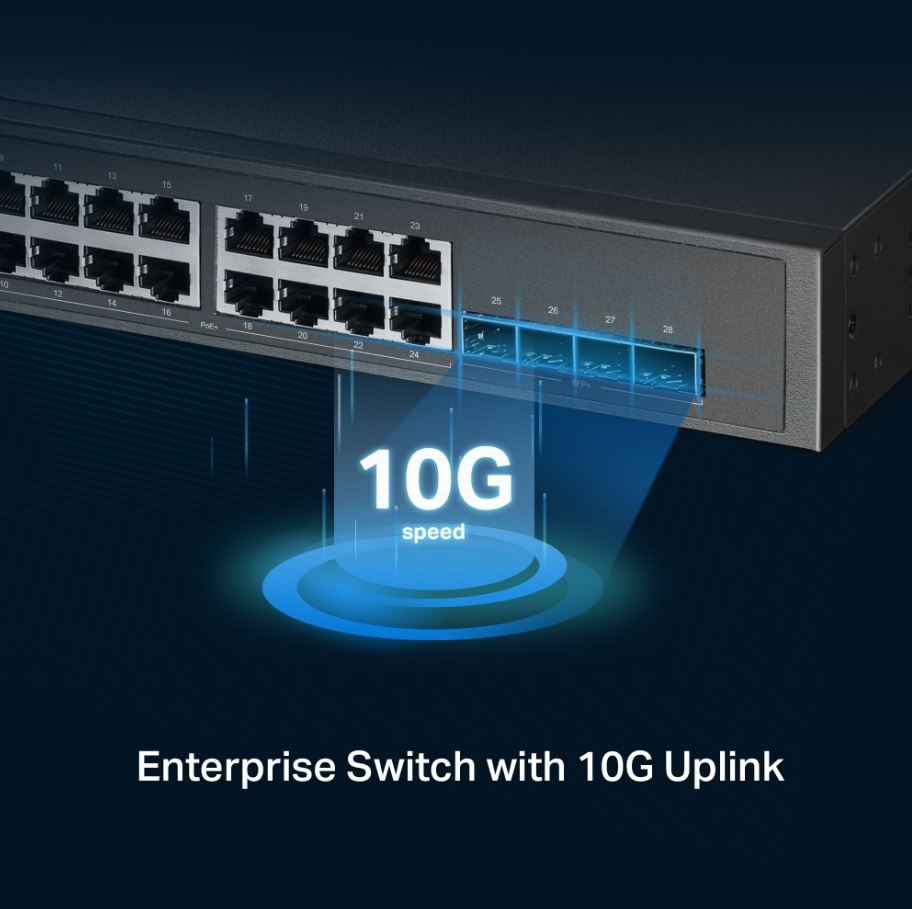

• 4× 10Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching.
• 8× 802.3bt/at/af-compliant PoE++ ports and 16× 802.3at/af-compliant PoE+ ports, with a combined 500W of available power.
• Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.
• Access to the Omada cloud and app for ultimate convenience and easy management.
• Helps direct internal traffic for more efficient use of network resources.
• L2/L3/L4 Quality of Service (QoS) and IGMP snooping.

Description

• 24× 2.5Gbps ports break through the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.
• 4× 10Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching.
• 8× 802.3bt/at/af-compliant PoE++ ports and 16× 802.3at/af-compliant PoE+ ports, with a combined 500W of available power.
• Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.
• Access to the Omada cloud and app for ultimate convenience and easy management.
• Helps direct internal traffic for more efficient use of network resources.
• L2/L3/L4 Quality of Service (QoS) and IGMP snooping.

1212
1215
1222
4775
1223
1224
1217
1234
1239
23936
1271
1255
4980
1251
1247
4761
23336
11459
1267
Throughput 2
Forwarding rate 1
MAC address table size 3
1221
Jumbo frame size 9
VLAN

• VLAN Group; Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 256 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ
• Voice VLAN

QoS

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR
• Bandwidth Control: Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows: Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark

Security

• IP-MAC-Port Binding: 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding: 512 Entries; DHCPv6 Snooping; ND Detection; IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• 802.1X: Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; Support Radius authentication andaccountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

L3 features

• 32 IPv4/IPv6 Interfaces
• Static Routing: 48 static routes
• Static ARP: 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay; DHCP VLAN Relay
• DHCP L2 Relay

2638
1230
1228
Power consumption 6
Environment requirements

• Operating Temperature: 0-40 degrees Celsius;
• Storage Temperature: -40-70 degrees Celsius;
• Operating Humidity: 10-90% RH, non-condensing
• Storage Humidity: 5-90% RH, non-condensing

Certificates CE, FCC, RoHS
Power supply 100-240 V AC~50/60 Hz
Dimensions 440 × 330 × 44 mm
Other features System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
