Synology VS600HD network surveillance server Gigabit Ethernet

Περιγραφή

VS600HD VisualStation
Build a Plug-and-Play Video Wall

Optimized for Video Walls
Scale your video wall to support up to 50 video streams across two screens.

Crystal-Clear Video Streaming
View live camera feeds in resolutions up to 4K.

Plug-and-Play Surveillance Access
Get instant access to Surveillance Station for streamlined monitoring.

U.S. Regulation Compliance
NDAA and TAA compliance helps meet U.S. federal requirements.

Display the Way You Want
Simplify surveillance system management with the compact VS600HD VisualStation client. Connect it to Synology servers to create a full-featured monitoring solution in a video wall format.

High-Resolution Dual Display

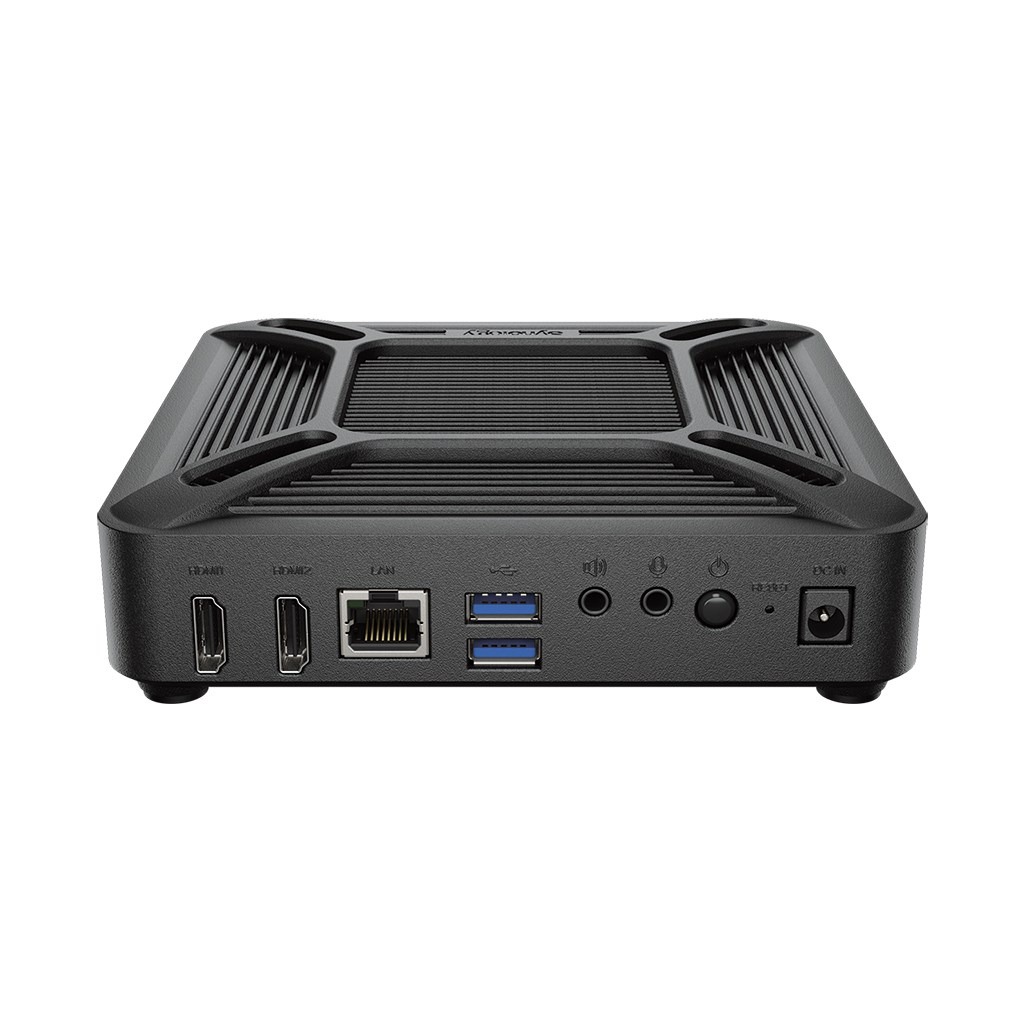

4K video output and dual HDMI ports allow for management tasks while simultaneously monitoring multiple streams in high detail.

Minimalist Design with Optional TV Mount
Mount the VS600HD behind a monitor using the included VESA bracket for optimal space usage.

Live Preview of 50 Channels
Monitor every corner of your surveillance area with simultaneous support for up to 50 channels at 600 FPS in 720p resolution, using H.265 and H.264 video compression standards.

Enhanced Security
Integrate the VS600HD as an advanced local management interface in larger Synology surveillance deployments.

Centralized Monitoring
Manage all video channels from a single interface and secure your property with the advanced features of Surveillance Station.

Multi-Functional Security Dashboard
Watch live video, review recorded footage, receive alerts for security events and suspicious behavior, and control devices from a single convenient view.

Precise Security Mapping
Import building floor plans or broader area maps, maintain a clear overview of camera locations and angles, and instantly see detected events.

Deep Learning Analytics Management
Pair the VS600HD with DVA series NVRs and Synology cameras to leverage AI-based analytics, reducing response time to incidents.

Easy Remote Control and Updates
Set up displays on the VS600HD and update firmware remotely from anywhere.

Description VS600HD VisualStationBuild a Plug-and-Play Video Wall Optimized for Video Walls Scale your video wall to support up to 50 video streams across two screens. Crystal-Clear Video Streaming View live camera feeds in resolutions up to 4K. Plug-and-Play Surveillance Access Get instant access to Surveillance Station for streamlined monitoring. U.S. Regulation Compliance NDAA and TAA compliance helps meet U.S. federal requirements. Display the Way You Want Simplify surveillance system management with the compact VS600HD VisualStation client. Connect it to Synology servers to create a full-featured monitoring solution in a video wall format. High-Resolution Dual Display 4K video output and dual HDMI ports allow for management tasks while simultaneously monitoring multiple streams in high detail. Minimalist Design with Optional TV Mount Mount the VS600HD behind a monitor using the included VESA bracket for optimal space usage. Live Preview of 50 Channels Monitor every corner of your surveillance area with simultaneous support for up to 50 channels at 600 FPS in 720p resolution, using H.265 and H.264 video compression standards. Enhanced Security Integrate the VS600HD as an advanced local management interface in larger Synology surveillance deployments. Centralized Monitoring Manage all video channels from a single interface and secure your property with the advanced features of Surveillance Station. Multi-Functional Security Dashboard Watch live video, review recorded footage, receive alerts for security events and suspicious behavior, and control devices from a single convenient view. Precise Security Mapping Import building floor plans or broader area maps, maintain a clear overview of camera locations and angles, and instantly see detected events. Deep Learning Analytics Management Pair the VS600HD with DVA series NVRs and Synology cameras to leverage AI-based analytics, reducing response time to incidents. Easy Remote Control and Updates Set up displays on the VS600HD and update firmware remotely from anywhere.
Channels 5
8870
10482
19057
19058
3419
Functions

• Live View / Playback
• Support for Freeze Frame
• eMap Support
• PTZ / Patrol Control
• Log Viewer

Power supply

• AC Input Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single-phase
• Power Consumption: 15.49 W (50-channel full load); 5.85 W (idle mode)

8374
7939
22641
26194
7274
25849
1994
Dimensions 41.84 x 150 x 150 mm
Accessories included

• Main Unit
• Quick Installation Guide
• Power Adapter
• RJ-45 LAN Cable
• VESA Mounting Kit

Environment requirements

• Operating Temperature: -20°C to 40°C (-4°F to 104°F)
• Adapter Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 8% to 80% RH
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Humidity: 5% to 95% RH

Certificates

• FCC
• UKCA
• CE
• BSMI
• EAC
• RCM
• KC
• VCCI
• RoHS Compliant

Other features Total Frame Rate (H.264):

• 600 FPS @ 720p (1280×720), 50 channels
• 360 FPS @ 1080p (1920×1080), 36 channels
• 280 FPS @ 3M (2048×1536), 28 channels
• 180 FPS @ 5M (2591×1944), 18 channels
• 120 FPS @ 4K (3840×2160), 12 channels

Total Frame Rate (H.265):

• 600 FPS @ 720p (1280×720), 50 channels
• 380 FPS @ 1080p (1920×1080), 38 channels
• 280 FPS @ 3M (2048×1536), 28 channels
• 180 FPS @ 5M (2591×1944), 18 channels
• 130 FPS @ 4K (3840×2160), 13 channels
