Teltonika RUTX08 Ethernet Router

Περιγραφή

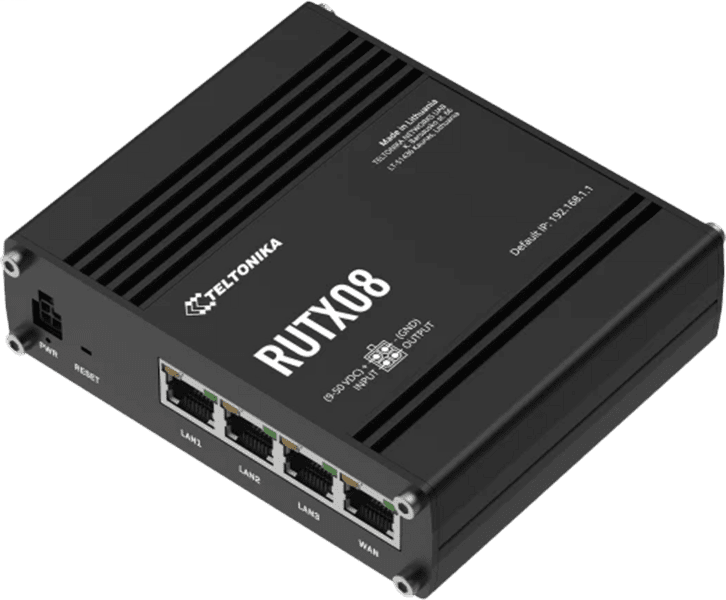

RUTX08 router

RUTX08 is a rugged and efficient industrial Ethernet-to-Ethernet VPN router.

A VPN router that runs on RutOS – an advanced operating system based on OpenWRT.

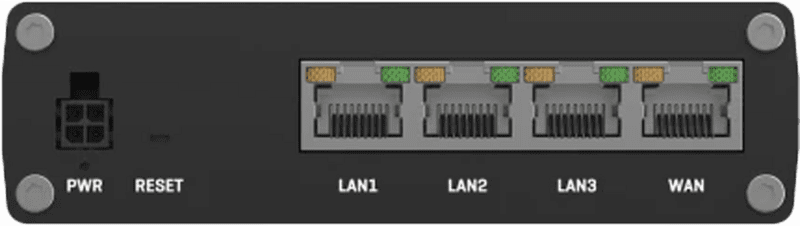

It has four Gigabit Ethernet ports with speeds up to 1000 Mbps. The durable aluminum housing and support for industrial networking protocols make the RUTX08 an excellent choice for professional applications. Multiple supported VPN services, an advanced firewall and a remote management system (RMS) make the RUTX08 a great device that does not require cellular or Wi-Fi connectivity.

Model RUTX08
Description RUTX08 router RUTX08 is a rugged and efficient industrial Ethernet-to-Ethernet VPN router. A VPN router that runs on RutOS – an advanced operating system based on OpenWRT. It has four Gigabit Ethernet ports with speeds up to 1000 Mbps. The durable aluminum housing and support for industrial networking protocols make the RUTX08 an excellent choice for professional applications. Multiple supported VPN services, an advanced firewall and a remote management system (RMS) make the RUTX08 a great device that does not require cellular or Wi-Fi connectivity.
3258
1217
18864
3262
3895
3959
3893
Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration

• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• Firewall: Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Zarządzanie i monitoring: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Cloud solutions: RMS, FO
• Administrowanie: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
• TA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Serwisy: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging

Power supply 4-pin socket, 9-50 VDC
Software RutOS (OpenWrt based Linux OS)
Environment requirements

• Operating temperature: -40°C to 75°C
• Humidity during operation: 10% to 90% non-condensing

Accessories included

• RUTX08 router
• 18W power supply
• Ethernet cable (1.5 m)
• Quick start guide
• RMS leaflet

3542
Weight 3
Dimensions 115 x 32.2 x 95.2 mm
Other features

• Processor: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Flash memory: 256 MB
• RAM: 256 MB

25607
