Teltonika RUTX10 WLAN Router

Περιγραφή

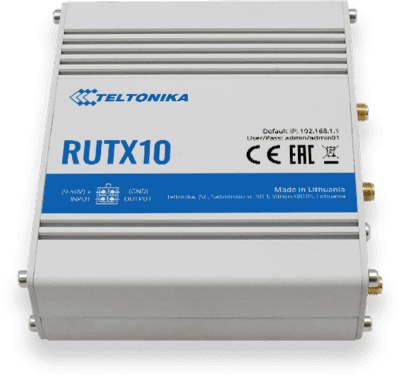

RUTX10 router

This professional router combines the best of wired and wireless routing with Gigabit Ethernet, Bluetooth LE and Wi-Fi AC. Advanced remote management capabilities, along with numerous supported security and networking protocols, make the RUTX10 an ideal choice for professional applications.

Model RUTX10
Description RUTX10 router This professional router combines the best of wired and wireless routing with Gigabit Ethernet, Bluetooth LE and Wi-Fi AC. Advanced remote management capabilities, along with numerous supported security and networking protocols, make the RUTX10 an ideal choice for professional applications.
3258
1217
3262
18864
3275
3274
3272
3273
3284
3271
3270
12912
3981
Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration

• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• Supported Hotspot Platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet

Power supply 4-pin socket, 9-50 VDC
Software RutOS (OpenWrt based Linux OS)
Environment requirements

• Operating temperature: -40 C to 75 C
• Humidity during operation: 10% to 90% non-condensing

Accessories included

• RUTX10 router
• 18W power supply
• 2 x WiFi antenna (rotatable, male RP-SMA)
• Bluetooth antenna (magnetic mounting, RP-SMA plug, 1.5 m cable)
• Ethernet cable (1.5 m)
• Quick start guide
• RMS leaflet

3542
Weight 3
Dimensions 115 x 32.2 x 95.2 mm
Other features

• Processor: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Flash memory: 256 MB
• RAM: 256 MB
• Bluetooth: 4.0 (Low energy)
