Teltonika RUTX50 5G WLAN Router

Περιγραφή

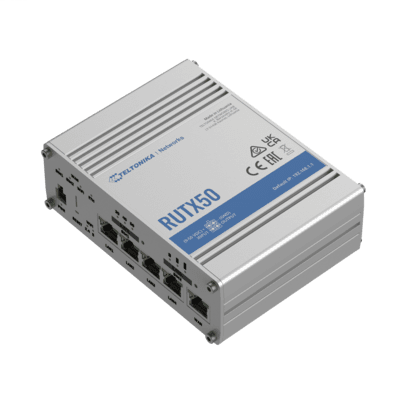

RUTX50 router

RUTX50 is a modern, multi-network industrial router offering 5G mobile communication for high-speed applications with large amounts of data.

5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable data transfer with ultra-low latency.

The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, provides the ability to adapt to future upgrades and expansions.

RUTX50 ships with RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is also Remote Management System (RMS) compatible, for optimized remote management and monitoring capabilities of large fleets of devices.

Model RUTX50
Description RUTX50 router RUTX50 is a modern, multi-network industrial router offering 5G mobile communication for high-speed applications with large amounts of data. 5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable data transfer with ultra-low latency. The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, provides the ability to adapt to future upgrades and expansions. RUTX50 ships with RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is also Remote Management System (RMS) compatible, for optimized remote management and monitoring capabilities of large fleets of devices.
21224
2463
719
4000
4002
3999
11116
4010
4005
5124
4006
4007
5125
11115
4011
4008
4009
4012
3273
3274
3284
19966
23245
3959
3893
3272
22195
23782
3981
Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention
• (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration

• Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network:: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
• Management and monitoring: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Cloud: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• GNSS: NMEA forwarding, AVL, Geofencing

3990
18864
21354
3263
3987
Power supply 4-pin socket, 9-50 VDC
Environment requirements

• Operating temperature: -40°C to 75°C
• Humidity during operation: 10% to 90% non-condensing

Accessories included

• RUTX50 router
• 18W power supply
• 4 x mobile antenna (rotatable, SMA male)
• 2 x WiFi antenna (magnetic mounting, RP-SMA plug, 1.5 m cable)
• GNSS antenna (adhesive, SMA male, 3m cable)
• Ethernet cable (1.5 m)
• SIM adapter kit
• QSG (Quick Start Guide)

3542
Weight 5
Dimensions 132 x 44.2 x 95.1 mm
Other features

• Network support: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42Mbps DL, 5.76Mbps UL
• CPU Quad-core ARM Cortex A7, 717 MHz
• Flash memory: 256 MB
• RAM: 256 MB
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS

25607
