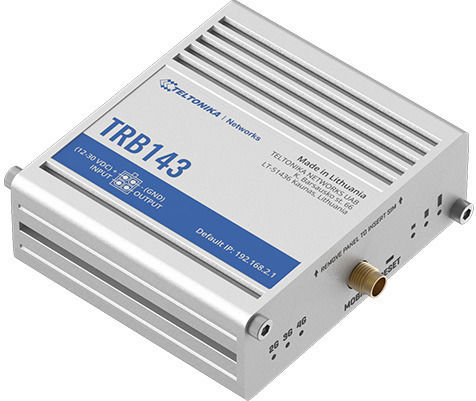

Teltonika TRB143 LTE Cat 4 Ethernet Gateway

Περιγραφή

Gate TRB143

The industrial gateway has been designed specifically for telemetry and media monitoring applications. It is equipped with an M-Bus interface, cellular connectivity, one Gigabit Ethernet port and a pair of digital I/O, making it easily applicable to countless environmental monitoring scenarios. Remote monitoring and configuration is easy and secure with software-based security features such as pre-configured Firewall and Open VPN, as well as compatibility with FOTA, SMS control and Teltoni-ka Networks' own remote management system.

Model TRB143
Description Gate TRB143 The industrial gateway has been designed specifically for telemetry and media monitoring applications. It is equipped with an M-Bus interface, cellular connectivity, one Gigabit Ethernet port and a pair of digital I/O, making it easily applicable to countless environmental monitoring scenarios. Remote monitoring and configuration is easy and secure with software-based security features such as pre-configured Firewall and Open VPN, as well as compatibility with FOTA, SMS control and Teltoni-ka Networks' own remote management system.
3261
2463
719
717
3994
3996
4000
4002
4011
11116
4005
4006
4007
5125
11115
4008
4012
3893
7189
3895
3959
12910
3981
Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration

• Network: Routing, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, SSHFS
• VPN: OpenVPN, GRE, IPsec, PPTP, L2TP, SSTP, Stunnel, DMVPN, WireGuard, ZeroTier
• Management and monitoring: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, Modbus, RMS
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud: RMS, Clouds of things, ThingWorx, Cumulocity, Azure IoT Hub

3990
3879
4598
23778
3987
Power supply 4pin connector, 12-30 VDC
Software RutOS (OpenWrt based Linux OS)
Accessories included

• TRB143
• 18W power supply
• HEX key
• 1.5M LAN Cable
• Quick start guide
• LTE antenna (magnetic, SMA male connector, 3m cable)
• QSG (Quick Start Guide)
• Quick start guide

3542
Weight 1
Dimensions 74.5 x 25 x 64.4 mm
Environment requirements

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing

Certificates

• CB
• CE
• UKCA
• RoHS
• REACH
• WEEE

25607
