TP-LINK TPLINK NVR VIGI NVR2008H-8MP NVR2008H8MP (VIGI NVR2008H-8MP)

Περιγραφή

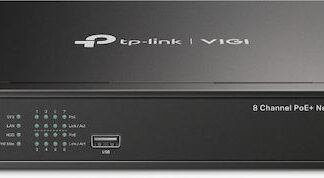

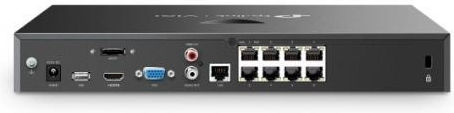

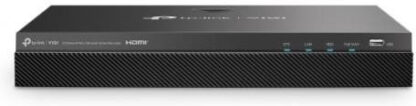

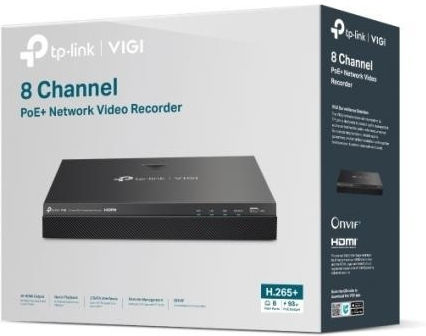

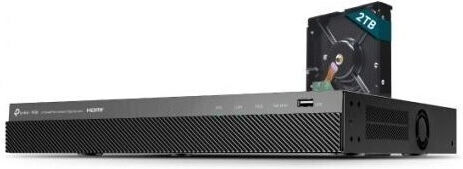

VIGI NVR2008H-8MP

VIGI 8-Channel PoE+ Network Video Recorder

• 8-Channel Live View and 4K HDMI Video Output
• 8 10/100Mbps PoE+ Ports with 93W PoE Power
• 4-Channel @4MP / 8-Channel @2MP Decoding Capability
• 8-Channel Simultaneous Playback
• 80Mbps Incoming Bandwidth and 60Mbps Outgoing Bandwidth
• 2 SATA Ports (Up to 16TB Each) – HDD Not Included
• H.265+ Compression
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Quick Setup with Auto Initialization

Click “Auto Initialize” to quickly configure the IP Camera and HDD parameters, reducing the time needed to configure them.

Description VIGI NVR2008H-8MP VIGI 8-Channel PoE+ Network Video Recorder

• 8-Channel Live View and 4K HDMI Video Output
• 8 10/100Mbps PoE+ Ports with 93W PoE Power
• 4-Channel @4MP / 8-Channel @2MP Decoding Capability
• 8-Channel Simultaneous Playback
• 80Mbps Incoming Bandwidth and 60Mbps Outgoing Bandwidth
• 2 SATA Ports (Up to 16TB Each) – HDD Not Included
• H.265+ Compression
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Quick Setup with Auto Initialization Click “Auto Initialize” to quickly configure the IP Camera and HDD parameters, reducing the time needed to configure them.
Channels 8
4039
Max. number of disks 2
Max. capacity of disks 3
1552
3661
23631
23630
23519
19622
3659
23396
Recording modes

• Manual Recording
• Recording Schedule
• Motion Detection Recording

Viewing modes

• Instant playback
• Normal playback
• Tag playback
• Event playback

3396
Special functions General Alarm:

• Motion Detection
• Video Tampering
• Line Crossing Detection
• Intrusion Detection
• Area Entrance Detection
• Area Exit Detection
• Object Abandonment/Taken Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Unexpected Event Alarm:

• Video Loss
• Offline and IP Conflict
• Disk Error
• Login Error
• Fan Error

Alarm Linkage:

• Recording
• White Light Alarm
• Buzzer
• Log
• Audio Alarm

3411
19060
19057
3426
10302
3662
19058
Dimensions 330 x 285 x 45 mm
Weight 2
Accessories included

• VIGI NVR2008H-8MP DVR
• Power supply
• Power cable
• Power cables for HDDs
• Data cables for HDDs
• Mounting accessories
• Mouse
• Quick installation guide

Environment requirements

• Storage Temperature: -40 – 70 °C
• Storage Humidity: 10%~90% RH, Non-condensing
• Operating Temperature: NVR: -10 – 55 °C, Power Supply: 0 – 40 °C
• Operating Humidity: 10%~90% RH, Non-condensing

Certificates

• CE
• EAC
• UKCA
• RCM
• Triman
• BSMI
• VCCI
• FCC
• IC

Other features

• PoE Standard: 802.3at/af
• PoE Budget: 93W available in total for all PoE+ ports, max 30W per port
