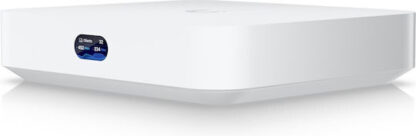

Ubiquiti Cloud Gateway Max gateway/controller 10 100 1000 Mbit/s

Περιγραφή

Cloud Gateway Max

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

• Includes full UniFi application suite for device management
• Manages 30+ UniFi devices and 300+ clients
• 1.5 Gbps routing with IDS/IPS
• Multi-WAN load balancing
• 512 GB NVMe SSD storage for NVR
• 0.96″ LCM status display
• USB-C powered (adapter included)

Model Cloud Gateway Max
Description Cloud Gateway Max Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

• Includes full UniFi application suite for device management
• Manages 30+ UniFi devices and 300+ clients
• 1.5 Gbps routing with IDS/IPS
• Multi-WAN load balancing
• 512 GB NVMe SSD storage for NVR
• 0.96″ LCM status display
• USB-C powered (adapter included)

3258
1217
24914
20789
18793
Security

• Application-aware firewall rules
• Signature-based IPS/IDS threat detection
• Content, country, domain, and ad filtering
• VLAN/subnet-based traffic segmentation
• Full stateful firewall

Management, monitoring, configuration

• Redundant WAN with failover and load balancing
• WiFi QoS with UniFi APs
• Application, domain, and country-based QoS
• Application and device type identification
• Additional internet failover with LTE Backup
• Internet quality and outage reporting
• License-free SD-WAN
• WireGuard, L2TP and OpenVPN server
• OpenVPN client
• OpenVPN and IPsec site-to-site VPN
• One-click Teleport and Identity VPN
• Policy-based WAN and VPN routing
• DHCP relay
• Customizable DHCP server
• IGMP proxy
• IPv6 ISP support

Power supply Power adapter USB type C (5V DC/5A)
Software Mobile app: UniFi iOS and Android: Version 10.17.2 and later
4594
2688
Environment requirements

• Ambient operating temperature: -10 to 40° C (14 to 104° F)
• Ambient operating humidity: 5 to 95% noncondensing

Certificates

• CE
• FCC
• IC

1995
Weight 5
Dimensions 141.8 x 127.6 x 30 mm
Other features

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
• System memory: 3 GB DDR4
• On-board storage: 512 GB NVMe SSD
• Management interface: Ethernet, Bluetooth

25607
