Ubiquiti Ultra Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Περιγραφή

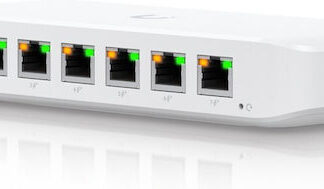

Ubiquiti USW-Ultra | PoE+, 42W, 8-Port, Layer 2
Ultra (USW-Ultra 42W) is a compact, 8-port GbE PoE Layer 2 switch offering versatile mounting options. It has 7 GbE PoE+ output ports and 1 GbE PoE++ input port. It provides 42W PoE with PoE++ input and 16W PoE with PoE+ input. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.

Description Ubiquiti USW-Ultra | PoE+, 42W, 8-Port, Layer 2Ultra (USW-Ultra 42W) is a compact, 8-port GbE PoE Layer 2 switch offering versatile mounting options. It has 7 GbE PoE+ output ports and 1 GbE PoE++ input port. It provides 42W PoE with PoE++ input and 16W PoE with PoE+ input. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
1212
1214
1222
1217
1243
24546
24302
1266
Throughput 8
Forwarding rate 1
Memory buffer 1
1221
L2 features

• Port Isolation
• Storm Control
• Port Mirroring
• Multicast/Broadcast Rate Limiting
• Flow Control
• Jumbo Frames
• Egress Rate Limit

2638
1229
1228
Power consumption 9
Environment requirements

• Operating ambient temperature PoE++ input: -30 to 60° C
• 60W AC adapter input: -20 to 45° C
• 210W AC adapter input: -20 to 60° C
• Operating ambient humidity 10 to 90% non-condensing

Certificates

• CE
• FCC
• IC


Power supply

• (1) 54V, 3.9A power supply (not included)
• (1) 54V, 1.1A power supply (not included)
• PoE++ (pins 1, 2+; 3, 6- and 4, 5+; 7, 😎
• Supported voltage range 4457 V DC

Dimensions 203 x 76 x 33 mm
Weight 3
Other features

• Max Power Consumption 9W with PoE Input (No PoE Output)
• 8W with AC Adapter Input (No PoE Output)
• Total Available PoE Power PoE++ Input: 42W
• PoE+ Input: 16W
• 60W PoE Adapter Input: 42W
• 60W AC Adapter Input: 52W
• 210W AC Adapter Input: 202W
• Max PoE+ Power per Port via PSE 30W
• Factory Reset Button
• UniFi Network Version 8.0.28 and later
