Alantec AP-BK850 uninterruptible power supply (UPS) Line-Interactive 850 VA 480 W 2 AC outlet(s)

Περιγραφή

A small UPS with full protection, operating in Line Interactive technology enhanced with an automatic voltage stabilisation system (AVR).

Designed to supply power to all types of computer devices and peripherals such as cash registers, routers, modems, alarm systems, RTV, CCTV, etc.

• Power supply operation indicated by failure-free LEDs and audible alarms
• Built-in intelligent charger, optimises and shortens the battery charging time
• AVR ( Automatic Voltage Regulator) function for continuous or temporary voltage stabilisation as standard. AVR is a type of filter that automatically stabilises the output voltage protecting terminal equipment from mains voltage spikes.
• A simulated sine wave of the output current allows devices sensitive to the characteristics of the supply current to operate.
• Automatic restart during AC restoration
• Cold start allows the device to start up without being connected to the mains, which makes it possible to use the PSU as a PowerBank in emergency situations
• Self-checking operation with built-in self-diagnosis function
• Off-mode charging
• Microprocessor control system.
• Intelligent battery management.
• Alarm system indicating overloaded operation, discharge, battery mode, battery replacement time.
• USB communication port for management of the unit from the included software with stored history of events

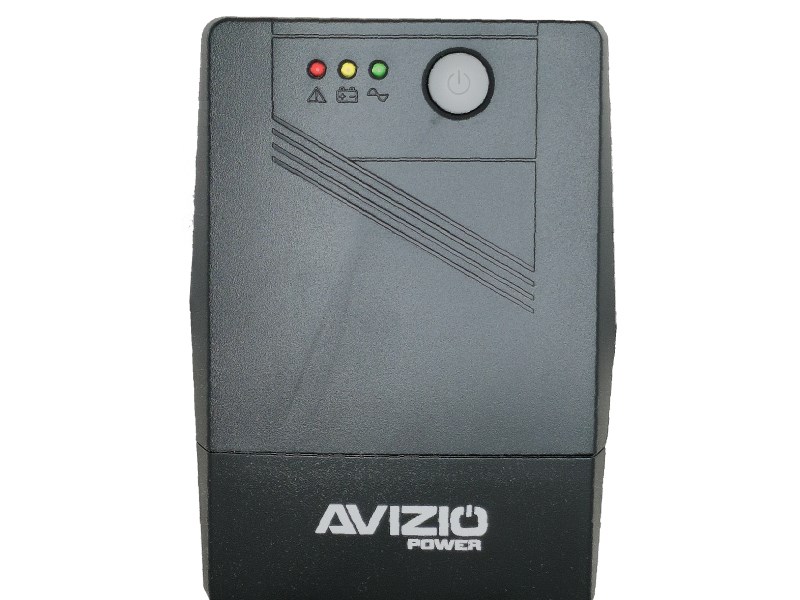

Front panel:

• On/off switch
• Information LEDs

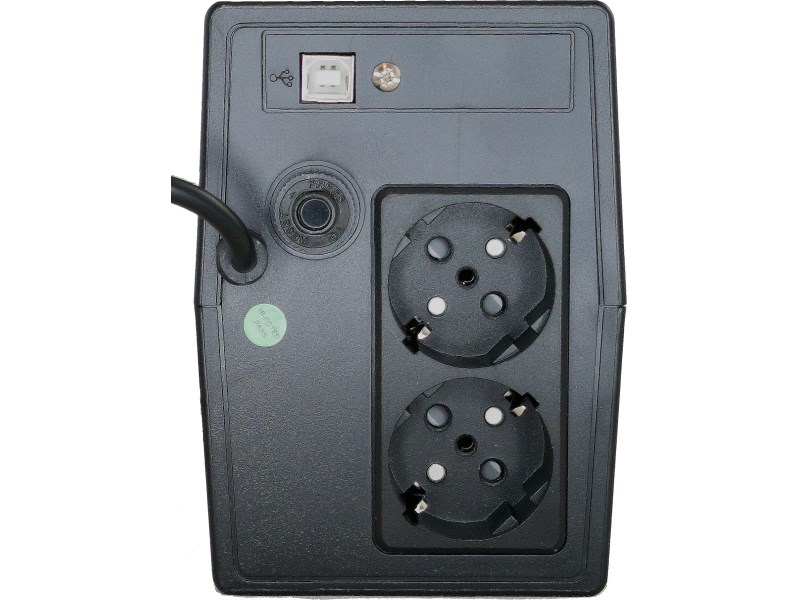

Rear panel:

• Built-in power supply cable (length 1m) terminated with plug type F CEE 7/7
• 2 x 230V output socket type F CEE 7/3
• USB type B service port (cable included)
• Overload fuse – reset

Active power: 4
No. of batteries: 1
Voltage: 1
Battery capacity: 9
Hold-up time (maks): 6
Charging time: 6
Other features: Specification Model: AP-BK850B Power: 850VA/480W Input: Voltage: 220-240VAC Voltage Range: 140-300VAC Frequency range: 60/50Hz (Auto detection) Output: Voltage: 220-240 VAC AC voltage adjustment (battery mode): 10% Frequency range (battery mode): 60/50Hz 1Hz Switching time: 2-6ms Waveform (battery mode): Sinusoidal wave Battery: Type and quantity: 12V / 9Ah x 1 Variable charging voltage: 13.7VDC Charging time: 4-6 hours to 90% Holding time: 100W: 25 min. 200W: 10 min. 300W: 5 min. Note: The operating times shown are approximate and may change depending on the operating conditions, environment, operating time and much more. Protection: Short-circuit overload Battery discharge and overload Surge protection Indicators: Operating mode (mains): Green LED Operating mode (battery): Yellow flashing LED Error: Red LED Alarms: Battery operation: Beep every 10 seconds Low battery: Beep every second Overload: Beep every 0.5 seconds Battery replacement: Tone every 2 seconds Error: Continuous beep Connectivity: Service ports: USB type B (cable included) System support: Windows/macOS/Linux Environmental conditions: Humidity: 0-90% / relative humidity 0-40°C (non-condensing) Noise level: Less than 40dB Dimensions (mm): 297 x 101 x 142 Net weight (kg): 4.9
