Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX

Περιγραφή

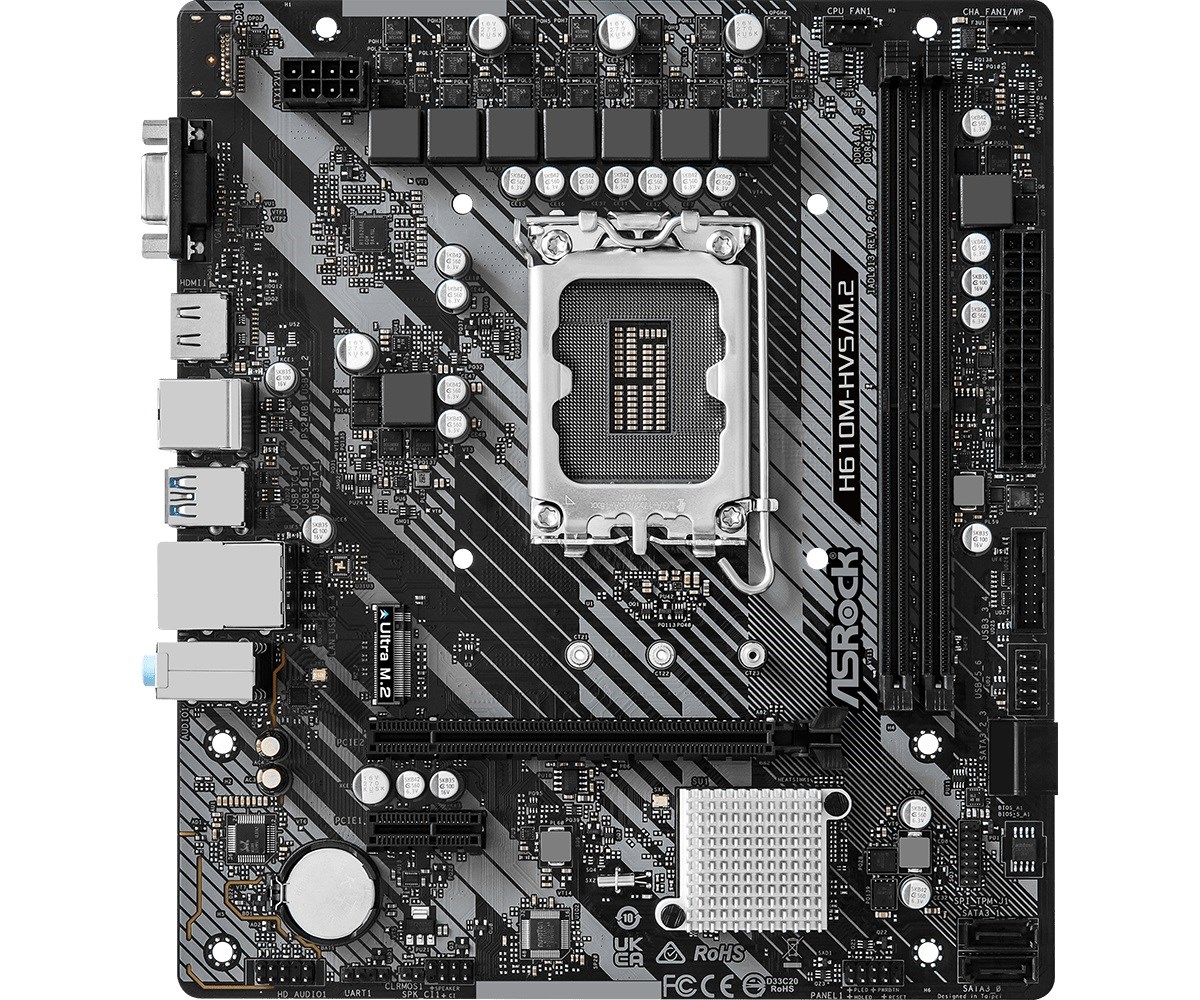

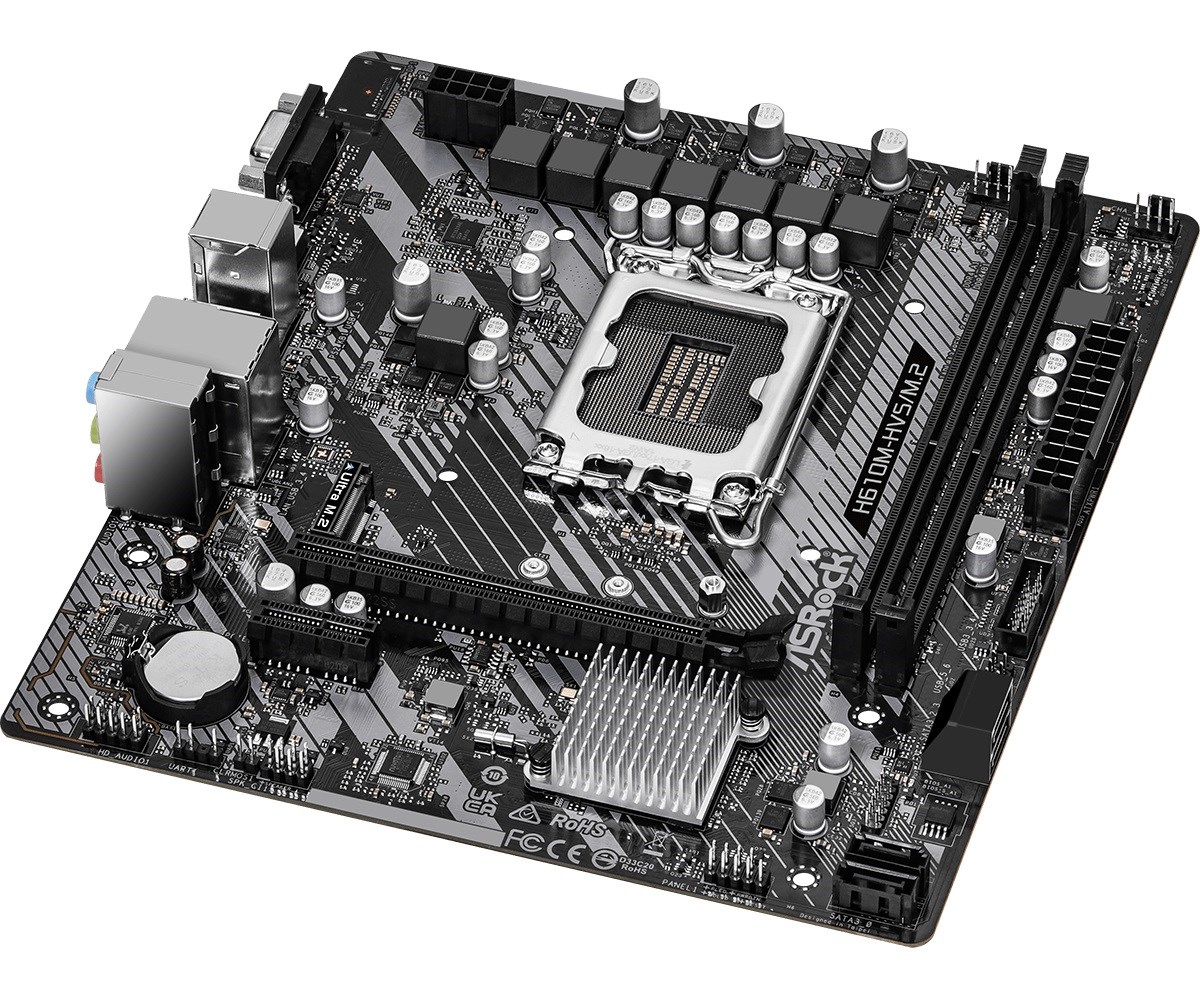

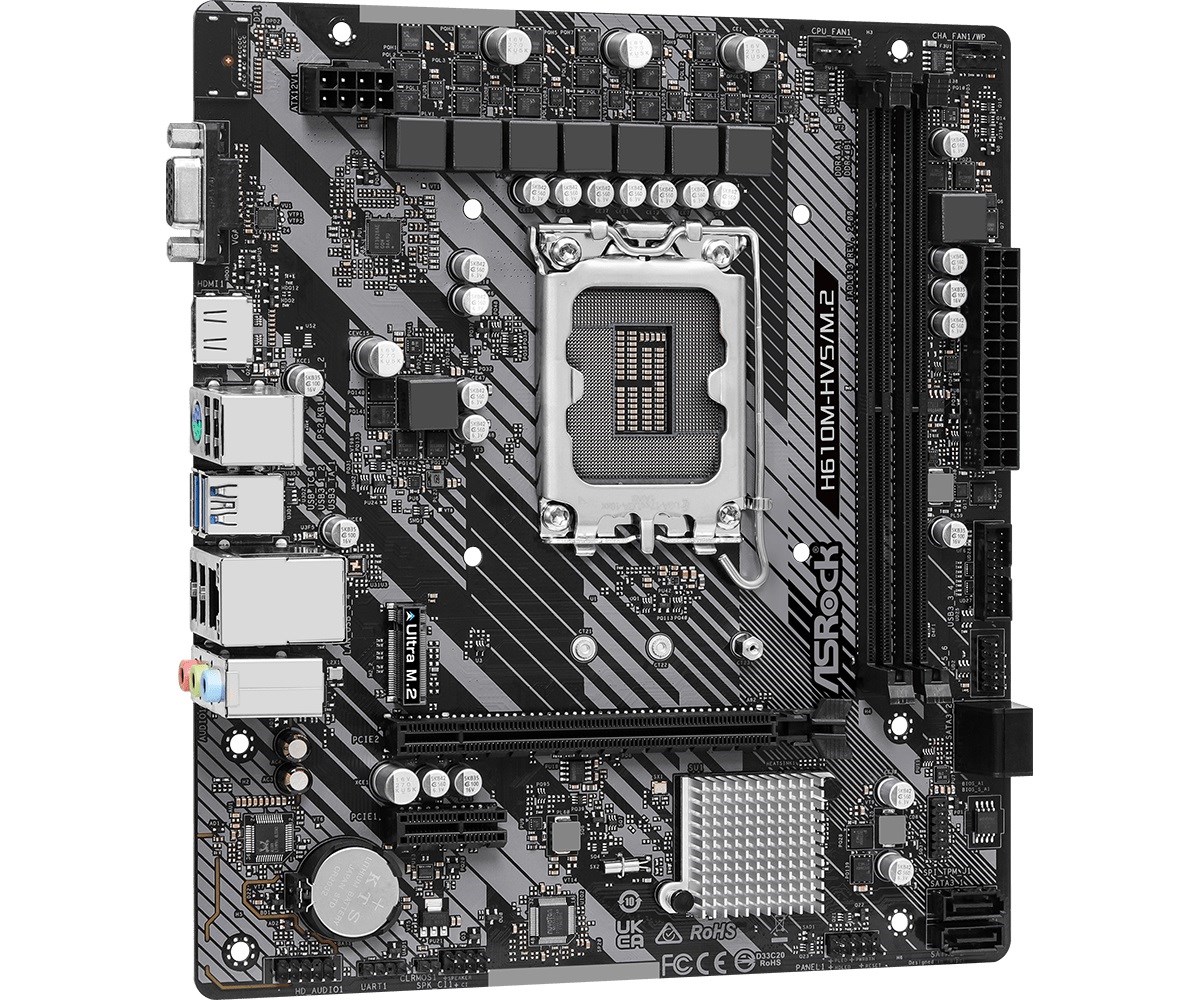

H610M-HVS/M.2 R2.0 motherboard

• Supports 13th, 12th and next generation Intel Core processors (LGA1700)
• 6+1+1 phase power supply design
• Supports DDR4 3200MHz
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics output options: HDMI, D-Sub
• Realtek ALC897 7.1 CH HD audio codec
• 4SATA3
• 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 ports (2 rear, 2 front)
• 6 USB 2.0 ports (4 rear, 2 front)
• Realtek gigabit network card

Model: H610M-HVS/M.2
Chipset type: Intel H610
Max memory size : 6
Max. number of SATA devices : 4
Detailed data on disk/drive interfaces: Supports 13th, 12th and next generation Intel Core processors (LGA1700) 6+1+1 power phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 technology
Graphics: Intel Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Support Compatible HDMI 2.1 TMDS with maximum resolution of 4K x 2K (4096×2160) @ 60Hz Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Sound card: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
Network interface: PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-on-LAN function Supports lightning/ESD protection Supports energy-saving 802.3az Ethernet Supports PXE

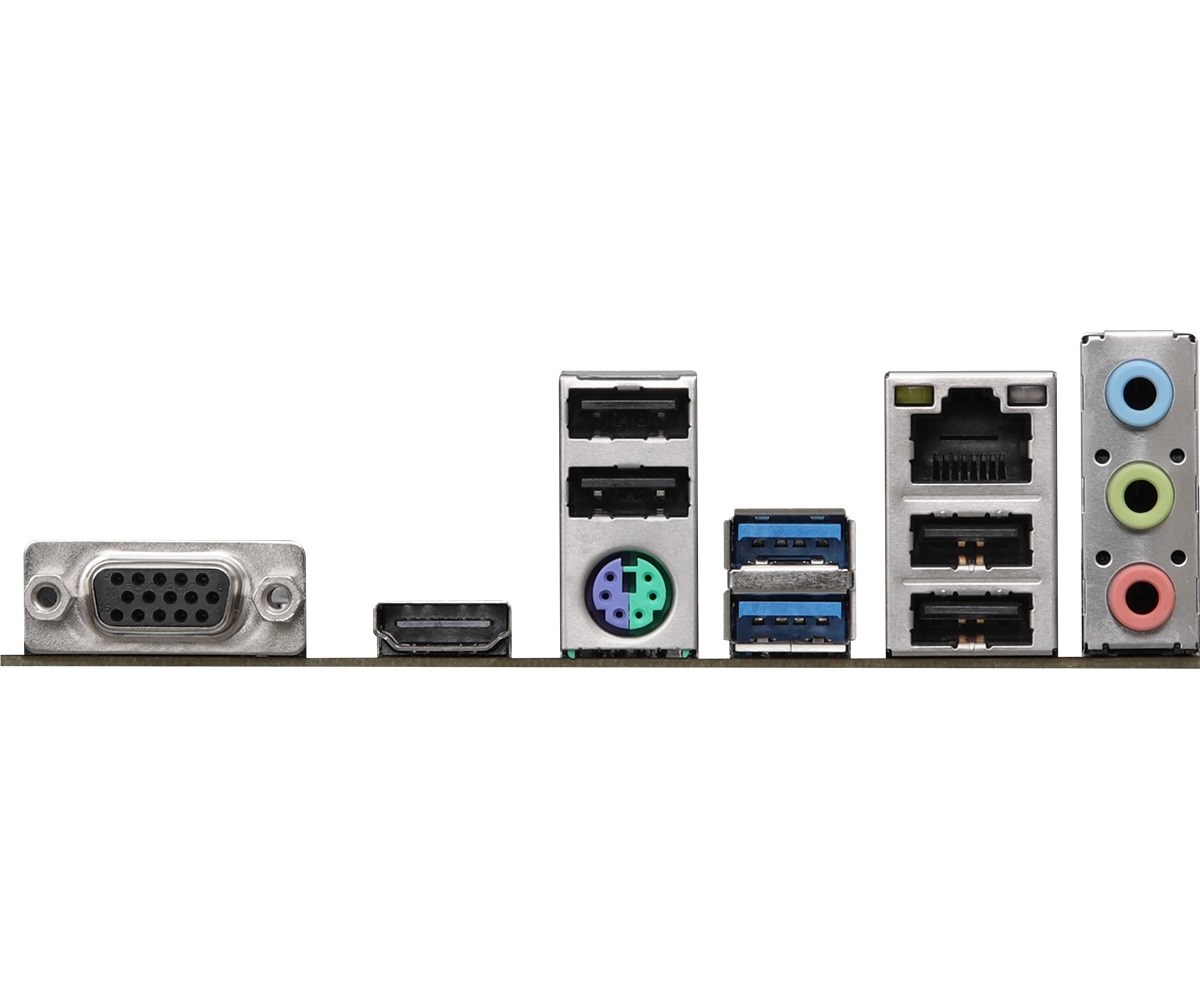

USB ports at back panel: 6
USB ports on motherboard: 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 5
BIOS: Legal AMI UEFI 28Mb BIOS with multilingual GUI support ACPI 6.0 compliant wake-up events SMBIOS 2.7 support CPU Core/Cache, CPU Core/Cache Load Line, CPU GT, CPU GT Load Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1 .05 V PROC Voltage regulation
Dimensions: 22 x 19.3 cm

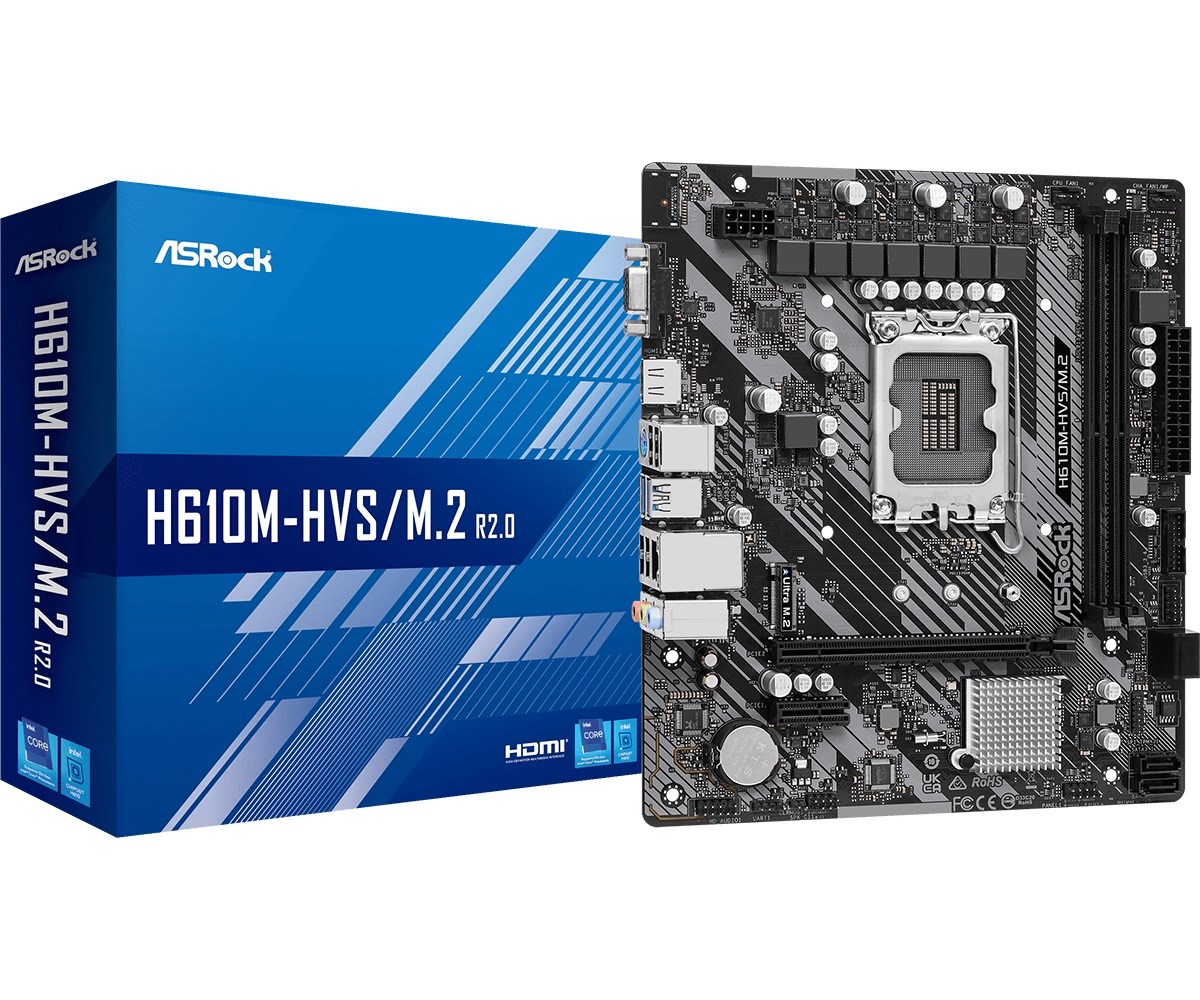

Accessories included: Quick installation guide Support CD I/O cover 2 x SATA data cables 1 x M.2 screw
