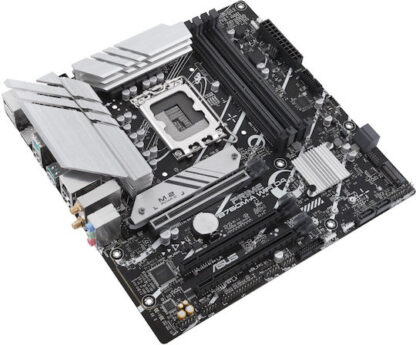

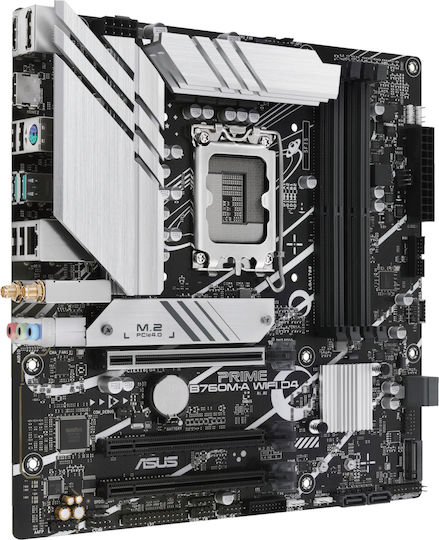

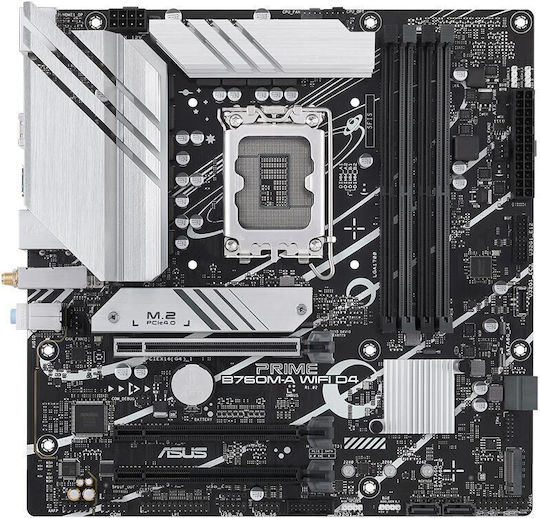

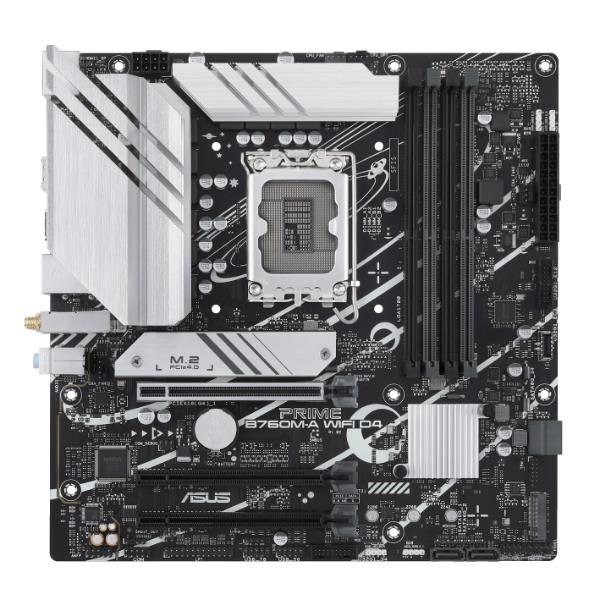

Asus Prime B760M-A WIFI D4 Motherboard Micro ATX με Intel 1700 Socket

Περιγραφή

• Μητρική κάρτα Intel B760 (LGA 1700) mATX, PCIe 4.0, διπλή M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, διπλή HDMI, SATA 6Gb/s, USB 3.2 Gen 2 πίσω, USB 3.2 Gen 1 μπροστινή C, Aura Sync
• Intel Socket LGA 1700: Έτοιμο για επεξεργαστές Intel 13ης και 12ης γενιάς
• Εξαιρετικά γρήγορη συνδεσιμότητα: PCIe 4.0, διπλή M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, USB 3.2 Gen 2 πίσω, USB 3.2 Gen 1 Type-C μπροστά
• Ολοκληρωμένη ψύξη: ψύκτρες VRM, ψύκτρα M.2, ψύκτρα PCH, υβριδικές κεφαλές ανεμιστήρων και Fan Xpert 2+
• ASUS OptiMem II: Προσεκτική ανίχνευση και δρομολόγηση μέσω και βελτιστοποίηση βασικού επιπέδου για τη διατήρηση της ακεραιότητας του σήματος για καλύτερο overclocking μνήμης
• Φωτισμός Aura Sync RGB: Ενσωματωμένες διευθυνσιοδοτούμενες κεφαλίδες Gen 2 και κεφαλίδα Aura RGB για ταινίες LED RGB, συγχρονίζονται εύκολα με υλικό με δυνατότητα Aura Sync.

Description

• Intel B760 (LGA 1700) motherboard mATX, PCIe 4.0, dual M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, dual HDMI, SATA 6Gb/s, USB 3.2 Gen 2 rear, USB 3.2 Gen 1 front C, Aura Sync
• Intel Socket LGA 1700: Ready for 13th and 12th Gen Intel processors
• Ultrafast connectivity: PCIe 4.0, dual M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, USB 3.2 Gen 2 rear, USB 3.2 Gen 1 Type-C front
• Comprehensive cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem II: Careful trace and via routing and base layer optimization to preserve signal integrity for better memory overclocking
• Aura Sync RGB Lighting: Built-in addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily syncs with Aura Sync-enabled hardware

Model Prime B760M-A WIFI D4
21902
335
653
21522
637
586
Chipset type Intel B760 Chipset
4402
9004
1978
948
21531
11651
9210
3638
2130
11652
11654
11752
11978
16377
17035
18456
19476
20716
23088
1106
Max memory size 1
19591
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces

• Total supports 2 M.2 slots and 4 SATA 6 Gb/s ports*
• 13th and 12th generation Intel processors
• M.2_1 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel B760 chipset
• M.2_2 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics

• 1 x DisplayPort – Supports max. 4K at 60 Hz as per DisplayPort 1.4 specification.
• 2 x HDMI ports – Supports 4K at 60 Hz according to the HDMI 2.1 specification.

Sound card Realtek 7.1 surround high resolution audio codec

• Supports: jack detection, multi-streaming, front panel jack reassignment
• Supports playback up to 24-bit/192 kHz

Audio Features:

• Sound shielding
• High-class audio capacitors
• Dedicated audio PCB layers

927
19467
Network interface

• 1 x Realtek 2.5Gb Ethernet
• Wi-Fi 6
• 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

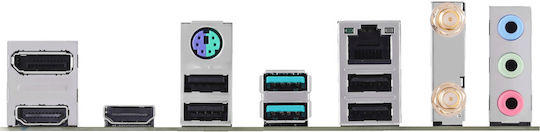

USB ports at back panel 6
USB ports on motherboard 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
646
390
392
5245
7788
5250
7785
5239
7840
11056
5241
5251
5237
7490
7484
7485
7486
7488
7492
19614
7475
7794
11708
7792
7790
7500
Special functions ASUS 5X III Protection

• DIGI+ VRM
• LANGuard
• High voltage protection
• SafeSlot Core+
• Stainless steel rear entrances/exits

ASUS Q-Design

• Q-DIMM
• Q-LED core
• Q nest

ASUS thermal solution

• M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• ProCool

Aura Sync

• Aura RGB header
• Gen 2 Addressable Headers

BIOS 128 Mb Flash ROM, UEFI AMI Bios
649
Dimensions 24.4 x 24.4 cm

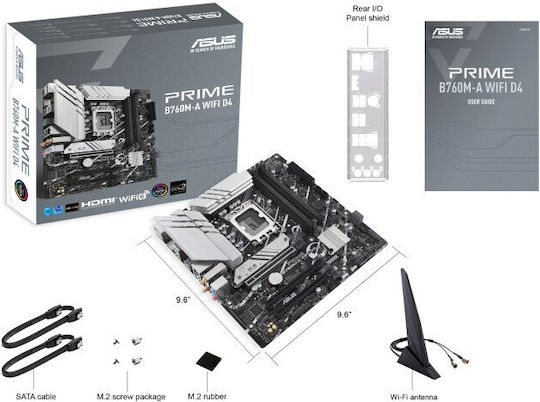

Accessories included Wires:

• 2 SATA 6 Gb/s cables

Other:

• 1 x ASUS Wi-Fi movable antennas
• 1 x I/O Shield
• 1 x M.2 Rubber Pack
• 1 x M.2 SSD Screw Pack

Documentation:

• 1 x User Manual

9594
22012
Software Asus Exclusive Software

• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• AI Suite 3
• Digi+ VRM
• PC Cleaner
• ASUS CPU-Z
• MyAsus
• Norton Deluxe (60 Days Free Trial)
• WinRAR

UEFI BIOS

• Asus EZ DIY
• Asus CrashFree BIOS 3
• Asus EZ Flash 3
• Asus UEFI Bios EZ Mode
