ATS PDU44302 2U, 32A, 16xC13, 2xC19, SNMP
ATS PDU44302 2U, 32A, 16xC13, 2xC19, SNMP

ATS PDU44302 2U, 32A, 16xC13, 2xC19, SNMP

882€
ΔΩΡΕΑΝ ΜΕΤΑΦΟΡΙΚΑ*

CyberPower
Τελευταία ανανέωση: 19/04/2026 07:17:41

EAN: 4711027799650
Κατηγορία: power distribution

Περιγραφή

ATS PDU44302 2U, 32A, 16xC13, 2xC19, SNMP

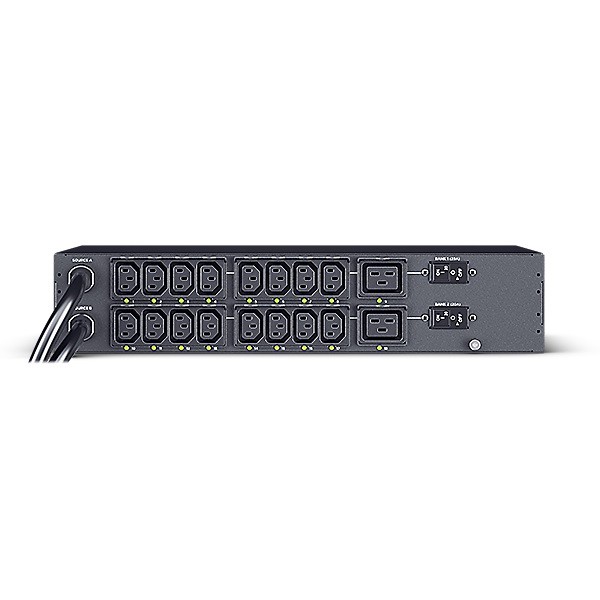

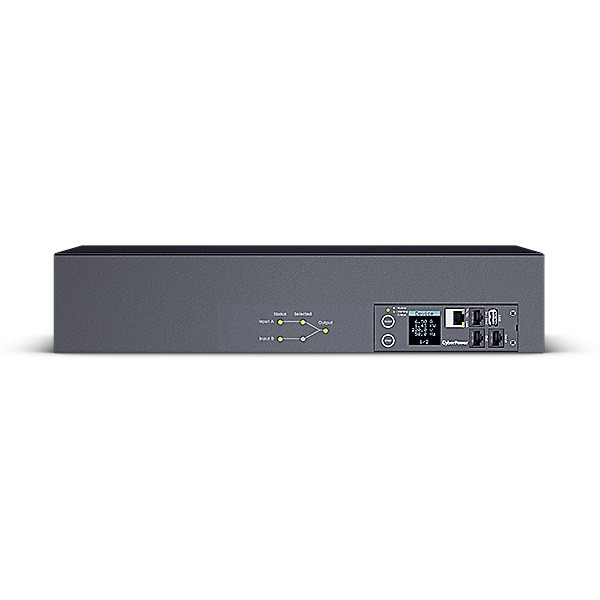

The CyberPower PDU44302 provides output from a UPS, generator or mains power to multiple connected devices in IT environments. Two power cords can be connected to separate power sources to provide redundancy for connected single-cable devices. If the selected power source exceeds the defined parameters or fails, the ATS PDU will automatically switch to another power source within 10 ms (Source failure detection time: 2-3 ms. Power source transfer time: 2-7 ms) to ensure continuous work. The device supports remote individual control over the network, allowing administrators to turn on/off connected devices from any location.

The product features a hot-swappable Ethernet module that can work with PowerPanel Power Management Software and a power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change the colors of the LCD display to easily categorize devices between multiple machines in server rooms and IT environments. Event logging via a web browser or network connection allows users to view a history of power conditions. When specific power events occur, automatic event notifications will be sent via email, SMS or SNMP trap to designated users so they can take immediate action. The USB port also supports easy firmware updating. Moreover, the described RJ45 port allows you to connect an optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in the IT center.

  • Local/remote monitoring and real-time switching
  • Dual entrances
  • Industrial metal housing
  • Customizable color LCD display
  • LED status indicator
  • ENVIROSENSOR support
  • PowerPanel management software
  • Cable tray
  • Power sequence controlled sockets
  • Fast transfer time (total 10 ms)
  • Real-time digital load display
  • LCD can be replaced during operation
  • Software update via USB
  • Firmware updateable by the user
  • Adjustable mounting brackets
  • IEC socket lock

Description ATS PDU44302 2U, 32A, 16xC13, 2xC19, SNMP The CyberPower PDU44302 provides output from a UPS, generator or mains power to multiple connected devices in IT environments. Two power cords can be connected to separate power sources to provide redundancy for connected single-cable devices. If the selected power source exceeds the defined parameters or fails, the ATS PDU will automatically switch to another power source within 10 ms (Source failure detection time: 2-3 ms. Power source transfer time: 2-7 ms) to ensure continuous work. The device supports remote individual control over the network, allowing administrators to turn on/off connected devices from any location. The product features a hot-swappable Ethernet module that can work with PowerPanel Power Management Software and a power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change the colors of the LCD display to easily categorize devices between multiple machines in server rooms and IT environments. Event logging via a web browser or network connection allows users to view a history of power conditions. When specific power events occur, automatic event notifications will be sent via email, SMS or SNMP trap to designated users so they can take immediate action. The USB port also supports easy firmware updating. Moreover, the described RJ45 port allows you to connect an optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in the IT center.

  • Local/remote monitoring and real-time switching
  • Dual entrances
  • Industrial metal housing
  • Customizable color LCD display
  • LED status indicator
  • ENVIROSENSOR support
  • PowerPanel management software
  • Cable tray
  • Power sequence controlled sockets
  • Fast transfer time (total 10 ms)
  • Real-time digital load display
  • LCD can be replaced during operation
  • Software update via USB
  • Firmware updateable by the user
  • Adjustable mounting brackets
  • IEC socket lock

2085
2638
Special functions

  • LCD Information Display: Input Voltage (Volts), Input Frequency (Hz), Current Level (Amp), Power Consumption (Kilowatts), Network Information, Serial Number, Environmental Status, Hardware Version, Firmware Version
  • Color LCD display
  • Hot-swap LCD module
  • LCD Settings and Controls: Preferred Source, Source Configuration, Load Configuration, Outlet Control, LCD Settings, Reset/Restart
  • LEDs: PDU Status, Source Status, Load, Tx/Rx, Link, Socket
  • Environmental sensor support
  • Firmware updateable by the user
  • Supported protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP and Syslog
  • Authentication: RADIUS, LDAP, LDAPS, Windows AD

Software

  • PowerPanel Business (Recommended for small and medium scale management)
  • PowerPanel Enterprise (Recommended for large-scale management)

8881
8890
16624
12737
3334
Environment requirements

  • Operating Temperature: 32 ~ 113 (°F)
  • Operating temperature: 0 ~ 45 (°C)
  • Operating relative humidity (non-condensing): 0 ~ 95 (%)
  • Operating altitude: 0-13,000 feet (0-4000 meters) (feet/meters)
  • Storage Temperature: 5 ~ 131 (°F)
  • Storage temperature: -15 ~ 55 (°C)
  • Relative storage humidity (non-condensing): 0 ~ 95 (%)
  • Storage altitude: 0-50,000 feet (0-15,000 meters) (feet/meters)

Accessories included

  • PDU44302
  • User manual
  • Cable support tray
  • Mounting brackets
  • Headbands
  • Screw set
  • Power cord
  • Serial cable

1994
Dimensions 88 x 433 x 215 mm
Weight 7
25607
26910

ATS PDU44302 2U, 32A, 16xC13, 2xC19, SNMP The CyberPower PDU44302 provides output from a UPS, generator or mains power to multiple connected devices in IT environments. Two power cords can be connected to separate power sources to provide redundancy for connected single-cable devices. If the selected power source exceeds the defined parameters or fails, the ATS PDU will automatically switch to another power source within 10 ms (Source failure detection time: 2-3 ms. Power source transfer time: 2-7 ms) to ensure continuous work. The device supports remote individual control over the network, allowing administrators to turn on/off connected devices from any location. The product features a hot-swappable Ethernet module that can work with PowerPanel Power Management Software and a power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change the colors of the LCD display to easily categorize devices between multiple machines in server rooms and IT environments. Event logging via a web browser or network connection allows users to view a history of power conditions. When specific power events occur, automatic event notifications will be sent via email, SMS or SNMP trap to designated users so they can take immediate action. The USB port also supports easy firmware updating. Moreover, the described RJ45 port allows you to connect an optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in the IT center. Local/remote monitoring and real-time switching Dual entrances Industrial metal housing Customizable color LCD display LED status indicator ENVIROSENSOR support PowerPanel management software Cable tray Power sequence controlled sockets Fast transfer time (total 10 ms) Real-time digital load display LCD can be replaced during operation Software update via USB Firmware updateable by the user Adjustable mounting brackets IEC socket lock Description ATS PDU44302 2U, 32A, 16xC13, 2xC19, SNMP The CyberPower PDU44302 provides output from a UPS, generator or mains power to multiple connected devices in IT environments. Two power cords can be connected to separate power sources to provide redundancy for connected single-cable devices. If the selected power source exceeds the defined parameters or fails, the ATS PDU will automatically switch to another power source within 10 ms (Source failure detection time: 2-3 ms. Power source transfer time: 2-7 ms) to ensure continuous work. The device supports remote individual control over the network, allowing administrators to turn on/off connected devices from any location. The product features a hot-swappable Ethernet module that can work with PowerPanel Power Management Software and a power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change the colors of the LCD display to easily categorize devices between multiple machines in server rooms and IT environments. Event logging via a web browser or network connection allows users to view a history of power conditions. When specific power events occur, automatic event notifications will be sent via email, SMS or SNMP trap to designated users so they can take immediate action. The USB port also supports easy firmware updating. Moreover, the described RJ45 port allows you to connect an optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in the IT center. Local/remote monitoring and real-time switching Dual entrances Industrial metal housing Customizable color LCD display LED status indicator ENVIROSENSOR support PowerPanel management software Cable tray Power sequence controlled sockets Fast transfer time (total 10 ms) Real-time digital load display LCD can be replaced during operation Software update via USB Firmware updateable by the user Adjustable mounting brackets IEC socket lock 2085 2638 Special functions LCD Information Display: Input Voltage (Volts), Input Frequency (Hz), Current Level (Amp), Power Consumption (Kilowatts), Network Information, Serial Number, Environmental Status, Hardware Version, Firmware Version Color LCD display Hot-swap LCD module LCD Settings and Controls: Preferred Source, Source Configuration, Load Configuration, Outlet Control, LCD Settings, Reset/Restart LEDs: PDU Status, Source Status, Load, Tx/Rx, Link, Socket Environmental sensor support Firmware updateable by the user Supported protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP and Syslog Authentication: RADIUS, LDAP, LDAPS, Windows AD Software PowerPanel Business (Recommended for small and medium scale management) PowerPanel Enterprise (Recommended for large-scale management) 8881 8890 16624 12737 3334 Environment requirements Operating Temperature: 32 ~ 113 (°F) Operating temperature: 0 ~ 45 (°C) Operating relative humidity (non-condensing): 0 ~ 95 (%) Operating altitude: 0-13,000 feet (0-4000 meters) (feet/meters) Storage Temperature: 5 ~ 131 (°F) Storage temperature: -15 ~ 55 (°C) Relative storage humidity (non-condensing): 0 ~ 95 (%) Storage altitude: 0-50,000 feet (0-15,000 meters) (feet/meters) Accessories included PDU44302 User manual Cable support tray Mounting brackets Headbands Screw set Power cord Serial cable 1994 Dimensions 88 x 433 x 215 mm   Weight 7 25607 26910

Επιπλέον πληροφορίες

Βάρος 5 κ.
Διαστάσεις 40 × 54,5 × 17 cm
