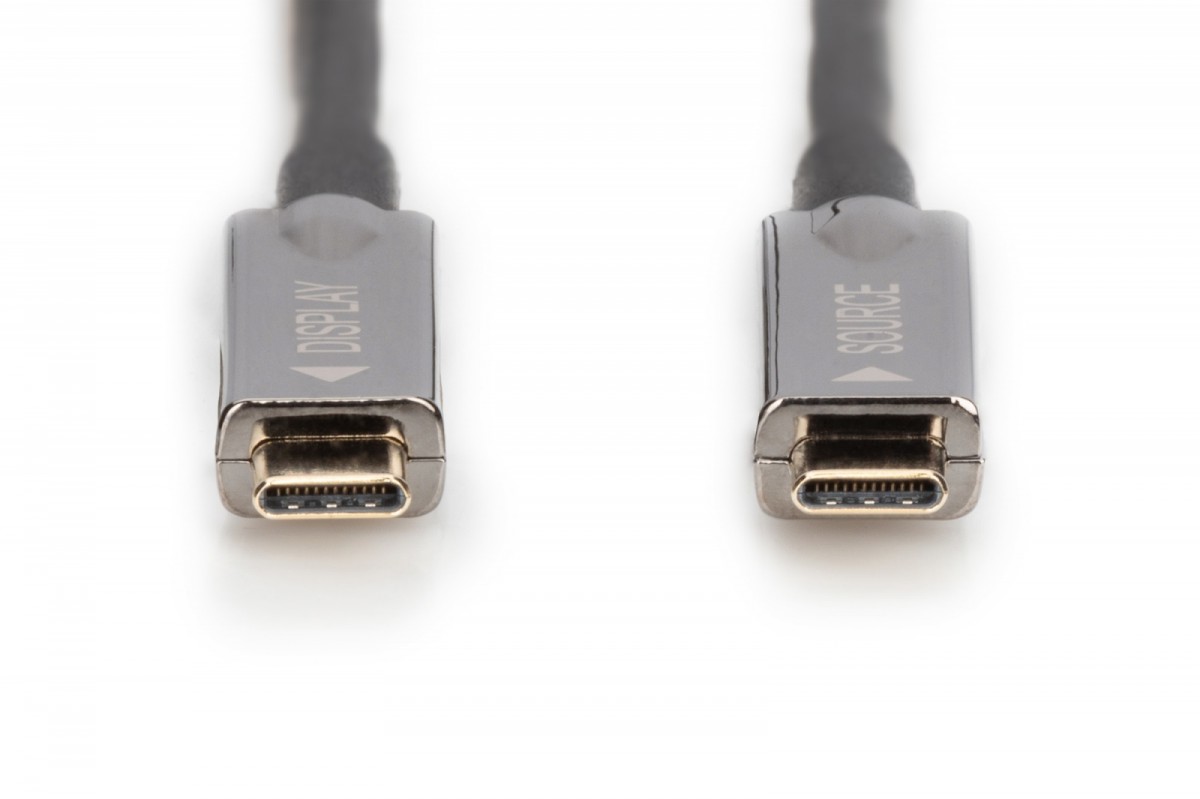

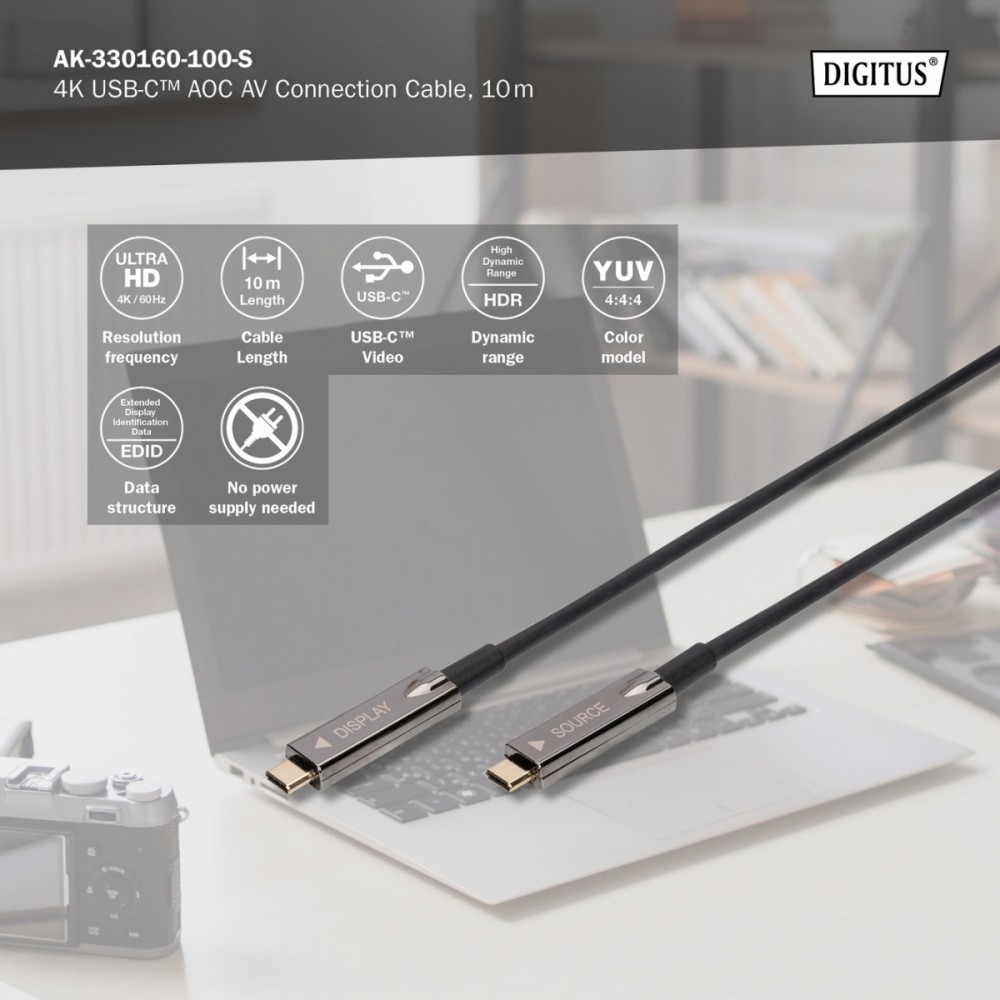

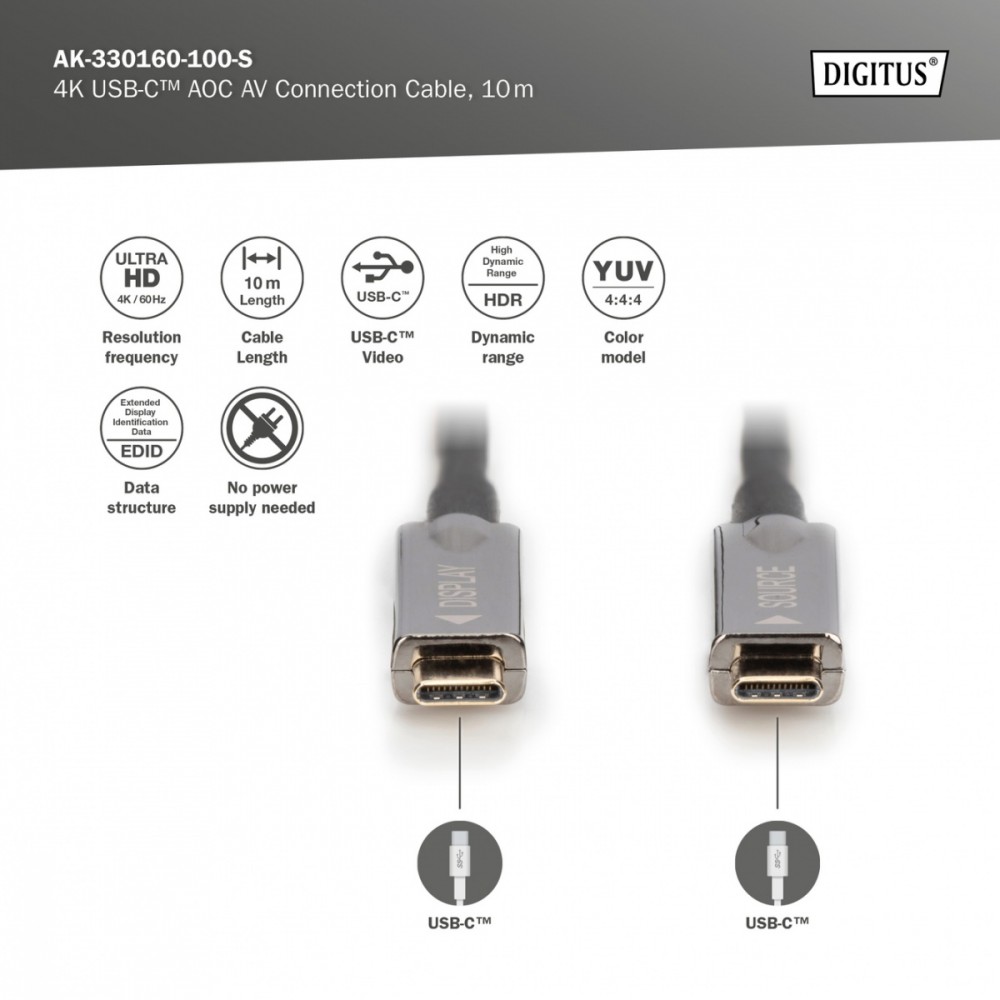

Connection Cable AK-330160-100-S

Περιγραφή

Transmission of uncompressed video and audio signals at 4K UHD resolution with a bandwidth of 21.6 Gbps.

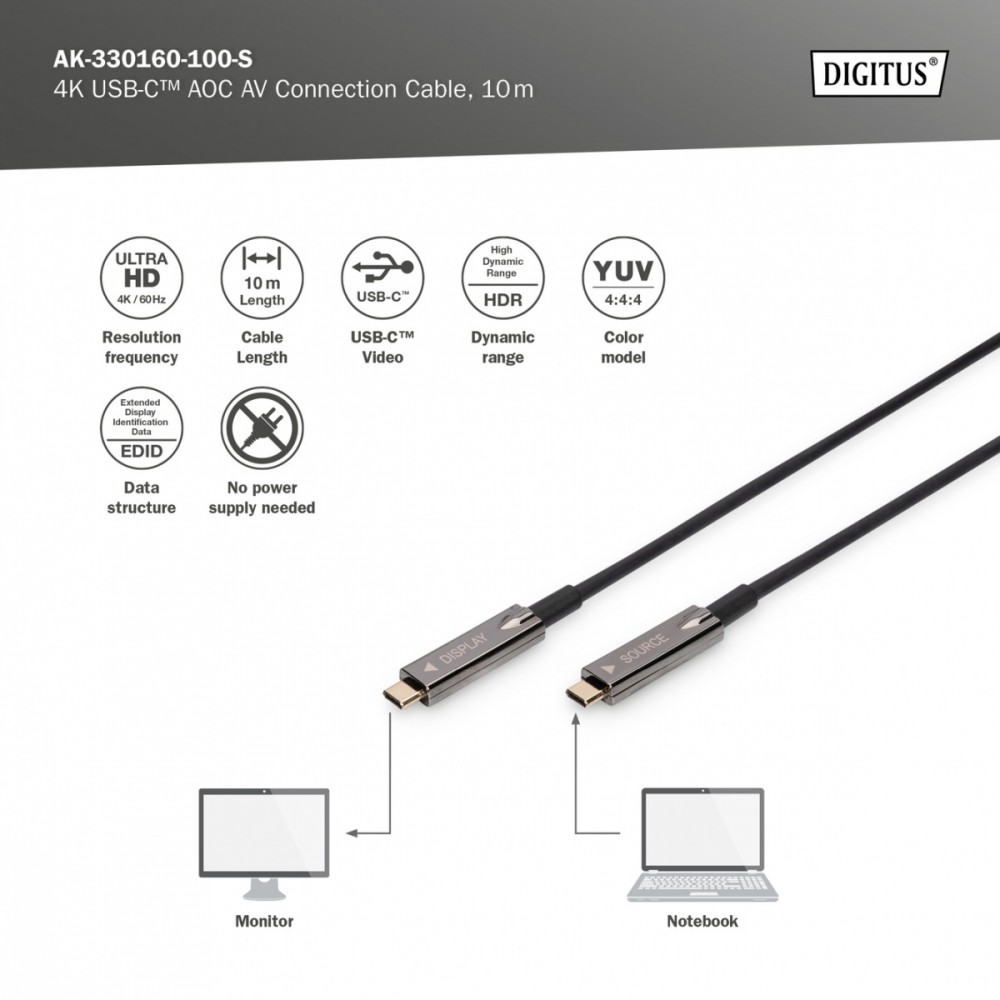

This AOC active audio-video connection cable with USB Type C is ideal for transmitting uncompressed video and audio at high bandwidth over longer distances. The hybrid structure consisting of copper and fibre-optic cables eliminates electromagnetic interference, ensuring lossless transmission along the entire length of the cable, with UHD resolution up to 4K / 60 Hz and a bandwidth of up to 21.6 Gbps. Due to the use of optical conductors (glass fibre), the diameter of this active cable is small and features very small bending radii and low dead weight. It is ideal for use in the home, business meeting rooms or conference rooms and in buildings, which are only certain areas of use. You can easily connect a laptop with USB Type C output to a monitor with USB Type C input. Easily installed using the plug and play method (plug and play), you can enjoy the highest image quality immediately after connection. The adapter cable is unidirectional (USB type C = input device, USB type C = output device).

• The AOC active USB Type C audio/video connection cable is based on a hybrid design of copper and fibre-optic cables, enabling a bandwidth of up to 21.6 GBit/s.
• Flexible yet robust, it features a low bending radius and very good performance for transmission of uncompressed audio and video content over longer distances.
• Small bending radius and low weight, yet high image quality and plug and play (plug and play) installation
• Thanks to the latest chip technology and lack of susceptibility to electromagnetic interference, the cable is ideal for home cinema, conference rooms or other video cable assemblies
• No external power supply required
• Compatible with the DisplayPort 1.2 standard and compatible with the DP Alternate Mode of the USB Type-C standard.
• Compatible with all devices with USB Type-C connectors for video transmission

Cable length: 1
Other features: Support: up to 4K resolution at 60 Hz. Support: Up to 2K resolution at 60 Hz Support: Resolution up to 1920 x 1080 at 120 Hz. Data transfer rate: 21.6 Gbps Support: HDR Support: Dolby Vision Support: HDR10 Support: 3D Cable diameter: 4.8 mm Support for Lip-Sync (audio/video synchronisation) Supports YUV 4:4:4 format Supports EDID 2.0 (device recognition) Body: Zinc AOC active optical cable Operating temperature: 0°C to 45°C Storage temperature: -10°C to +70°C Operating humidity: 5% to 90% relative humidity Bending radius: 10 mm
