Gigabyte A620M H rev. 1.0 Motherboard Micro ATX με AMD AM5 Socket

Περιγραφή

• Υποδοχή AMD AM5: Υποστηρίζει επεξεργαστές AMD Ryzen σειράς 7000
• Απαράμιλλη απόδοση: λύση ψηφιακού VRM 5+2+2 φάσεων
• Μνήμη DDR5 διπλού καναλιού: 2*SMD DIMM με υποστήριξη για μονάδες μνήμης AMD EXPO και Intel XMP
• Υπερταχεία αποθήκευση: PCIe 4.0 x4 M.2
• EZ-Latch: Υποδοχή PCIe x16 με σχεδιασμό γρήγορης απελευθέρωσης
• Γρήγορα δίκτυα: GbE LAN
• Εκτεταμένη συνδεσιμότητα: DP, HDMI
• Smart Fan 6: περιλαμβάνει πολλαπλούς αισθητήρες θερμοκρασίας, υβριδικούς συνδετήρες ανεμιστήρα με λειτουργία FAN STOP
• Q-Flash Plus: Ενημέρωση BIOS χωρίς εγκατάσταση CPU, μνήμης και κάρτας γραφικών

Description

• AMD AM5 socket: Supports AMD Ryzen 7000 series processors
• Unrivaled performance: 5+2+2 phase digital VRM solution
• Dual-channel DDR5 memory: 2*SMD DIMMs with support for AMD EXPO and Intel XMP memory modules
• Super-fast storage: PCIe 4.0 x4 M.2
• EZ-Latch: PCIe x16 slot with Quick Release design
• Fast networks: GbE LAN
• Extended connectivity: DP, HDMI
• Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
• Q-Flash Plus: BIOS update without installing CPU, memory and graphics card

Model A620M H
22862
16025
15632
19464
637
587
Chipset type AMD A620
4403
22018
19476
21989
22015
22013
22815
856
17035
22643
Max memory size 9
12363
19491
11530
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

CPU:

• 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Chipset:

• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Graphics

• 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz
• * Support for DisplayPort version 1.4.
• 1 x HDMI port supporting a maximum resolution of 4096×2160 at 60 Hz
• * Support for HDMI 2.1 and HDCP 2.3 versions.
• ** Support for native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on processor support.)
• Support for up to 3 displays simultaneously

Sound card

• Realtek audio codec
• High quality sound
• 2/4/5.1/7.1-channel

* Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
642
Network interface Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

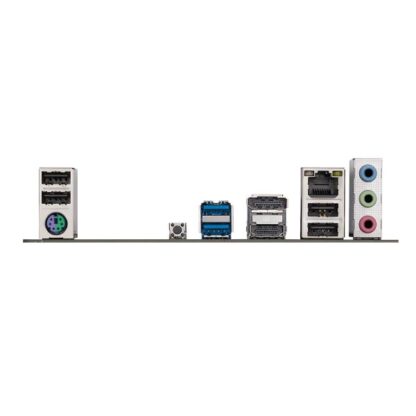

USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
646
389
391
5250
5241
5251
5245
5236
5239
5237
7788
20026
5247
7492
7481
7499
7475
7764
7494
7474
7786
7792
7486
7490
7487
Special functions

• GIGABYTE Control Center (GCC) Support
• * Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications.
• Support for Q-Flash Plus
• Q-Flash support

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

649
Dimensions 23 x 22.5cm
22012
9594
Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Other information

• Voltage detection
• Temperature detection
• Fan speed detection
• Cooling water flow rate detection
• Fan failure warning
• * Whether fan speed control is supported depends on the installed fan.
