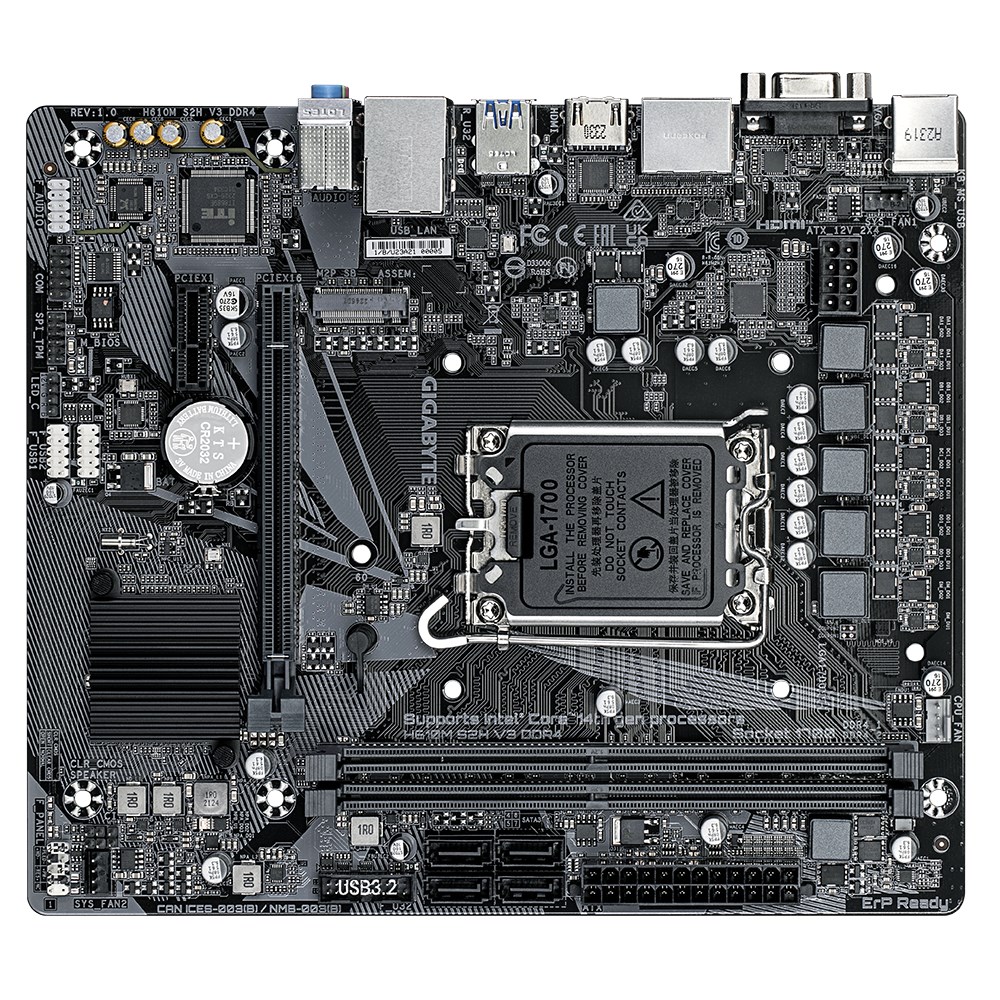

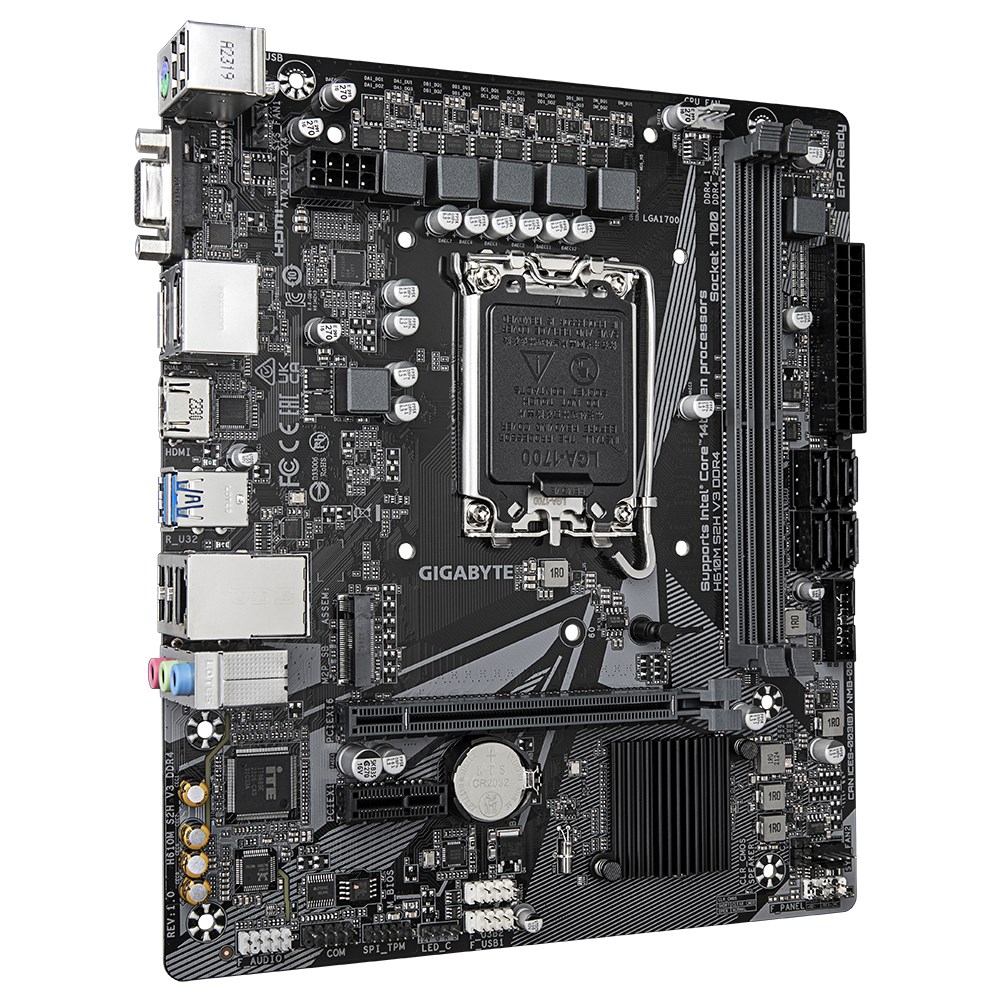

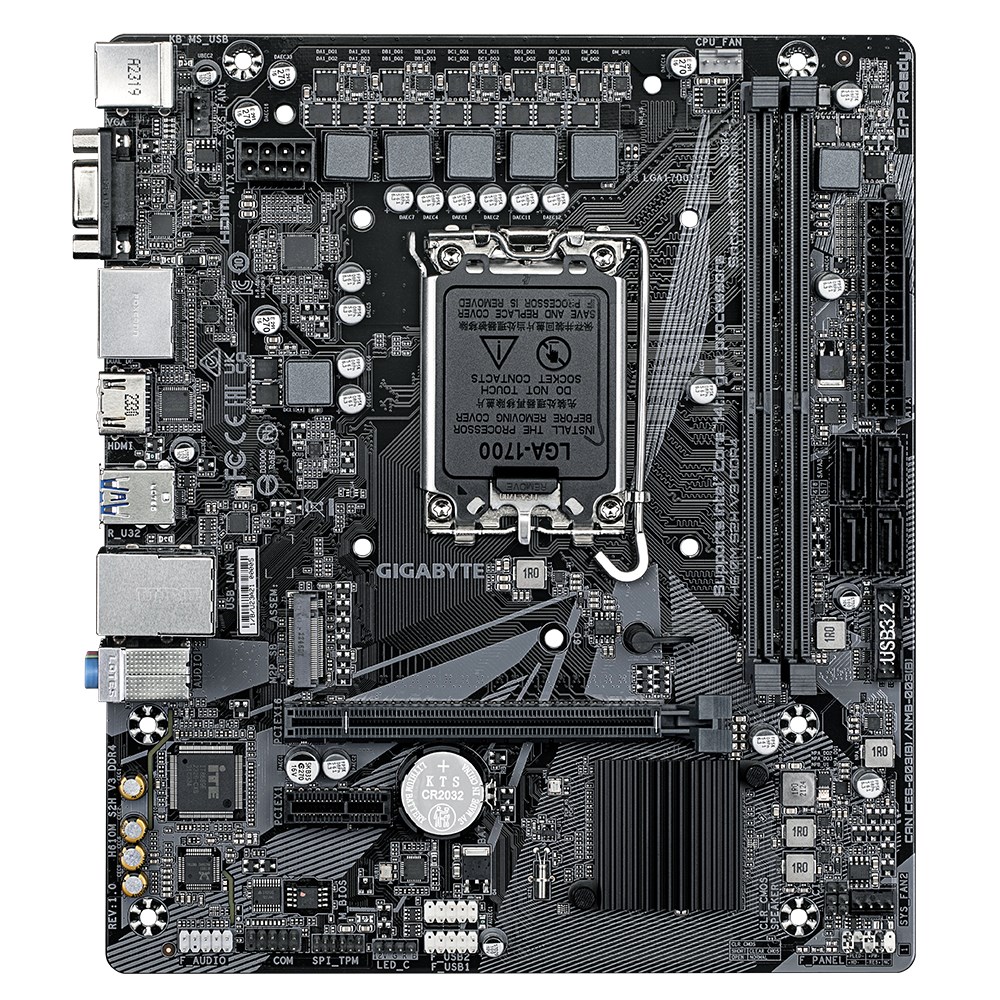

Gigabyte H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs 4+1+1 Hybrid Digital VRM up to 3200MHz DDR4 1xPCIe 3.0 M.2 GbE LAN USB 3.2 Gen 1

Περιγραφή

H610M S2H V3 DDR4

• Supports Intel Core 14/13/12th Generation Processors
• Dual Channel Non-ECC Unbuffered DDR5 Memory, 2 DIMMs
• 4+1+1 Hybrid Digital VRM Design
• GbE LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• 2 DisplayPort Ports / HDMI Port / D-Sub Port for Multiple Displays
• High Quality Audio Capacitors and Anti-Noise Shield
• Smart Fan 6 – features multiple temperature sensors, hybrid fan headers with FAN STOP function
• GIGABYTE App Center, simple and easy to use
• Anti-Sulfur Resistors Design

Model: H610M S2H V3 DDR4
Chipset type: Intel H610 Express
Max memory size : 6
Max. number of SATA devices : 4
Detailed data on disk/drive interfaces: Chipset: 1 x M.2 connector (supports Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD) 4 x SATA 6Gb/s connector
Graphics: Integrated Graphics Processor – Intel HD Graphics Support: D-Sub port supporting a maximum resolution of 1920×1200 @ 60 Hz HDMI port supporting a maximum resolution of 4096×2160 @ 60 Hz * Support for HDMI 2.1 and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compliant ports. 2 x DisplayPort, supporting a maximum resolution of 4096×2304 @ 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3
Sound card: Realtek Audio CODEC High Definition Audio Channels 2/4/5.1/7.1
Network interface: Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB ports at back panel: 6
USB ports on motherboard: 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 4
Special functions: Support: APP Center @BIOS EasyTune Smart Backup System Information Viewer Q-Flash
BIOS: 1 x 128 Mbit flash Uses AMI UEFI BIOS license PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Dimensions: 22.3 x 19.3 cm
Software: Norton Internet Security (OEM version) LAN Bandwidth Management Software
