HDMI Extender DS-55519

Περιγραφή

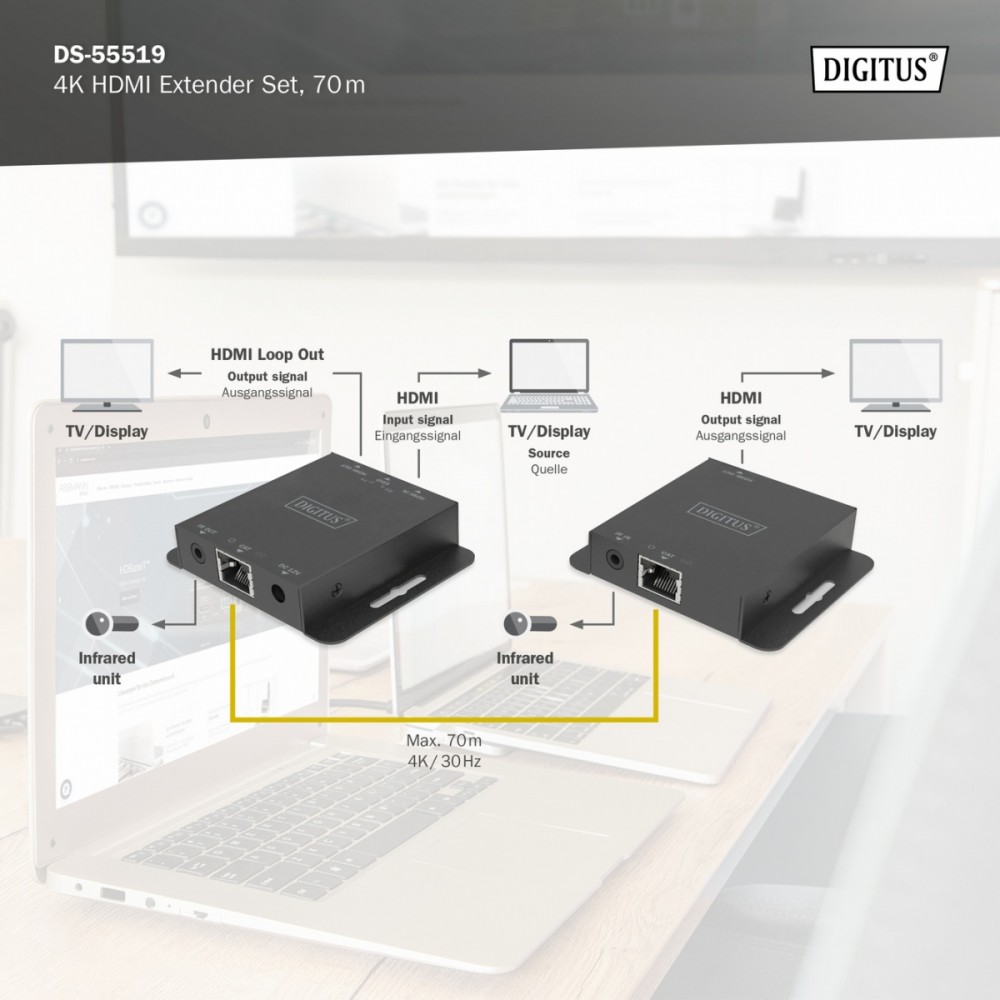

The HDMI extender kit extends the range of Full HD audio/video signals to a distance of up to 70 m, and the range of 4K / 30 Hz signals can be extended to a distance of up to 40 m with a CAT6 (or higher specification) network cable. The transmitter module is equipped with an HDMI output for connecting a local monitor. Thanks to PoC (Power over Cable) technology, only the transmitter needs to be connected to the power supply. Infrared (IR) signal transmission allows you to conveniently control the signal source using the remote control from the receiver (on the output screen). The scope of functionality also includes the function of copying the EDID of the output screen in the receiver or on HDMI-Loop Out, which can be selected using a switch.

• Extends the range of the HDMI audio-video signal to a distance of up to 70 m
• Supports resolutions up to 4K/30Hz, 4:4:4
• HDMI 1.4, HDCP 1.4, DVI 1.0
• Support for CAT 5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cables
• Audio support: Up to 7.1ch HD audio
• PoC (Power over Cable) – only the transmitter requires an external power supply
• Loop-Out/HDMI output – connect a local monitor to the source device
• EDID copy function of the output screen in the receiver or on HDMI-Loop Out
• Infrared signal transmission (two-way)
• An infrared (IR) signal interface allows remote control of the input source via the output screen
• Suitable for wall mounting
• Metal housing

Dimensions: (1 module): L 7.9 cm x W 6.9 cm x H 1.65 cm Weight: transmitter: 132 g, receiver: 130 g

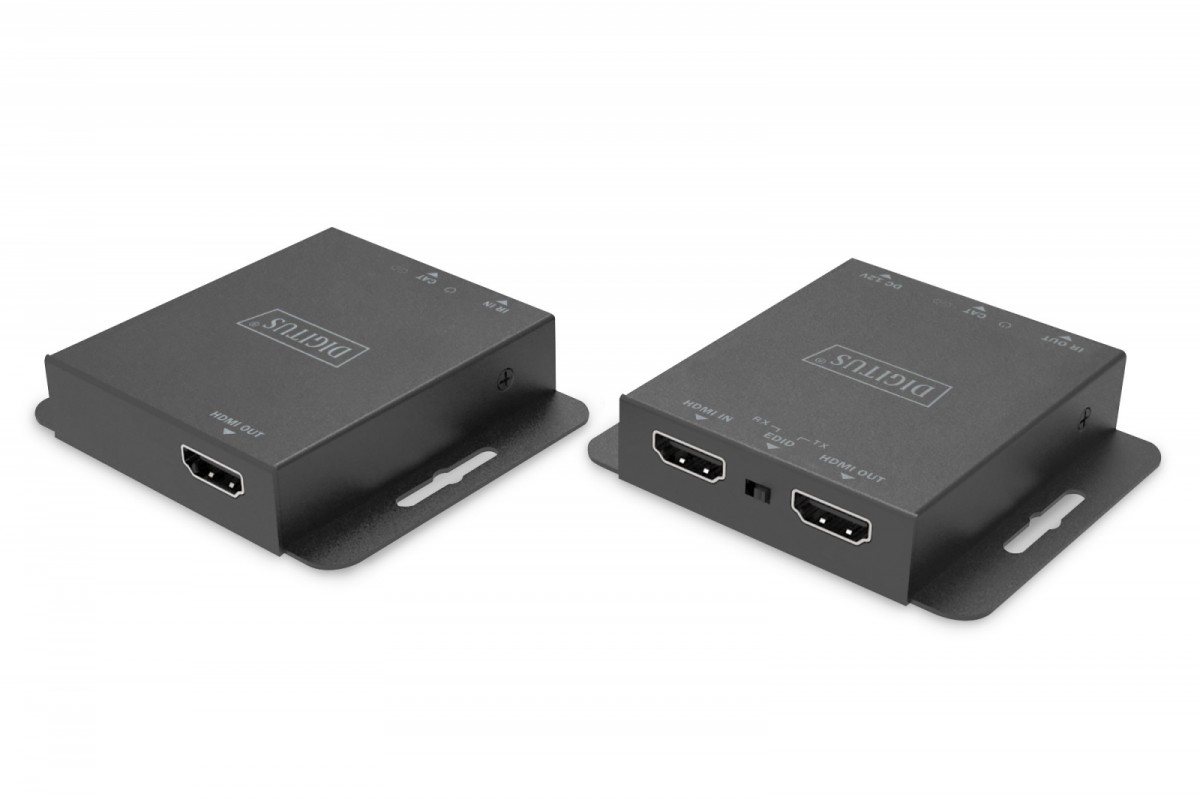

Accessories included: 1 x transmitter module 1 x receiver module 1 x IR transmitter cable (1.5m) 1 x IR receiver cable (1.5m) 1 x Power adapter (DC 12V/1A, 1.15m) 1 x User Manual

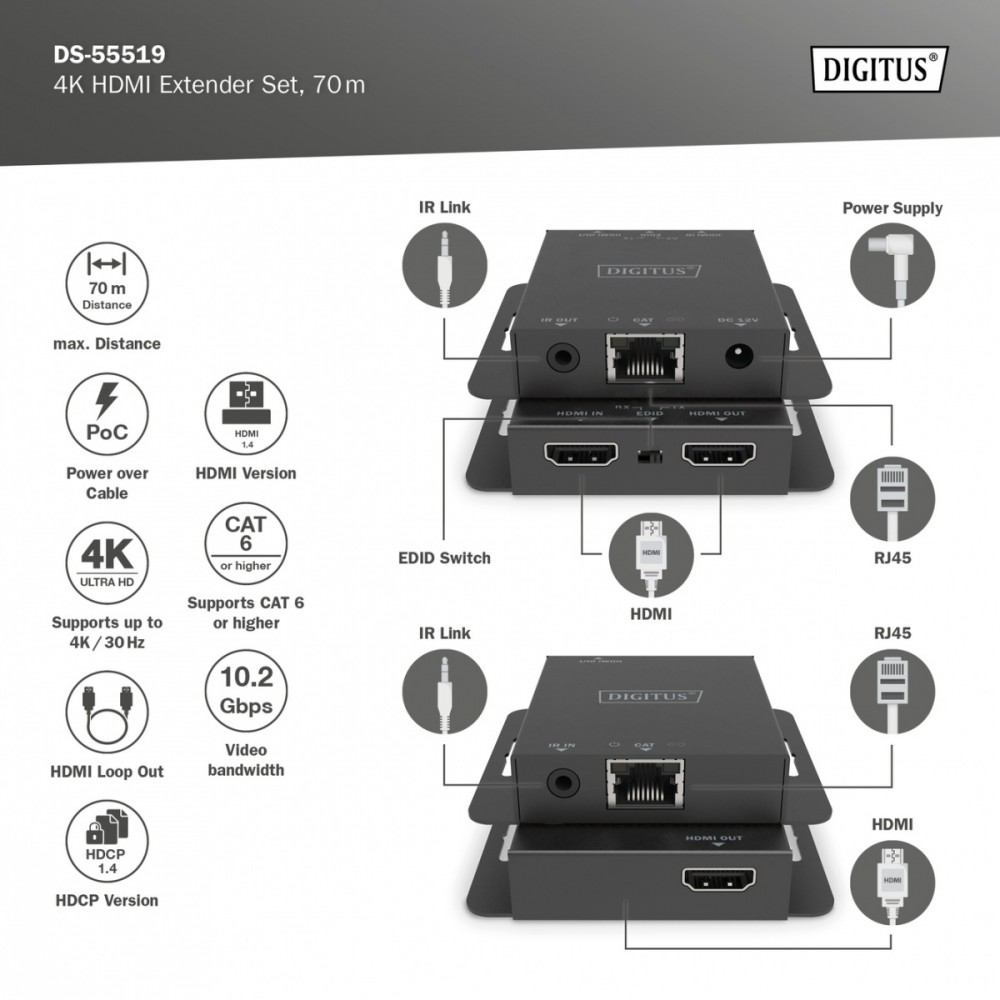

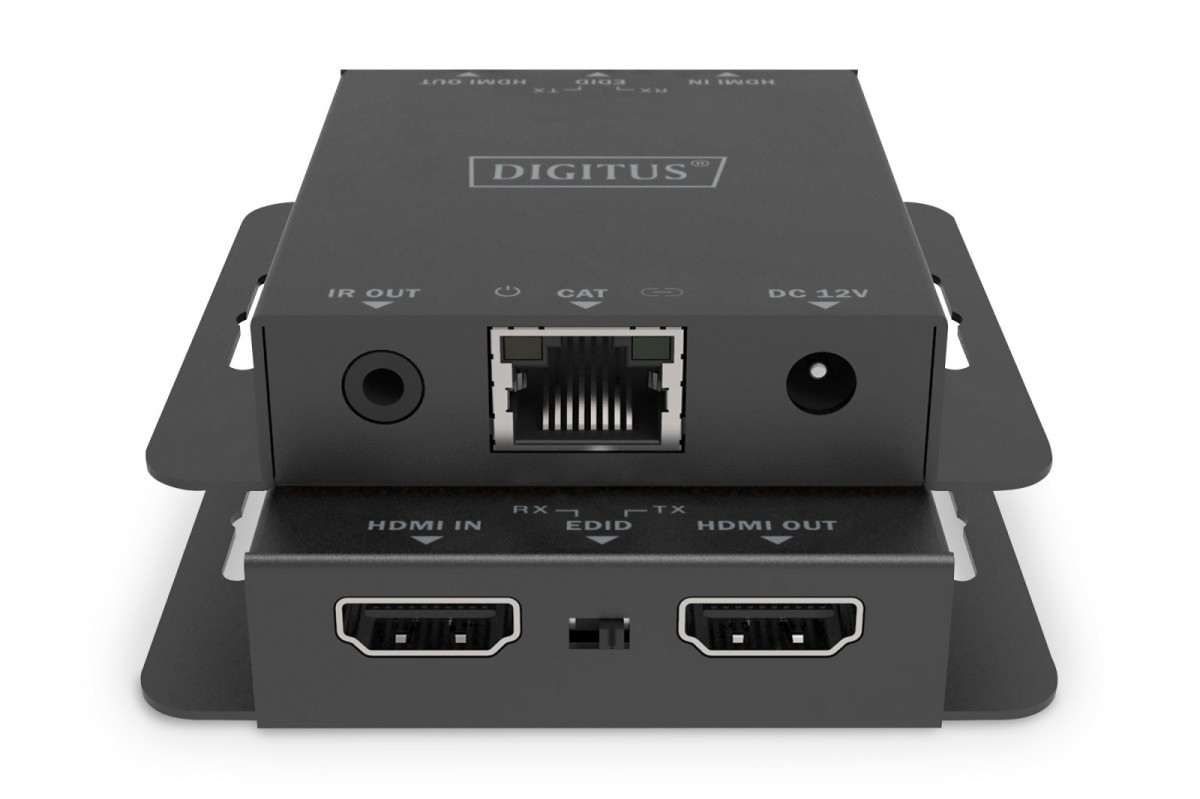

Other features: Transmitter Module Connectors: 1 x HDMI input (4K / 30 Hz) – for connecting the signal source 1 x Loop-Out/HDMI Out – Local Monitor Connection (Source Device) 1 x RJ45 output connector for CAT cable for transmission 1 x infrared output – connection of an infrared relay 1 x power supply input (DC 12 V / 1 A) – connection of an external power supply 1 x EDID switch Receiver module connectors: 1 x HDMI output (4K / 30 Hz) – connection of an output device 1 x RJ45 input – connecting a CAT cable for transmission 1 x input for infrared signal – connection of an infrared receiver Video throughput: 10.2Gbps Surge Protection (ESD) Working temperature: 0-40° Power consumption: Transmitter module: 1.86 W, Receiver module: approx. 0.87 W
