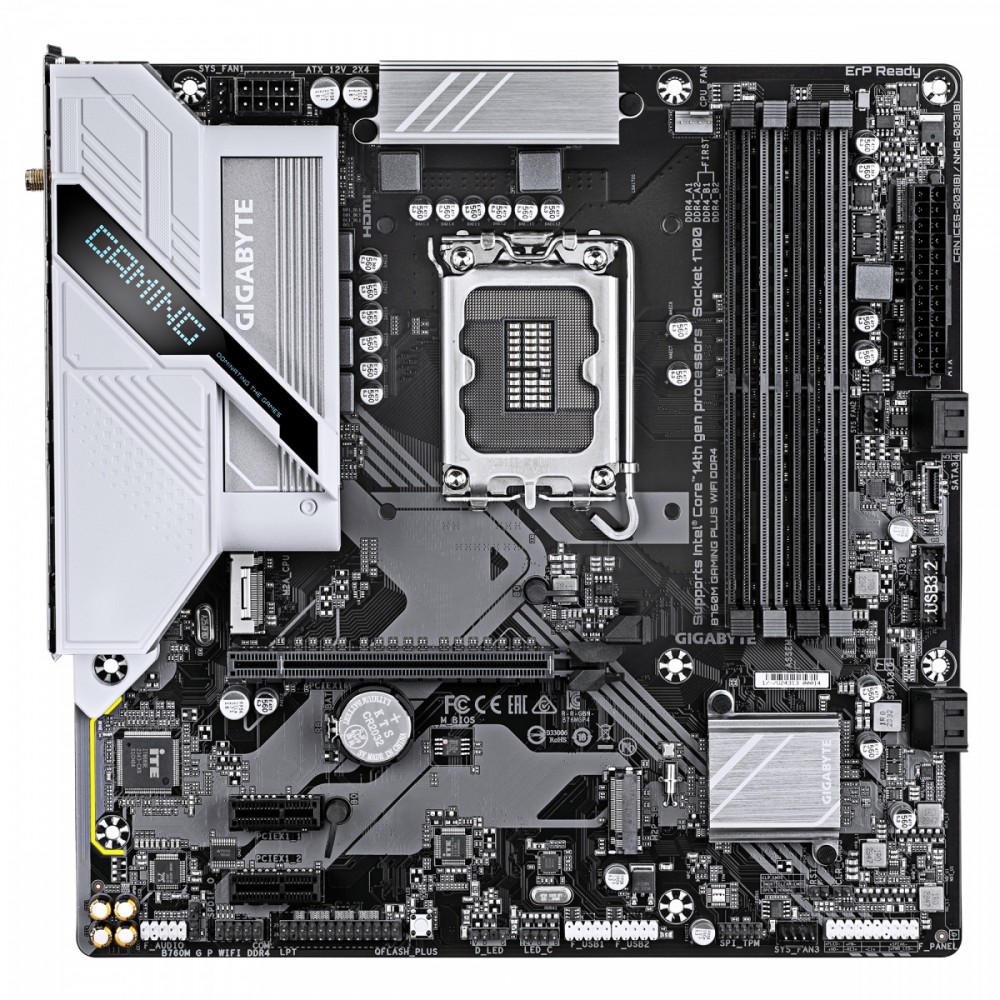

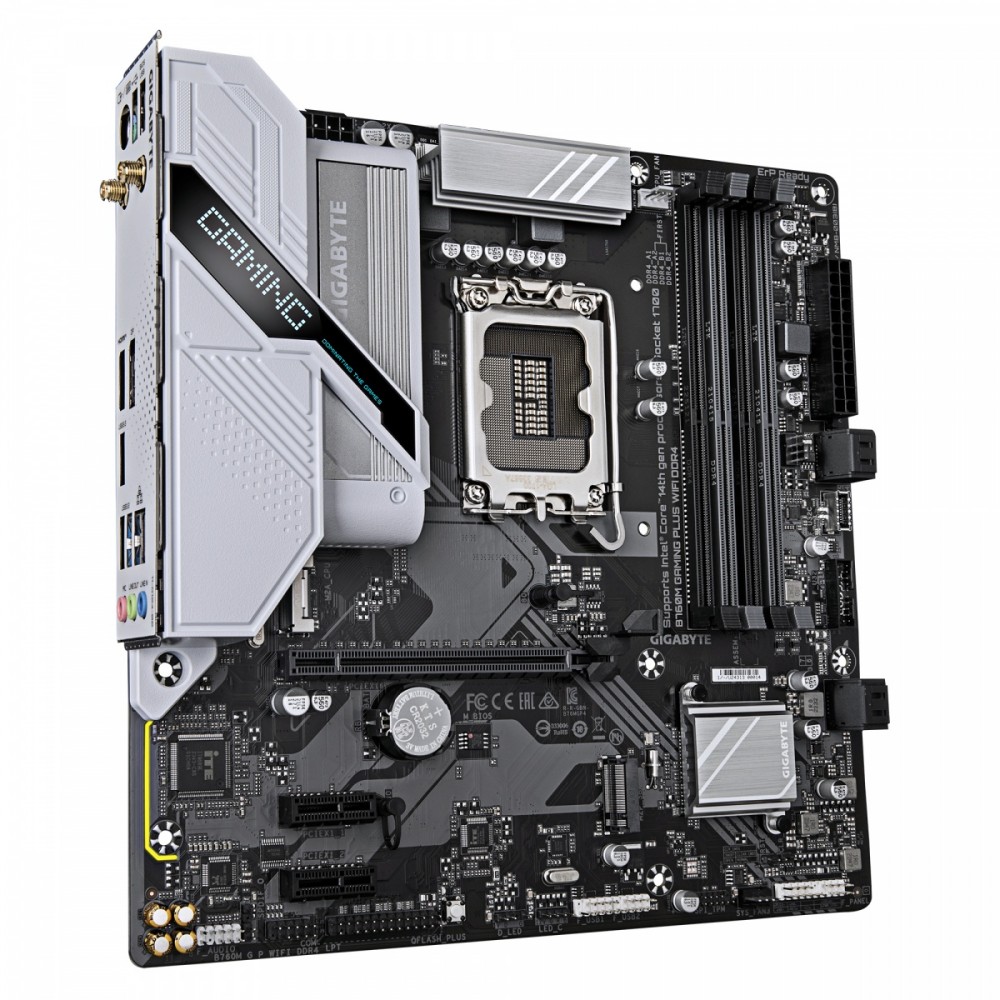

Motherboard B760M GAMING PLUS WIFI s1700 4DDR4 DP/HDMI mATX
Motherboard B760M GAMING PLUS WIFI s1700 4DDR4 DP/HDMI mATX
Motherboard B760M GAMING PLUS WIFI s1700 4DDR4 DP/HDMI mATX

Motherboard B760M GAMING PLUS WIFI s1700 4DDR4 DP/HDMI mATX

146€(τα μεταφορικά υπολογίζονται στο σύνολο του καλαθιού)

Gigabyte
Τελευταία ανανέωση: 16/04/2026 22:35:48

EAN: 4719331862855
Κατηγορία: Μητρικές Κάρτες

Περιγραφή

B760M GAMING PLUS WIFI DDR4

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled PerformanceHybrid 4+1+1 Phases Digital VRM Solution
  • Dual Channel DDR44*DIMMs XMP Memory Module Support
  • Next Generation Storage2*PCIe 4.0 x4 M.2 Connectors
  • Fast NetworksWi-Fi 6 802.11ax, GbE LAN
  • Extended ConnectivityFront USB-C 5Gb/s, DP, HDMI
  • Smart Fan 6Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash PlusUpdate BIOS Without Installing the CPU, Memory and Graphics Card

Model: B760M G P WIFI DDR4
Chipset type: Intel B760 Express
Max memory size : 1
Max. number of SATA devices : 4
Detailed data on disk/drive interfaces: CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz – Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz – Support for DisplayPort 1.2 version and HDCP 2.3
Sound card: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Network interface: LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)Wireless Communication module: Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard

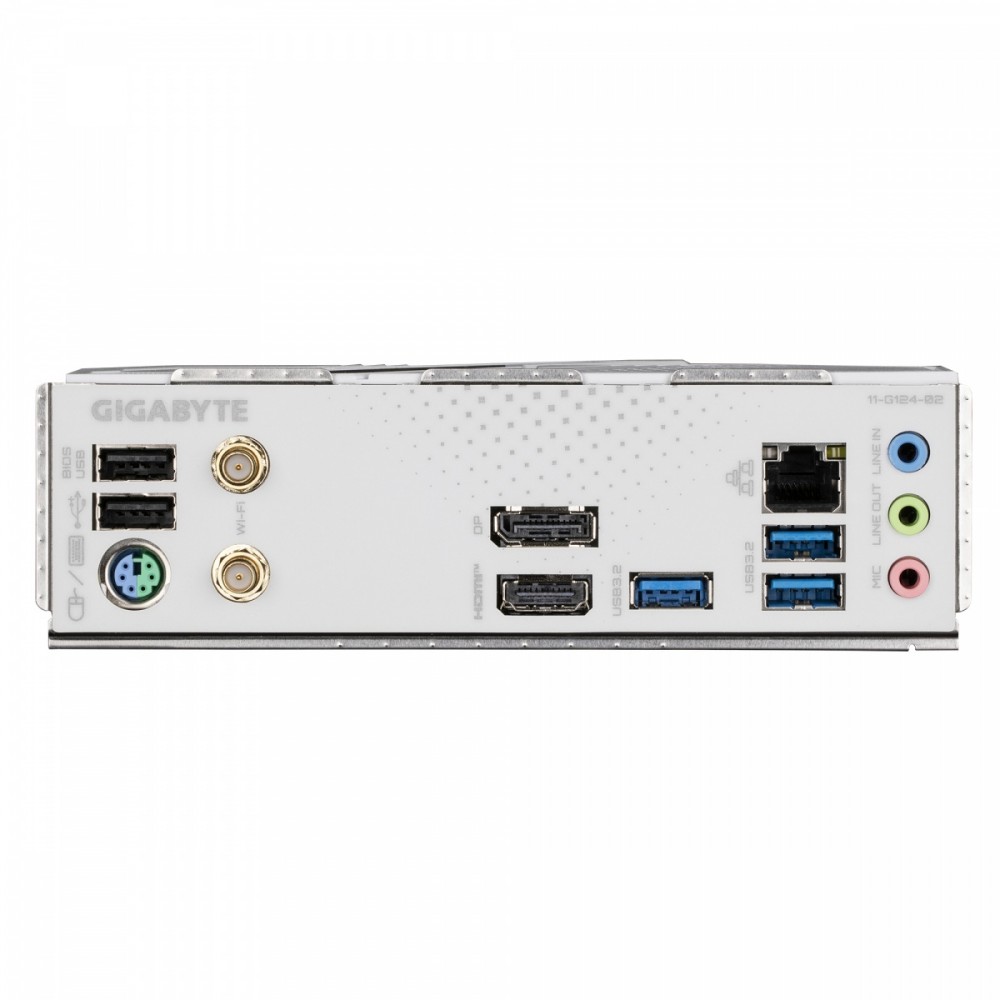

USB ports at back panel: 5
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 6
Special functions: Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
BIOS: 1 x 128 Mbit flash Używanie licencjonowanego BIOS-u AMI UEFI PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Dimensions: 24.4 x 24.4 cm
Software: Norton Internet Security (OEM version) LAN bandwidth management software

B760M GAMING PLUS WIFI DDR4 Supports Intel Core 14th/ 13th /12th processors Unparalleled PerformanceHybrid 4+1+1 Phases Digital VRM Solution Dual Channel DDR44*DIMMs XMP Memory Module Support Next Generation Storage2*PCIe 4.0 x4 M.2 Connectors Fast NetworksWi-Fi 6 802.11ax, GbE LAN Extended ConnectivityFront USB-C 5Gb/s, DP, HDMI Smart Fan 6Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash PlusUpdate BIOS Without Installing the CPU, Memory and Graphics Card Model: B760M G P WIFI DDR4 Chipset type: Intel B760 Express Max memory size : 1 Max. number of SATA devices : 4 Detailed data on disk/drive interfaces: CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz – Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz – Support for DisplayPort 1.2 version and HDCP 2.3 Sound card: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Network interface: LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)Wireless Communication module: Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard USB ports at back panel: 5 USB ports on motherboard: 7 Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 6 Special functions: Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus BIOS: 1 x 128 Mbit flash Używanie licencjonowanego BIOS-u AMI UEFI PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Dimensions: 24.4 x 24.4 cm Software: Norton Internet Security (OEM version) LAN bandwidth management software

Επιπλέον πληροφορίες

Βάρος 1,15 κ.
Διαστάσεις 70 × 27 × 27 cm
