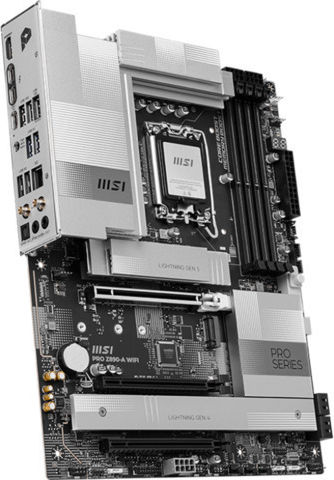

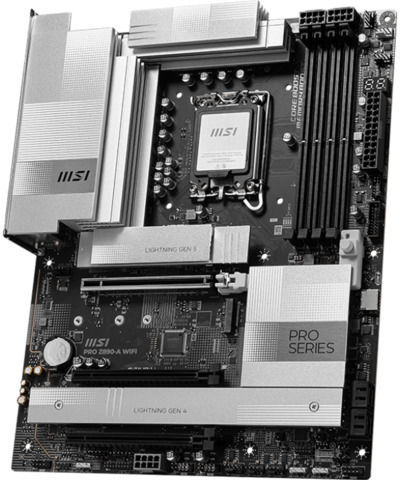

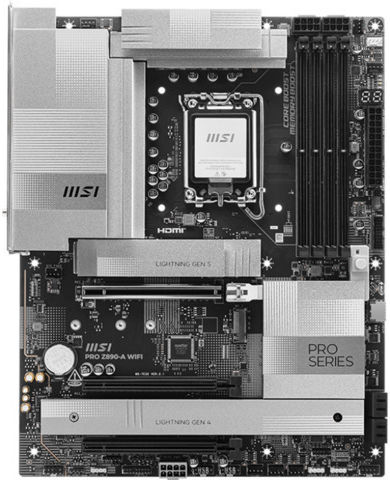

MSI PRO Z890-A WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX

Περιγραφή

PRO Z890-A WIFI

• Supports Intel Core Ultra (Series 2) processors in the LGA 1851 socket
• Dual-channel DDR5 9200+ MT/s memory support (overclocking)
• Exceptional performance: 16+1+1+1-phase, 90-amp power design with Duet Rail Power System and Smart Power Stages (SPS), two 8-pin CPU power connectors, Core Boost and Memory Boost technology, 6-layer PCB with 2oz of layered copper made of server-grade materials
• Frozr Guard Protection System: Improved, extended Extended Heatsink design, 7W/mK thermal pads on the power MOSFETs, additional thermal pads on the chokes, and a connector with the EZ M.2 Shield Frozr II heatsink system allow for improved heat dissipation and long-lasting, uninterrupted operation.
• EZ System DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna
• Exceptional Speed: PCIe 5.0 and Lightning Gen 5 x4 M.2 connectors
• Ultra Connect: Dual Thunderbolt 4 ports, 5G LAN with Intel Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 4: Generates studio-quality sound for exceptional gaming immersion

Model: PRO Z890-A WIFI
Chipset type:  INTEL Z890
Max memory size : 2
Max. number of SATA devices : 4
Detailed data on disk/drive interfaces: Slot      3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) Storage      4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) RAID      Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Graphics: 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Sound card: Realtek ALC1220P 7.1-Channel High Definition Audio Supports S/PDIF output
Network interface: LAN Realtek 8126 5Gbps LAN WIRELESS LAN AND BLUETOOTH Intel Wi-Fi 7 Wireless network module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (320 MHz) up to 5.8 Gbps. Supports 802.11 a/b/g/n/ac/ax/be. Supports Bluetooth 5.4**, MLO, 4KQAM.

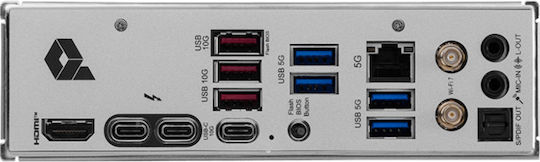

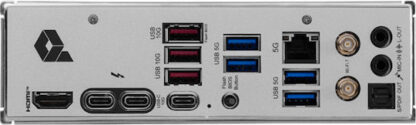

USB ports at back panel: 1
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 4
Dimensions: 243.84 mm x 304.8 mm
