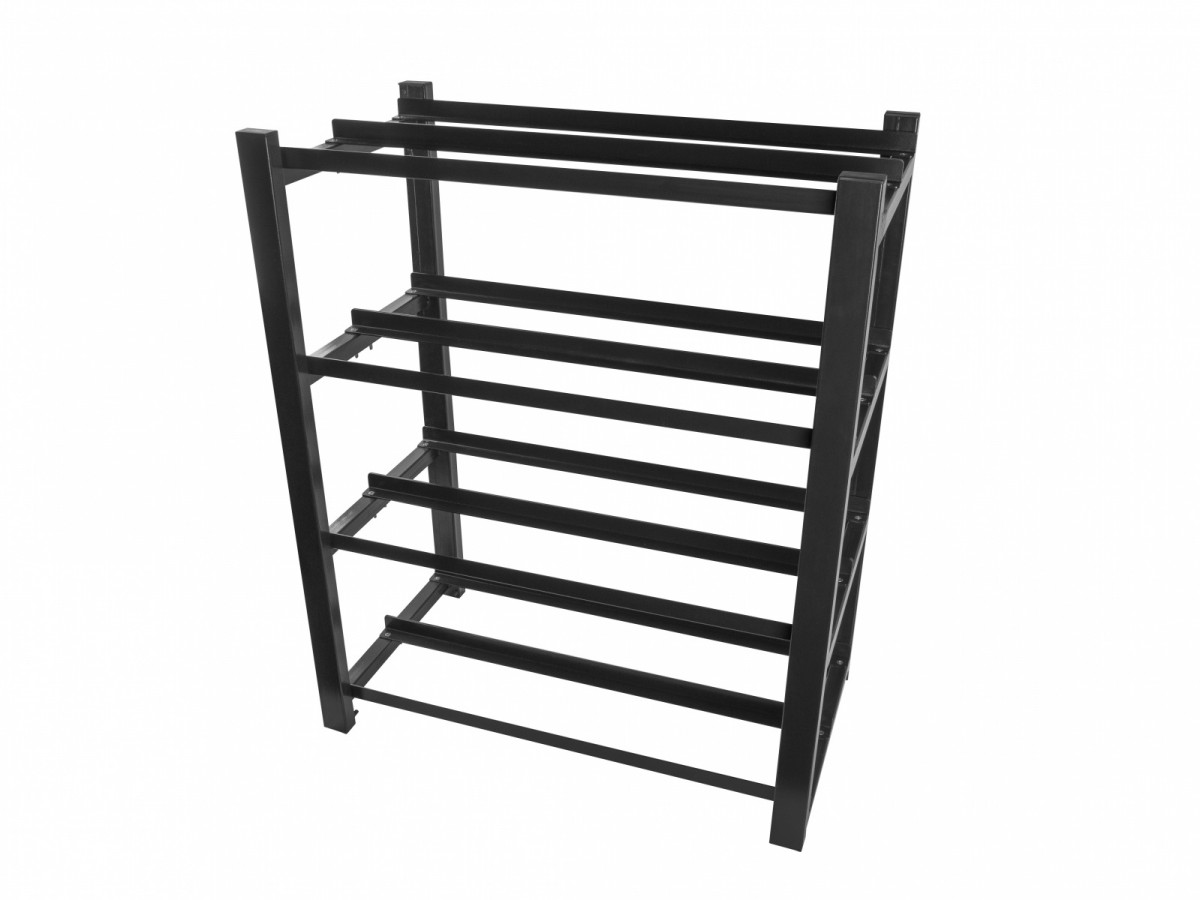

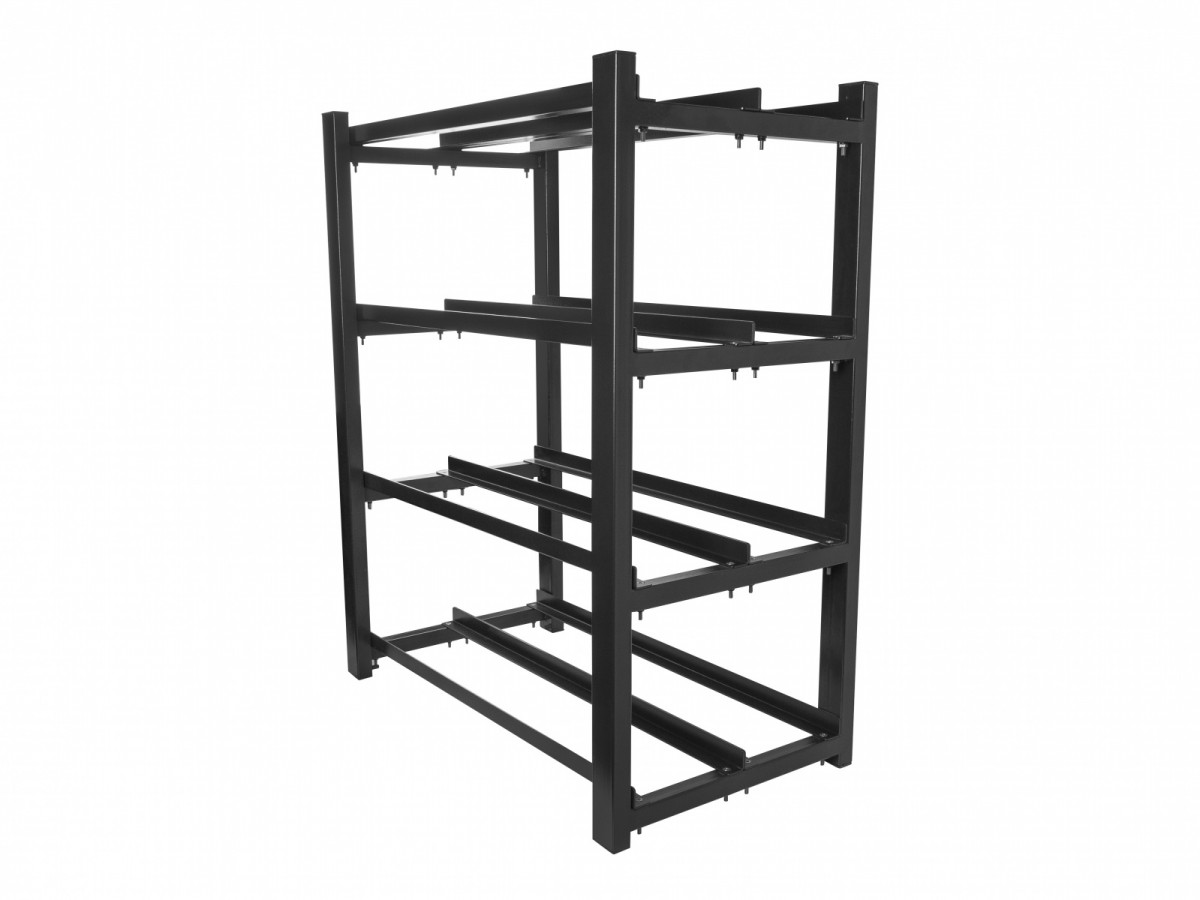

Stand for batteries UPS 830X454 2x4(8) black OR01-830454-204-BK
Stand for batteries UPS 830X454 2x4(8) black OR01-830454-204-BK

Stand for batteries UPS 830X454 2x4(8) black OR01-830454-204-BK

120€(τα μεταφορικά υπολογίζονται στο σύνολο του καλαθιού)

Lanberg
Τελευταία ανανέωση: 16/04/2026 16:00:40

EAN: 5901969419535
Κατηγορία: Other

Περιγραφή

Stand for batteries UPS 830X454 2×4(8) black OR01-830454-204-BK

Lanberg Battery Frame is an indispensable, modular element of complex emergency power systems. The product itself is dedicated to the installation of multiple batteries, while its rugged construction is designed to be flexible and allow users the freedom of access.

Individual components of the battery frame are made of steel with the following thicknesses:

  • Supporting elements: 2.0 mm
  • Metal angles: 2.5 mm

The battery frame is characterized by high mechanical resistance, easy access and structural strength. The surfaces were finished by degreasing, etching and phosphating them, thus increasing the protection against rust. The application of electrostatic powder paint ensures adequate durability of the coating. The modular battery frame for self-assembly is packed in a single flat pack, which facilitate transport, as well as quick and easy assembly at the chosen installation site.

Dimensions: Total length: 454 mm Total width: 830 mm Width between angles: 190 mm Distance between bearing elements: 30 & 50 mm Total height: 1000 mm Level 1 height: 270 mm Feet height (up to 1 load bearing element): 50 mm
Accessories included: 32 x M6 * 40 screw 32 x Nut 8 x End cap for bearing elements
Other features: Rows: 2 Levels: 4 Number of angles: 16 Color: RAL 9004

Stand for batteries UPS 830X454 2×4(8) black OR01-830454-204-BK Lanberg Battery Frame is an indispensable, modular element of complex emergency power systems. The product itself is dedicated to the installation of multiple batteries, while its rugged construction is designed to be flexible and allow users the freedom of access. Individual components of the battery frame are made of steel with the following thicknesses: Supporting elements: 2.0 mm Metal angles: 2.5 mm The battery frame is characterized by high mechanical resistance, easy access and structural strength. The surfaces were finished by degreasing, etching and phosphating them, thus increasing the protection against rust. The application of electrostatic powder paint ensures adequate durability of the coating. The modular battery frame for self-assembly is packed in a single flat pack, which facilitate transport, as well as quick and easy assembly at the chosen installation site. Dimensions: Total length: 454 mm Total width: 830 mm Width between angles: 190 mm Distance between bearing elements: 30 & 50 mm Total height: 1000 mm Level 1 height: 270 mm Feet height (up to 1 load bearing element): 50 mm Accessories included: 32 x M6 * 40 screw 32 x Nut 8 x End cap for bearing elements Other features: Rows: 2 Levels: 4 Number of angles: 16 Color: RAL 9004

Επιπλέον πληροφορίες

Βάρος 15 κ.
Διαστάσεις 120 × 47 × 102,5 cm
