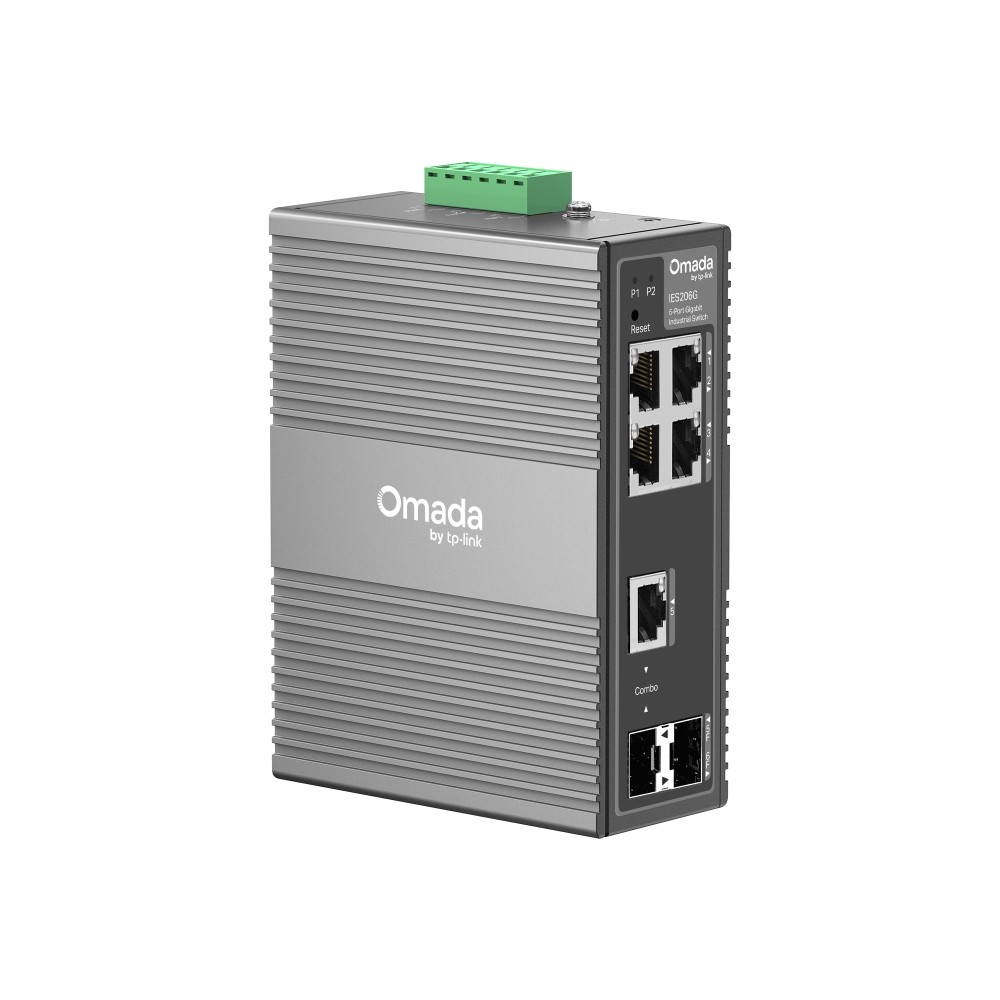

Industrial Easy Managed Omada Switch, 6 Gigabit Ports

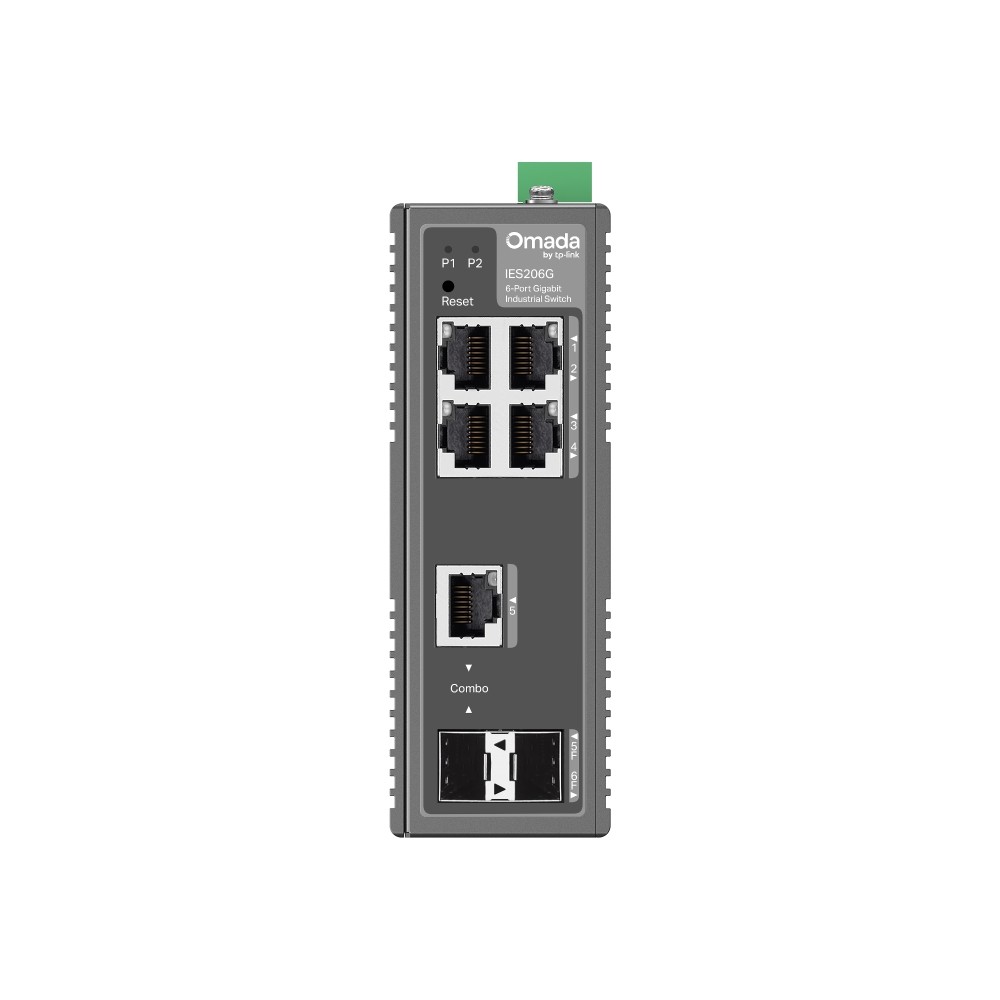

- 6 Gigabit Ports (4 x RJ45, 1 x Combo RJ45/SFP, 1 x SFP)

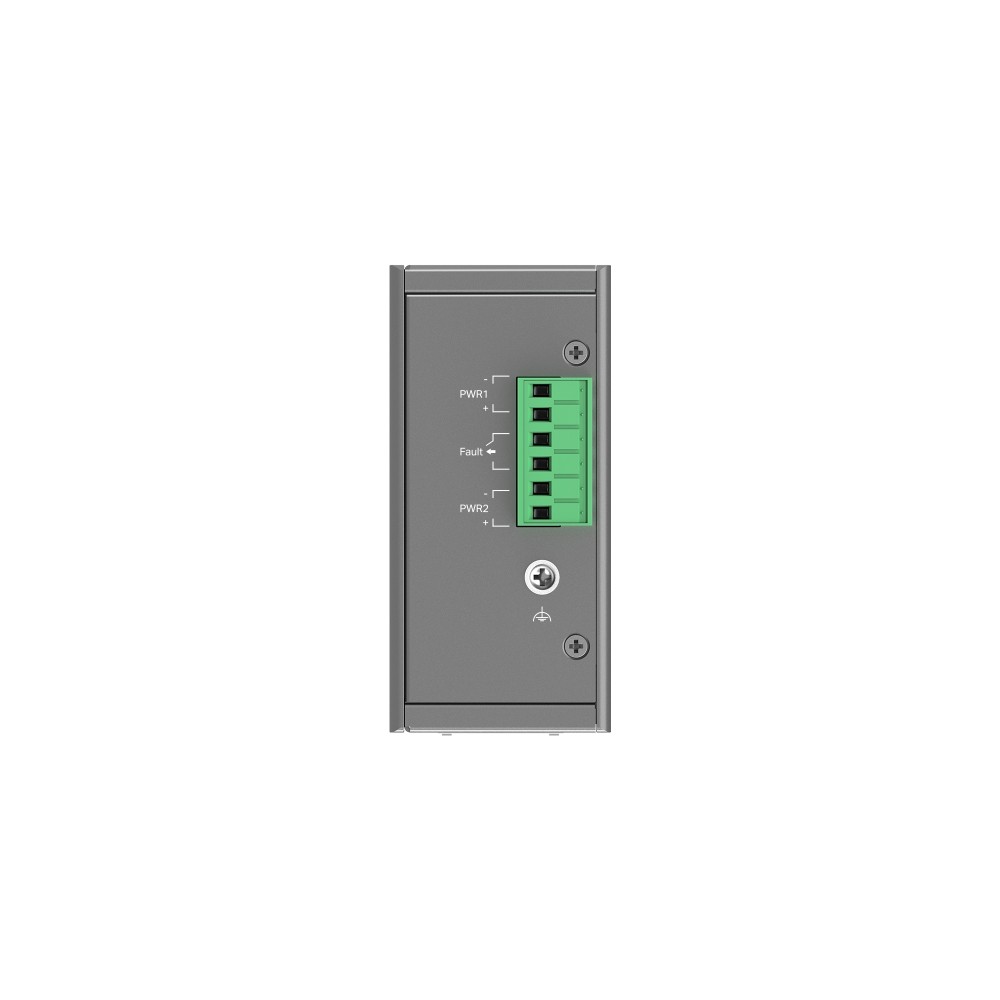

- Professional Industrial-Grade Design: Operating temperature -40~75°C, 6kV lightning protection, 1+1 redundant power input
- Advanced Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via Web interface or Omada app
- Durable IP40 Aluminum Housing with DIN rail and wall-mount options
Description Industrial Easy Managed Omada Switch, 6 Gigabit Ports
- 6 Gigabit Ports (4 x RJ45, 1 x Combo RJ45/SFP, 1 x SFP)
- Professional Industrial-Grade Design: Operating temperature -40~75°C, 6kV lightning protection, 1+1 redundant power input
- Advanced Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via Web interface or Omada app
- Durable IP40 Aluminum Housing with DIN rail and wall-mount options
1212
1214
1222
1217
1234
1242
21357
1271
25065
1255
4980
1253
1248
4778
23336
11459
1266
4771
Throughput 1
Forwarding rate 8
Memory buffer 4
MAC address table size 8
1221
Jumbo frame size 1
1264
QoS
- DSCP 802.1p Priority
- 8 priority queues
Priority scheduling mode
- WRR (Weighted Round Robin)
Queue weight configuration Bandwidth control Rate Limiting
- Port-based transfer rate limiting
Storm Control
- Multiple control modes (kb/s / p/s)
- Broadcast / Multicast / Unknown-Unicast traffic control
Management, monitoring, configuration
- Omada Application: Yes. Requires the use of an Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
- Cloud access: Yes. Requires the use of an Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch Provisioning (ZTP): Yes. Requires the use of an Omada Cloud-Based Controller.
Management dashboard features
- Web GUI graphical interface
- DHCP client
- Cable diagnostics
- Digital Diagnostic Monitoring (DDM)
- Automatic device discovery
- Batch configuration
- Batch firmware upgrade
- Unified configuration
L2 features Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
Loopback DetectionFlow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirroring Status
- Traffic Statistics
802.1ab LLDPSpanning Tree
- STP (802.1d)
- RSTP (802.1w)
L2 Multicast:
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
Sieci VLANMTU VLANVLAN oparty na portach802.1Q Tag VLAN
- Maks. 32 grupy VLAN
- 4K VID
25301
1229
Environment requirements
- Permissible operating temperature: -40-75°C
- Permissible storage temperature: -40-85°C
- Permissible air humidity: 10%~95%, non-condensing
- Permissible storage humidity: 5%~95%, non-condensing
Certificates FCC, CE, RoHS

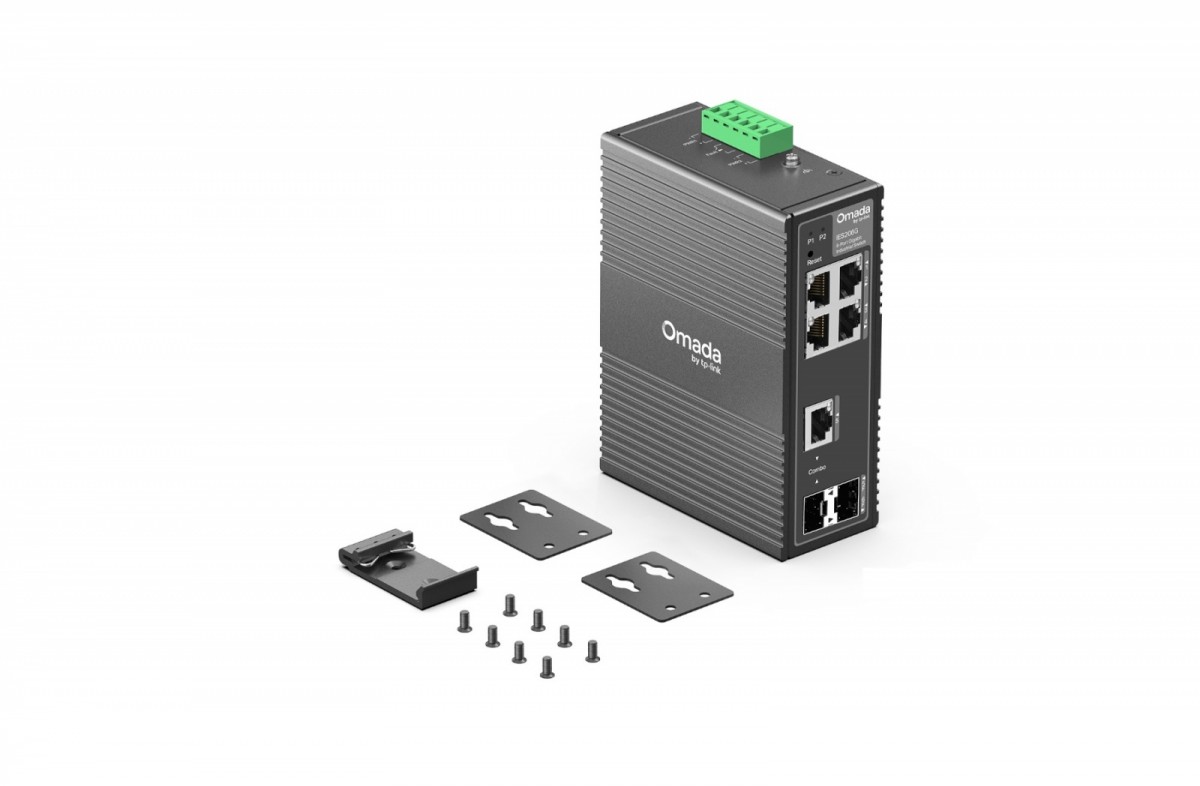

Accessories included
- IES206G
- DIN Rail Mounting Bracket
- Wall Mounting Plates
- Installation Instructions
