TRX50 AI TOP sTR5 8DDR5 DP IN/USB-C e-ATX

Περιγραφή

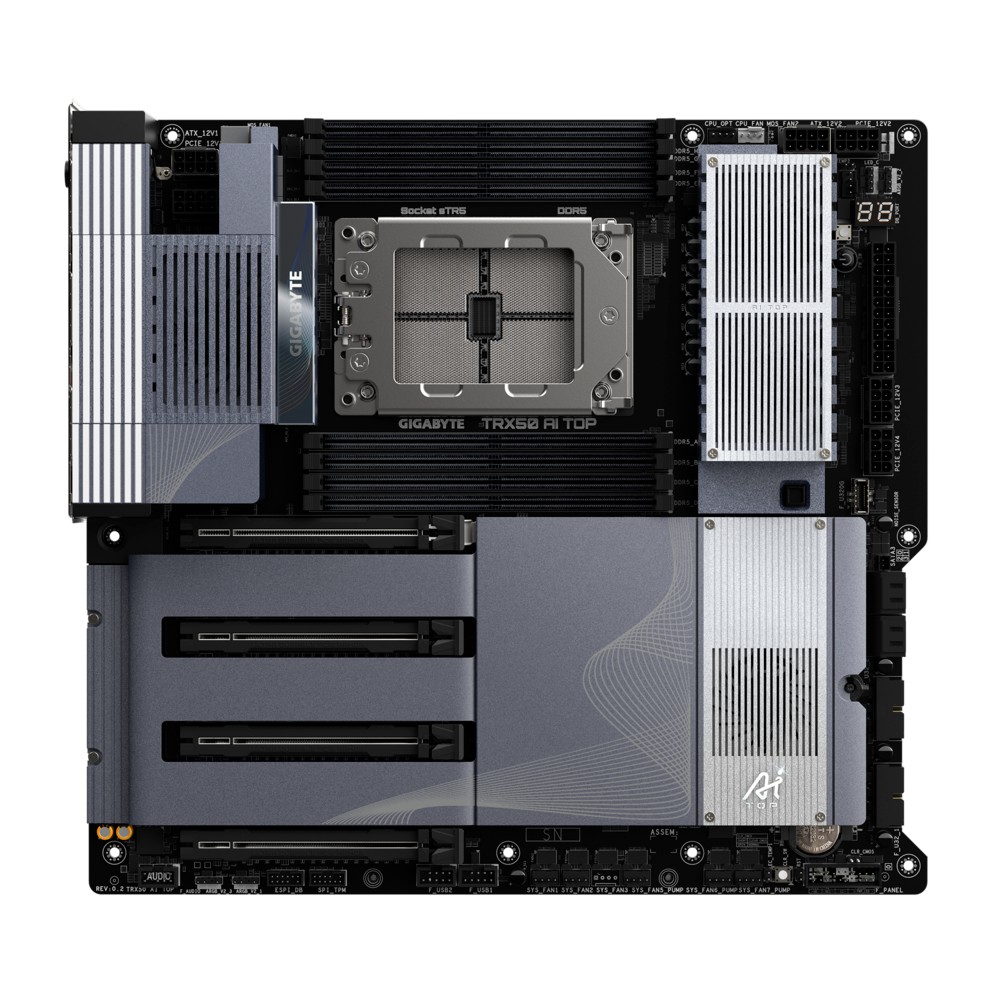

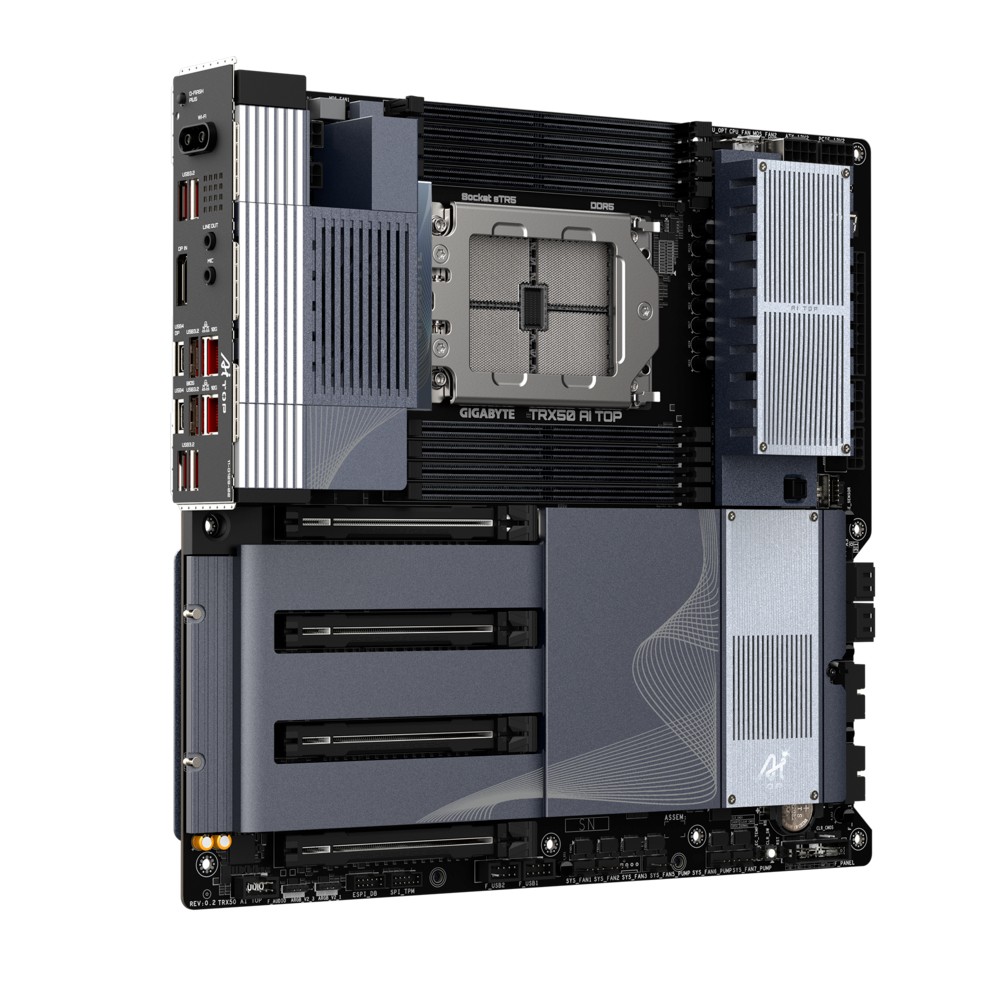

TRX50 AI Top Motherboard

• Train your own AI on your desktop
• sTR5 Socket: Supports AMD Ryzen Threadripper PRO 7000 series / Ryzen Threadripper 7000 series processors
• Breakthrough performance: 16+8+4-phase digital VRM solution
• 8-channel DDR5 memory: 8 SMD ECC R-DIMM modules with a maximum capacity of 2 TB
• Enhanced cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard
• Maximum scalability: 4 PCIe 5.0 x16 slots for multiple GPUs and 4 PCIe 5.0 x4 M.2 slots
• Next-generation connectivity: Two USB4 Type-C ports
• Blazing-fast networking: Two 10 GbE LAN ports, Wi-Fi 7 with ultra-high-gain directional antenna, and WIFI EZ-Plug
• PCIe UD X slot: PCIe 5.0 x16 slot with 10× higher power for graphics cards
• EZ-Latch Click: Tool-free M.2 heatsink installation
• EZ-Latch Plus: M.2 slots with quick-release mechanism
• Hi-Fi audio with DTS:X Ultra: ALC4080 + ALC897 codec
• UC BIOS: Intuitive user interface with quick-access functions

Description TRX50 AI Top Motherboard

• Train your own AI on your desktop
• sTR5 Socket: Supports AMD Ryzen Threadripper PRO 7000 series / Ryzen Threadripper 7000 series processors
• Breakthrough performance: 16+8+4-phase digital VRM solution
• 8-channel DDR5 memory: 8 SMD ECC R-DIMM modules with a maximum capacity of 2 TB
• Enhanced cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard
• Maximum scalability: 4 PCIe 5.0 x16 slots for multiple GPUs and 4 PCIe 5.0 x4 M.2 slots
• Next-generation connectivity: Two USB4 Type-C ports
• Blazing-fast networking: Two 10 GbE LAN ports, Wi-Fi 7 with ultra-high-gain directional antenna, and WIFI EZ-Plug
• PCIe UD X slot: PCIe 5.0 x16 slot with 10× higher power for graphics cards
• EZ-Latch Click: Tool-free M.2 heatsink installation
• EZ-Latch Plus: M.2 slots with quick-release mechanism
• Hi-Fi audio with DTS:X Ultra: ALC4080 + ALC897 codec
• UC BIOS: Intuitive user interface with quick-access functions

Model TRX50 AI Top
24366
16632
637
587
Chipset type AMD TRX50
4403
22021
Max memory size 2
26263
26713
Max. number of SATA devices 4
635
Detailed data on disk/drive interfaces 3 M.2 Slots (M2C_CPU / M2B_CPU / M2A_CPU) Integrated with the CPU Support SSD Socket 3, M key, 2280 form factor

• AMD Ryzen Threadripper PRO 9000-WX / PRO 7000-WX / 9000 series CPUs – PCIe 5.0 x4/x2 SSDs
• AMD Ryzen Threadripper 7000 series CPUs – PCIe 4.0 x4/x2 SSDs

1 M.2 Slot (M2D_CPU) Integrated with the CPU Supports SSD Socket 3, M key, 2280 form factor

• AMD Ryzen Threadripper PRO 9000-WX / PRO 7000-WX CPUs – PCIe 5.0 x4/x2 SSDs

Sound card Realtek ALC4080 CODEC (rear panel audio)

• Support for DTS:X Ultra
• High Definition Audio
• 2-channel

Realtek ALC897 CODEC (front panel audio)
24058
927
Network interface 2 x Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

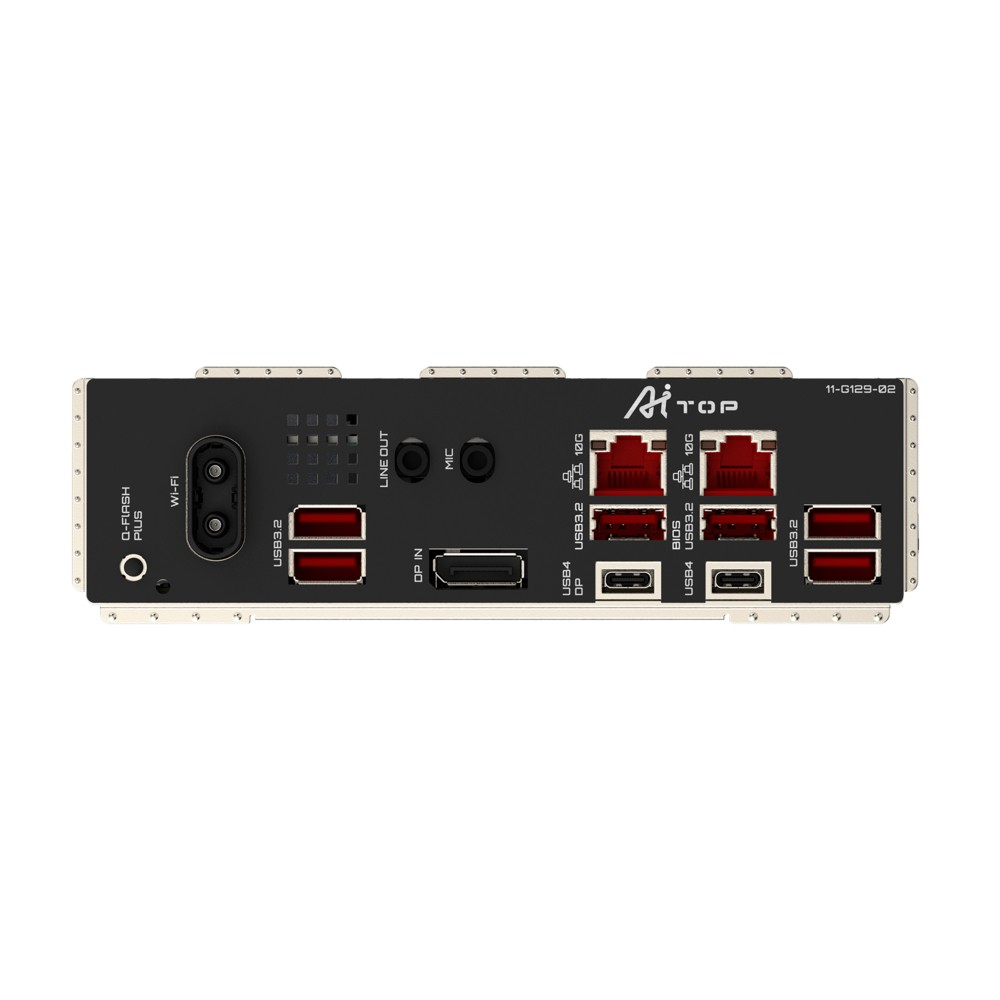

USB ports at back panel 8
USB ports on motherboard 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 6
646
389
391
5926
7840
24369
25735
5250
5254
5255
20026
25331
15634
7475
12168
7474
20067
7792
7481
7500
19614
7492
7487
7486
7828
7769
24780
23202
Special functions

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1660
Dimensions 30.5 x 33 cm
23653
22012
Software

• Norton Internet Security (OEM version)
• Software for managing LAN bandwidth
