X870 AORUS ELITE X3D IC E AM5 4DDR5 HDMI ATX

Περιγραφή

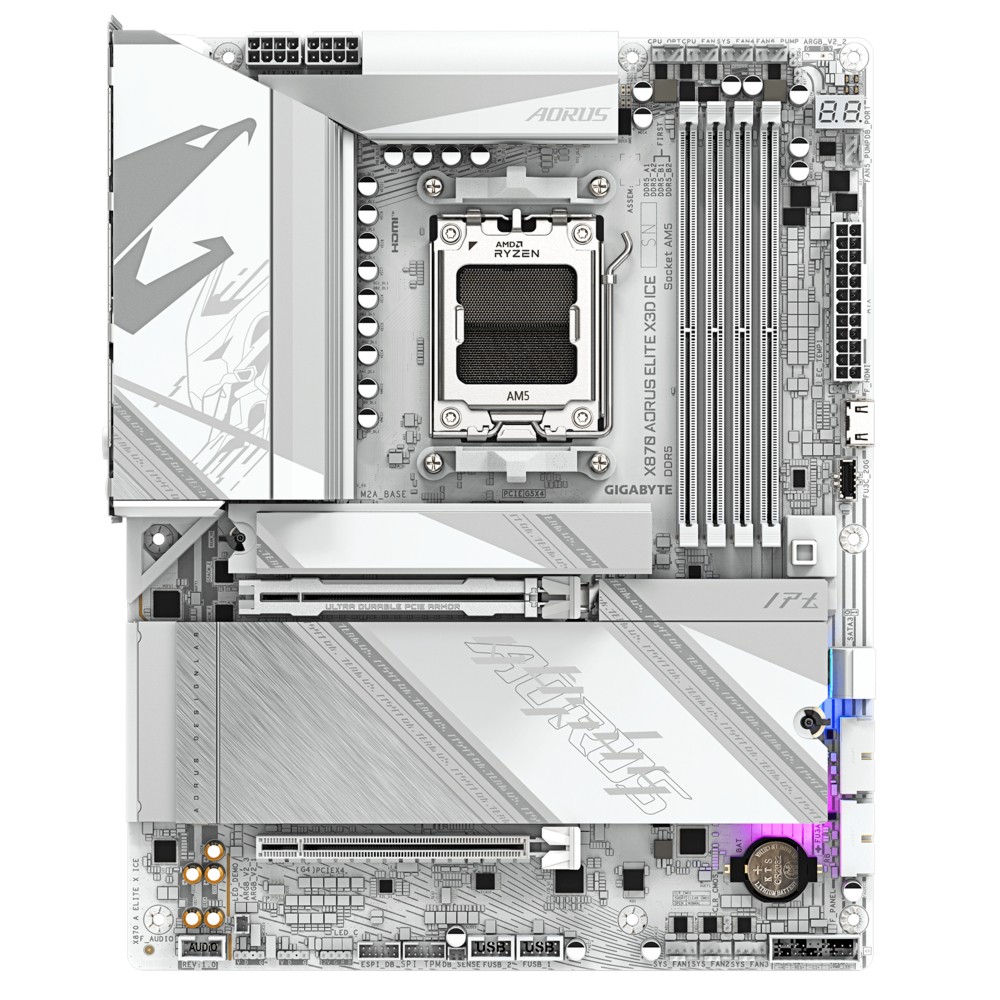

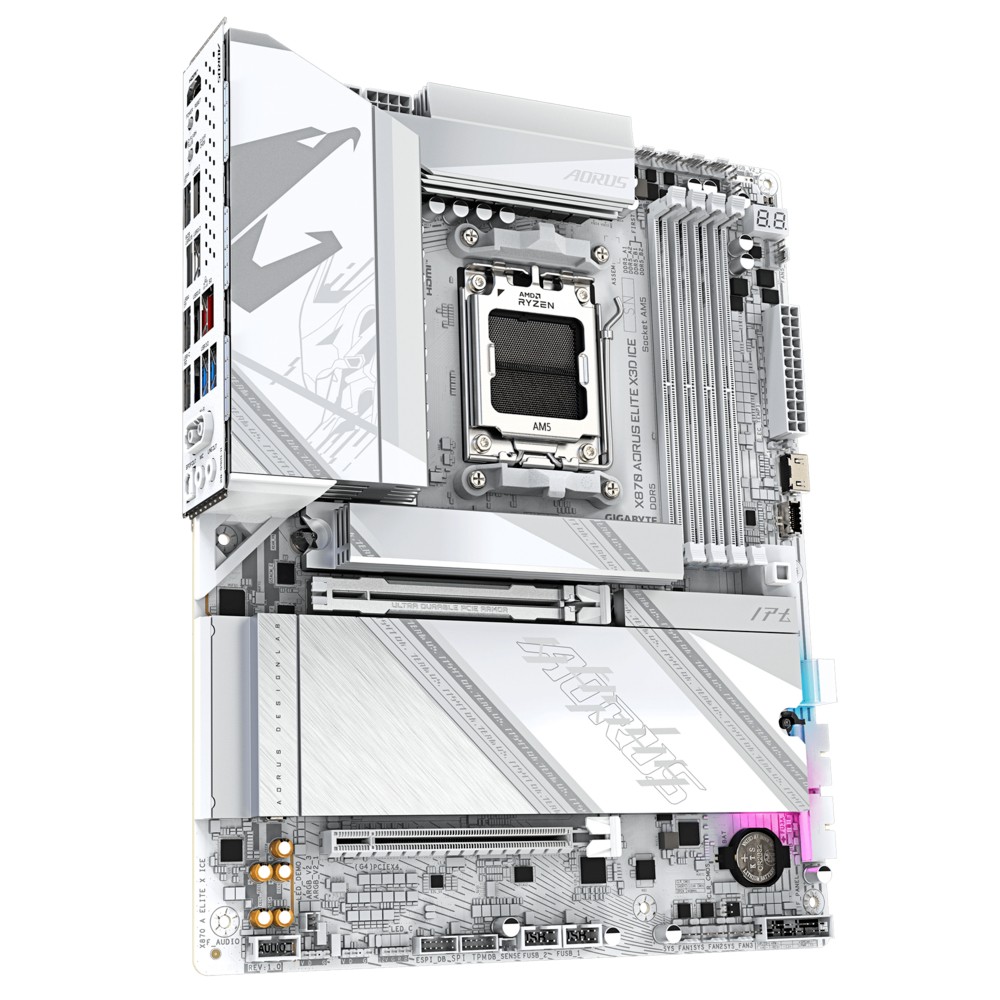

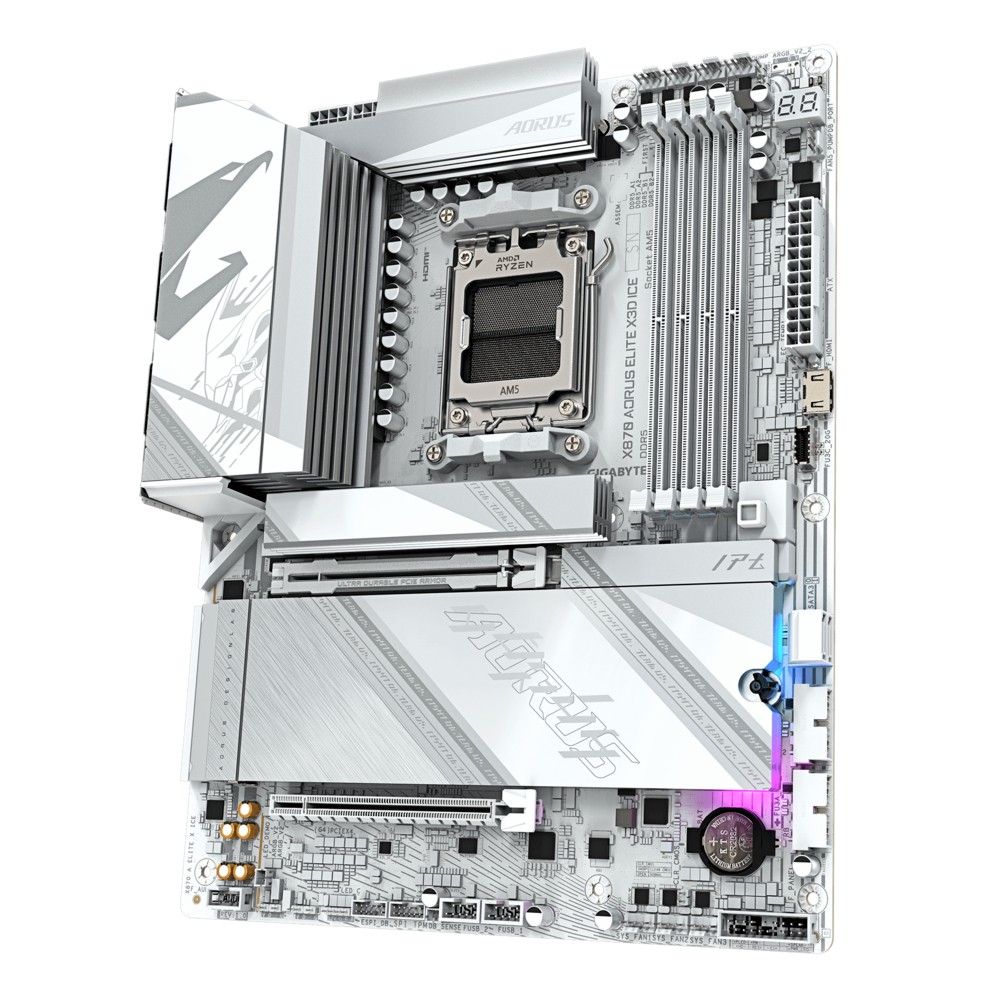

X870 AORUS Elite X3D ICE Motherboard

• Turbo X3D 2.0 Mode: Incredible X3D performance with AI; DDR5 OC up to 9000 MT/s
• DriverBIOS: Pre-installation of Wi-Fi driver, power-on, and easy network setup
• AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 series processors
• Digital Twin VRM Solution: 16+2+2 phase design
• Dual-Channel DDR5 Memory: 4 DIMM slots supporting AMD EXPO memory modules
• M.2 EZ-Flex: High-performance heat dissipation and flexible, patented motherboard design for M.2 SSDs
• Wi-Fi EZ-Plug: Quick and easy Wi-Fi antenna installation
• M.2 EZ-Latch Click & Plus: Fast, screwless installation for M.2 slots and heatsinks
• User-Friendly Interface: Multi-theme UI, AIO fan control, and automatic Q-Flash scanning in BIOS and software
• Ultra-Fast Storage: 4 M.2 slots, including PCIe 5.0 x4
• Efficient Cooling: Advanced VRM Thermal Armor and M.2 Thermal Guard L/Ext.
• High-Speed Networking: 5 GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna
• Expanded Connectivity: HDMI, two USB4 Type-C ports with DP-Alt
• PCIe UD X Slot: PCIe 5.0 x16 slot delivering 10× more power for graphics cards

Description X870 AORUS Elite X3D ICE Motherboard

• Turbo X3D 2.0 Mode: Incredible X3D performance with AI; DDR5 OC up to 9000 MT/s
• DriverBIOS: Pre-installation of Wi-Fi driver, power-on, and easy network setup
• AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 series processors
• Digital Twin VRM Solution: 16+2+2 phase design
• Dual-Channel DDR5 Memory: 4 DIMM slots supporting AMD EXPO memory modules
• M.2 EZ-Flex: High-performance heat dissipation and flexible, patented motherboard design for M.2 SSDs
• Wi-Fi EZ-Plug: Quick and easy Wi-Fi antenna installation
• M.2 EZ-Latch Click & Plus: Fast, screwless installation for M.2 slots and heatsinks
• User-Friendly Interface: Multi-theme UI, AIO fan control, and automatic Q-Flash scanning in BIOS and software
• Ultra-Fast Storage: 4 M.2 slots, including PCIe 5.0 x4
• Efficient Cooling: Advanced VRM Thermal Armor and M.2 Thermal Guard L/Ext.
• High-Speed Networking: 5 GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna
• Expanded Connectivity: HDMI, two USB4 Type-C ports with DP-Alt
• PCIe UD X Slot: PCIe 5.0 x16 slot delivering 10× more power for graphics cards

Model X870 Aorus Elite X3D
22862
17855
637
587
Chipset type AMD X870E
4403
22020
23086
23081
21989
23114
23080
22013
22815
22643
22632
23079
19476
23117
24055
24057
25302
25417
25303
Max memory size 2
20069
22890
Max. number of SATA devices 2
635

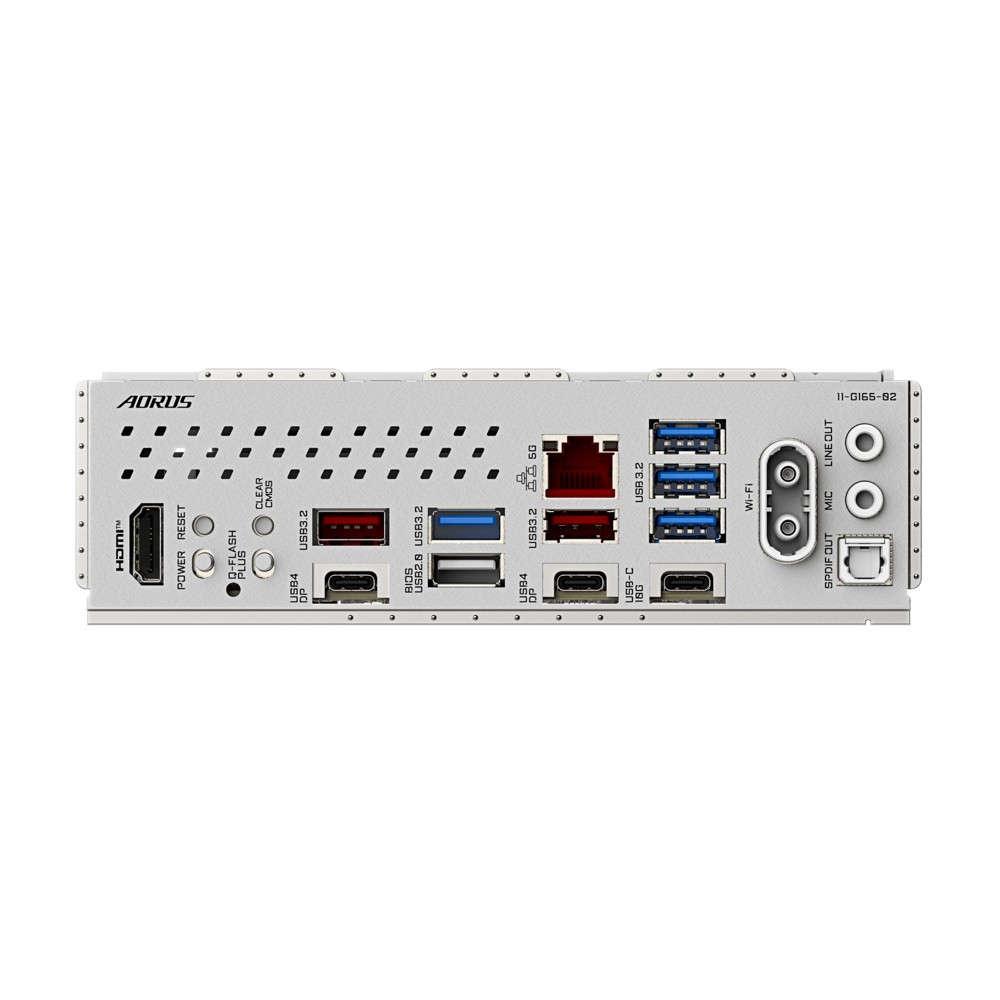

Graphics Integrated Graphics Processor with AMD Radeon Graphics Support + ASMedia USB4 Controller

• 2 × USB4 Type-C ports: Support USB4 video output and DisplayPort, with a maximum resolution of 3840 × 2160 at 240 Hz

Integrated Graphics Processor: Supports AMD Radeon graphics

• 1 × HDMI port: Supports a maximum resolution of 4096 × 2160 at 60 Hz
• 1 × Front HDMI port: Supports a maximum resolution of 1920 × 1080 at 30 Hz

Sound card

• Realtek ALC1220 codec
• High Definition Audio support
• Audio channels: 2/4/5.1/7.1
• S/PDIF Out support

24058
927
Network interface

• Realtek 5GbE LAN chip: 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps
• Qualcomm Wi-Fi 7 QCNCM865
• Supports 802.11a/b/g/n/ac/ax/be, Frequency bands: 2.4 / 5 / 6 GHz
• Bluetooth 5.4

USB ports at back panel 1
USB ports on motherboard 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
646
389
391
5237
20026
7778
24369
7840
5236
5254
5251
11653
5243
5924
5248
25438
25331
7475
23176
12168
7474
20067
7477
7481
7500
19614
25332
7492
7487
15634
7486
7490
23202
Special functions

• Supports GIGABYTE Control Center (GCC)
• Supports Q-Flash
• Supports Q-Flash Plus
• Supports Smart Backup feature

BIOS

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

648
Dimensions 30.5 x 24.4 cm
22012
Software Norton Internet Security (OEM version)
