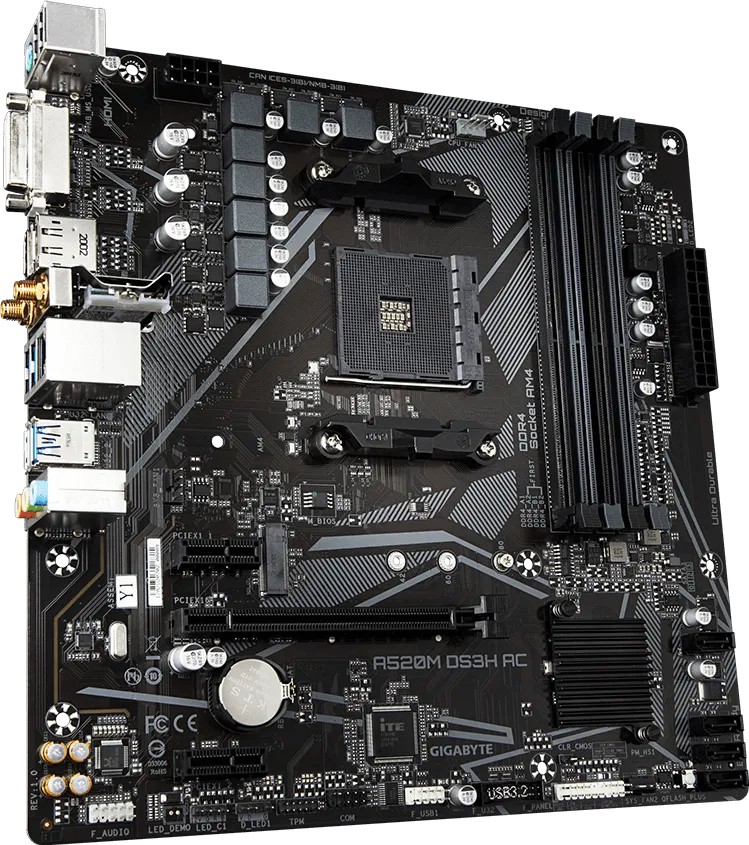

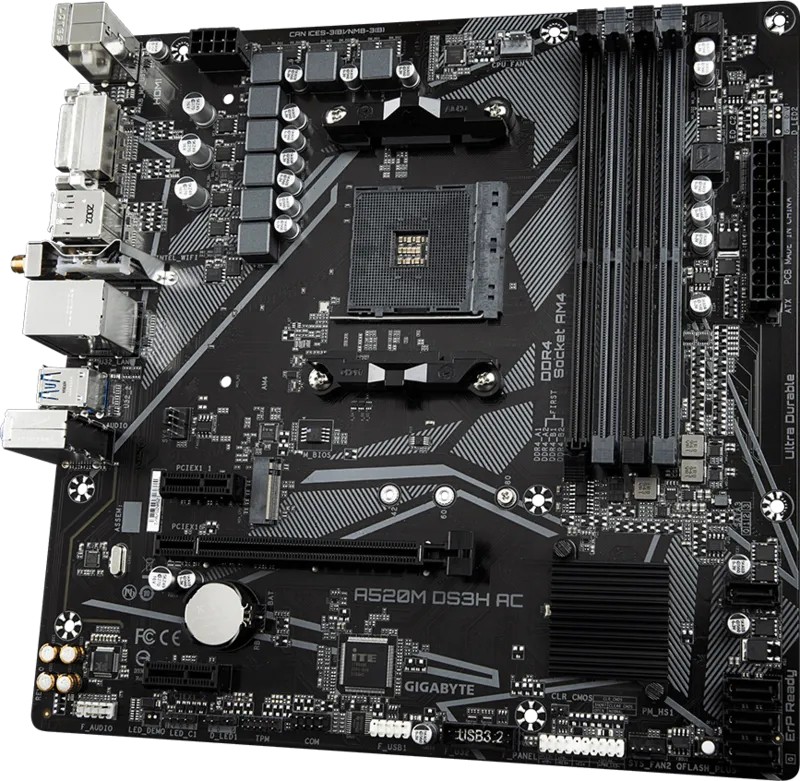

Motherboard A520M DS3H AC AM4 4DDR /HDMI/DVI/DP M.2 mATX

Περιγραφή

AMD A520 Motherboard with Pure Digital VRM, High-Fidelity Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual-Band 802.11ac Wi-Fi, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus

Model: A520M DS3H AC
Chipset type: AMD A520
Max memory size : 1
Max. number of SATA devices : 4
Detailed data on disk/drive interfaces: Expansion connectors  CPU:  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16  Chipset:  2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)  SATA connectors  CPU:  1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)  Chipset:  4 x SATA 6Gb/s connectors  Support for RAID 0, RAID 1, and RAID 10
Graphics: Integrated graphics processor: 1 x DVI-D port, supporting a maximum resolution of 1920×1200 @ 60 Hz * The DVI-D port does not support D-Sub connection via adapter. 1 x DisplayPort, supporting a maximum resolution of 5120×2880 @ 60 Hz * Supports DisplayPort version 1.4, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160 @ 60 Hz * Supports HDMI version 2.1, HDCP 2.3, and HDR. Supports up to 3 displays simultaneously Maximum shared memory: 16 GB
Sound card: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface: LAN Realtek GbE LAN chip (1 Gbps/100 Mbps) Wireless Communication module Intel Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard Intel Wireless-AC 9260 (For PCB rev. 1.1) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ac 160MHz wireless standard AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ac wireless standard

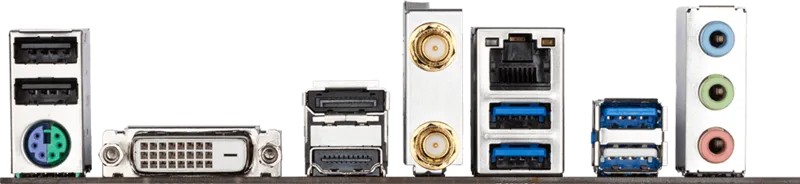

USB ports at back panel: 6
USB ports on motherboard: 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 6
Special functions:     Support for APP Center     @BIOS     EasyTune     RGB Fusion     Smart Backup     System Information Viewer     Support for Q-Flash Plus     Support for Q-Flash
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Dimensions: 24.4 cm x 24.4 cm
Software: Norton Internet Security (OEM version) LAN bandwidth management software
